Sherman Island: 2008-01-08 11:30:00 (DOY 8)
Author: Matteo Detto
Others: Ben & Kate

Summary: Downloaded data at Sherman Island; downloaded data from laser and calibrate.

Sherman Island - Methane Study

Date jan 8 2008

Day 8

Standard Time in: 11:30 Out: 2:00

Who: MD, Ben & Kate

Weather: clear sky, light wind

Phenology: dead weed , few patches of short grass

Tasks

  1. check and download data at Sherman Island
  2. download data from laser and calibrate

Check list

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: 11.6
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)
Time Path/File D:\Data\SI07 .raw mean std mean std w -0.25 Ts 11.84 u -0.21 H2O 1.8526 v -0.66 CO2 1.784 CH4 2.6
  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

2.55

Cell Pressure – near 159

97.88, after replacing the 2micron 135.5

Cell Temperature

17.33

Mirror time

16.50

Sample rate

10 Hz

Methane low flow put back in high flow !

Pump status

Filter Status

Water traps

2 cm of water in the first

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

Water table depth (from the top of the well) 2.91

USB-COM CR10X > PC, it’s not working, a lot of ants around it

Remember next time to:

2 photos found

Birds in the sky and water on the field
Birds in the sky and water on the field

Puddles on the field
Puddles on the field

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

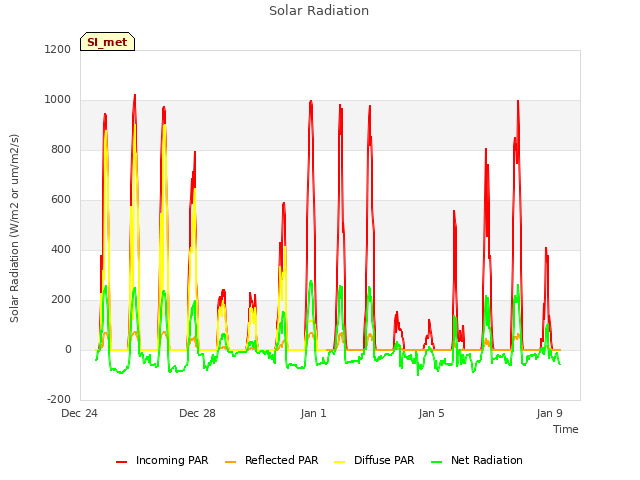

Explore the graph:Solar Radiation in a new window

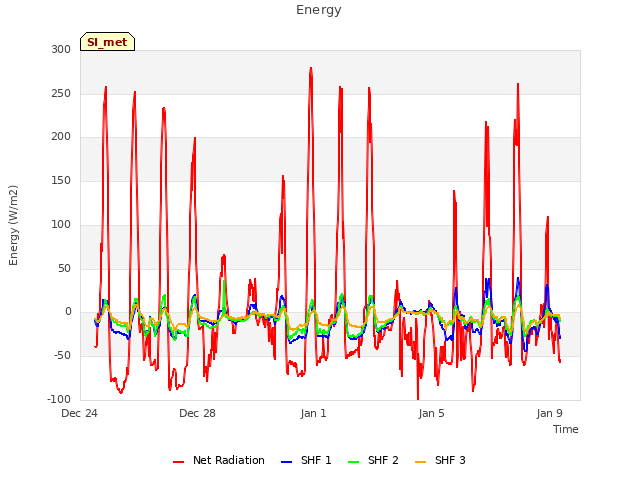

Explore the graph:Energy in a new window

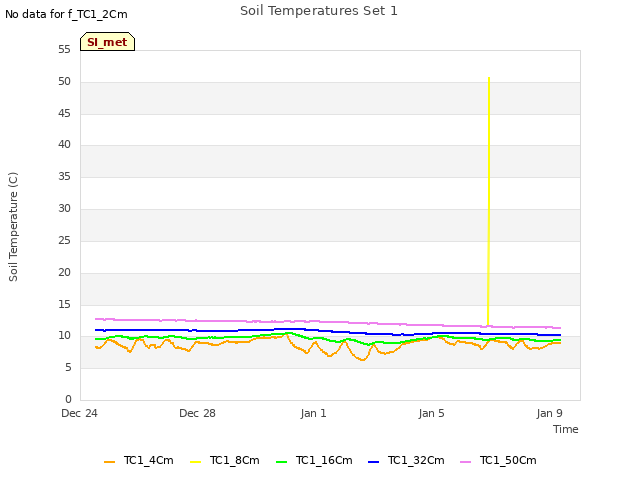

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

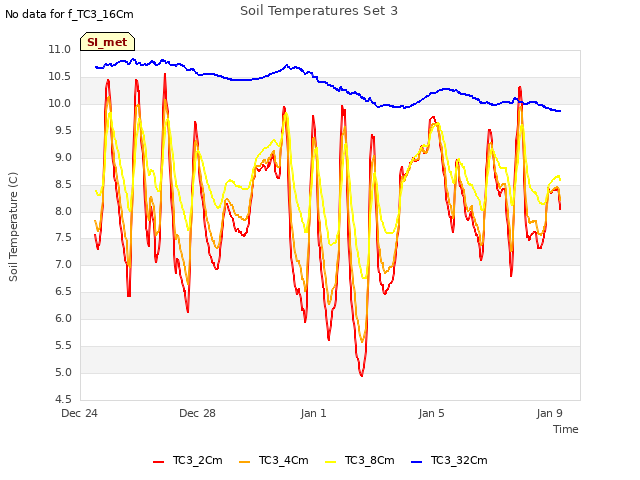

Explore the graph:Soil Temperatures Set 3 in a new window

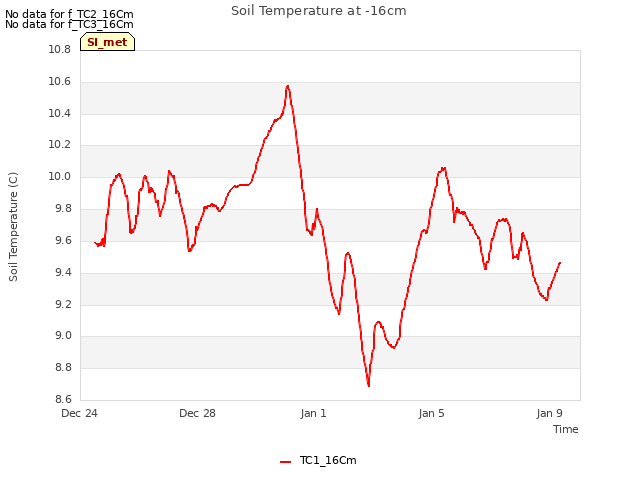

Explore the graph:Soil Temperature at -16cm in a new window

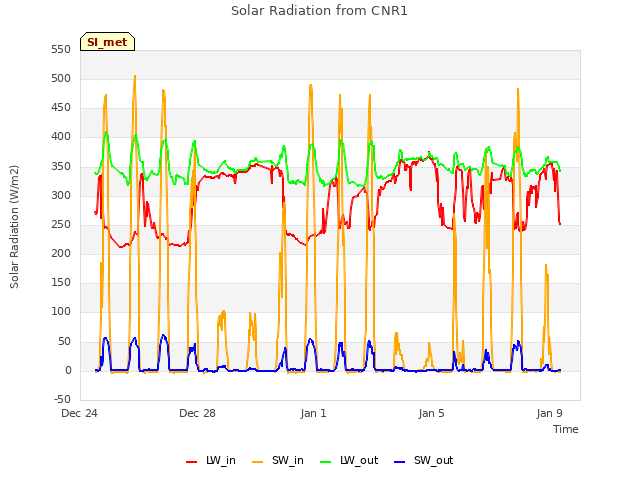

Explore the graph:Solar Radiation from CNR1 in a new window

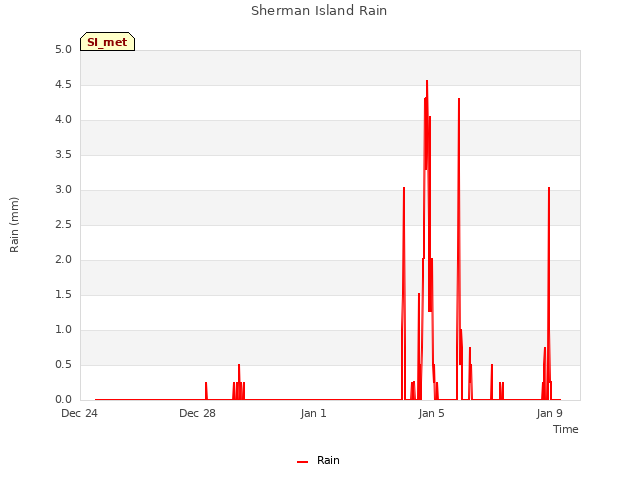

Explore the graph:Sherman Island Rain in a new window

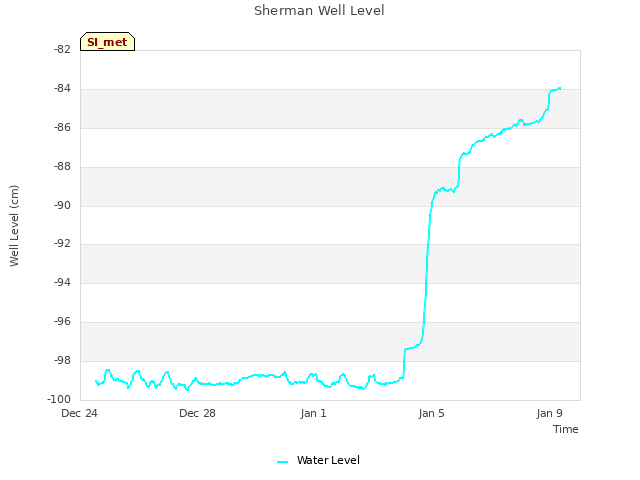

Explore the graph:Sherman Well Level in a new window

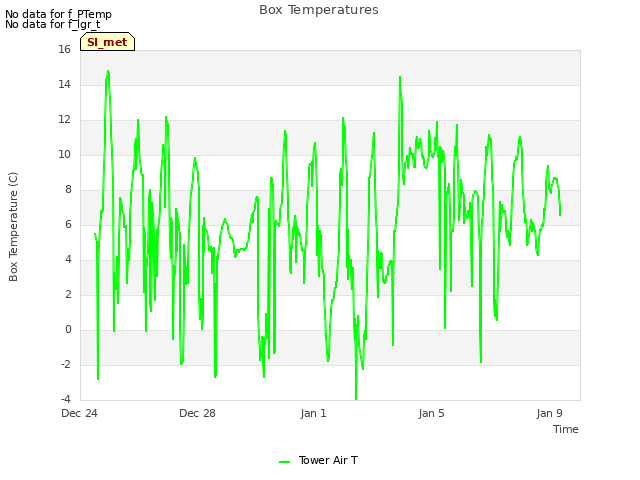

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

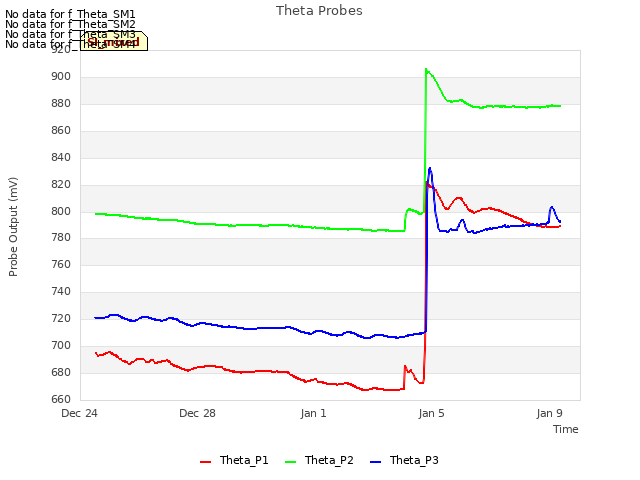

Explore the graph:Theta Probes in a new window

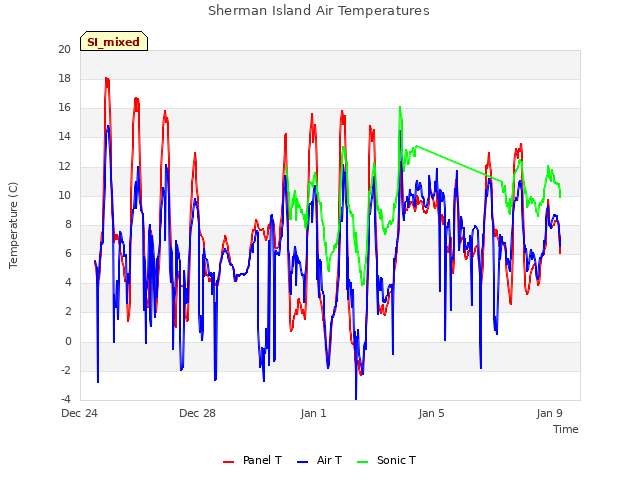

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

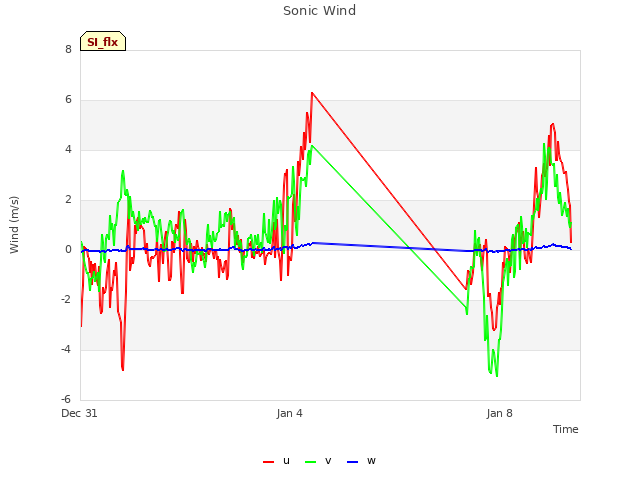

Explore the graph:Sonic Wind in a new window

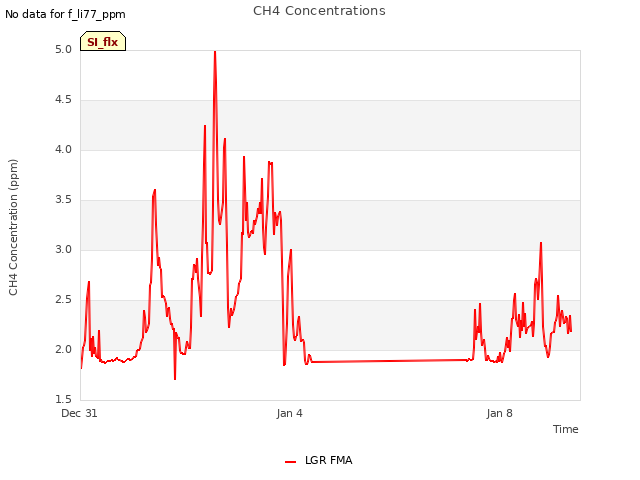

Explore the graph:CH4 Concentrations in a new window

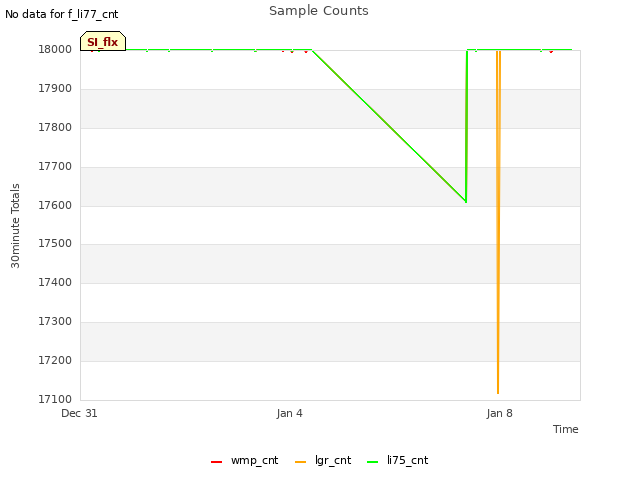

Explore the graph:Sample Counts in a new window

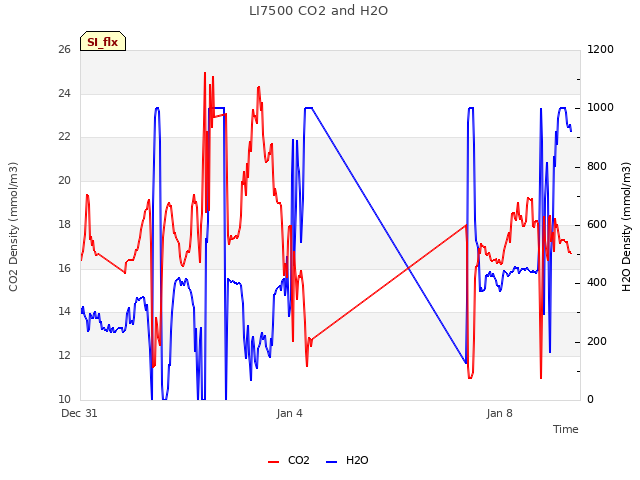

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
