Sherman Island: 2008-01-07 02:20:00 (DOY 7)
Author: Dennis Baldocchi
Others:

Summary: Downloaded data at Sherman Island; downloaded data from laser to calibrate.

Sherman Island - Methane Study

Date Jan 7 2008

Day 7

Standard Time in: 2:20 Out:

Who: Ben & DB

Weather: clear and windy, very wet

Phenology: weed almost dead, few patches of green grass

Tasks

  1. check and download data at Sherman Island
  2. download data from laser and calibrate

Check list

  1. Fence and gate power: Ok
  2. Datalogger Solar Panel and Batteries:
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)
Time Path/File D:\Data\SI07 .raw mean std mean std w -0.6 Ts 12.32 u 3.16 H2O 1.96 v 2.56 CO2 1.43 CH4 1.91
  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

2.3

Cell Pressure – near 159

105.47

Cell Temperature

21.7

Mirror time

16.55

Sample rate

10 Hz

Methane low flow put back in high flow !

Pump status

Filter Status

Water traps

NO POWER

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

Water table 3.1

Remember next time to:

2 photos found

Birds in the sky and water on the field
Birds in the sky and water on the field

Puddles on the field
Puddles on the field

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

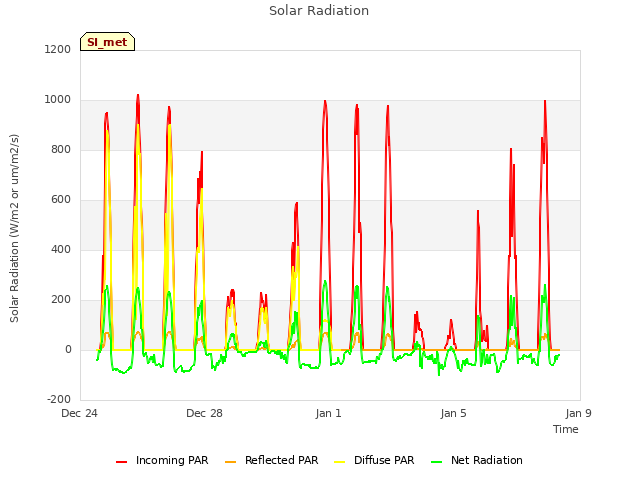

Explore the graph:Solar Radiation in a new window

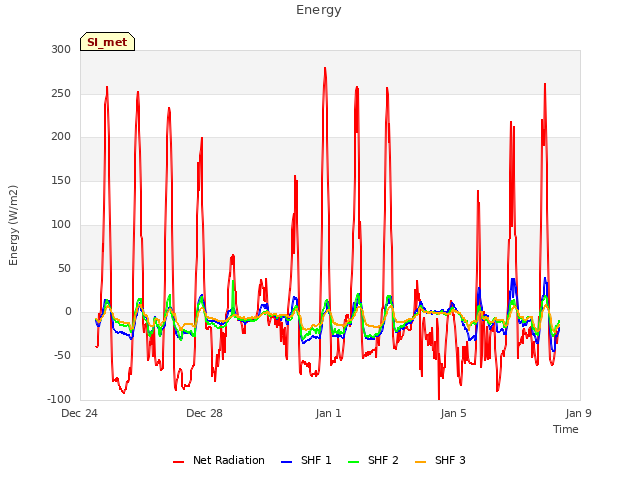

Explore the graph:Energy in a new window

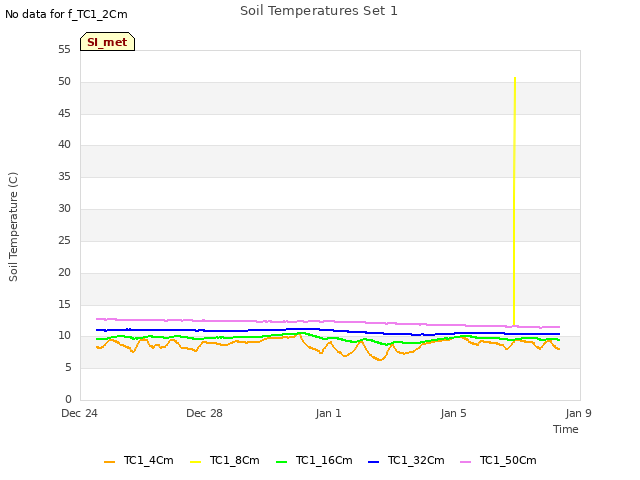

Explore the graph:Soil Temperatures Set 1 in a new window

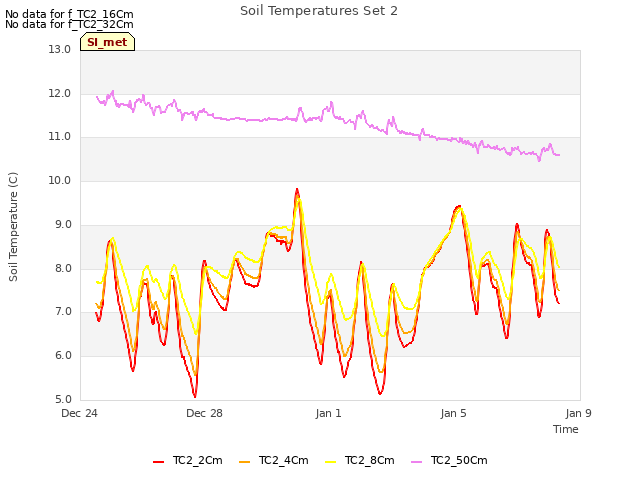

Explore the graph:Soil Temperatures Set 2 in a new window

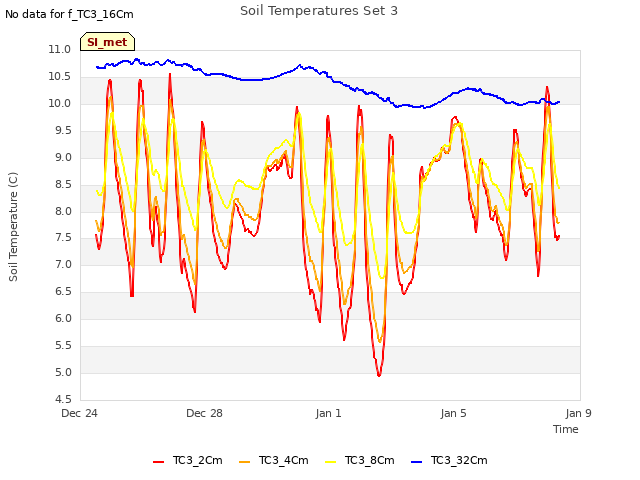

Explore the graph:Soil Temperatures Set 3 in a new window

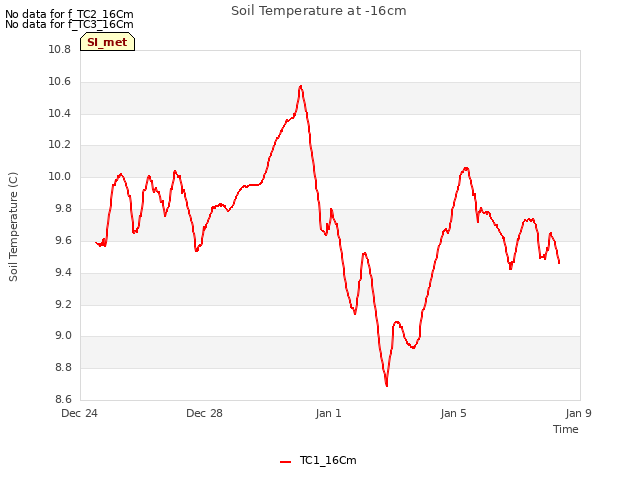

Explore the graph:Soil Temperature at -16cm in a new window

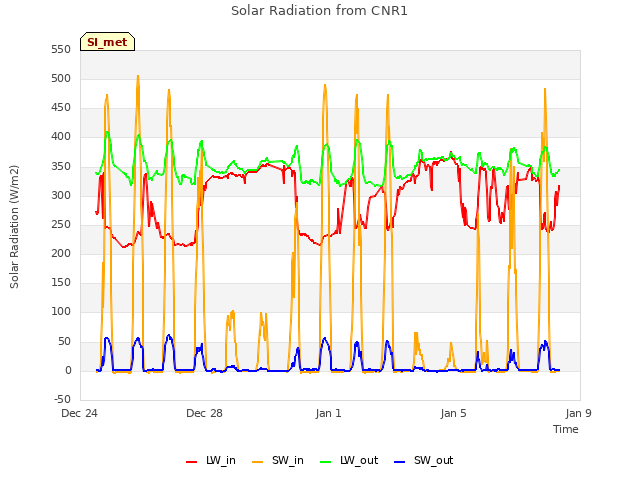

Explore the graph:Solar Radiation from CNR1 in a new window

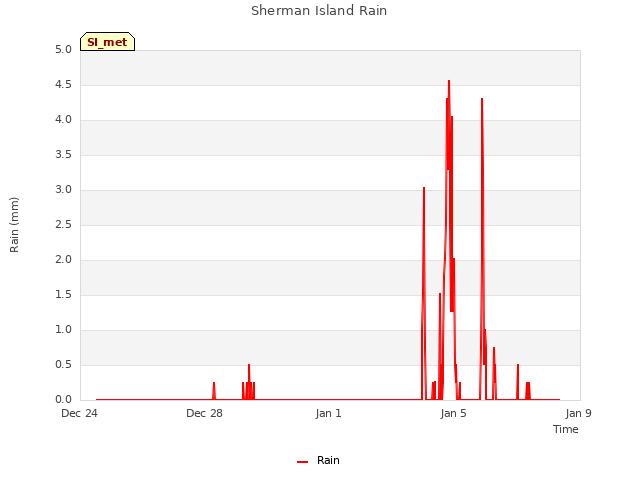

Explore the graph:Sherman Island Rain in a new window

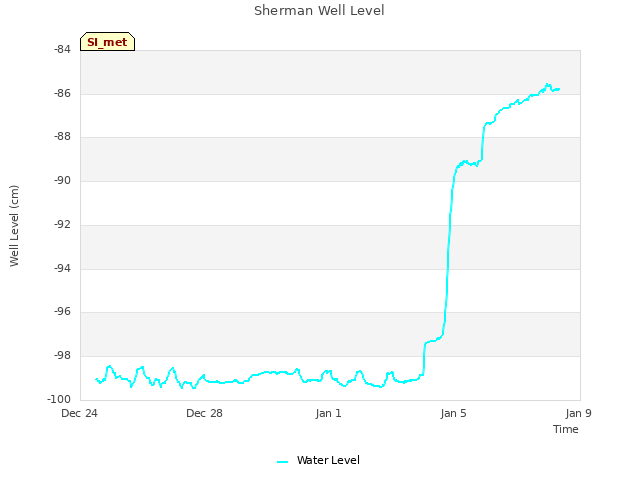

Explore the graph:Sherman Well Level in a new window

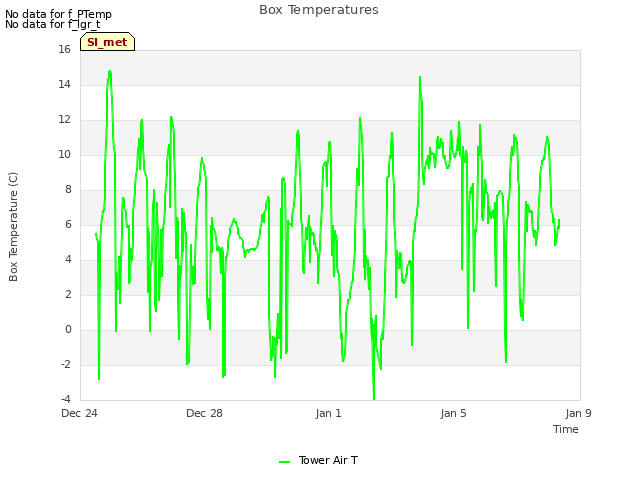

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

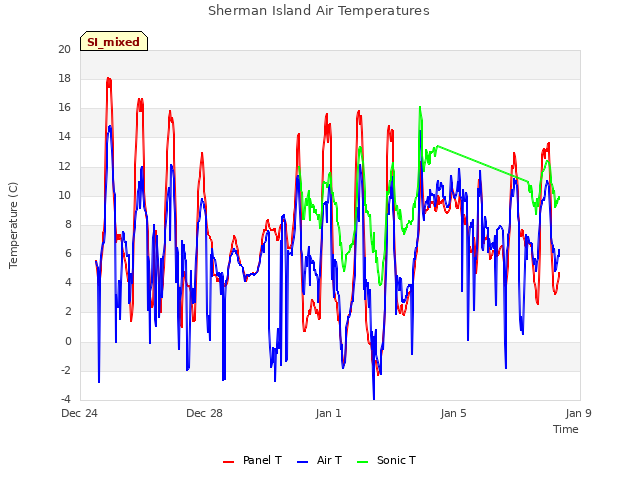

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

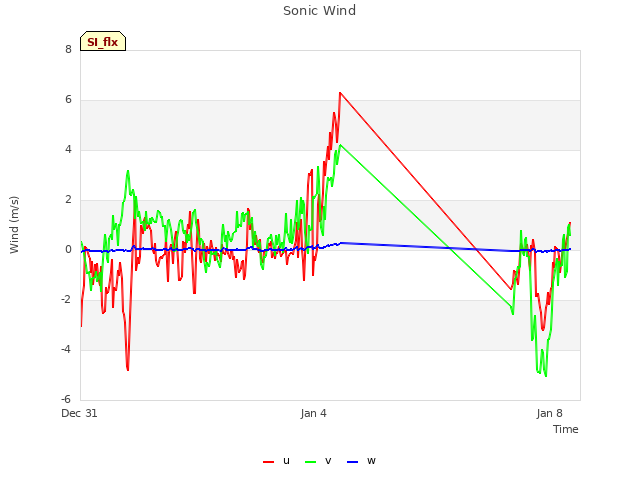

Explore the graph:Sonic Wind in a new window

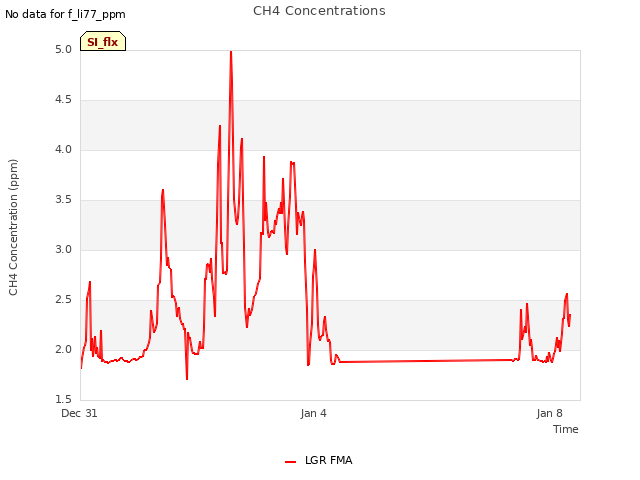

Explore the graph:CH4 Concentrations in a new window

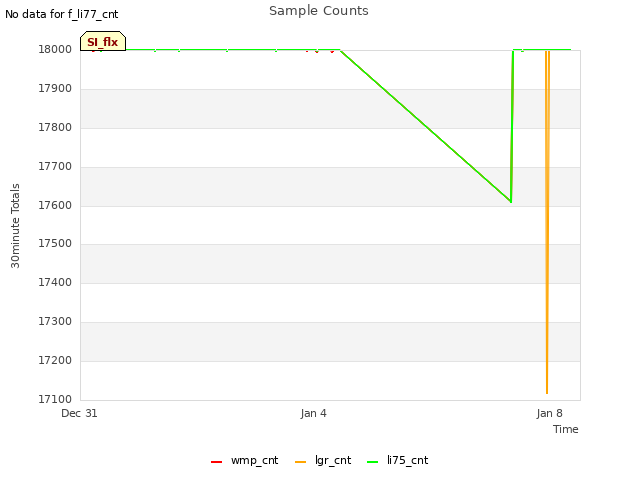

Explore the graph:Sample Counts in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
