Sherman Island: 2007-05-01 00:00:00 (DOY 121)
Author: Ted Hehn
Others:

Summary: General site visit

When: Tue, 1May07 JD-121 Sherman Island
Where: Sherman Island
Who: Ted Hehn
Weather Clear and warm


Trip Purpose General

Methane site:
1May07
Data logger failure due to insufficient power from 5 watt panel
Remove charge regulator and 12 Ahr battery and install Power Source U1-35 battery distributed by Lynn Vick Products 12V, 35 Ahr

Remove Theta Soil Moisture probes from 12V port and connect to switched 12V port and connect port 6 to SW 12V Ctrl

Edit logger program accordingly.

3—4 inches of water are present in water trap. No evidence of water from trap to laser – good.

Misc Notes
Design and build cylinder rack

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

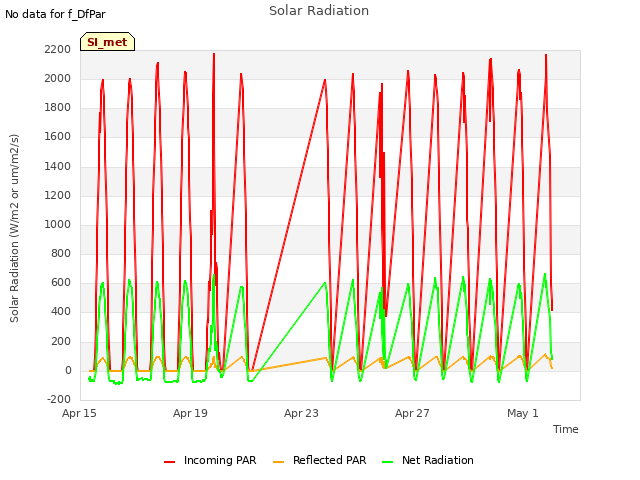

Explore the graph:Solar Radiation in a new window

Explore the graph:Energy in a new window

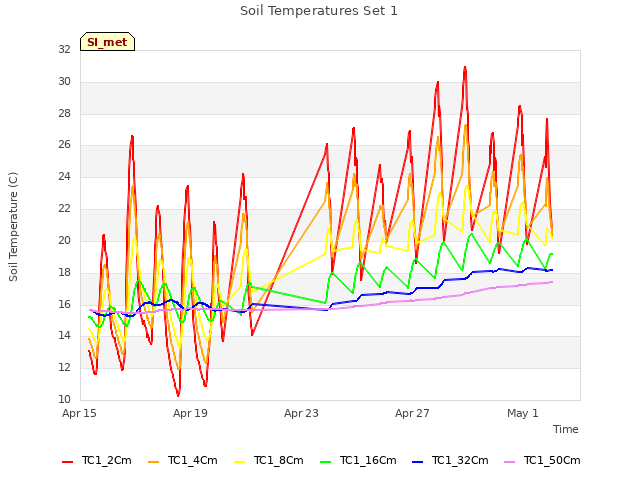

Explore the graph:Soil Temperatures Set 1 in a new window

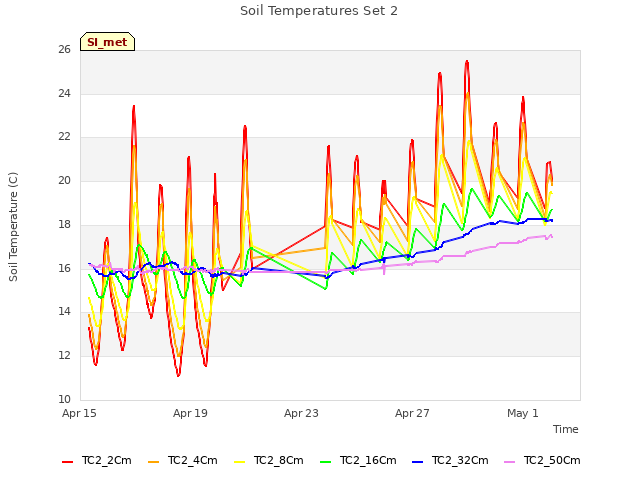

Explore the graph:Soil Temperatures Set 2 in a new window

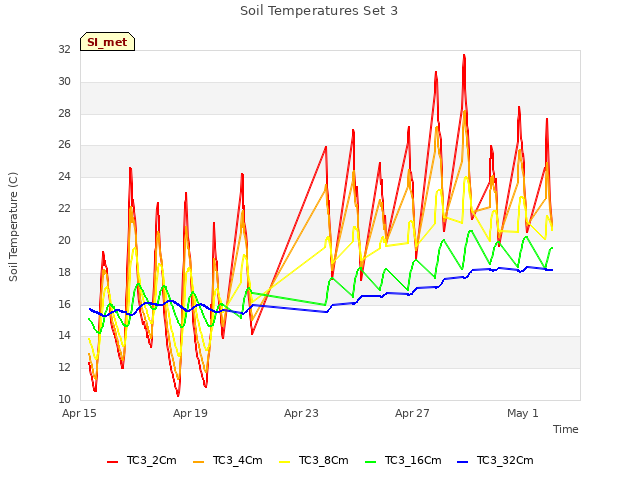

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

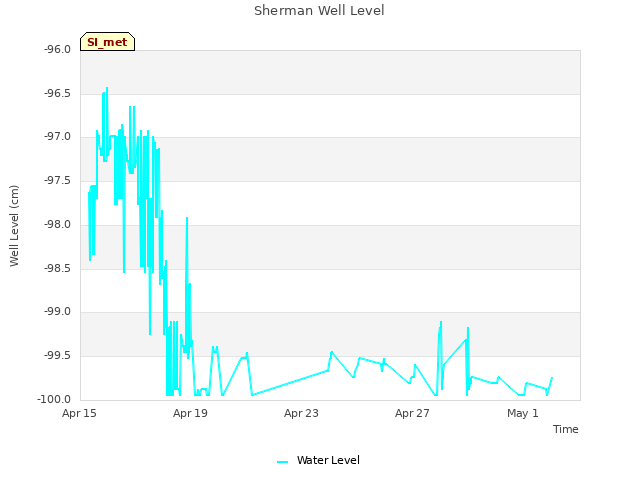

Explore the graph:Sherman Well Level in a new window

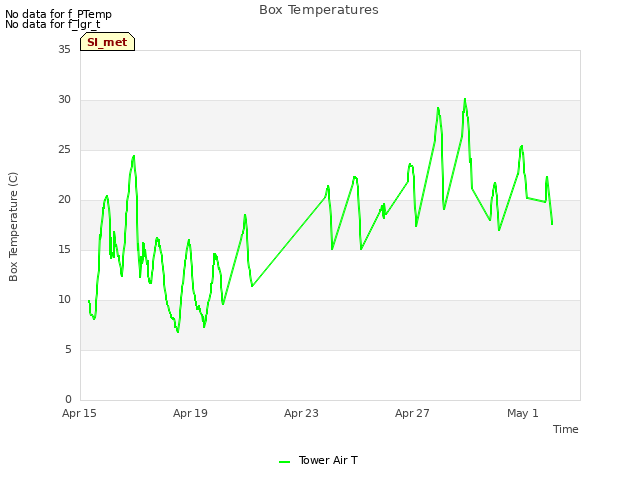

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

Explore the graph:Sonic Wind in a new window

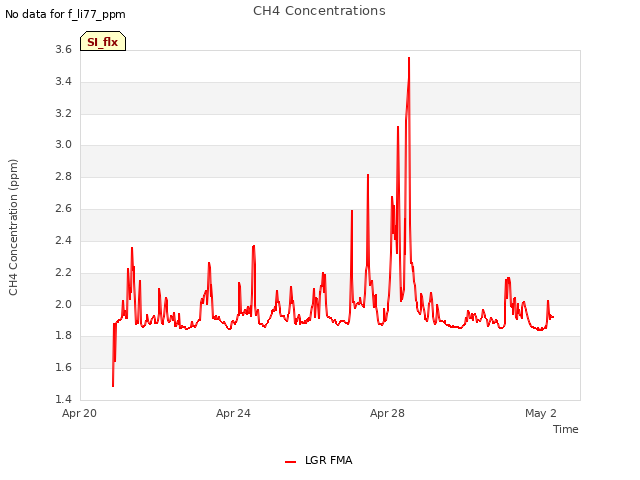

Explore the graph:CH4 Concentrations in a new window

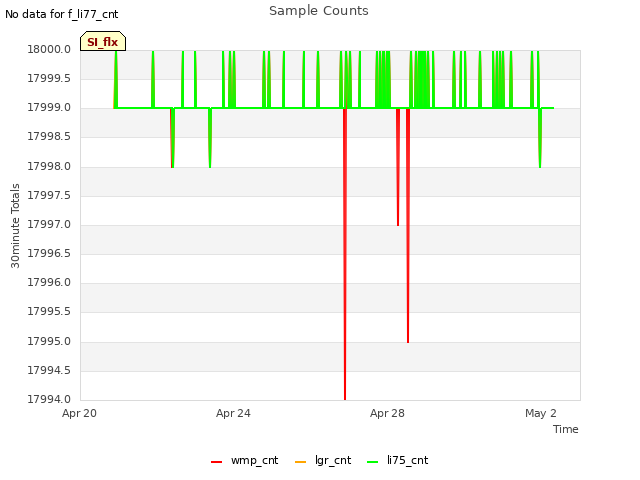

Explore the graph:Sample Counts in a new window

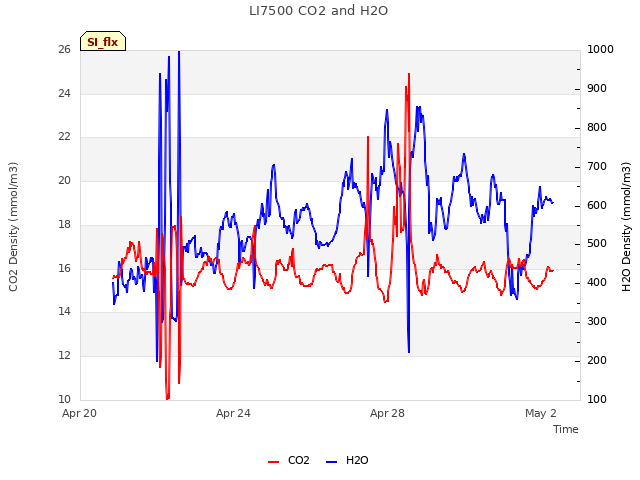

Explore the graph:LI7500 CO2 and H2O in a new window
