Tonzi: 2009-10-02 10:30:00 (DOY 275)
Author: Joe Verfaillie
Others: Siyan, Dennis

Summary: Installed Tram, Installed CNR1 for check, updated zcam 1 and 2.

Tonzi
10-2-2009

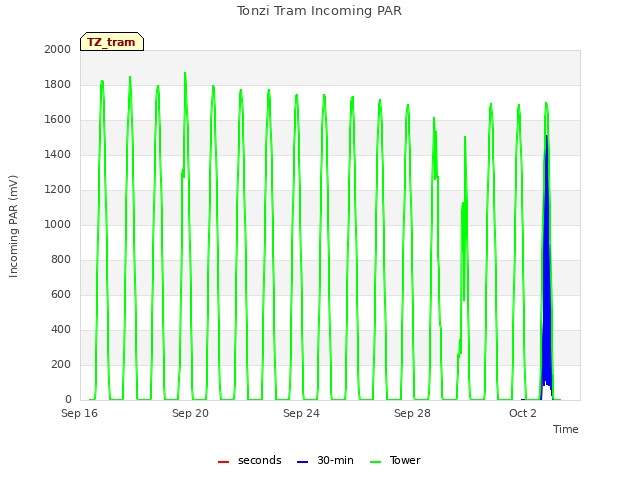

Installed tram – seems to be working

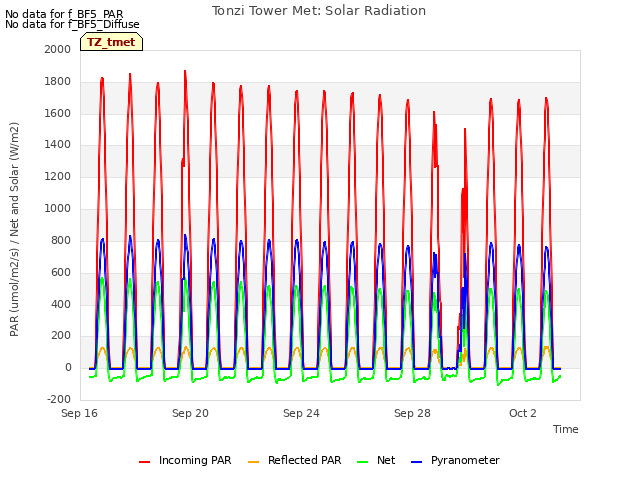

Installed CNR1 at top of tower for calibration of radiation sensors. Data is being recorded by CR23x inside enclosure with small battery for power.

I updated zcam 1 and 2 to use new power on auto shoot script. I could not change the CR10X program because the CR10X did not connect on CS cable, but it should work the same. I disconnected the controls to the USB port shutter release. Both pairs of SD cards were reconfigured with the autoshoot script and disabled the USB remote section. The camera over near the old tram line was still having problems. I think it was power related. I doubled up the 12VDC power supply lines and it seemed to work better.

Cards on all zcams swapped.

I collected the data from CR10X running the two IRT sensors.

Field Data

No tank data

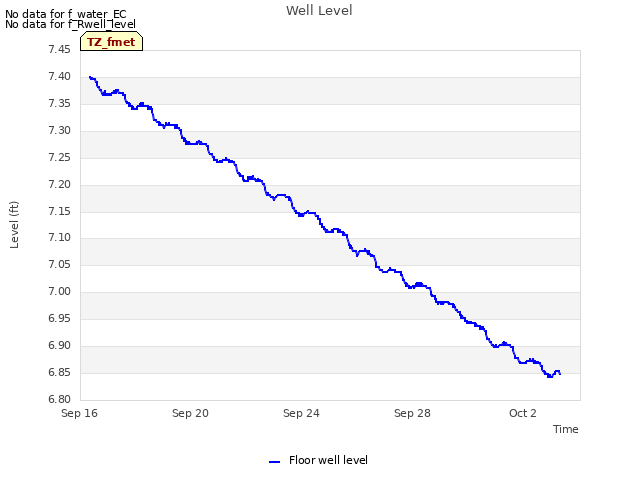

Well Depth
