Tonzi: 2014-11-13 09:30:00 (DOY 317)
Author: Siyan Ma
Others:

Summary: Standard fieldwork, rain last night and a little this morning, Tower fence broken, did not collect z-cam images

When: Date: 11/13/2014 , Day: 317 , Watch Time: 9:30 am . Where: Tonzi/Vaira Ranch Who: Siyan Weather: cloudy, dripping a little Phenology: grasses germinated; oak leaves still green at Vaira; a lot of cows at both sites Summary Swapped memory cards of CR1000s at three sites. Everything worked well. Checked and downloaded winflux and met data from PC at Tower and Floor. Download photos from PC at Tonzi and Vaira. The CO2 profile system worked properly. I calibrated at the site. Checked the soil CO2 probes at Tonzi and Vaira. Read dendrometers Measured soil moisture Measure groundwater well Vaira_Grass Site Cows were around the fence. Downloaded Phenocam images. Swapped the memory cards of CR1000. Checked the fans of air temp and relative humidity sensors at Vaira. YES! Downloaded met and soil CO2 profile data: Checked levels of Radiation sensors, clear up surfaces.YES! Checked rain gage, make sure not clogged. YES! Closed the gate. YES! Tonzi_Tower Site Fence was broken. The wire need replace. downloaded Winflux data from PC. YES! swapped the memory cards of CR1000. download Phenocam images. Yes! checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES! Checked rain gage, make sure not clogged. YES! Downloaded met data from PC Checked CO2 profile: Is the pump running‌ YES! Before span After span 9. The fence need new wires. Toniz_Floor Site Fence was not broken when I got there. Yellow parts were pulled out the poles; one of the wires connected to the battery was broken. I reconnected it and fixed the yellow parts. downloaded Winflux data from PC. YES! Swapped the memory cards of CR1000. downloaded met data from PC. YES! CR23X3 – floor-Met CR23X6 – tower-Met CR10X2 – floor-Met Soil CO2 profile: CR23X5 – soil CO2 profile 5. Closed gate and set up fence. YES!

Field Data

CO2 Profile Tanks

Date	Tank	Pressure (psi)	ppm
2014-11-13	CO2	600	402.68
2014-11-13	N2	1500	0

Well Depth

Date	Location	Depth (feet)
2014-11-13	TZ_floor	32.7
2014-11-13	TZ_road	40
2014-11-13	TZ_tower	36.6

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Floor_South_4 [37] => Floor_East_4 [38] => Soil_Transect_4_4 [39] => Soil_Transect_3_4 [40] => Soil_Transect_2_4 [41] => Soil_Transect_1_4 [42] => SoilCO2_West_A_4 [43] => SoilCO2_West_B_4 [44] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Floor_South_4	Floor_East_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2014-11-13	317	0	nan	13	4.2	11.1	11.1	11.1	9.1	15.3	10.3	8.3	15.6	17.3	10.3	7.8	6.3	21.3	9	13	12.7	18.5	13.9	4.2	14.5	5.7	14.8	15.6	6.7	20.8	11.7	5	8.7	13.4	15.6	12	14.5	17.3	12	9.9	7.6	10.2	16.2	15.3	10.5	15	8.5	14.8
2014-11-13	317	1	nan	10.9			11.1									8.4			7.5									15.6			12.3
2014-11-13	317	Avg	0-15cm																																															0
2014-11-13	317	Avg	15-30cm																																															0
2014-11-13	317	Avg	30-45cm																																															0
2014-11-13	317	Avg	45-60cm																																															0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2014-11-13	317	0	nan	13	12.4	10.3	4.7	11.8	11.5	8.1	9	13.4	5.6	8.7	12.3	24.2	9.6	8.7	14.2
2014-11-13	317	1	nan			9.7	4.5			7.8	9.3			9.2	12			8.5	14.2
2014-11-13	317	Avg	0-15cm																		0
2014-11-13	317	Avg	15-30cm																		0
2014-11-13	317	Avg	30-45cm																		0
2014-11-13	317	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2014-11-13	1	10.0
2014-11-13	102	7.8
2014-11-13	2	11.1
2014-11-13	245	18.5
2014-11-13	3	9.7
2014-11-13	4	8.5
2014-11-13	5	11.4
2014-11-13	7	9.0
2014-11-13	72	18.5
2014-11-13	79	13.1
2014-11-13	8	12.5

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

1 photos found

Fog

Graphs display: days

16 sets found

No data found for TZ_Fenergy.

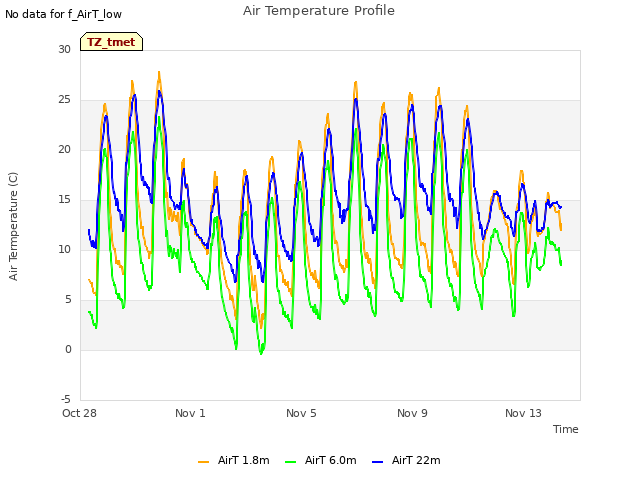

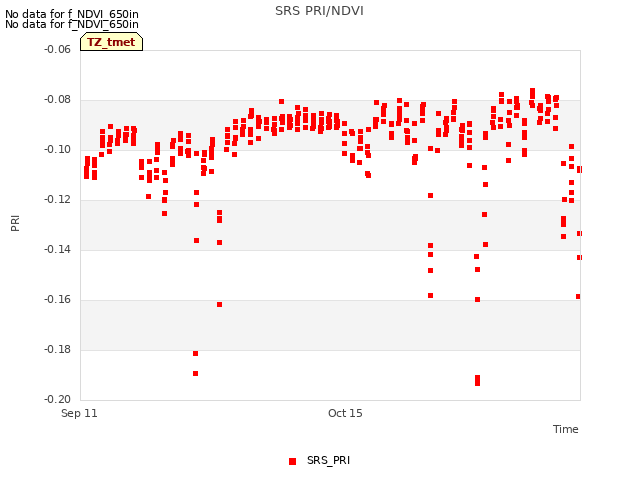

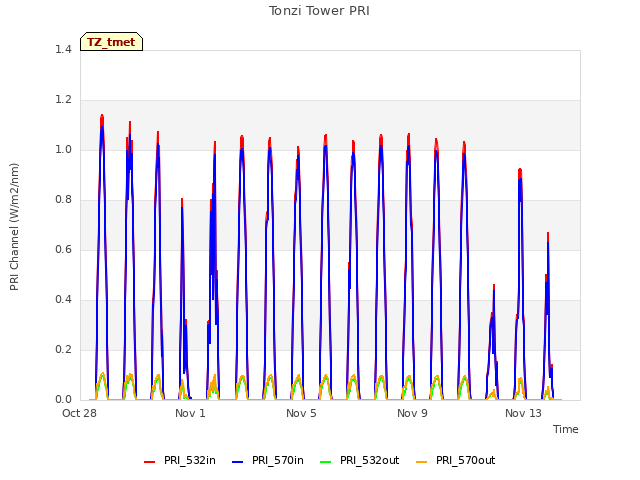

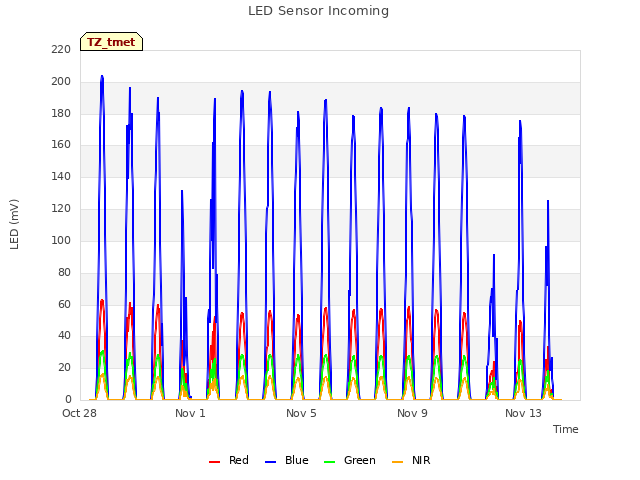

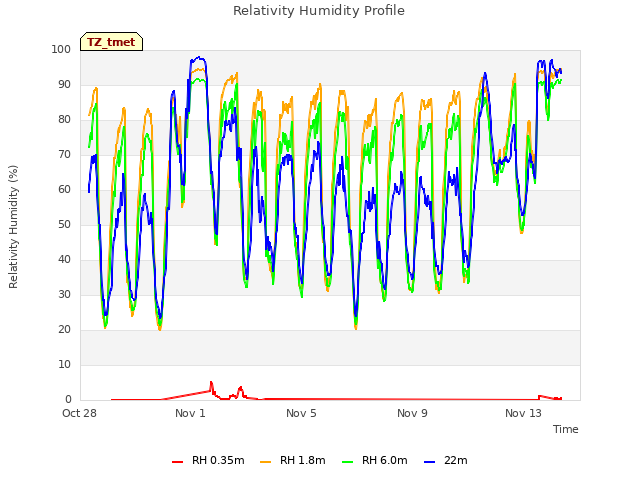

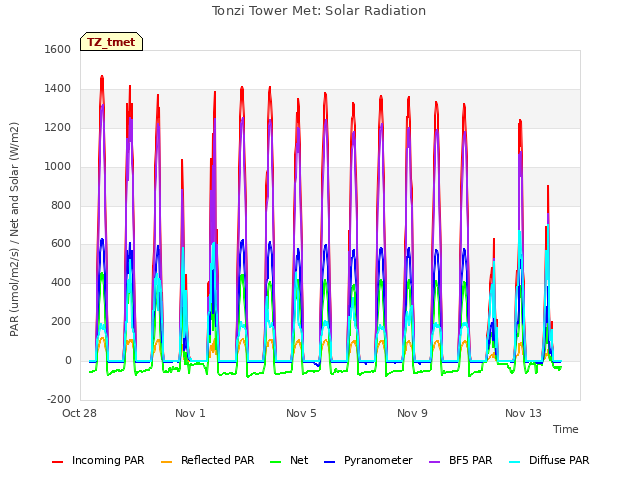

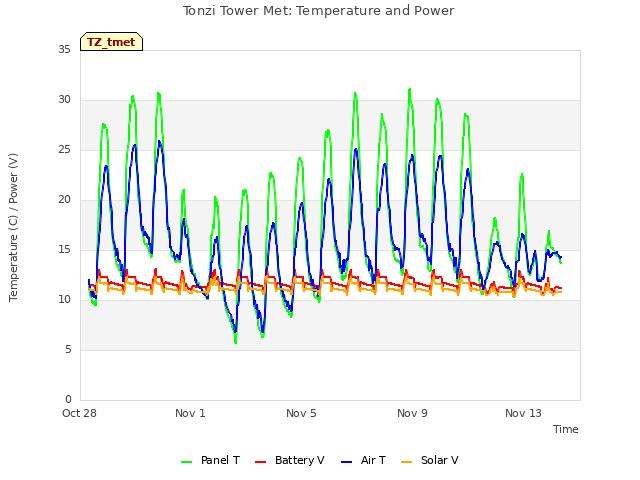

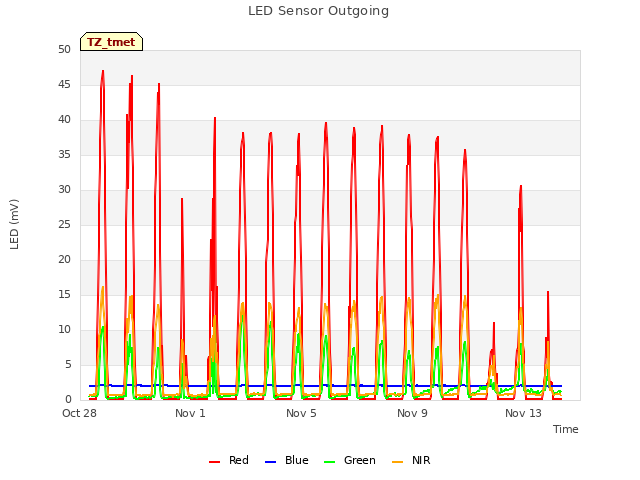

11 TZ_tmet graphs found

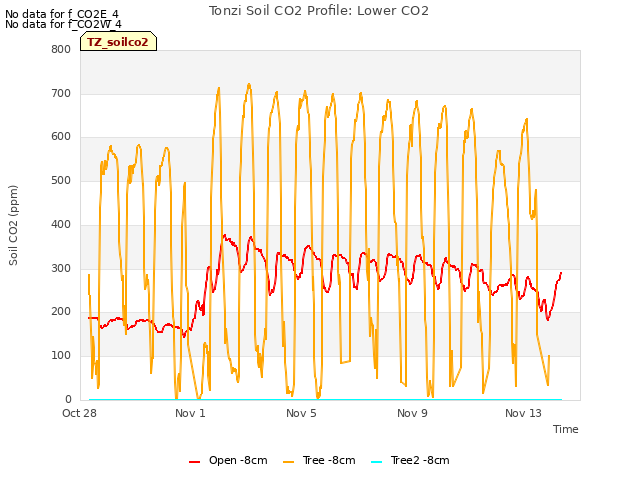

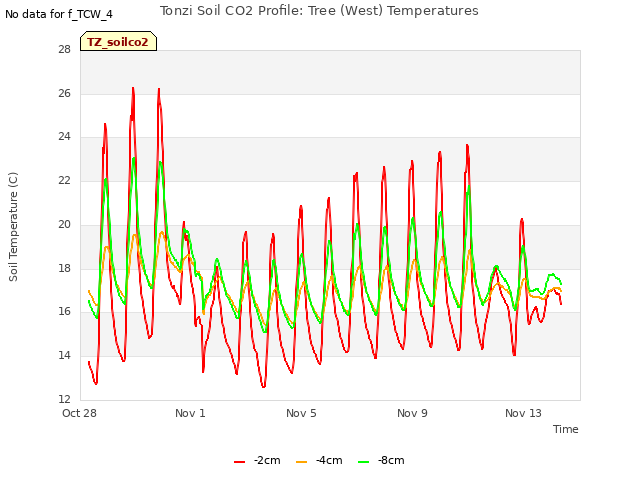

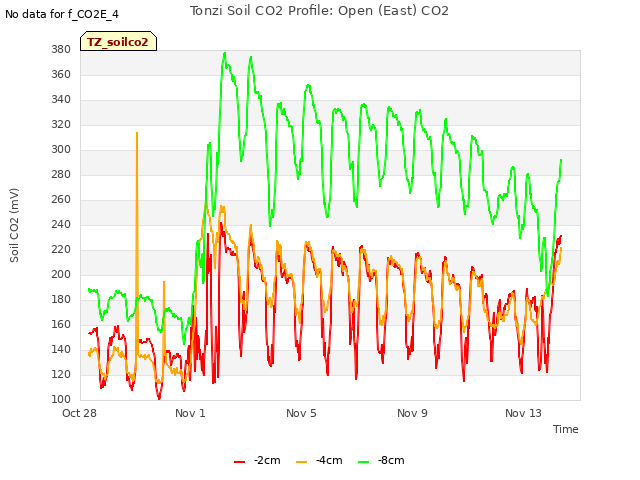

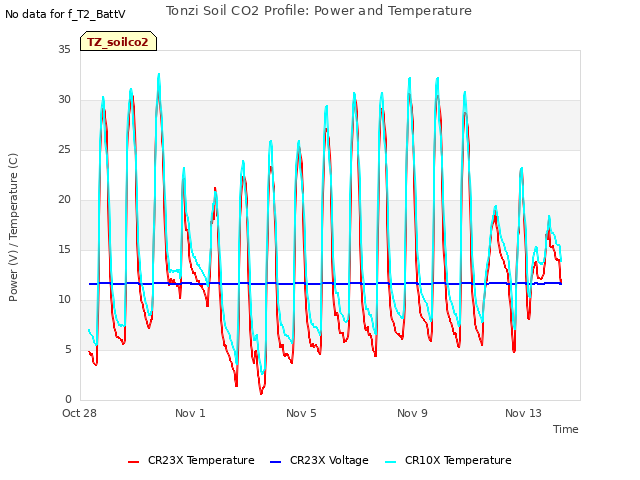

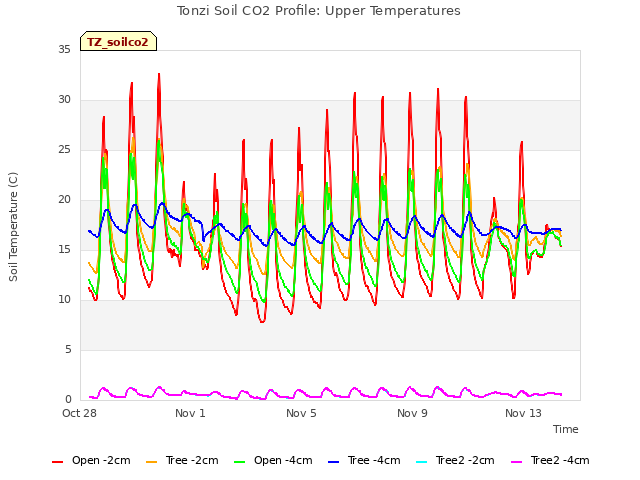

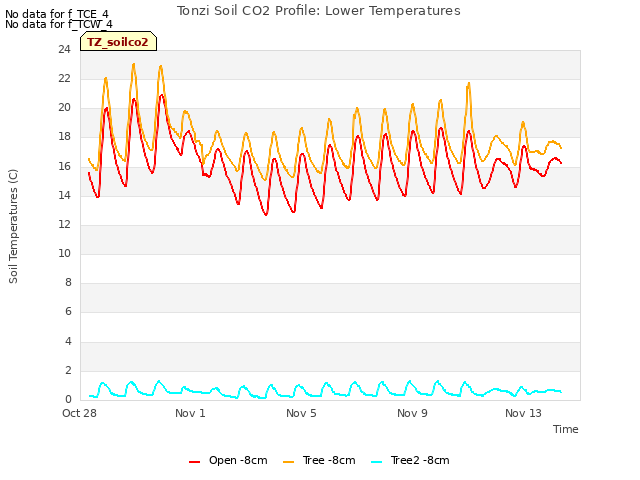

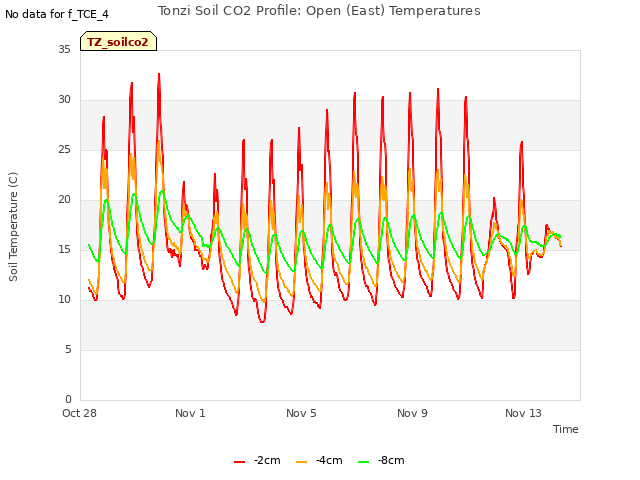

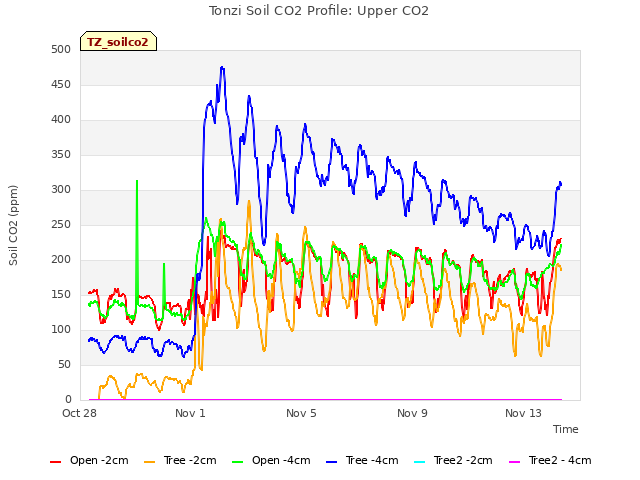

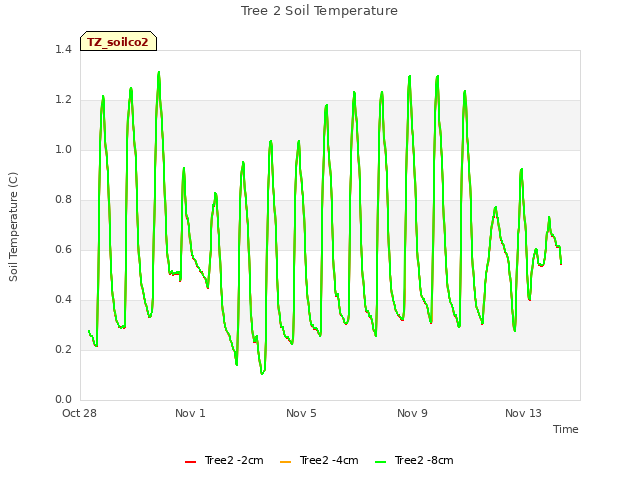

11 TZ_soilco2 graphs found

Can't check TZ_mixed

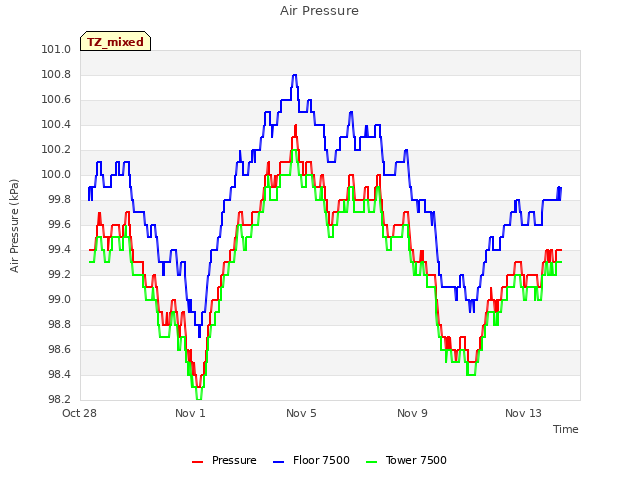

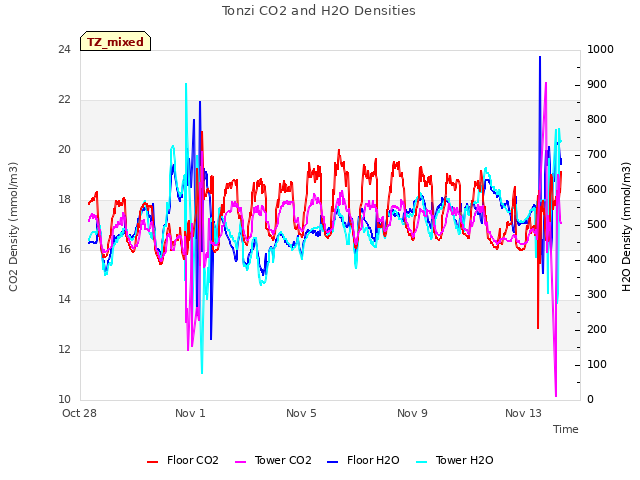

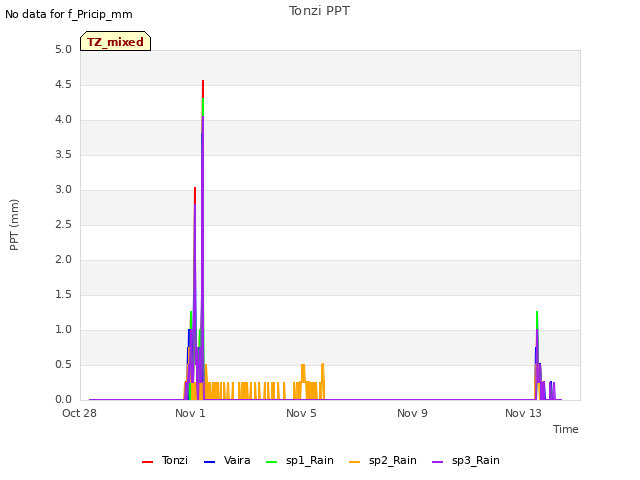

3 TZ_mixed graphs found

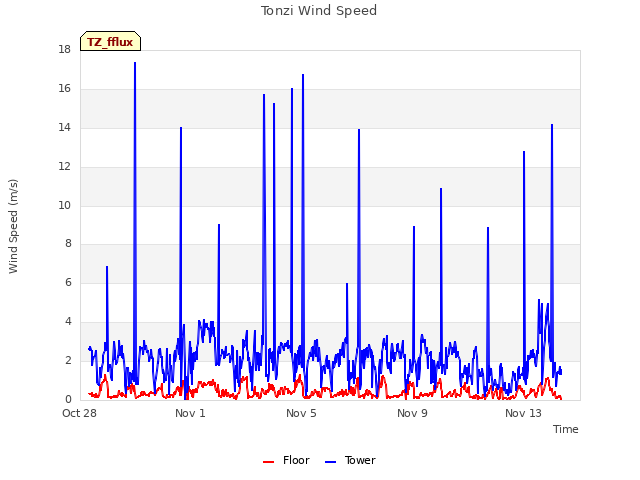

1 TZ_fflux graphs found

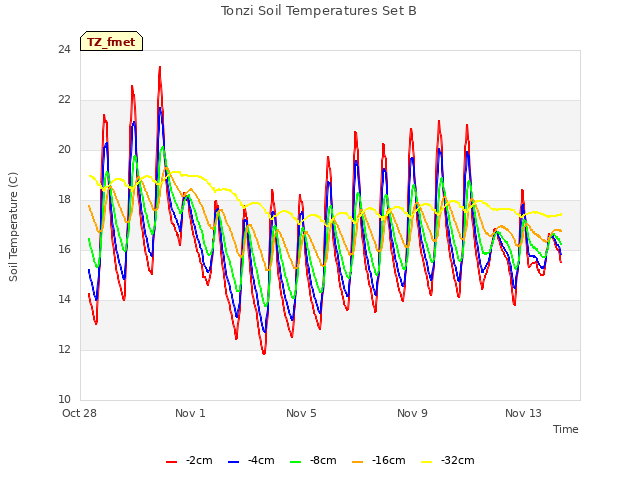

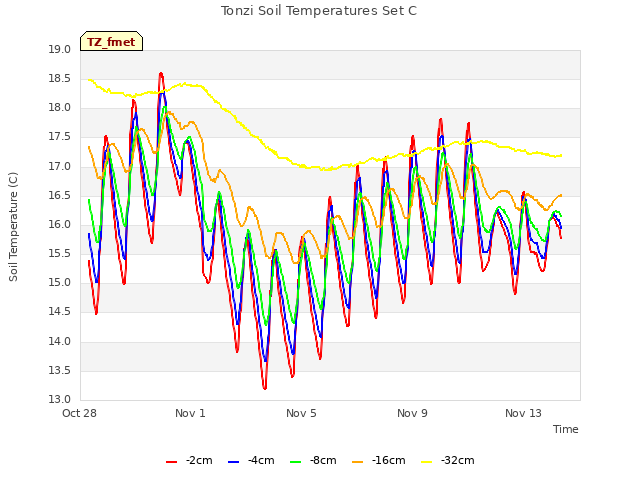

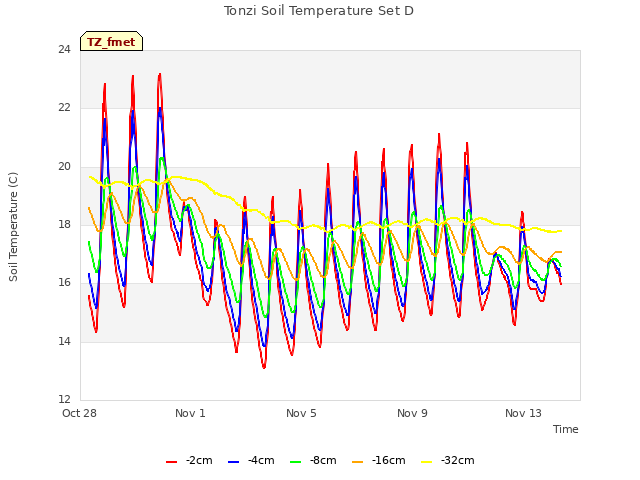

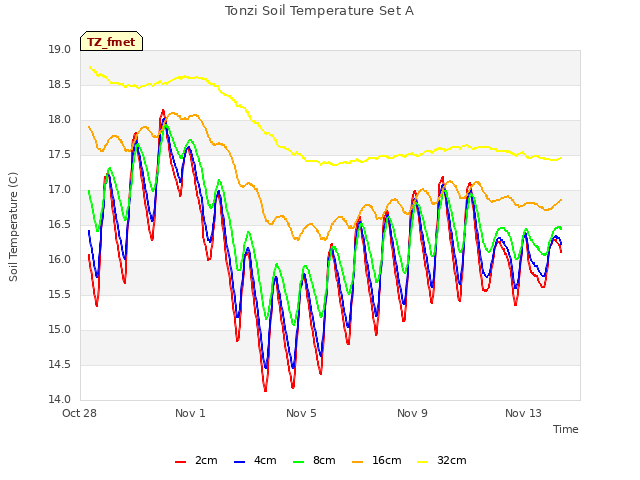

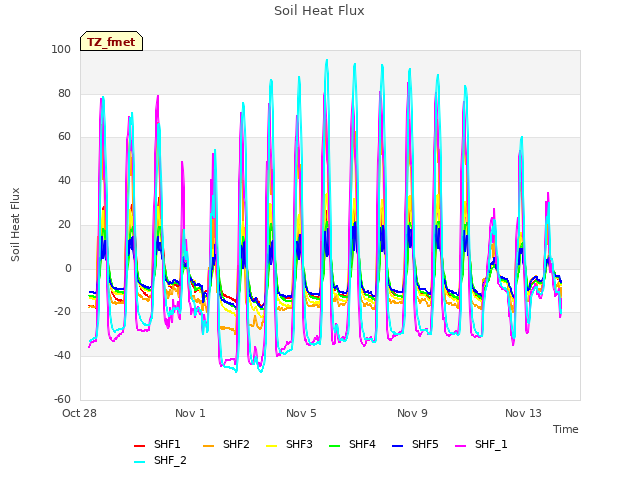

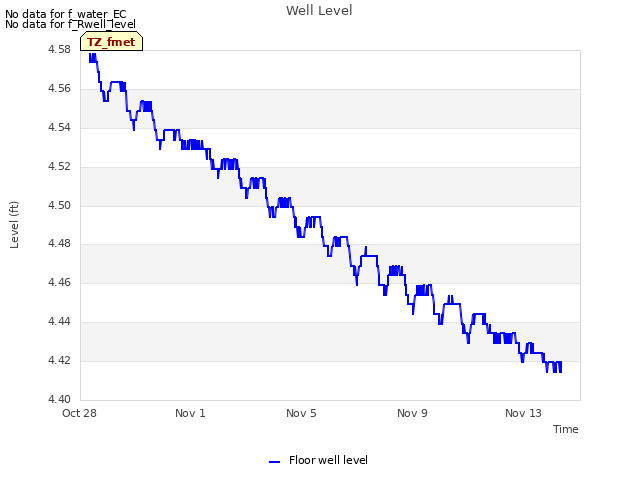

8 TZ_fmet graphs found

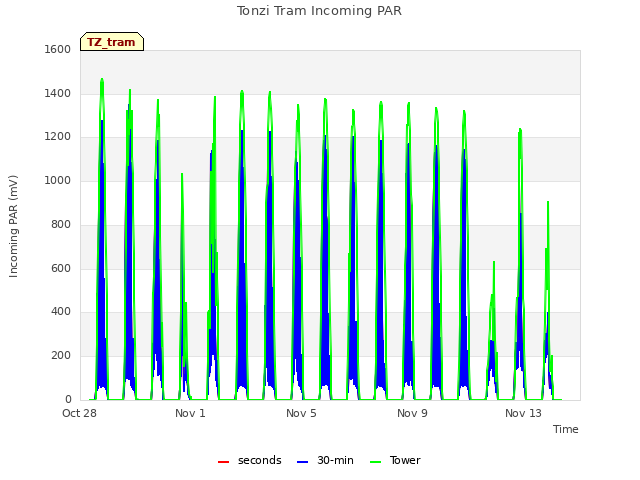

1 TZ_tram graphs found

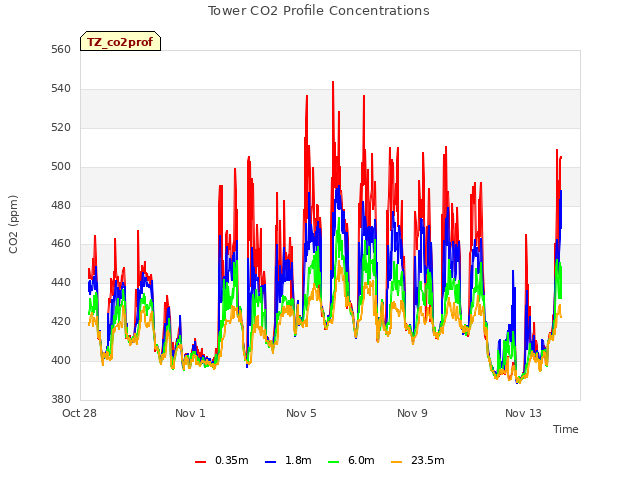

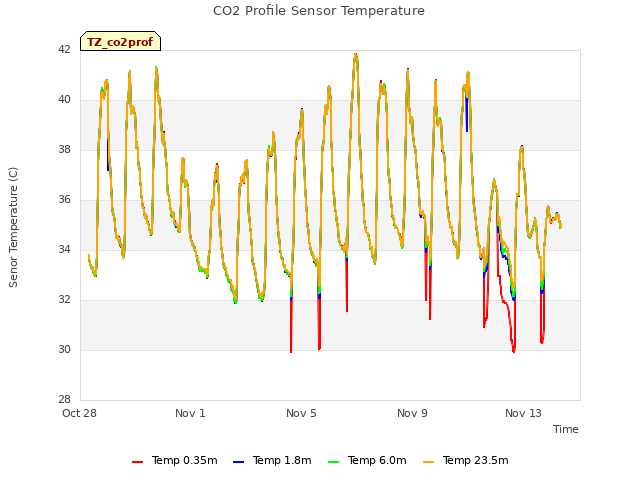

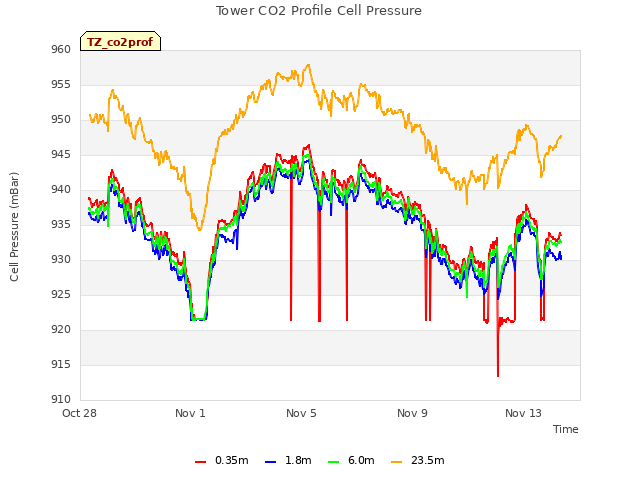

3 TZ_co2prof graphs found

No data found for TZ_irt.
No data found for TZ_windprof.

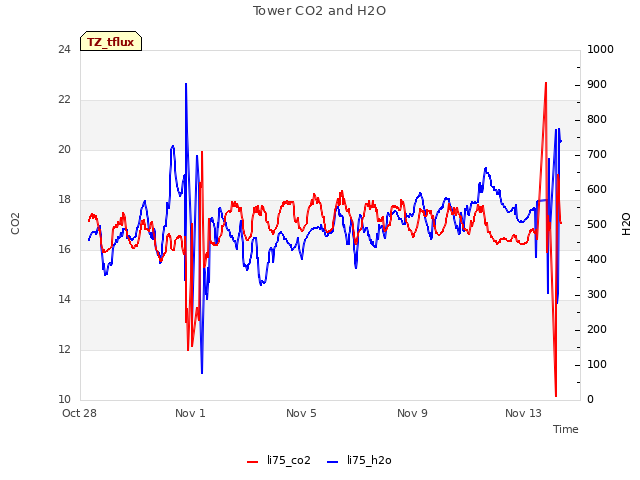

1 TZ_tflux graphs found

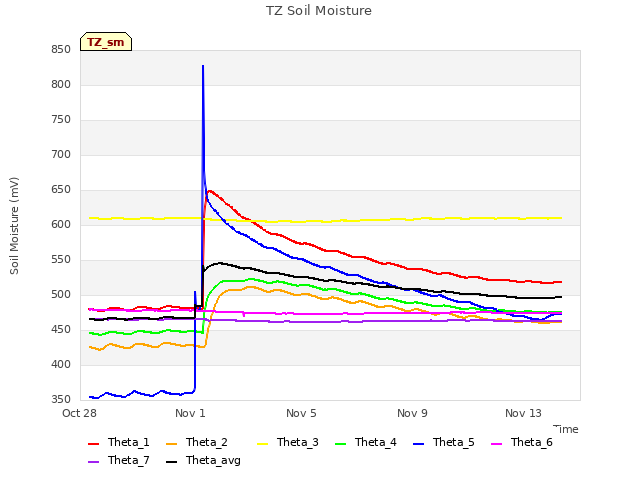

2 TZ_sm graphs found

Can't check TZ_met

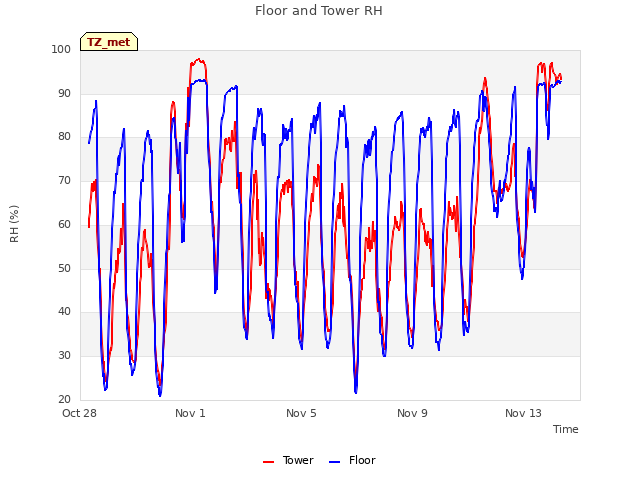

1 TZ_met graphs found

Can't check TZVR_mixed

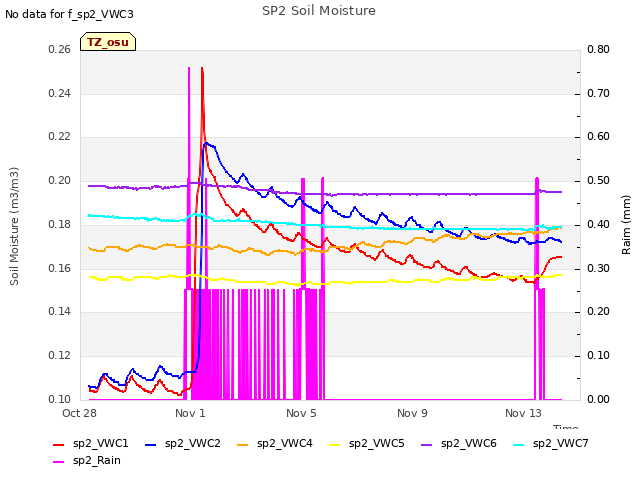

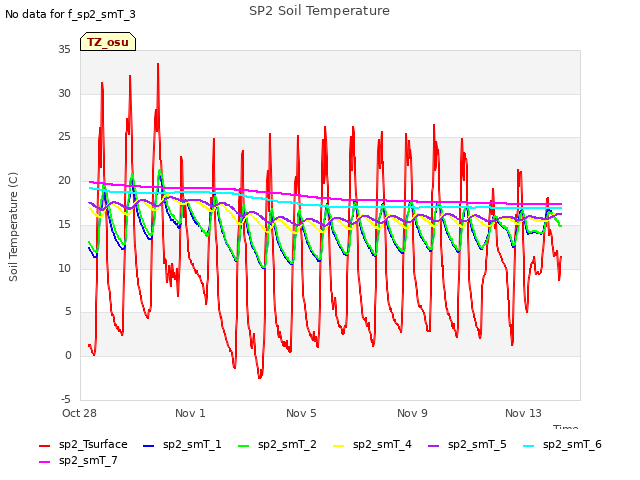

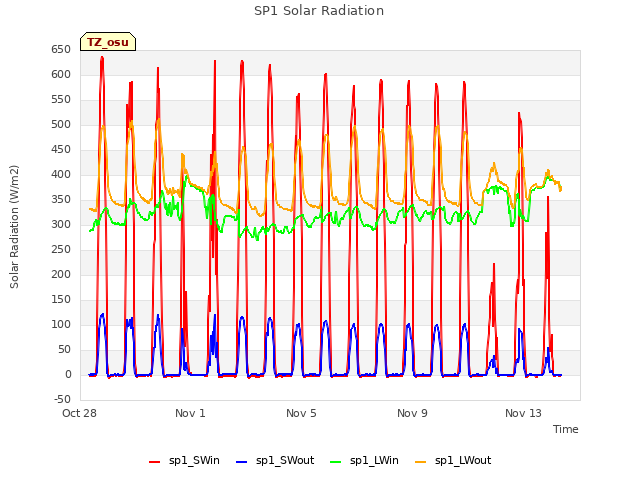

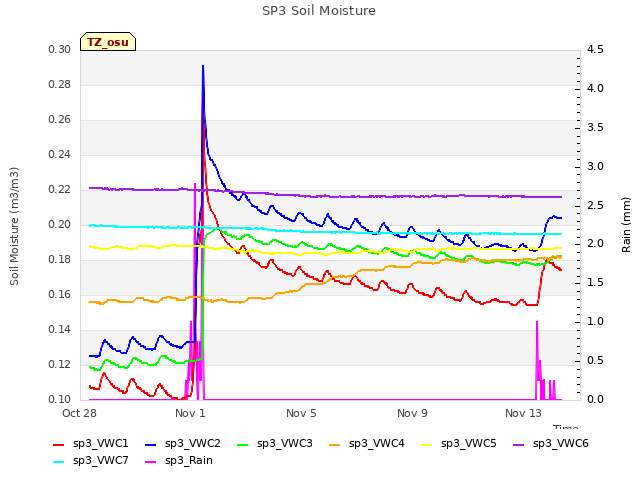

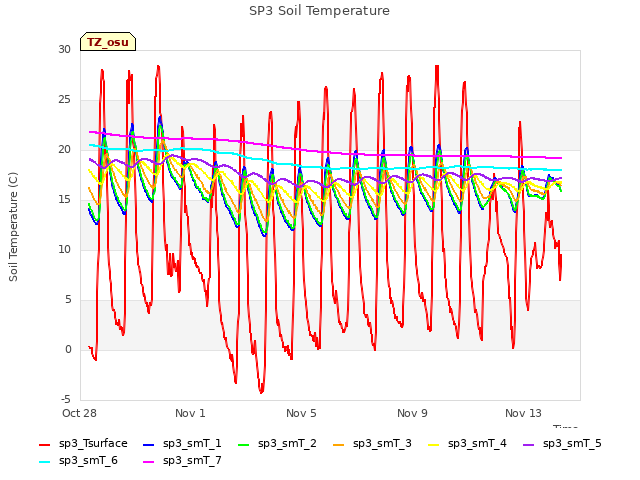

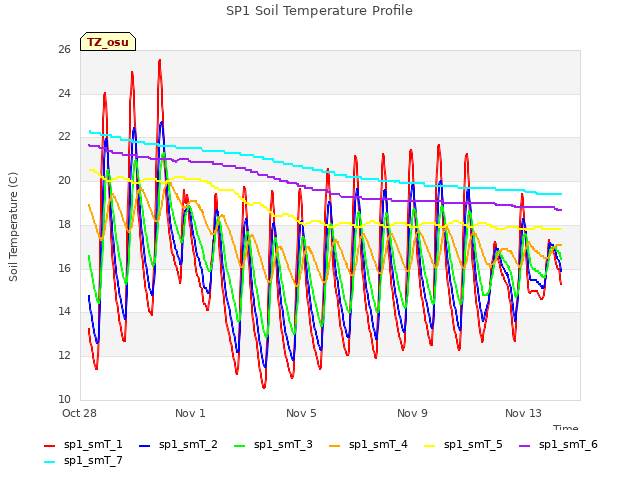

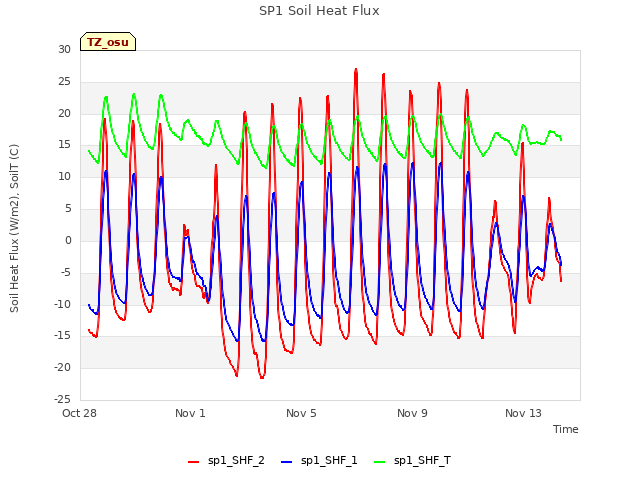

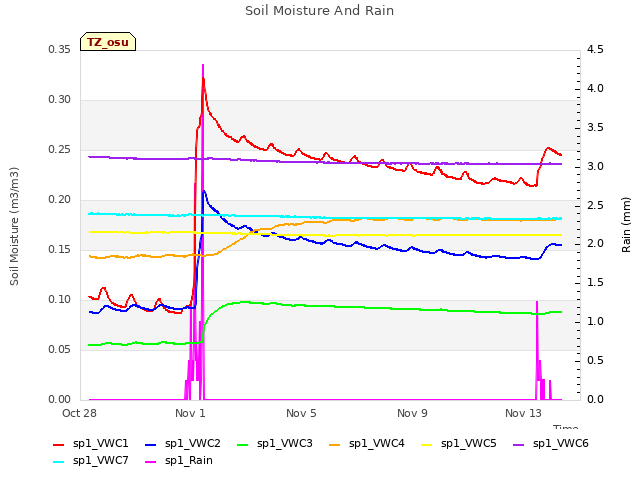

8 TZ_osu graphs found

No data found for TZ_fd.
Tonzi Z-cam data
