Field Notes
<--2014-10-02 12:00:00 | 2014-10-24 10:30:00-->Other sites visited today: Vaira
Tonzi: 2014-10-07 11:00:00 (DOY 280)
Author: Joe Verfaillie
Others:
Summary: Maintained fences, fixed CO2 profile system.
| Tonzi 2014-10-07 I arrived about 11:00am. It was clear, sunny and warm with a little breeze that sprang up after a still morning. No change in conditions since last week. The fences were all still intact. I walked the perimeter of all the fences and fixed minor things like dropping wires and askew insulating clips. I also added flagging to the top wire between posts to make the wires more visible. I worked on the CO2 profile system on the tower. It turns out that the tube fittings on either side of the 2um filter were leaking. I cut them off and new some plastic fitting on. The plastic seemed to work, but I can replace them with brass next time I’m out. I calibrated the LI-820: Cell T = 52.2C, Cell P = 96.3kPa Zero offset: 10.1 ppm Span offset: -8.9ppm Precal Coefs: zero = 0.9656, Span = 0.8022 Postcal Coefs: zero = 0.9684, Span = 0.8104 |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

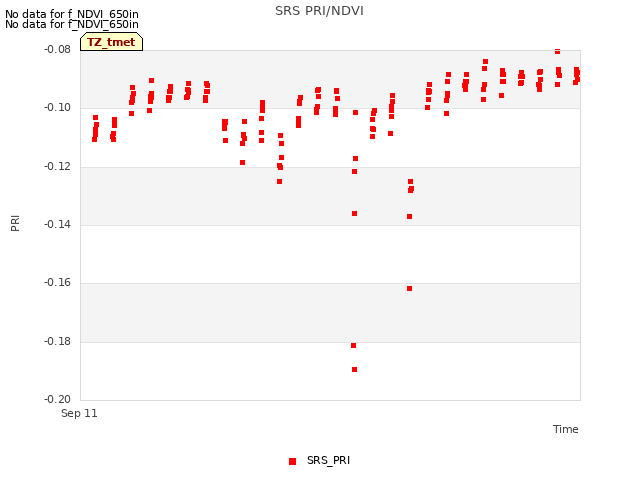

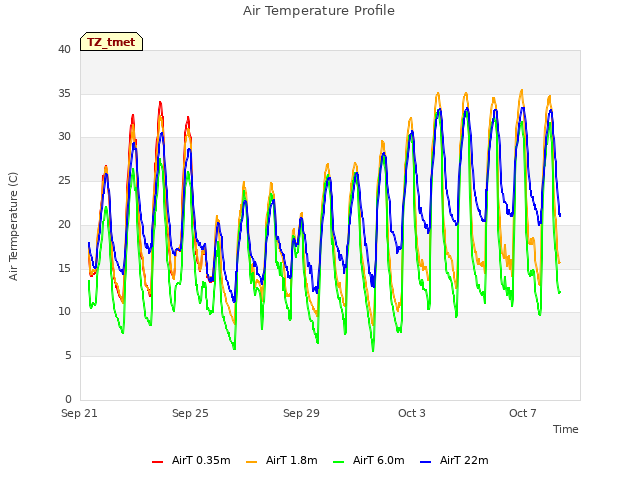

11 TZ_tmet graphs found

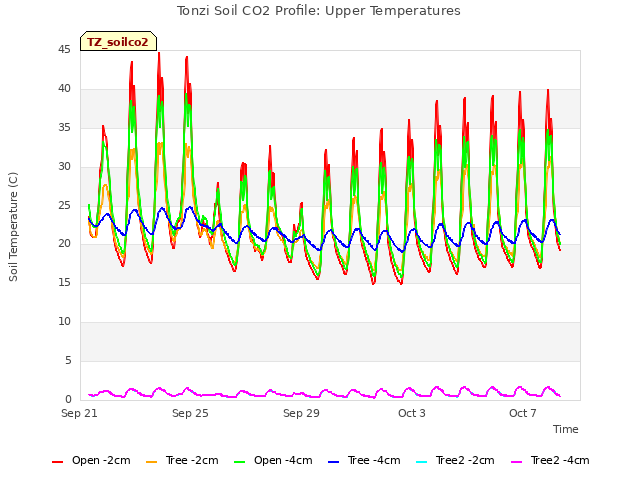

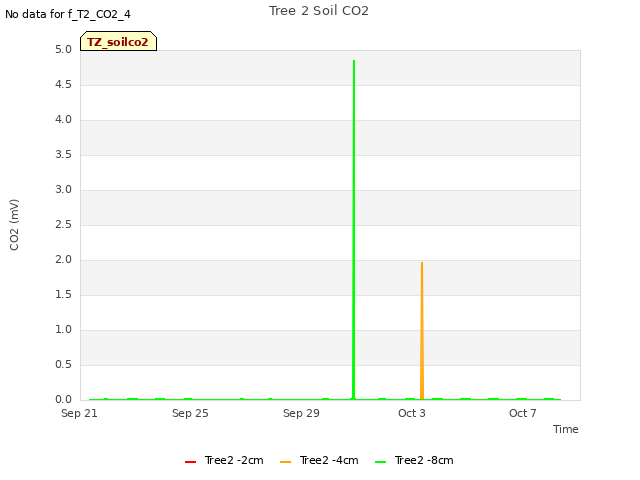

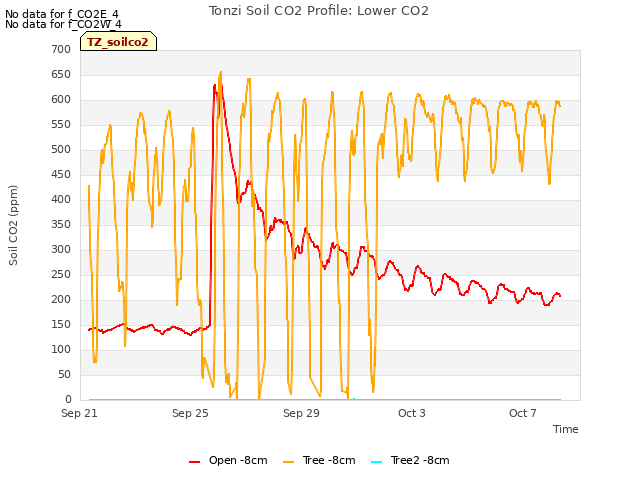

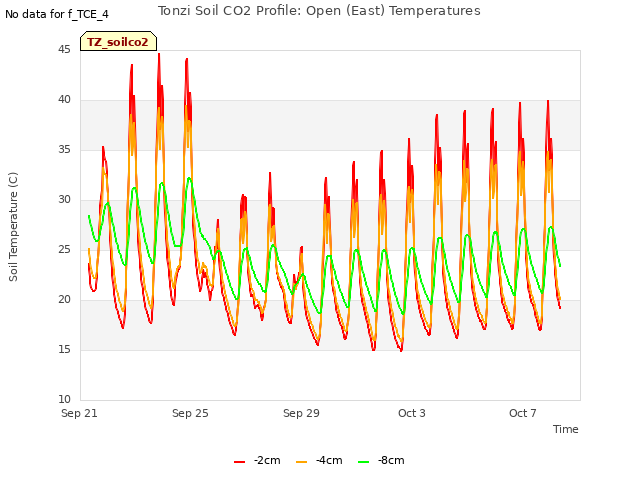

11 TZ_soilco2 graphs found
Can't check TZ_mixed
3 TZ_mixed graphs found
1 TZ_fflux graphs found

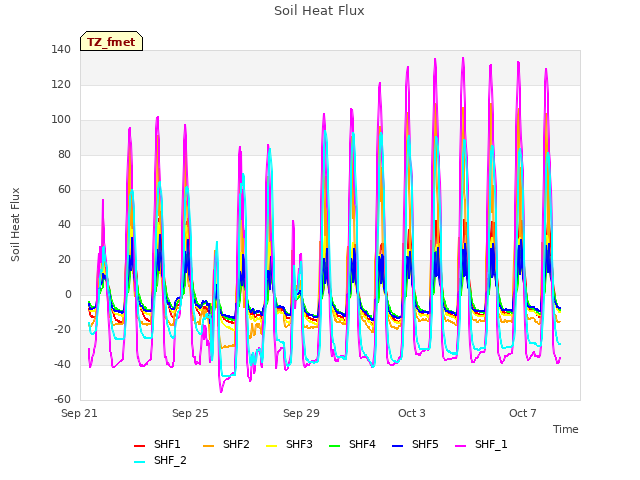

8 TZ_fmet graphs found
1 TZ_tram graphs found
3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

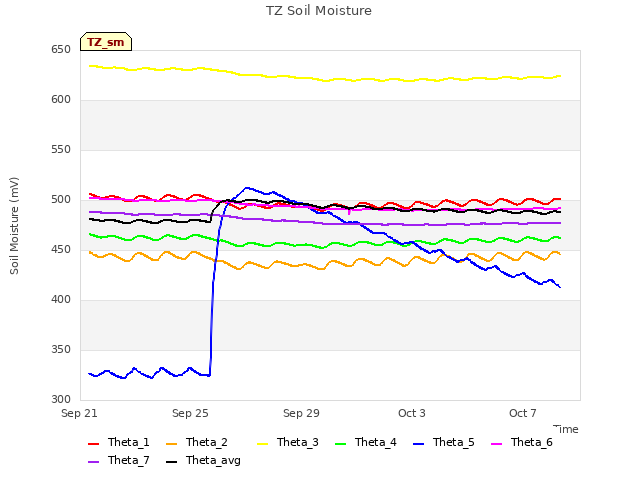

2 TZ_sm graphs found
Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed

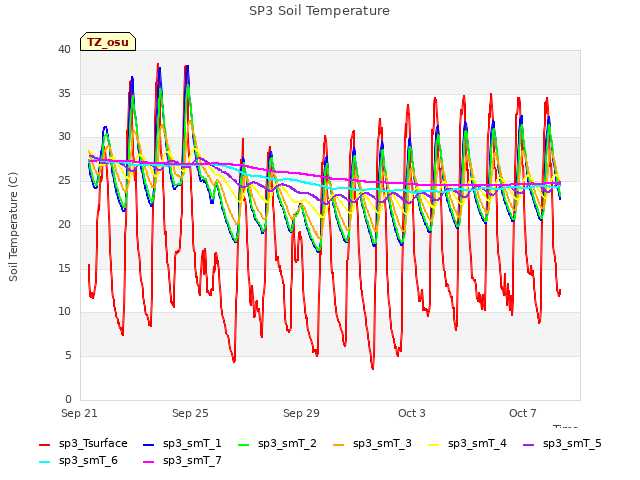

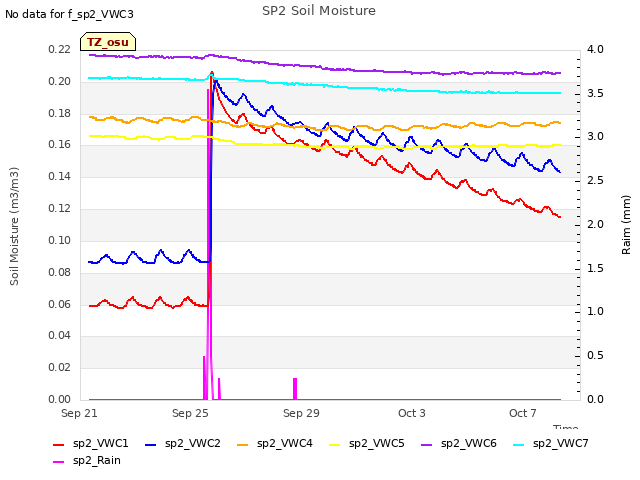

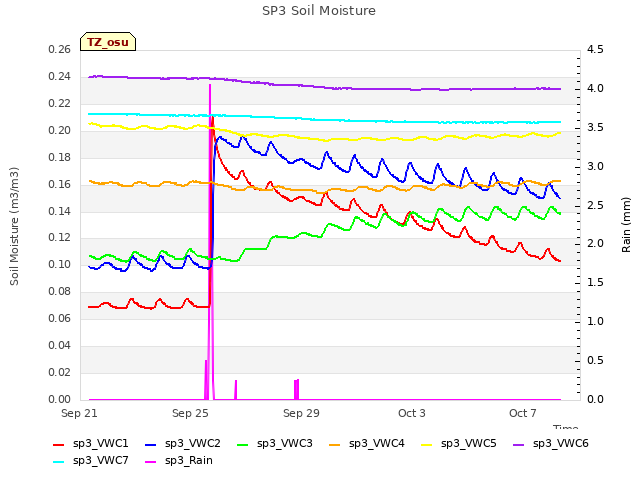

8 TZ_osu graphs found
No data found for TZ_fd.
Tonzi Z-cam data
