<--2008-03-06 10:30:00 | 2008-03-27 00:00:00-->Tonzi: 2008-03-20 00:00:00 (DOY 80)
Author: Dennis Baldocchi
Others: Youngryel Ryu
|
Perfectly clear, mild spring day. Grass is green and functioning, soil is moist. Trees across the ranch and range are starting to leaf out this past week. 1. Moved tram system to near the understory eddy flux system. The tram needs fine adjustment, but most is done. It is now in the footprint of the understory eddy flux system. 2. Need to replace small screws (with allen wrench fitting) to connect one span of track. The nut fitting was starting to strip and we couldn’t work the screw all the way in. I prefer replacing them so they can be removed easily in the future. 3. The large Nuts holding track to tripods had some rust. A squirt with wd-40 may help 4. We need a 1 inch wrench at the site for these bolts Checked out the soil CO2 probes. The tree with the probes has NOT leafed out yet. CO2 levels in the soil are fairly similar at the tree location (without grass) and under the grass Checked flux systems and they were operating well. Youngryel took spectral reflectance measurements 1600 went to Vaira. Checked flux system. Aok. Cleaned radiometers. Bird crap on Rnet lite on the tram system (it is still at Vaira). Also faint film on 4 band radiometers. Cleaned with alcohol. Youngryel took spectral reflectance data |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

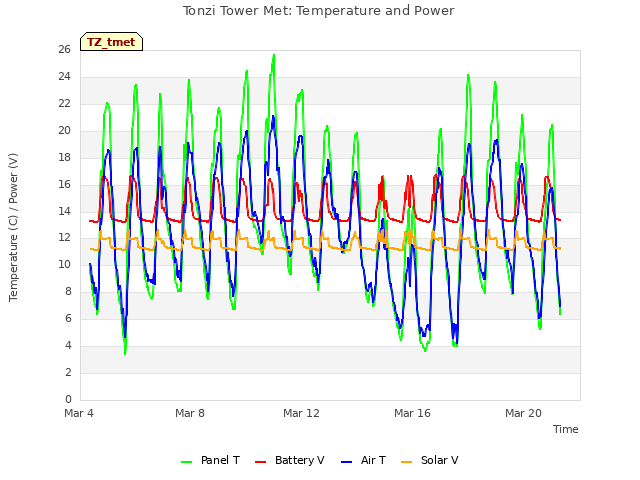

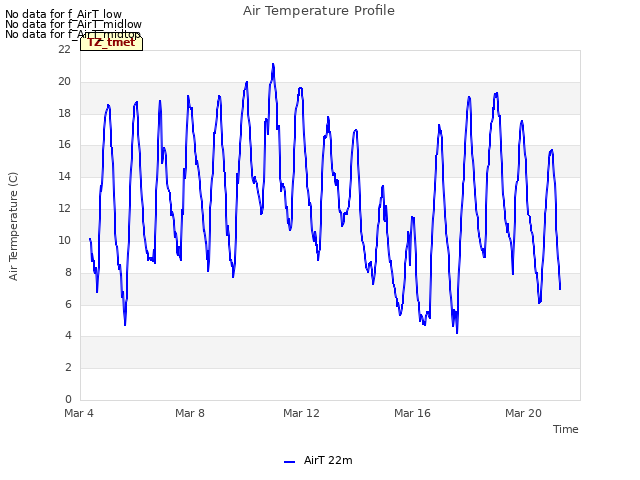

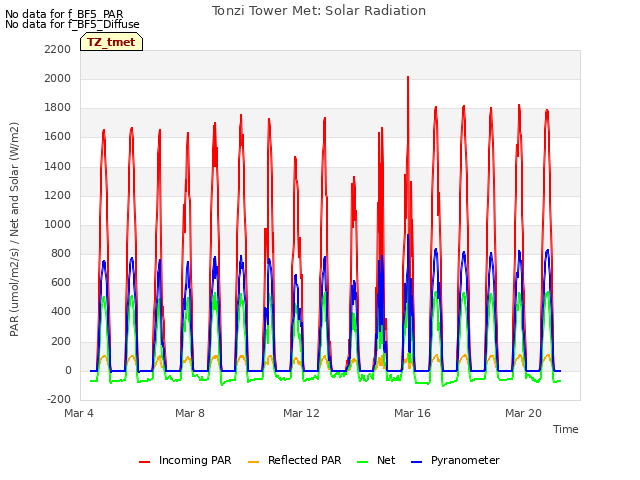

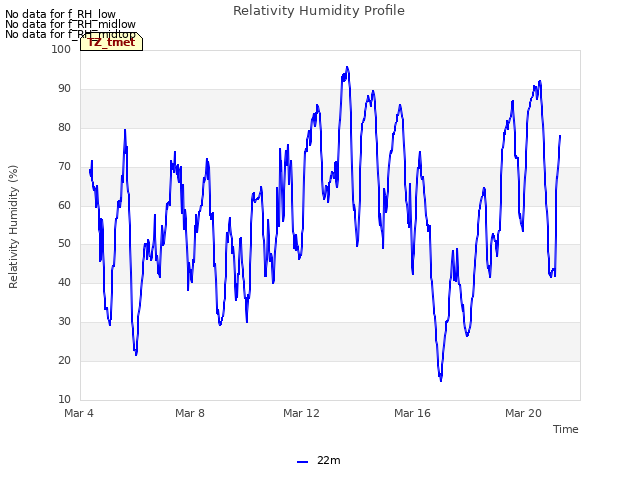

11 TZ_tmet graphs found

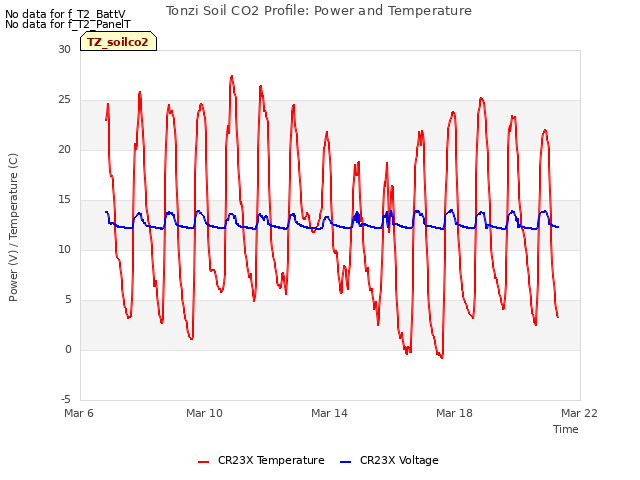

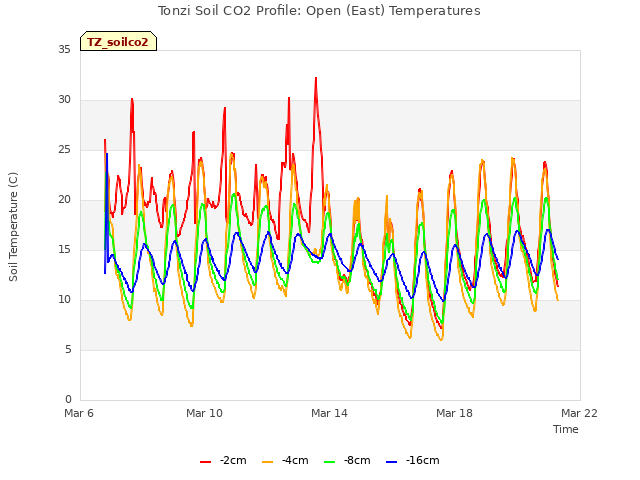

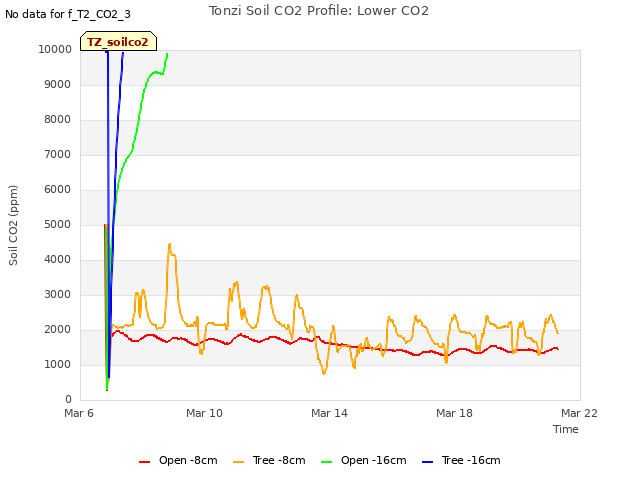

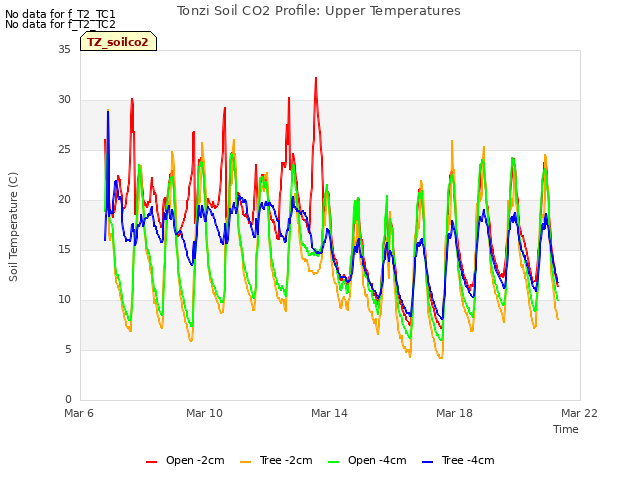

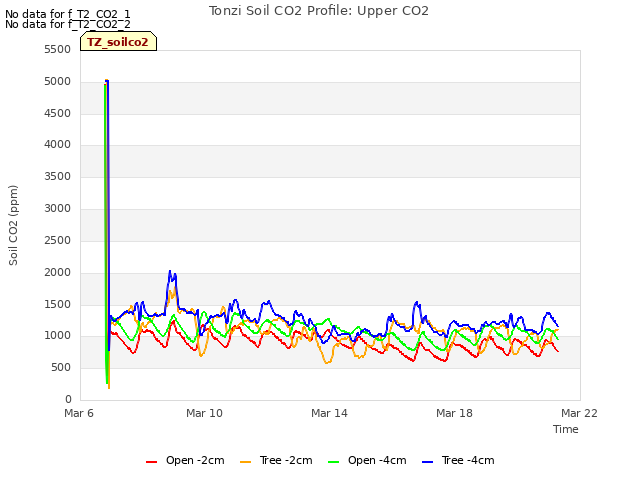

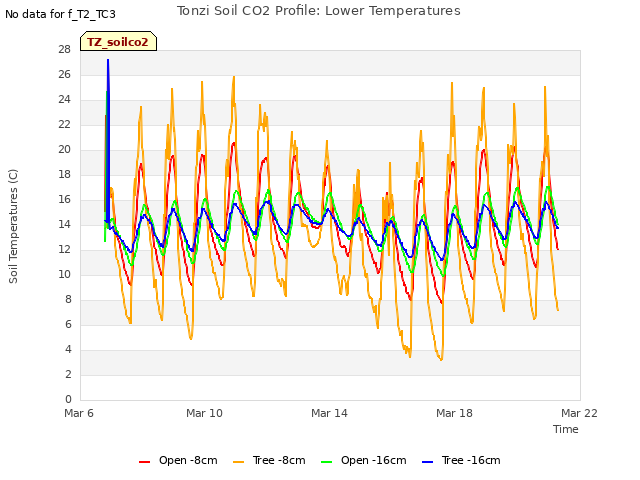

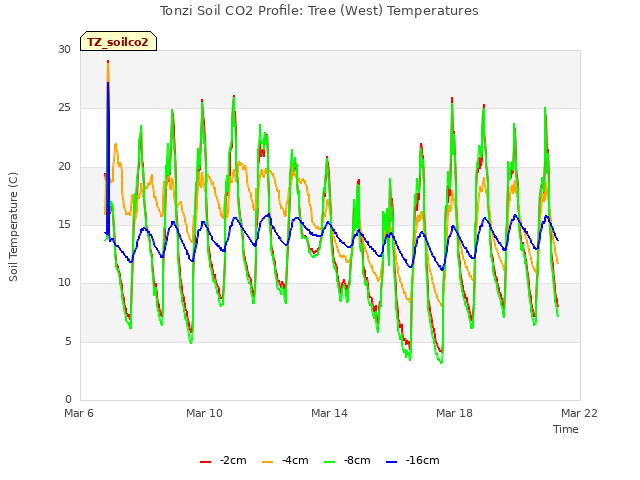

11 TZ_soilco2 graphs found
Can't check TZ_mixed

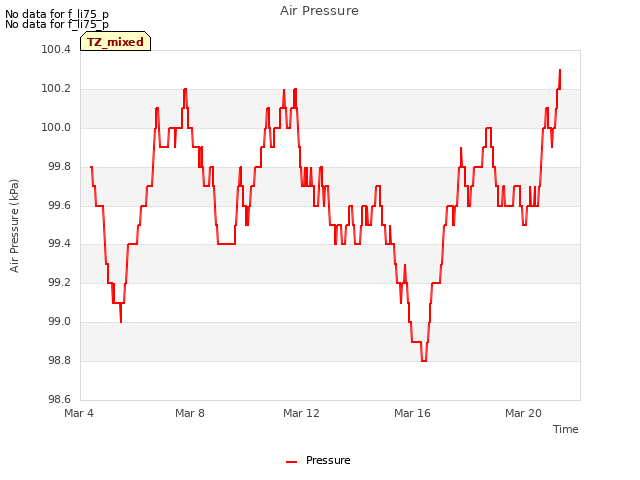

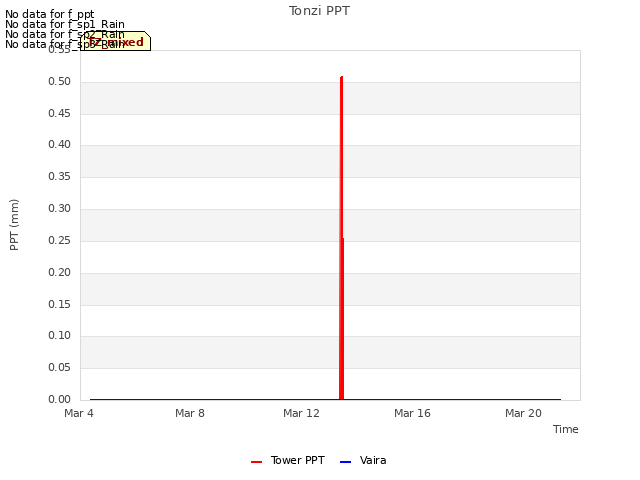

3 TZ_mixed graphs found
No data found for TZ_fflux.

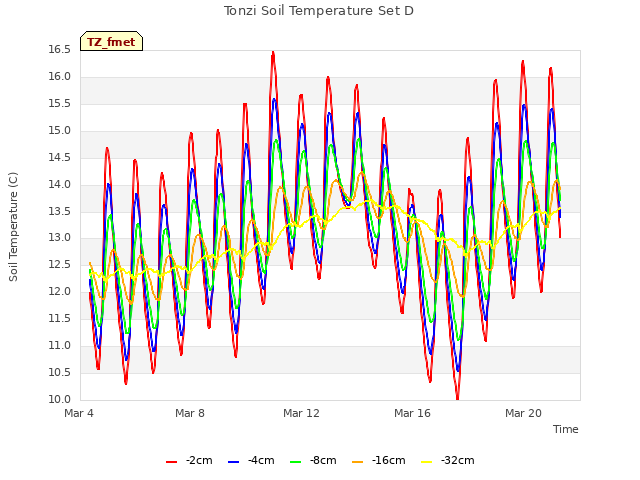

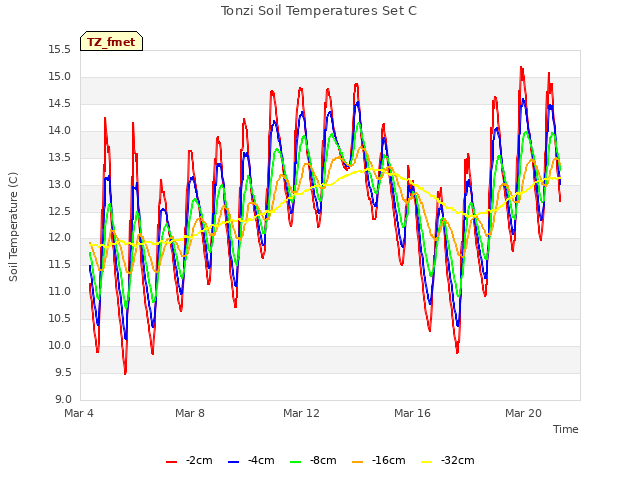

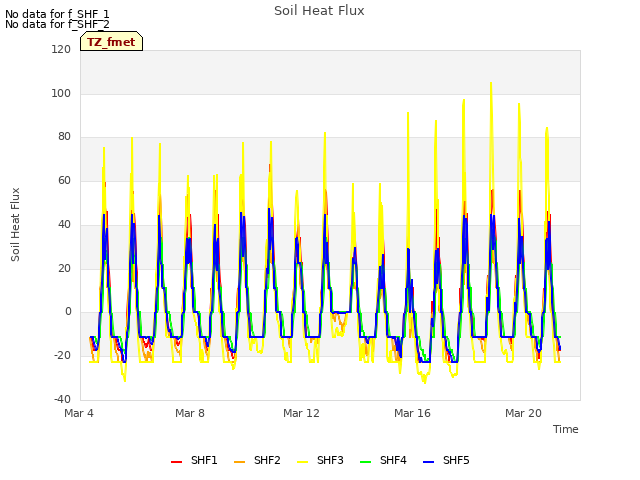

8 TZ_fmet graphs found
No data found for TZ_tram.

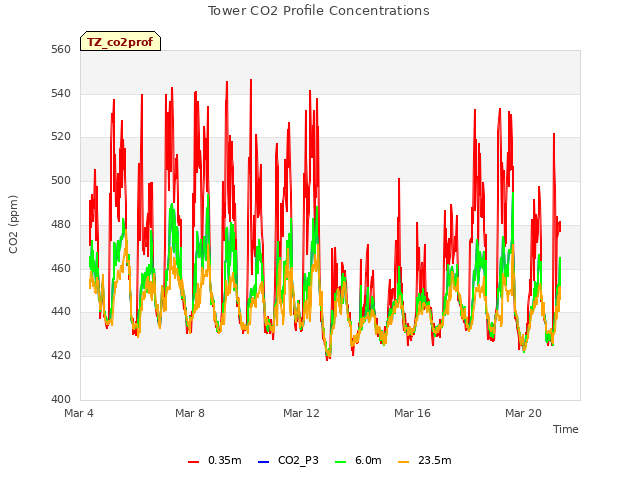

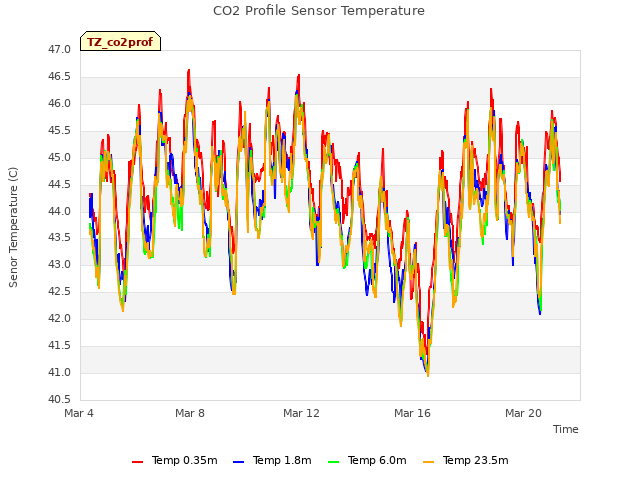

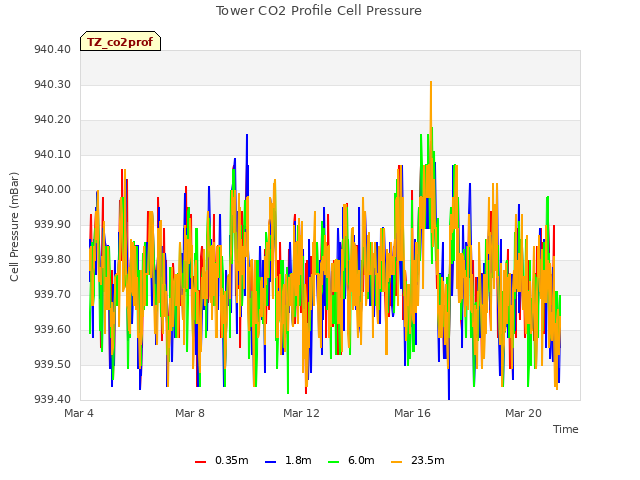

3 TZ_co2prof graphs found
No data found for TZ_irt.
1 TZ_windprof graphs found
No data found for TZ_tflux.

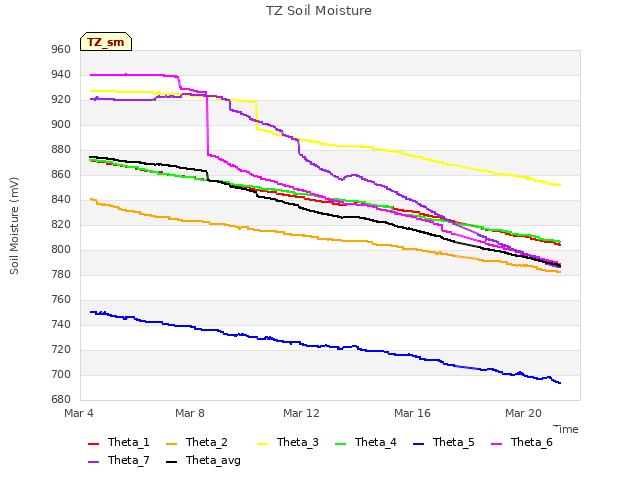

2 TZ_sm graphs found
Can't check TZ_met

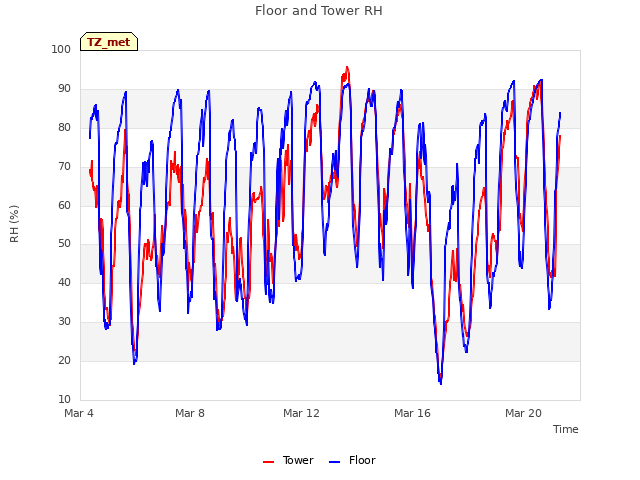

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
