When: Date: 10/30/2008 , Day: 304 , Watch Time: .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe
Weather: cloudy, smoky, raining after we left
Phenology; yellow grass, more than 80% year oak leaves
Summary

1. check and download data at Tower, Floor, and Vaira
2. Calibrate Li-800 in the field (bring the copy of Ted’s instruction).
3. collect litter samples within 400 cm2 at Vaira and Tonzi
4. measure soil moisture
5. read dendrometers

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 12.9 v; 9.1 amps; 3.4 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\V08_ 304 .flx D:\Data\VR08 .raw
	mean	std		mean	std
w	0.07	0.129	Ts	21.4	0.579
u	0.17	0.269	H2O	2.7	0.014
v	0.68	0.980	CO2	1.7	0.008
			Tc	1.8	0.072

1. downloading data YES!
2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
3. Check MD-9 system connections YES!
4. Check levels of Radiation sensors, clear up surfaces. YES!
5. Check rain gage, make sure not clogged. YES!
6. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 12.7 v; 0 amps; 5.0 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\T08_304 .flx D:\Data\TW08 .raw
	mean	std		mean	std
w	-0.14	0.292	Ts	22.1	0.821
u	1.84	0.913	H2O	2.02	0.175
v	-0.19	0.301	CO2	1.79	0.004

1. downloading data YES!

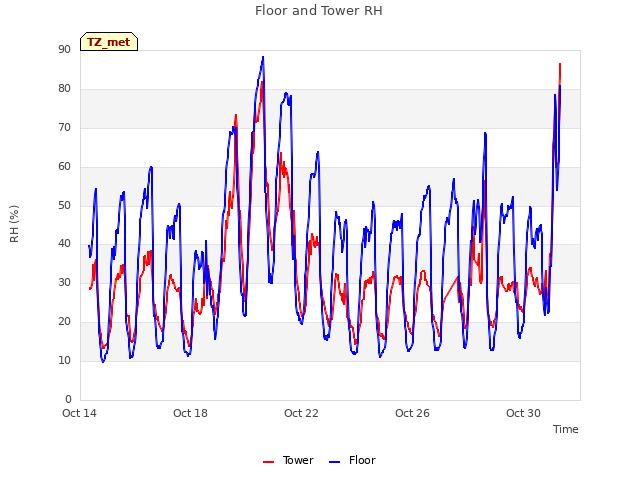

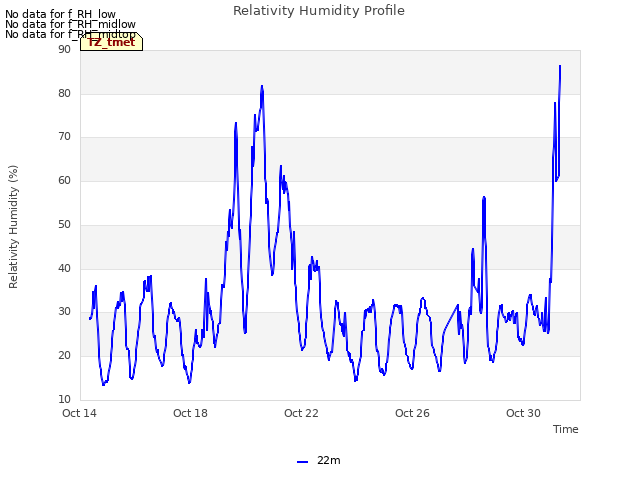

2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
3. Check rain gage, make sure not clogged. YES!
4. Check calibration cylinders;

CO₂ 1000 psig; flow 20 psi.
N₂ 2000 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ YES!
How to check the CO2 values‌ Click “Ports/Flags” button to see which ports or flags is setting high. Pressure should be less than ambient value. When Flag 8 is high, it may indicate that RRR’s battery is low. YES!

1	2	3	4	zero	span

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.1 v; 8.2 amps; 1.9 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\F08_ 304 .flx D:\Data\FL08 .raw
	mean	std		mean	std
w	-.08	0.242	Ts	21.5	0.307
u	-0.76	0.610	H2O	2.0	0.041
v	1.07	0.665	CO2	1.47	0.007

1. downloading data YES!
2. Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X5 – soil CO₂ profile

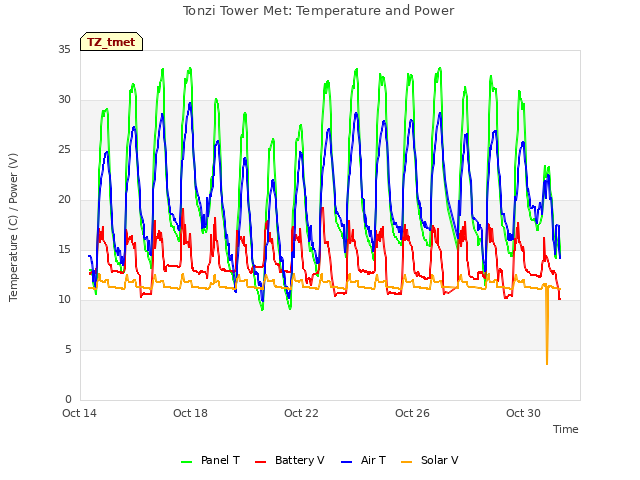

CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow

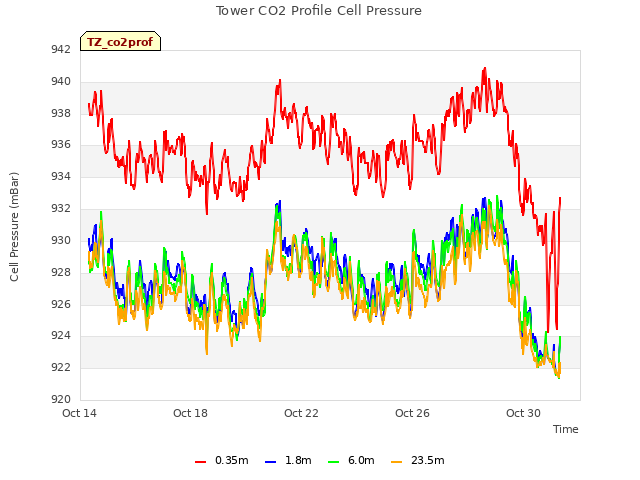

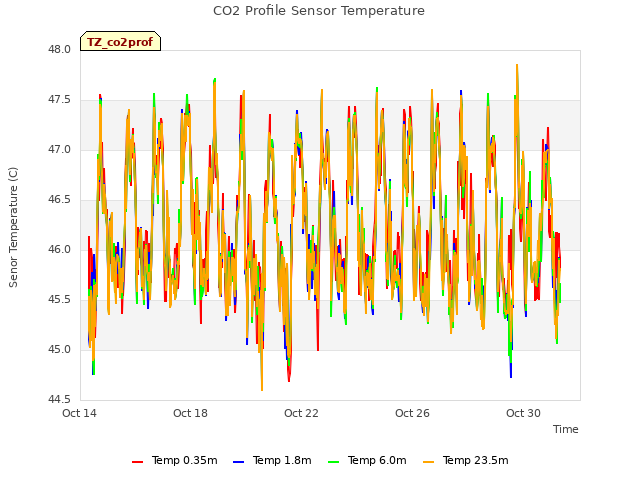

CR10X7 – CO₂ profile
CR10X8 – wind profile

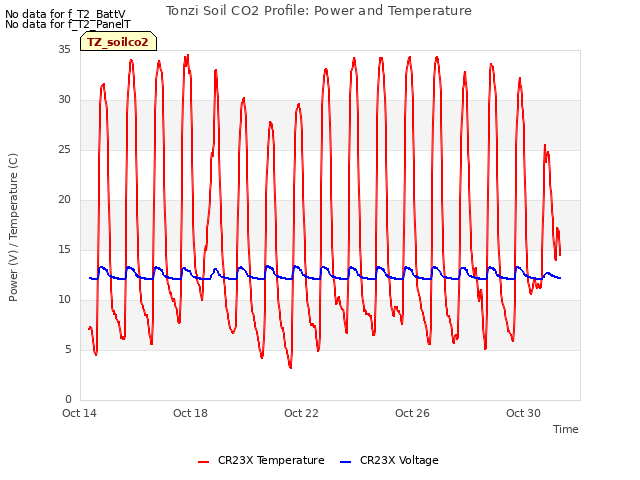

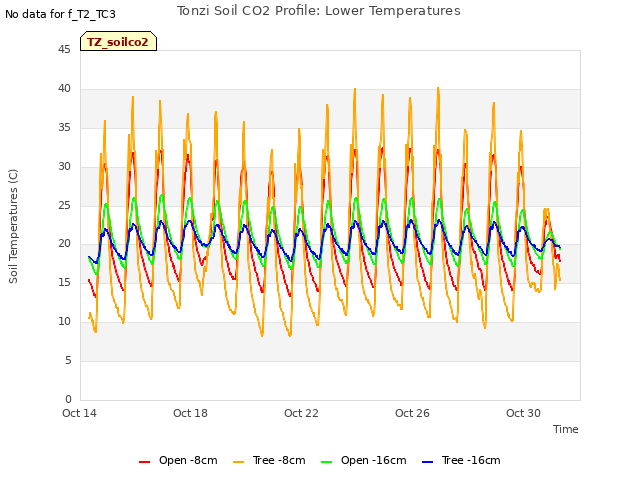

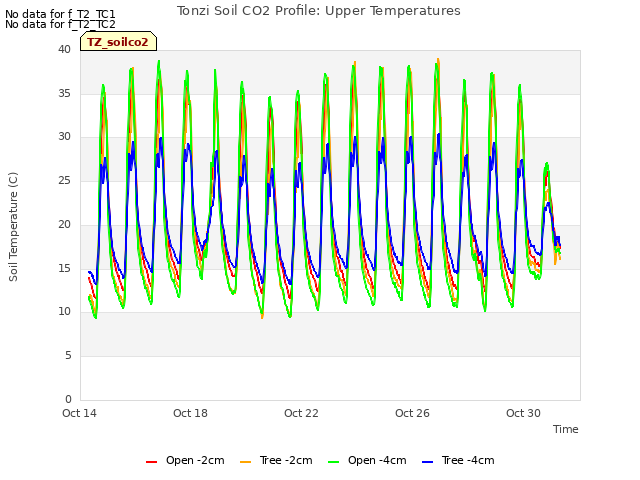

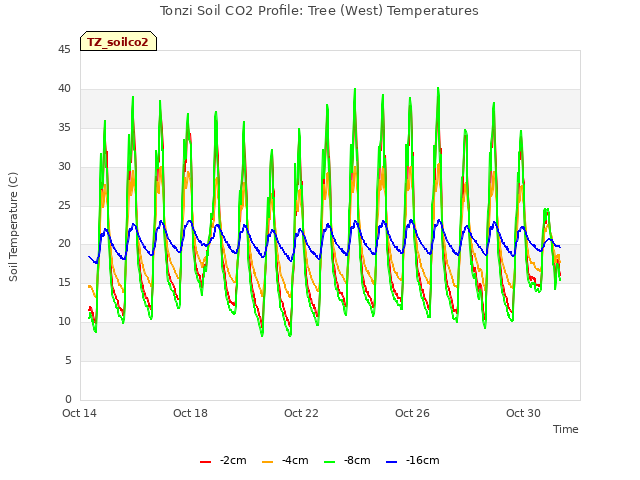

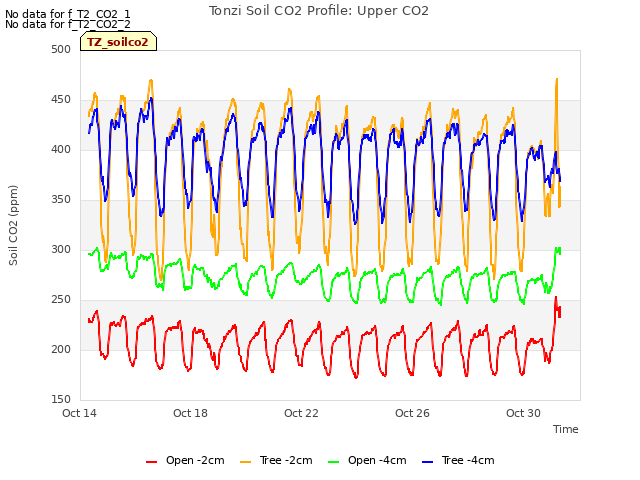

1. Soil CO₂ profile

Reading from datalogger

Panel temp		25.2
Battery voltage		12.5
CO2E_1	186	TCE_1	24.5	CO2W_1	335	TCW_1	23.1
CO2E_2	258	TCE_2	25.5	CO2W_2	368	TCW_2	22.1
CO2E_3	337	TCE_3	22.8	CO2W_3	596	TCW_3	23.4
CO2E_4	180	TCE_4	20.6	CO2W_4	667	TCW_4	20.8

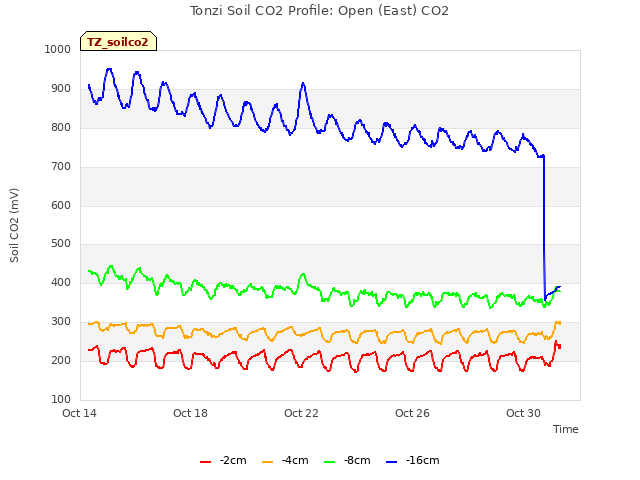

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	380	1	2cm (1%)	610	1
4cm	520	2	4cm	740	4
8cm	680	3	8cm	1200	2
16cm	730	4	16cm	2700	3

1. Close gate and set up fence. YES!

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
10/30/2008	304	71	X
		72	7.9
		77	X
		78	X
		79	11.1
		245	4.4
		248	X
		250	9.6
		255	X
		‌252‌	X
		102	4.2

Notes: “X” means not working any more.

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
30-Oct-08	304

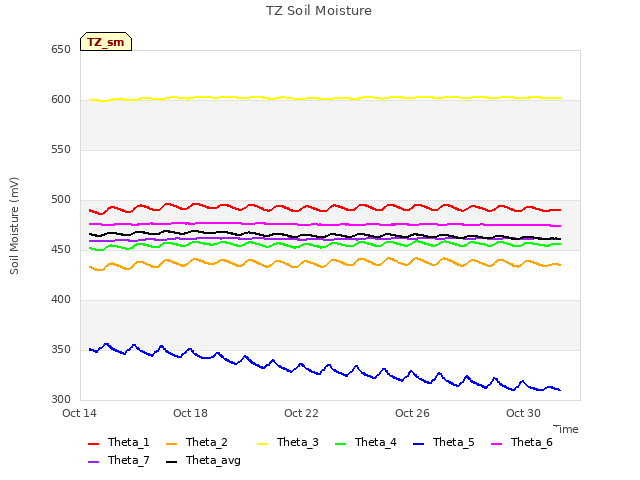

	SM
0-15	7.7	4.6	8.1	8.9	5.9	1.0	6.4	6.4	3.2
15-30	11.8	10.7	11.8	5.2	5.7	6.2	11.8	11.1	3.2
30-45	16.8	10.2	8.9	10.6	6.1	8.6	13.4	16.1	11.7
45-60	11.9	5.3	12.4	13.3	19.1	9.9	11.6	17.4	10.4
	A6D882B	A3D04E8	A6D72F5
0-15	8.6	8.3	2.5
15-30	11.5	7.7	11.1
30-45	19.8	17.4	12.2
45-60	11.4	7.5	2.2
vaira	57318a	7933dee
0-15	3.8	1.0
15-30	6.9	6.3
30-45	11.6	9.3
45-60	20.0	12.8
