When: Date: 4/4/2008 , Day: 95 , Watch Time: 11:00 .
Where: Tonzi/Vaira Ranch
Who: Siyan and Jessica
Weather: partially cloudy (4/5)
Phenology: oak leaves out 100%/ green grasses, blooming, blue, purple, and yellow. Talked to Mr. Tonzi. He mentioned that grasses need 3-4 inch. Rainfall during Mar.-Apr. Good to know! The same as we saw from our data!
Summary

1. Three EC systems worked well.
2. The forth depth of soil profile system (may be under trees) was -9999.
3. Collect grass sample and oak leaves and branches for LAI and N, etc.
4. Read dendrometers
5. Took measurement of spectrometer (Youngryle)

Vaira_Grass Site

1. Fence and gate power: >12 v.
2. Panel and Batteries: 13.7 v; 8.3 amps; 2.6 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\V08_ 95 .flx D:\Data\VR08 .raw
	mean	std		mean	std
w	-0.26	0.491	Ts	20.1	0.938
u	-0.02	1.048	H2O	1.124	0.177
v	4.93	2.144	CO2	1.766	0.033
			Tc	1.920	0.093

1. downloading data YES!

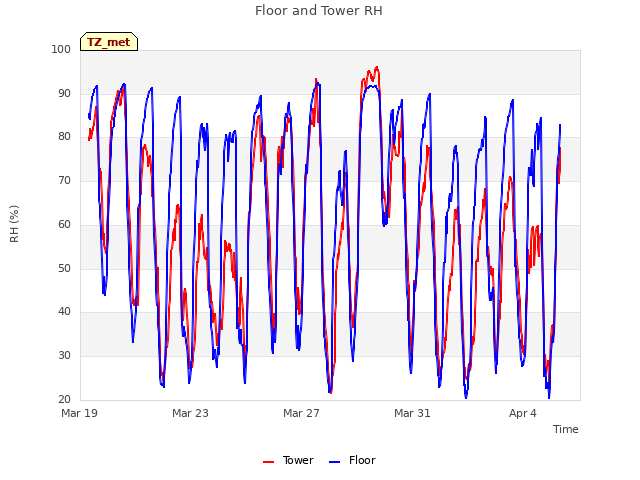

2. check the fans of air temp. and relative humidity sensors at Vaira. YES!
3. Check MD-9 system connections YES!
4. Check levels of Radiation sensors, clear up surfaces. No! because ladder was in Tonzi.
5. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.3 v; 0.0 amps; 4.8 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\T08_ 95 .flx D:\Data\TW08 .raw
	mean	std		mean	std
w	0.45	0.550	Ts	18.7	0.592
u	0.83	1.103	H2O	1.6	0.052
v	1.8	0.858	CO2	1.8	0.018

1. downloading data YES!
2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
3. Check calibration cylinders;

CO₂ 1900 psig; flow 15 psi.
N₂ 2000 psig; flow 19 psi.

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.7 v; 10.9 amps; 1.8 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\F08_95 .flx D:\Data\FL08 .raw
	mean	std		mean	std
w	-0.2	0.208	Ts	17.42	0.63
u	0.19	0.557	H2O	1.229	0.086
v	0.7	1.123	CO2	1.806	0.021

1. downloading data YES!
2. Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X5 – soil CO₂ profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow
CR10X7 – CO₂ profile

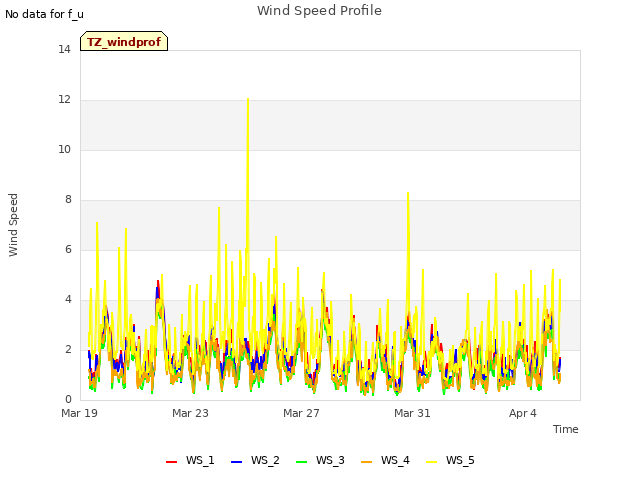

CR10X8 – wind profile

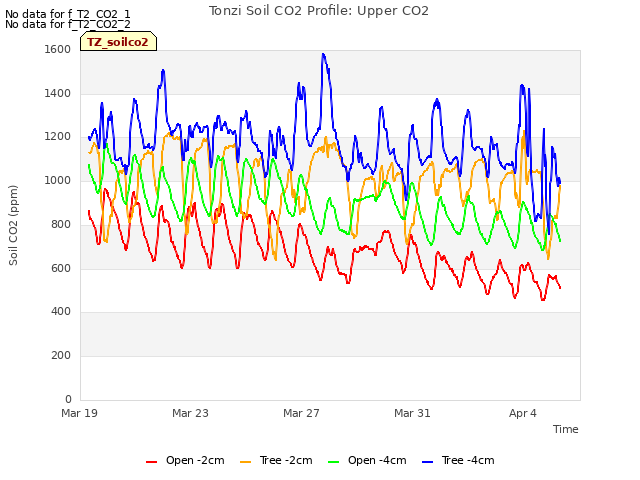

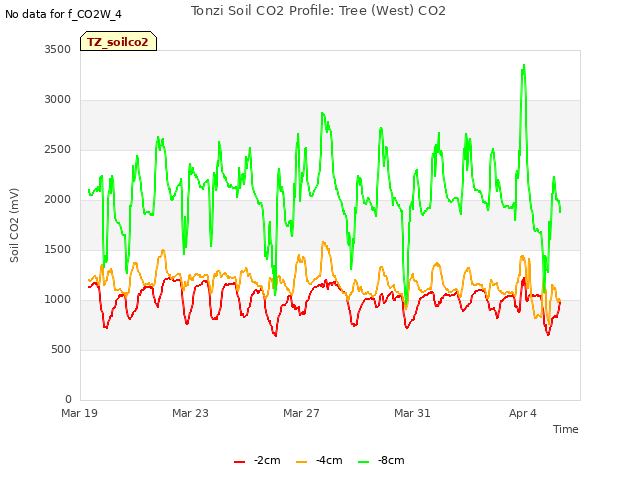

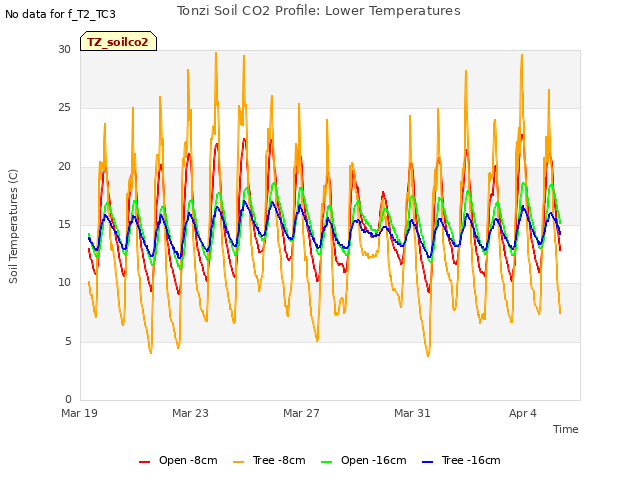

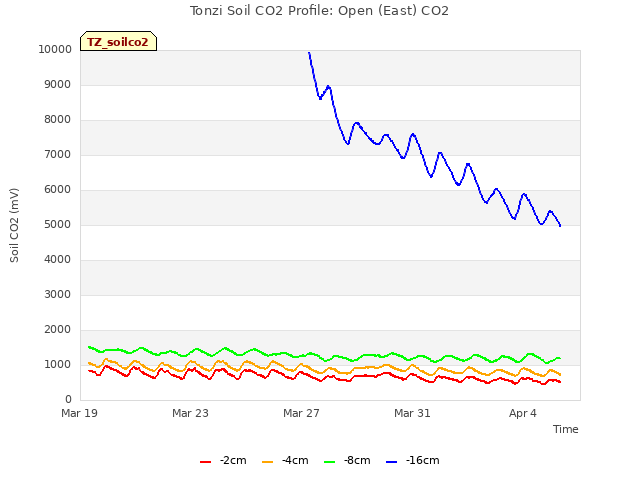

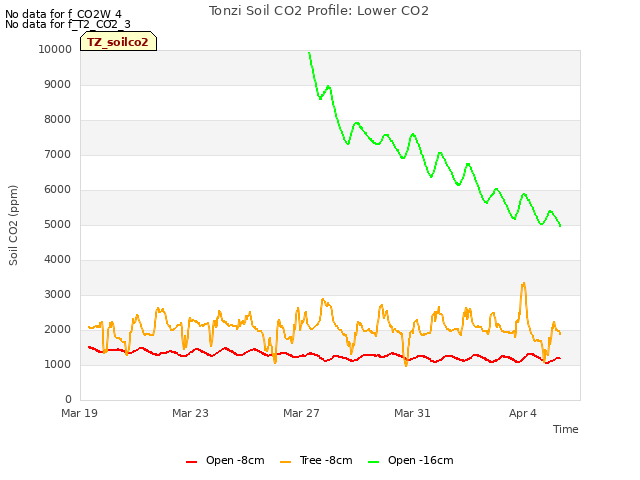

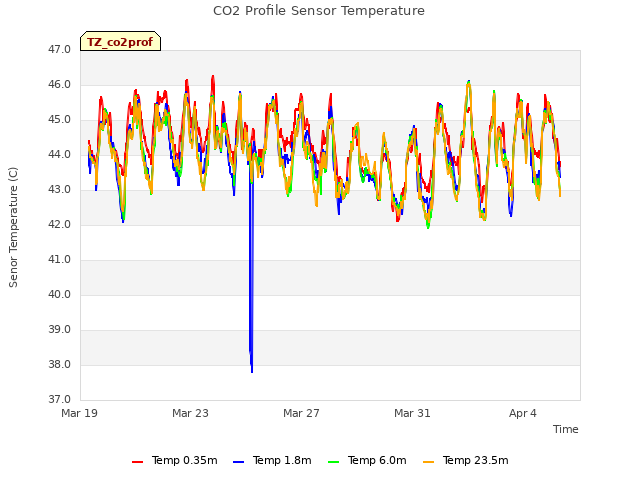

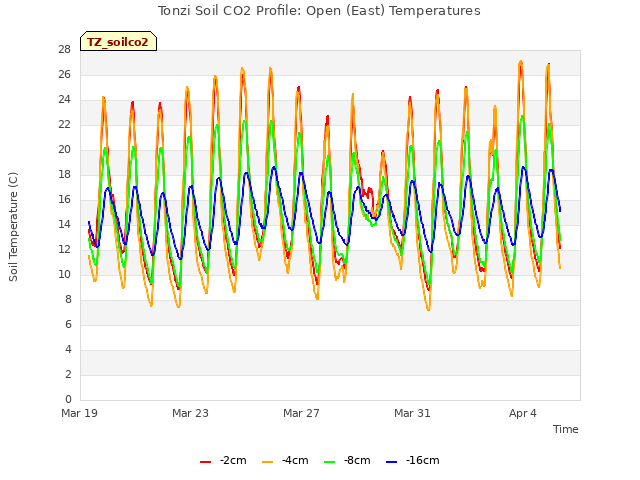

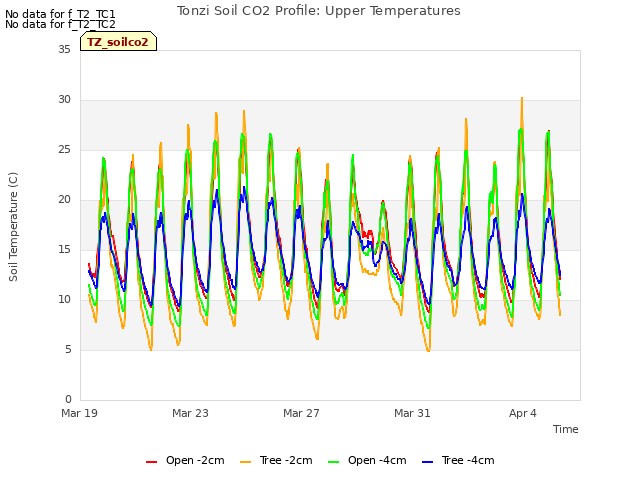

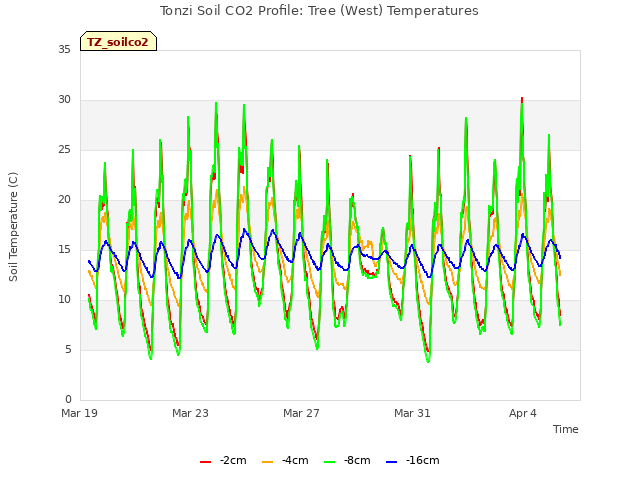

1. Soil CO₂ profile

Reading from datalogger

Panel temp		22.93
Battery voltage		13.67
CO2E_1	494	TCE_1	22.3	CO2W_1	744	TCW_1
CO2E_2	744	TCE_2	24.6	CO2W_2	-1875	TCW_2
CO2E_3	1062	TCE_3	18.7	CO2W_3	1454	TCW_3
CO2E_4	2591	TCE_4	15.1	CO2W_4	-9999	TCW_4

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	1000	1	2cm (1%)	1440	1
4cm	1510	2	4cm	1990	2
8cm	2120	3	8cm	2930	3
16cm	5240	4	16cm	247%	4

1. Close gate and set up fence. YES!

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
4/4/2008	95	71	X
		72	7.8
		77	X
		78	X
		79	12.1
		245	3.5
		248	13.1
		250	9.5
		255	X
		‌252‌	X
		102	‌

Notes: “X” means not working any more.

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
4-Apr-08	95

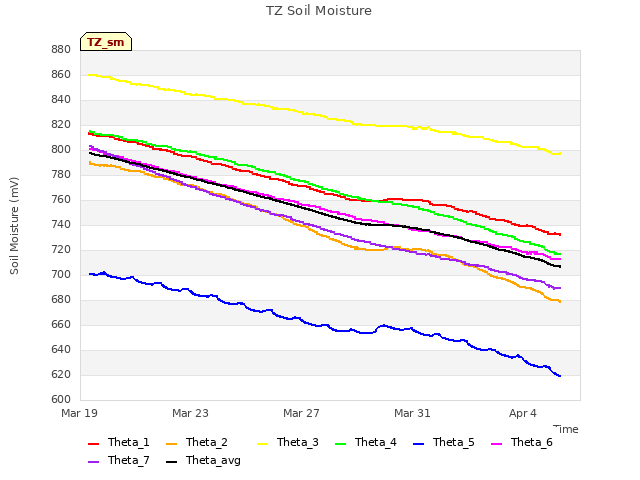

	SM
0-15	22.3	11.5	19.1	11.5	15.0	16.2	14.7	17.3	11.2
15-30	28.9	24.0	25.4	24.9	26.6	14.5	20.6	24.9	12.1
30-45	33.2	36.6	34.2	29.3	41.3	19.3	20.4	27.6	29.9
45-60	38.0	56.9	57.6	48.0	41.1	23.1	33.1	44.0	23.6
	A6D882B	A3D04E8	A6D72F5
0-15	22.6	17.3	7.3
15-30	16.1	16.7	19.7
30-45	27.9	28.2	26.7
45-60	38.0	44.0	46.7
vaira	57318a	7933dee
0-15	8.8	7.0
15-30	17.6	19.4
30-45	21.8	22.9
45-60	25.6	30.1
