Mayberry: 2013-03-28 10:45:00 (DOY 87)
Author: Cove Sturtevant
Others: Sara

Summary: Tules greening along margins. Tower reading well. Waspies getting active. Pulled #2 water CO2 sensor for testing.

Mayberry
2013-03-28

Permanent tower
We arrived about 10:45 PDT. It was warm, cloudy, and calm. There is more prominent greening of the tules along most margins. Sara went out in the water to clean all instruments while I downloaded data and cleaned the flux instruments.

7500 readings:
CO2: 385 ppm
H2O: 680 mmol m-3
agc: 31.3 (adjusted to 29.8)
p = 101.91 kPa

Current 7700 readings:
CH4 = 2.0 ppm
RSSI = 63 (adjusted to 81 after cleaning)
Reservoir full. Beware wasp nest inside the lid (I knocked off a 5-6 wasp nest, hopefully they decide to abandon)

MET looked good except for the #2 CO2 sensor in the water. CO2 #1 was reading ~940 while CO2 #2 was reading ~5000. Sara reported the sensor housing was above the water and the sensor itself was floating in the water upon arrival. Reinstall and further playing with it didn’t revive normal values, so Sara pulled the sensor. Back in the lab there were no water leaks, further testing required. Sara also lowered the DO sensor in the tules from just barely below the surface to 5 cm below.

2 photos found

Dennis and guests on site
Dennis and guests on site

Cove on site
Cove on site

Graphs display:
11 sets found

7 MB_flux graphs found

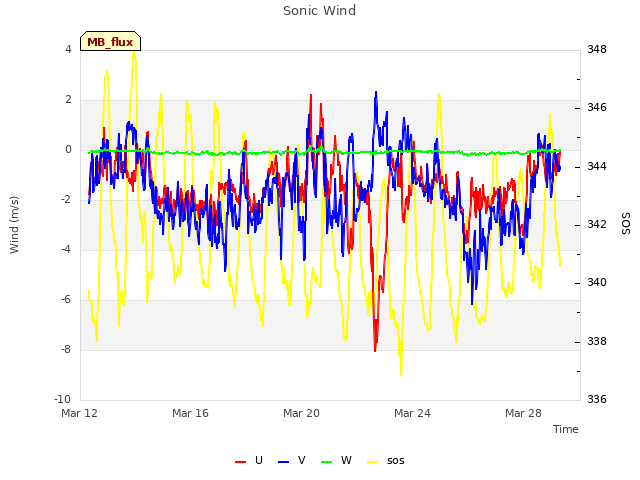

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

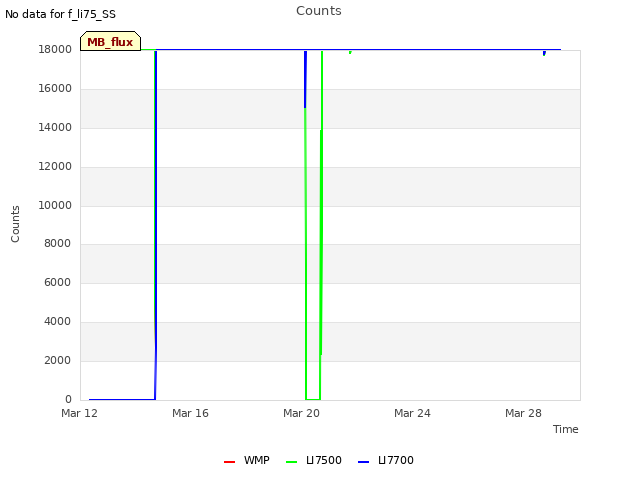

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

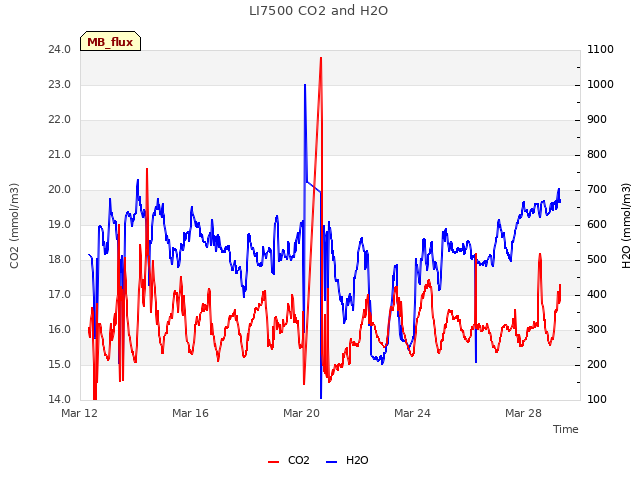

Explore the graph:LI7500 CO2 and H2O in a new window

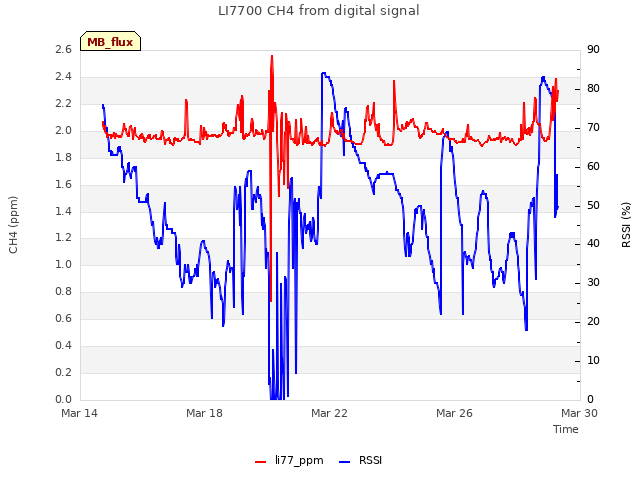

Explore the graph:LI7700 CH4 from digital signal in a new window

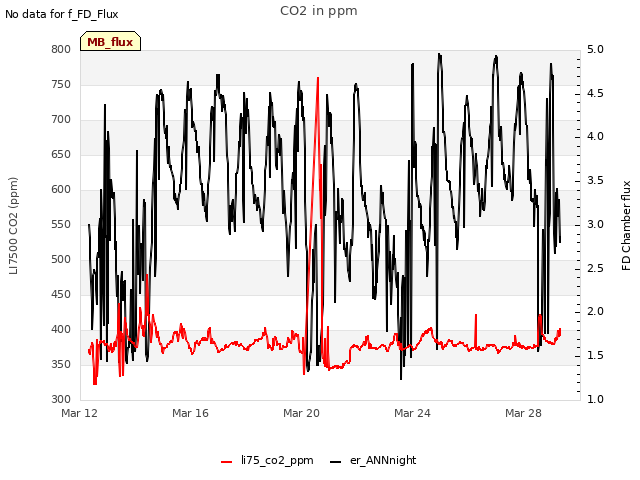

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
28 MB_tule graphs found

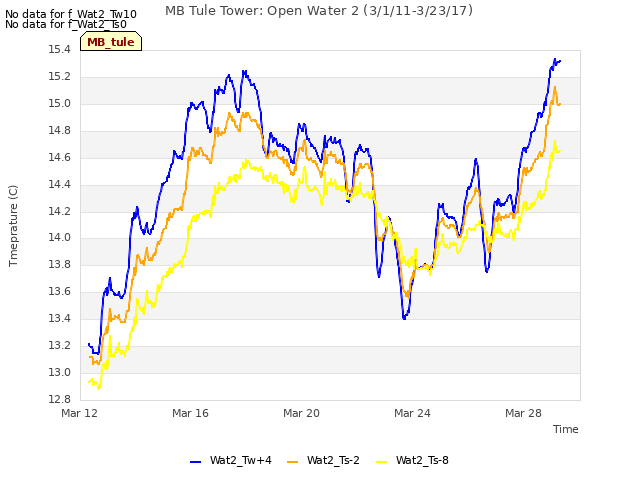

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

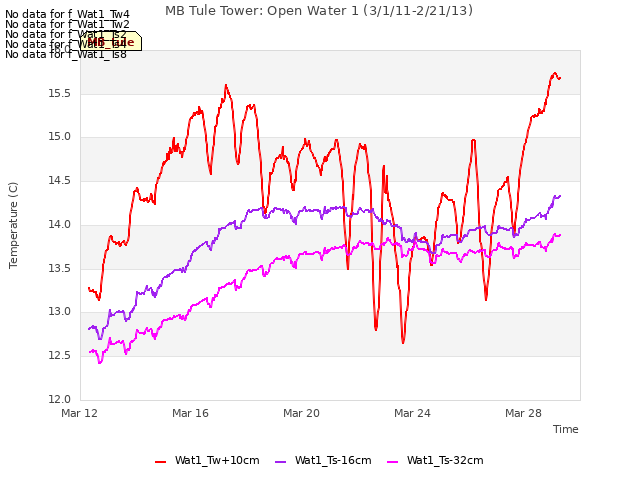

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

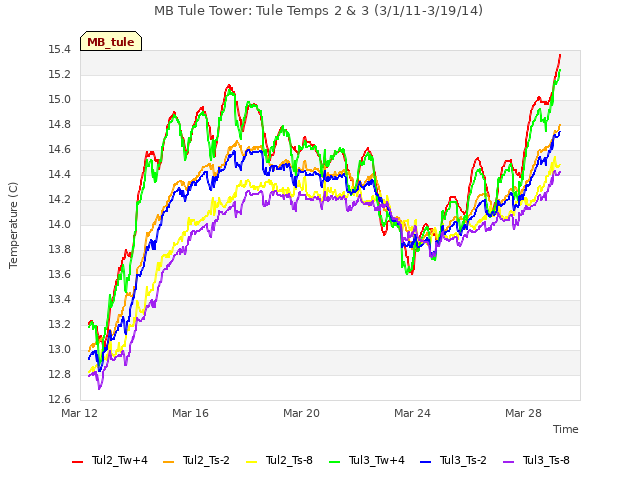

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

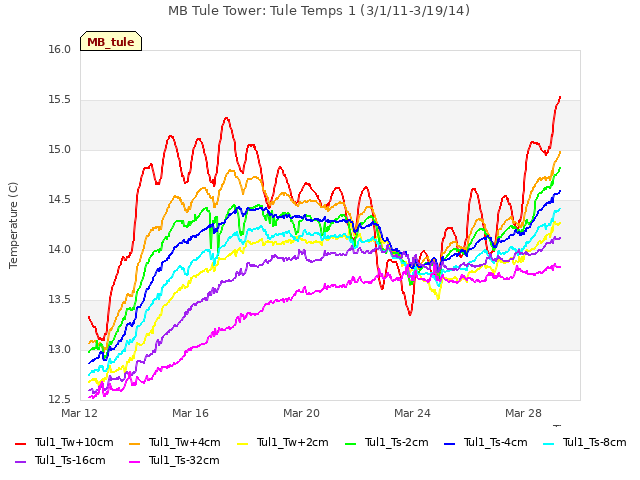

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

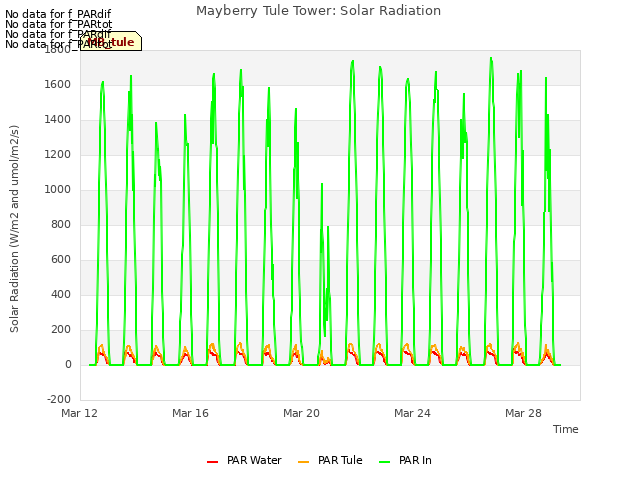

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

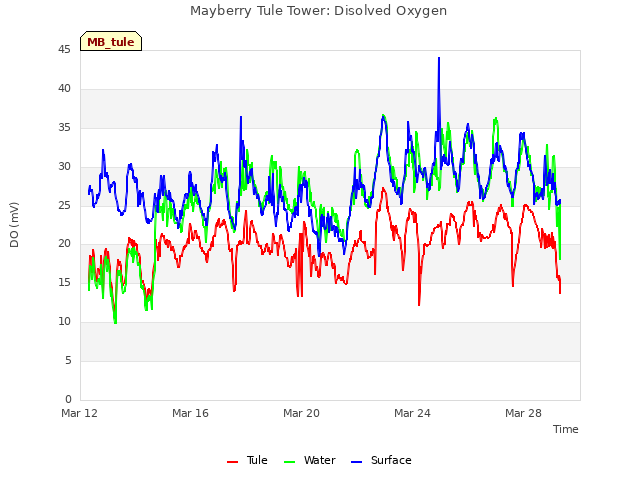

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

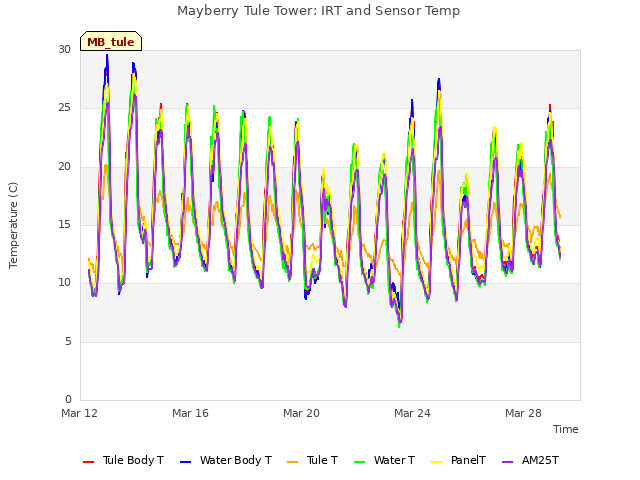

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

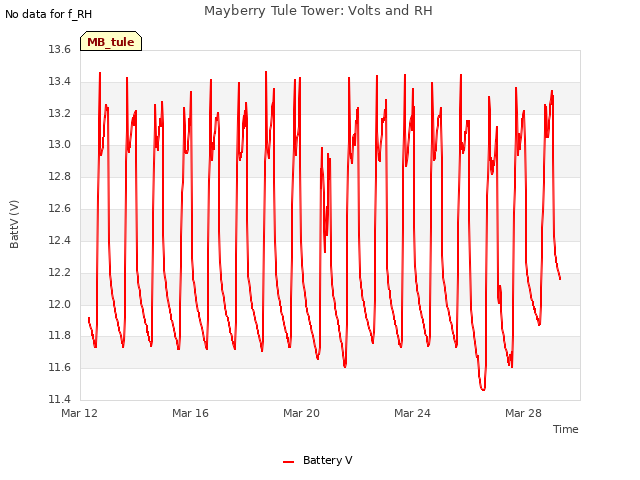

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

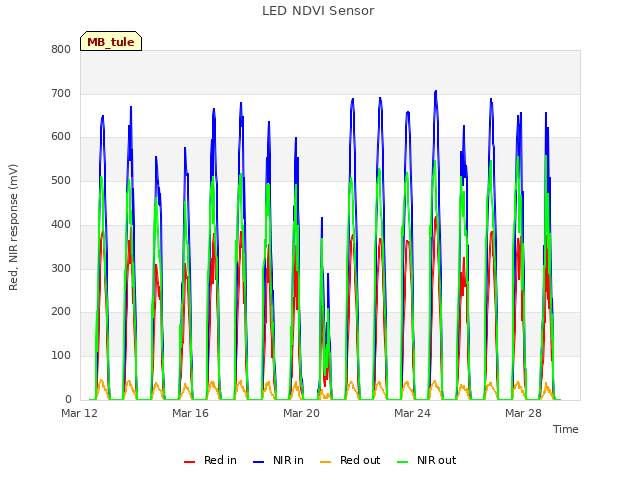

Explore the graph:LED NDVI Sensor in a new window

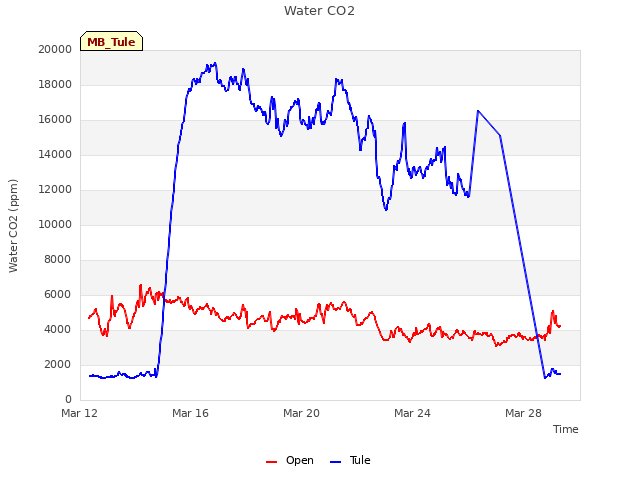

Explore the graph:Water CO2 in a new window

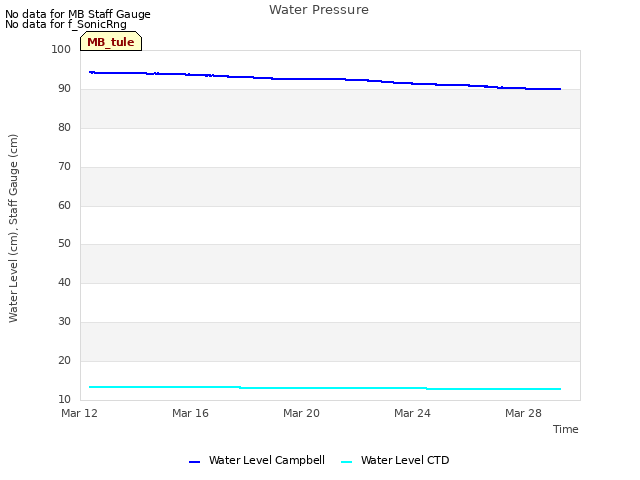

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

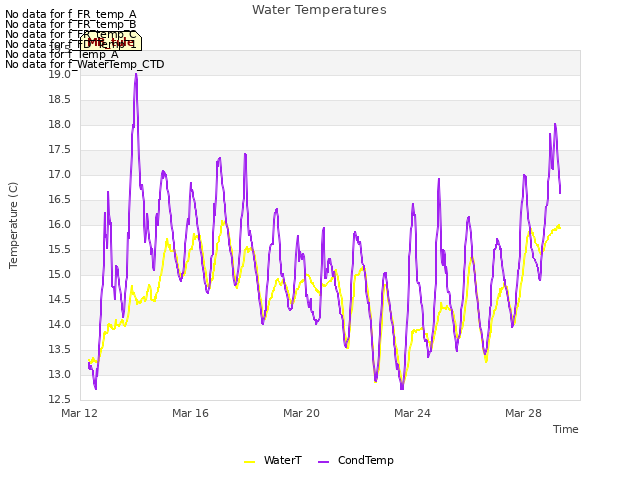

Explore the graph:Water Temperatures in a new window

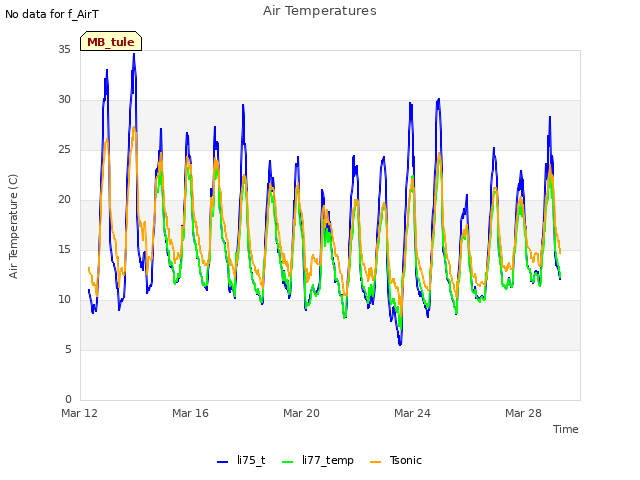

Explore the graph:Air Temperatures in a new window

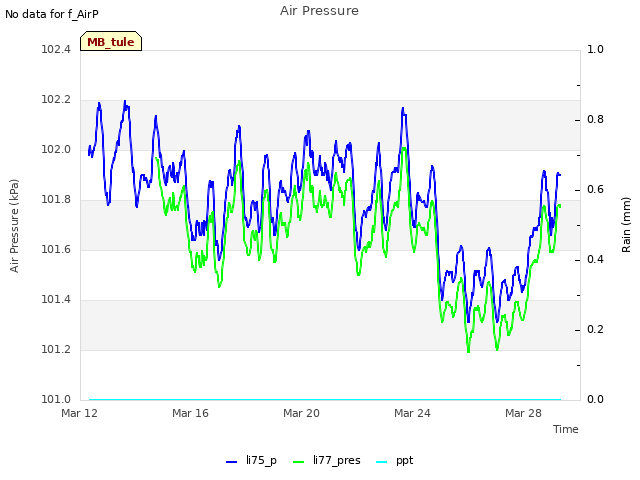

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

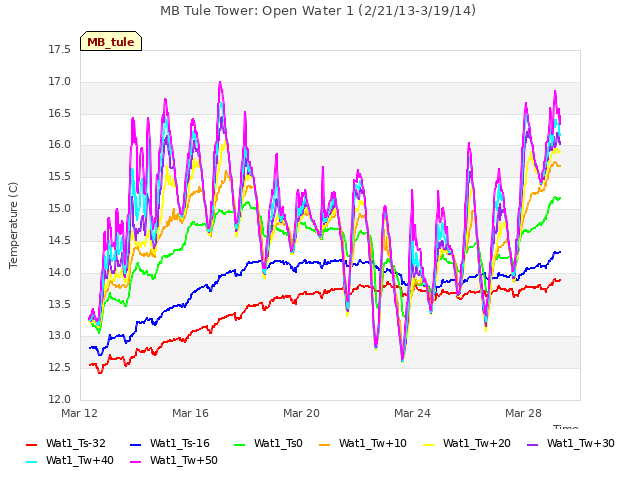

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

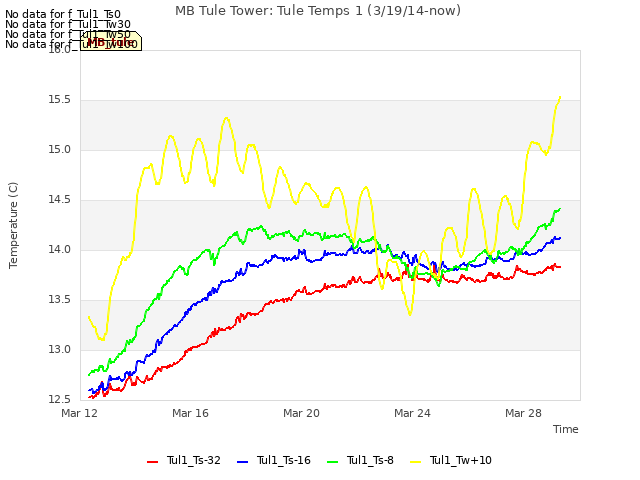

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

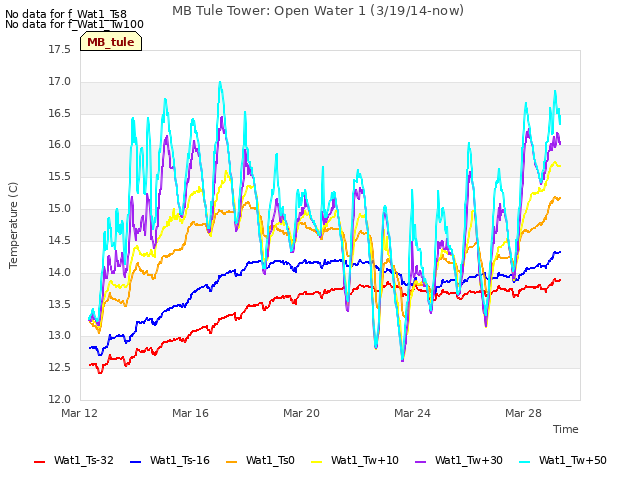

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

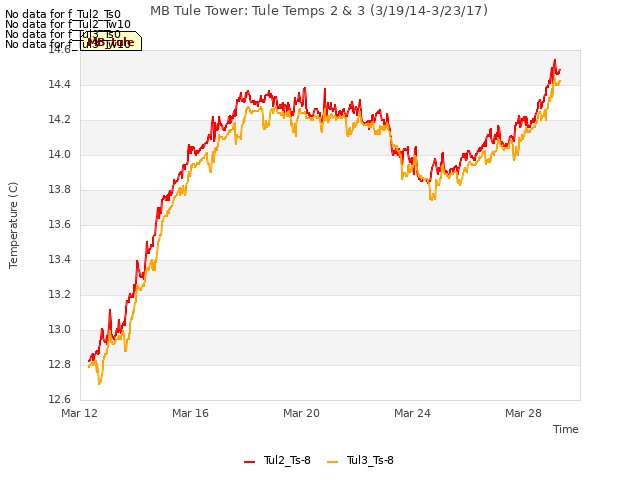

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

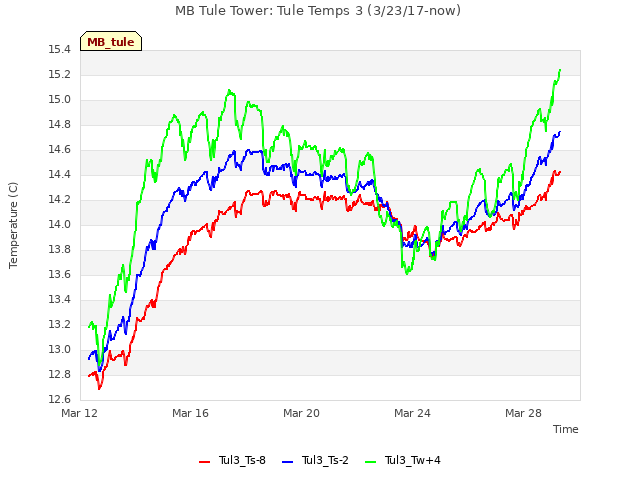

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

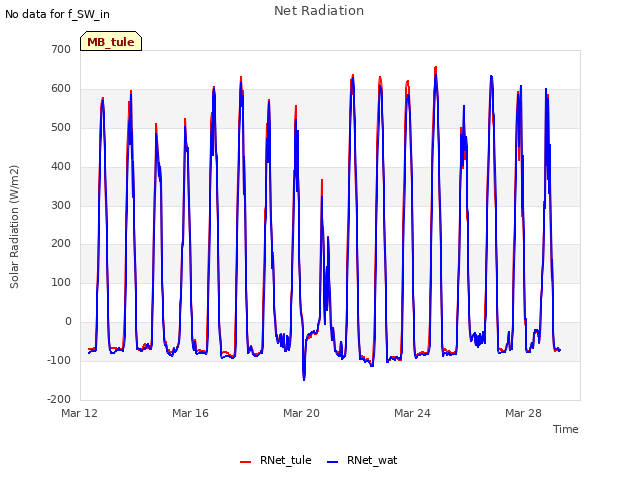

Explore the graph:Net Radiation in a new window

Explore the graph:Conductivity in a new window

Explore the graph:Soil electrical conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

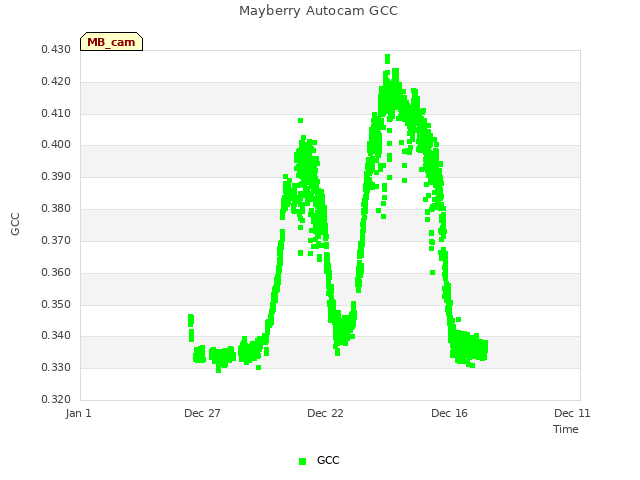

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA
1 MB_processed graphs found

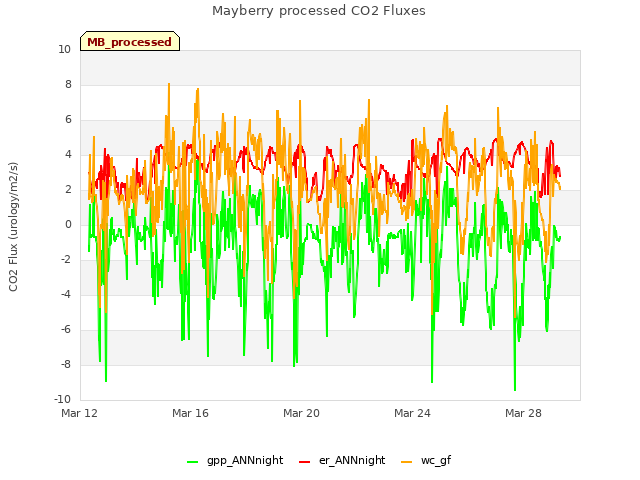

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
