When: Date: 11/29/2009 , Day: 333 , Watch Time: 6:00 .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: chilly in the morning
Phenology: yellow litters still covered green grassed, 99% oak leaf-off, some trees still had green leaves. Saw Mr. Tonzi. He mentioned two loads of cows (80) supposed to arrive in the afternoon, but they delayed because it was too cold in the mountain last night. He was not planning to cut more trees unless the trees fell on fences. His customers went away.

Tonzi
Vaira:

Summary

1. Pre-dawn leaf water potential.
2. A-Ci curves for gray pine
3. check and download data at Tower, Floor, and Vaira
4. calibrate Li-800 in the field.
5. collected needles
6. dendrometers
7. soil moisture
8. groundwater well:

Date	DOY	Location	Depth (no lack thing) (feet)
11/29/2009	333	Floor	31.08
		Tower	35.11
		roadside	38.91

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 12.4 v; 3.0 amps; 3.4 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data YES!
2. swap Li-7500: remove #35, install #976 (with new chemicals)
3. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
4. Check MD-9 system connections YES!
5. Check CR23X with two multiplexers

1. Check levels of Radiation sensors, clear up surfaces.YES!
2. Check rain gage, make sure not clogged. YES!
3. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: v; amps; amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data YES!
2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
3. Check rain gage, make sure not clogged. YES!
4. Check calibration cylinders;

CO₂ 1000 psig; flow 20 psi; 418.8 ppm.
N₂ 1400 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ YES!

before zero


after zero

before span

after span

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 12.3 v; 1.5 amps; 1.9 amps. (about 7:00 am local time)
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data YES!
2. Check MD-9 system connections YES!

CR23X3 – floor-Met


CR23X5 – soil CO₂ profile


CR23X6 – tower-Met


CR10X2 – floor-Met

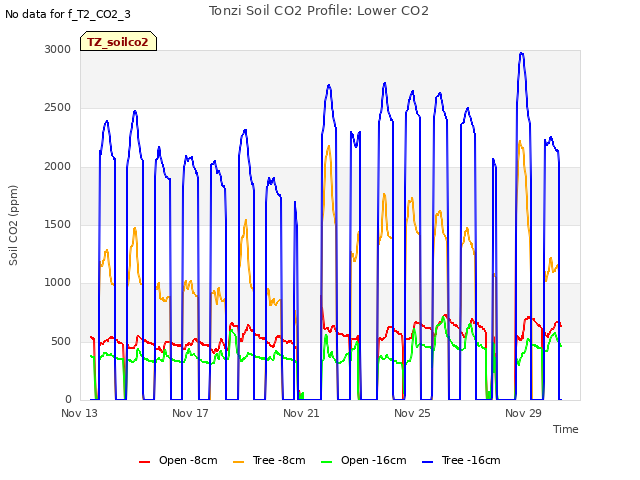

1. Soil CO₂ profile: no power when I got there. I unplug and re-plug fuses, then the system back to work.

Reading from datalogger

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	800	1	2cm (1%)	1680	1
4cm	890	2	4cm	1410	4
8cm	1110	3	8cm	2070	2
16cm	860	4	16cm	4460	3

1. Close gate and set up fence. YES!

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
11/29/2009	333
	SM
0-15	16.2	32.5	15.0	15.0	15.5	9.4	19.1	14.4	8.3
15-30	11.8	31.9	10.9	10.9	15.4	12.1	20.3	14.5	6.3
30-45	17.3	35.1	11.7	11.7	2.3	14.5	14.0	15.6	12.9
45-60	13.3	12.3	14.2	14.2	15.9	11.6	9.6	17.3	10.2
	A6D882B	A3D04E8	A6D72F5
0-15	27.9	20.0	9.7
15-30	11.7	17.0	19.4
30-45	14.3	16.5	12.9
45-60	11.1	15.3	3.9
vaira	57318a	7933dee
0-15	5.8	14.7
15-30	13.3	15.8
30-45	12.8	13.7
45-60	19.8	17.8

Tonzi
Dendrometer
Date	Day	Tag #	Reading (mm)
11/29/2009	333	72	6.4
		79	9.0
		102	12.1
		245	8.8
		250	18.7	(reset to 10.5 on May 7, 2009)
		1	17.6
		2	8.5
		3	13.3
		4	5.3
		5	11.4
		7	13.0	133
		8	14.1	11828
		71	X
		77	X	‌
		78	X	‌
		248	X	broken
		255	X	‌
		‌252‌	X	‌
		6	X

Notes: “X” means not working any more.
Dendrometers installed by Gretchen group
