Twitchell Rice: 2012-05-07 11:30:00 (DOY 128)
Author: Joe Verfaillie
Others: Sara

Summary: Tractor work continues, swapped out old 7500 and sonic for new Licor GHG system, removed CR1000, collected data

Twitchell
2012-05-07

I arrived about 11:30PDT with Sara. It was clear, sunny and hot with a strong breeze from the north west. The field has been plowed and was actively being disked while we were there. They are planting some of the other fields.

Everything was running okay. The 7700 needed a bunch of water and its RSSI was 17. After cleaning the mirrors it was 79. The solar panels are dusty too. All the tractor work must be kicking up more dust than usual.

We swapped out the old Li-7500 and the old 7550 and old sonic for a new 7500A, 7550 and sonic with analog outs. The new system seemed to be working. I had to tell the 7550 to connect to the 7700 head, but it seemed all the proper channels were being recorded. I set the 7550 box time to PST and its automatic time sync was off. I also set the LI7700 time to PST and its time sync was set to automatic.

We removed the CR1000.

We collected data from the cr23x and the cameras.

7 photos found

Plowing the field
Plowing the field

Plowing the field
Plowing the field

Plowing the field
Plowing the field

Plowing the field
Plowing the field

Plowing the field
Plowing the field

Tractor work
Tractor work

Tractor work
Tractor work

Graphs display:
6 sets found

12 TW_met graphs found

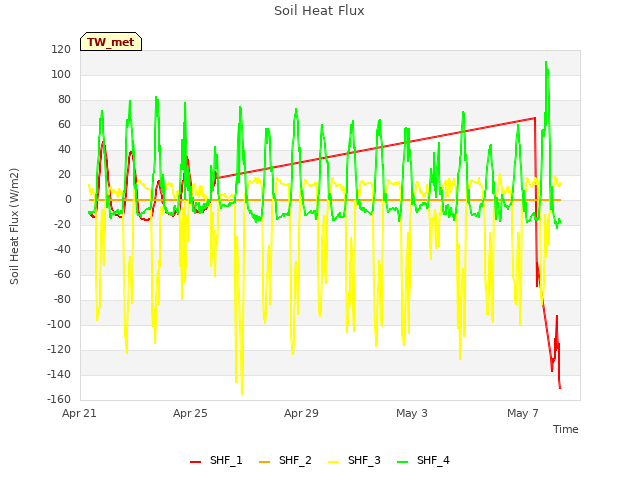

Explore the graph:Soil Heat Flux in a new window

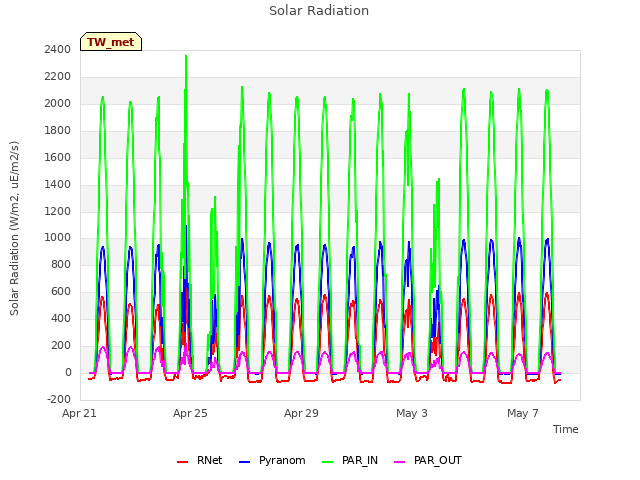

Explore the graph:Solar Radiation in a new window

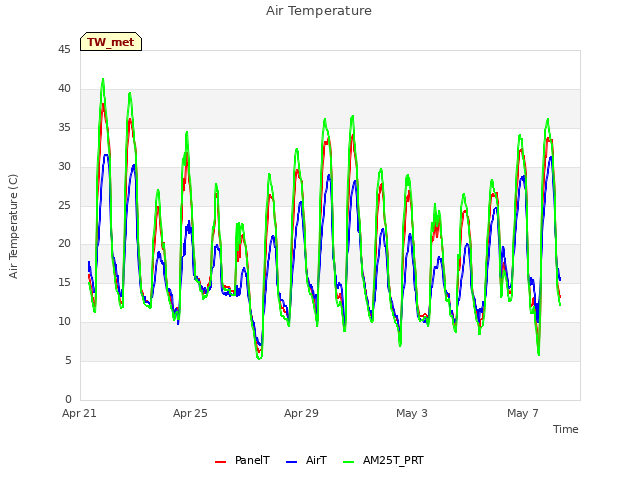

Explore the graph:Air Temperature in a new window

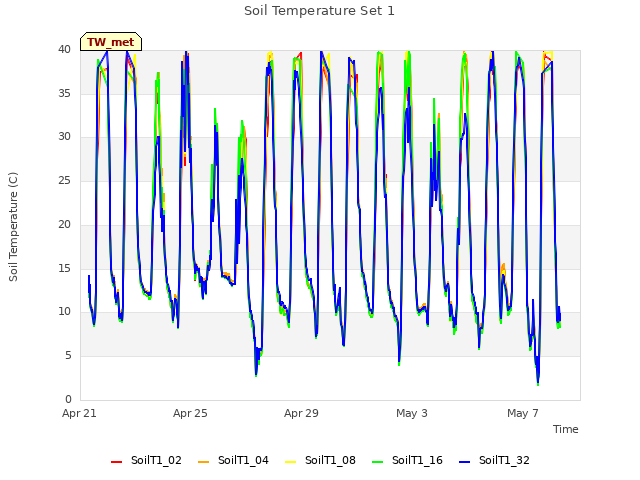

Explore the graph:Soil Temperature Set 1 in a new window

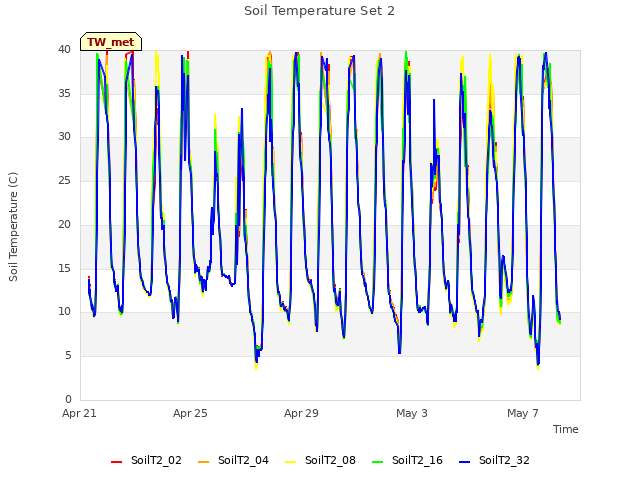

Explore the graph:Soil Temperature Set 2 in a new window

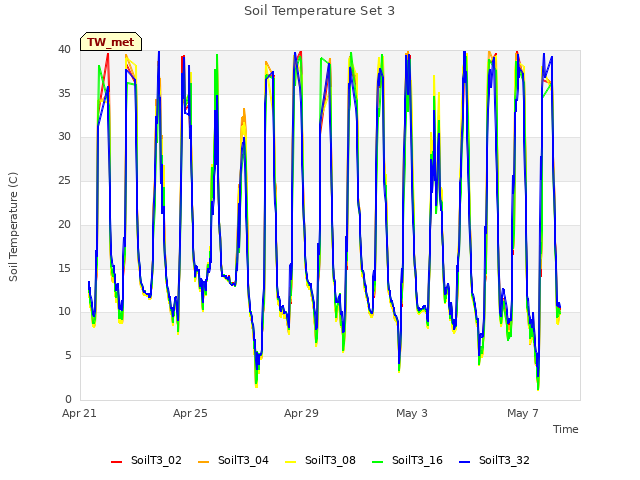

Explore the graph:Soil Temperature Set 3 in a new window

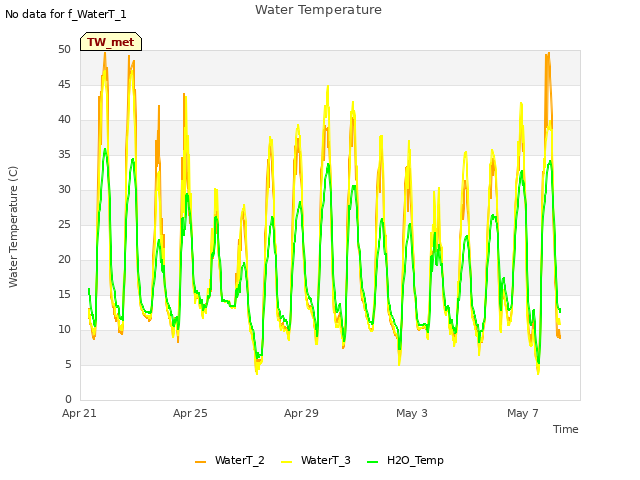

Explore the graph:Water Temperature in a new window

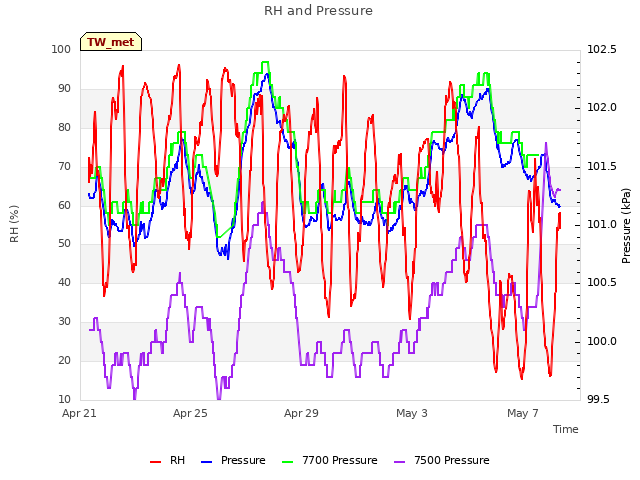

Explore the graph:RH and Pressure in a new window

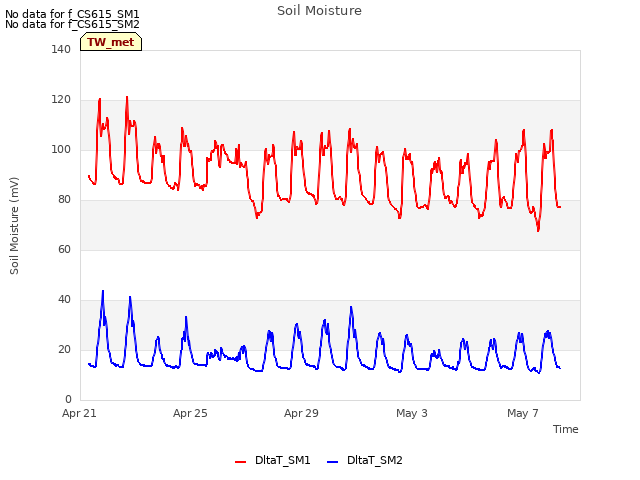

Explore the graph:Soil Moisture in a new window

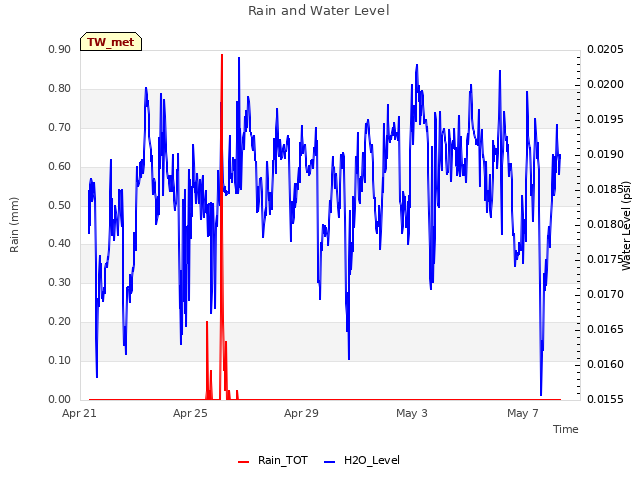

Explore the graph:Rain and Water Level in a new window

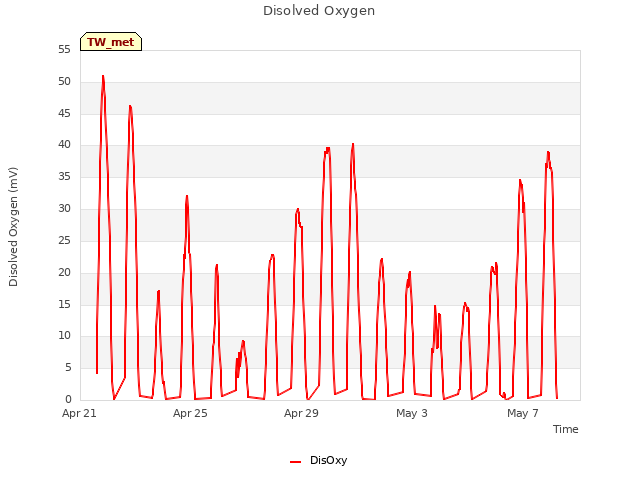

Explore the graph:Disolved Oxygen in a new window

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

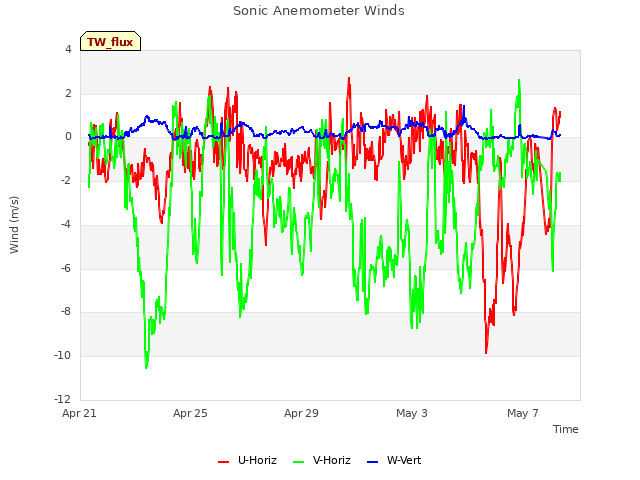

Explore the graph:Sonic Anemometer Winds in a new window

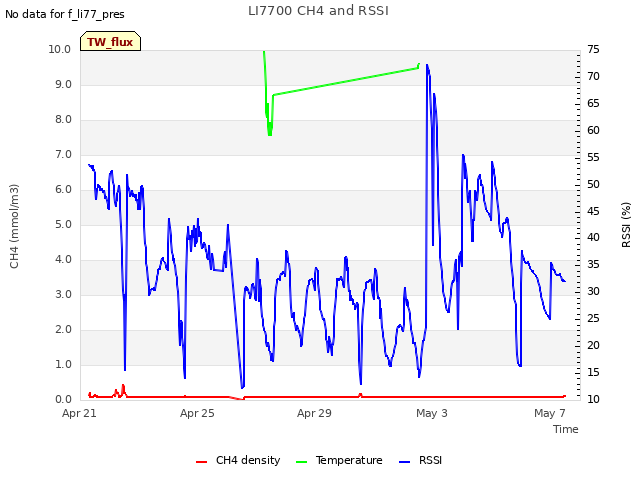

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Twitchell CH4 in a new window

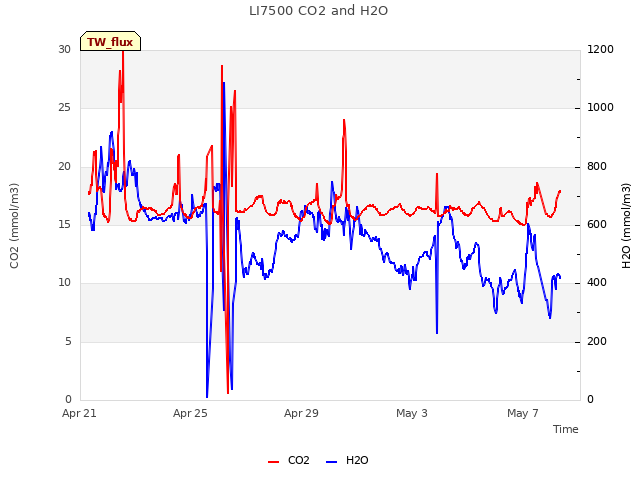

Explore the graph:LI7500 CO2 and H2O in a new window

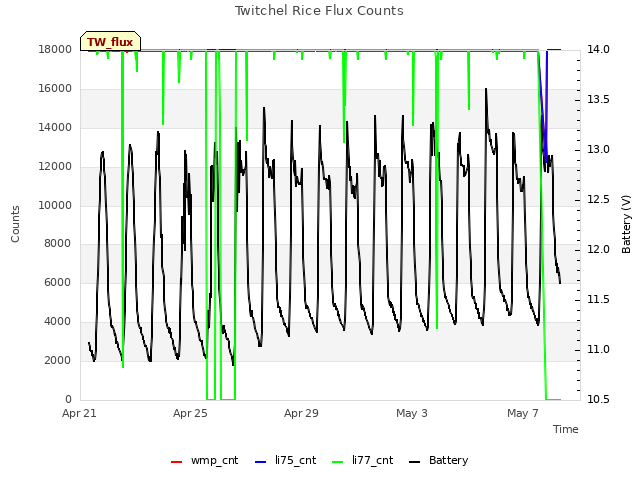

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

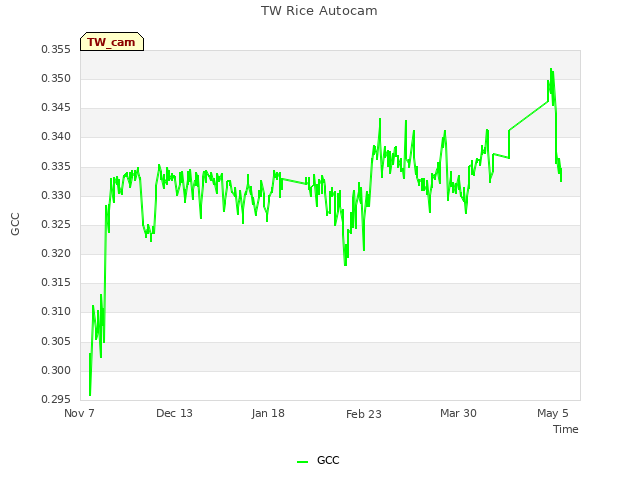

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
