East End: 2022-07-13 16:35:00 (DOY 194)
Author: Daphne Szutu
Others: Ari

Summary: Regular data collection/cleaning, muggy, green and happy plants, changed eddy clock +1min

2022-07-13
East End

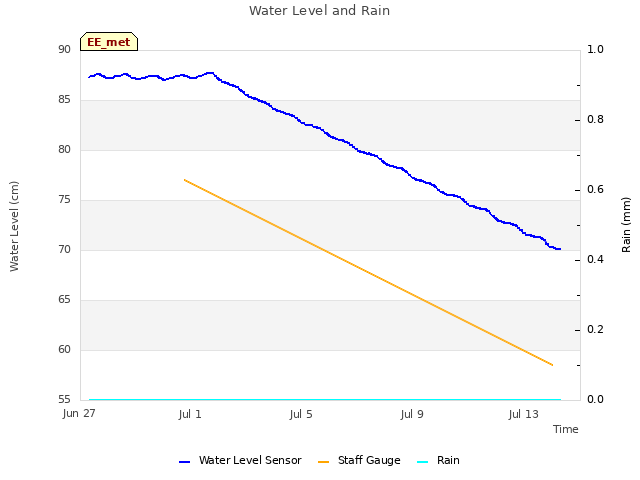

Ari and I arrived at 16:35 PDT. It was warm with clear skies and generally breezy, but muggy among the green and happy plants. The staff gauge read 58.5cm.

I downloaded met, cam USB GHG, and miniDOT data. I swapped desiccant for the miniDOT and water level sensors. I changed the eddy clock +1min from 15:45 to 15:47 to match the laptop time. I restarted logging afterwards. Ari cleaned the flux and rad sensors and topped off the wash reservoir.

The miniDOT chain was kind of floating when we arrived so when Ari deployed the miniDOT after download, she threaded it through the underwater veg so it was hanging freely.

I checked the conductivity sensor as part of its routine check every 3 months--the orifice looked clean.

I checked the 7700 fuse and it looked fine. There was no moisture in the fuse cap.

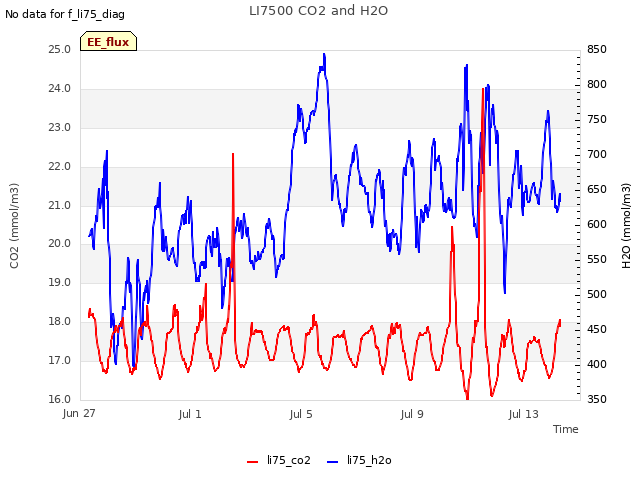

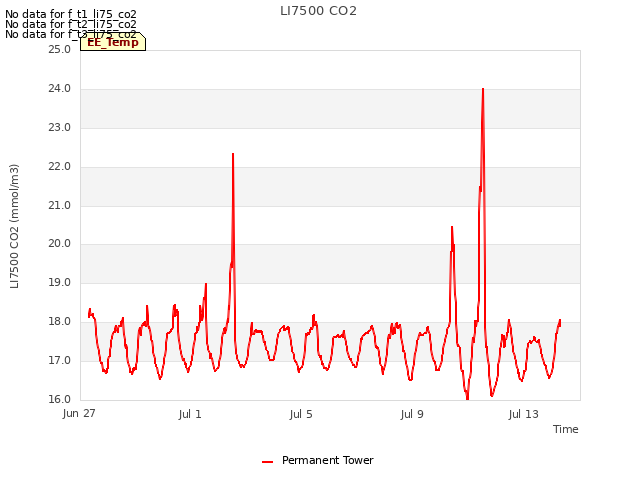

The 7500 read: 414ppm CO2, 615mmol/m3 H2O, 30.7C, 101.0kPa, 93 after cleaning

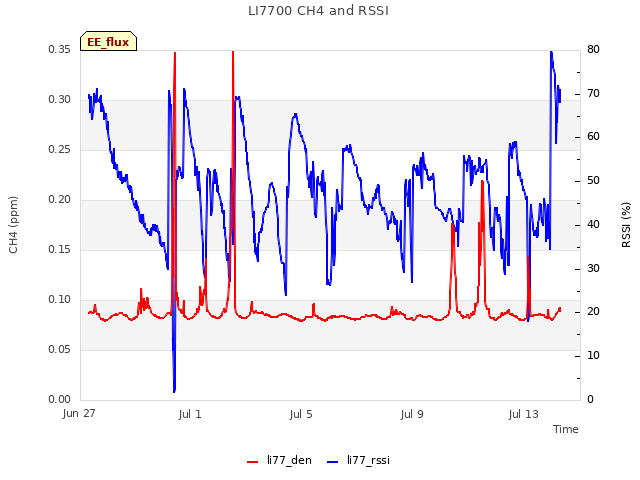

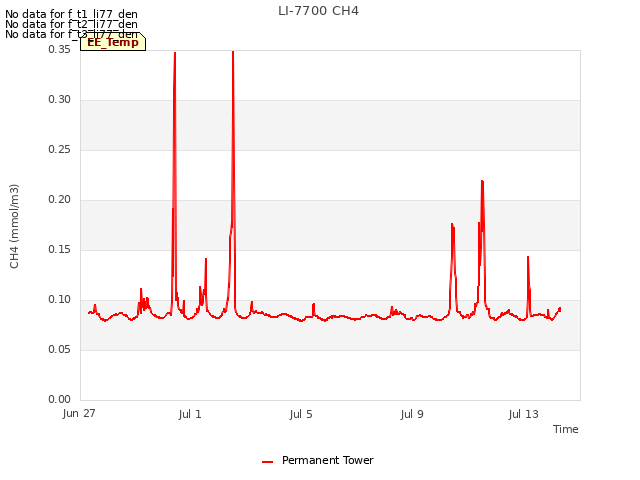

The 7700 read: 2.0ppm CH4, 35RSSI – 79 after cleaning

We left around 17:10 PDT.

0 photos found

11 sets found

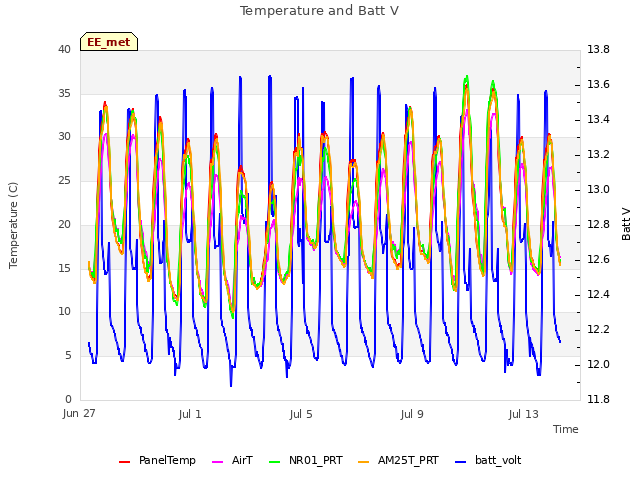

14 EE_met graphs found
