Field Notes
<--2004-12-26 13:27:00 | 2005-01-17 13:59:00-->Other sites visited today: Vaira
Tonzi: 2005-01-06 13:30:00 (DOY 6)
Author: Ted Hehn
Others:
Summary: Swapped Floor sonic, calibrated Tower co2 profile, installed C compiler on Tower computer
| Weather - Cool, clear and humid - much rain over the past few weeks Trip Purpose: General site visit and install new sap flow system Tonzi Ranch: 13:30 Floor system appears OK able to connect to all data loggers. Sonic sn 000024 showing temp = 22 Remove sonic sn 000024 and install sn 000019 (tested to spec o19May04) and it shows temp = 11 Tower system appears OK. LI-800 sn AKC-0479: Run zero/span gasses: Zero shows 0.658 ppm and span shows 434 ppm with 429 ppm reference gas. Run Z/S software sequence twice to reset LI800 zero/span CO2 cyl pressure = 1600 psi N2 500psi Install C compiler on tower PC |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

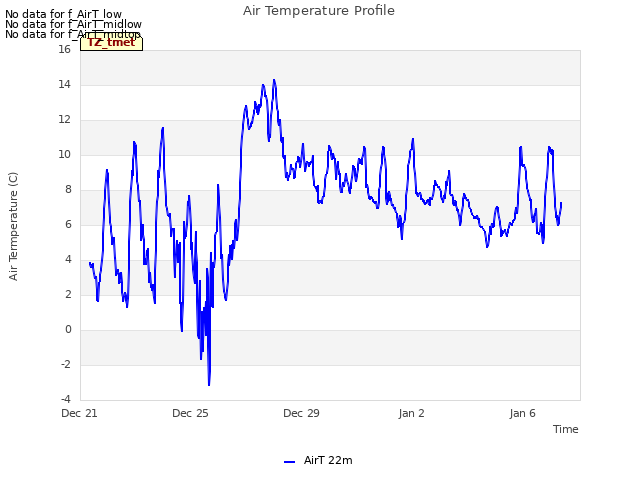

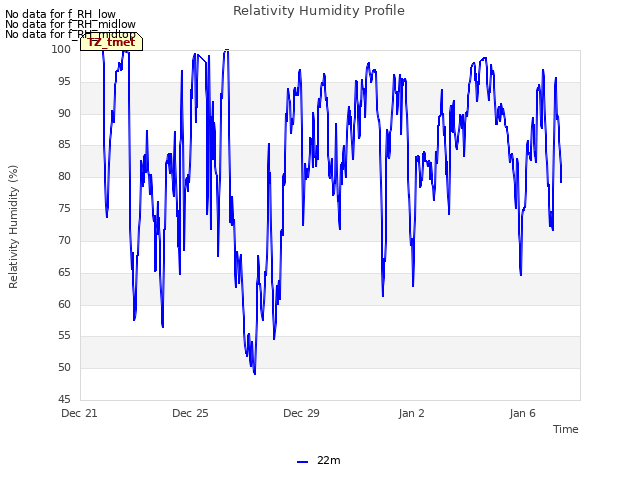

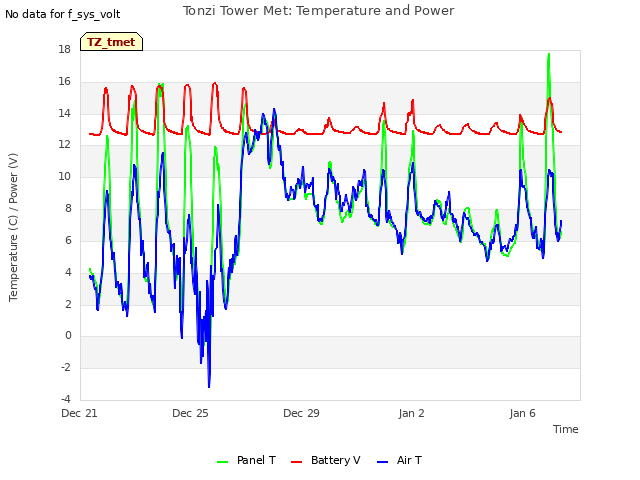

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

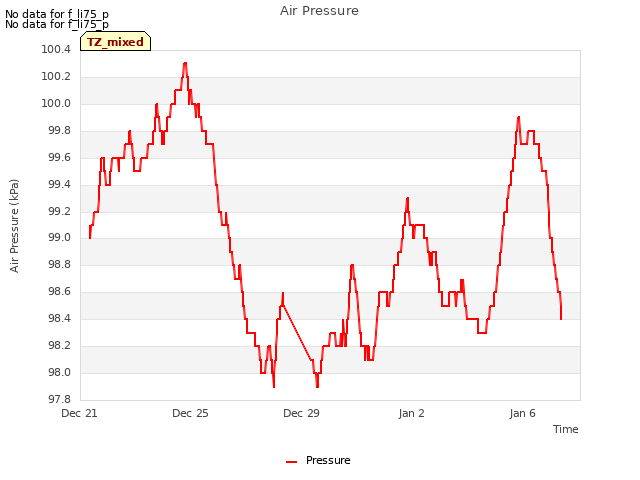

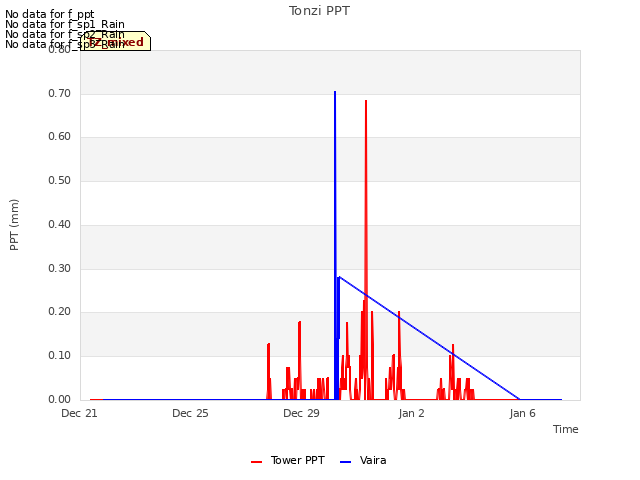

3 TZ_mixed graphs found
No data found for TZ_fflux.

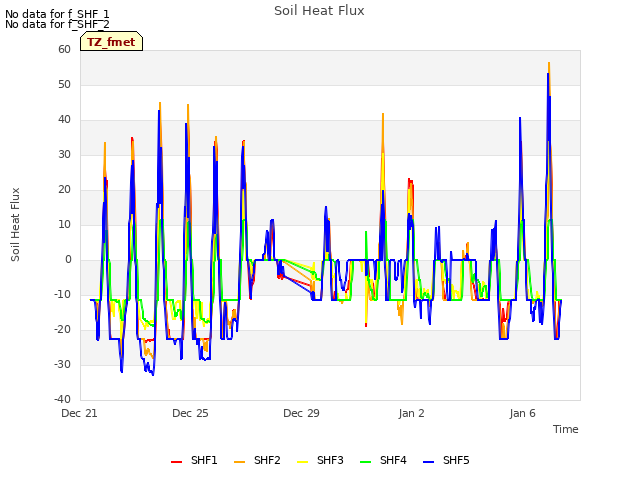

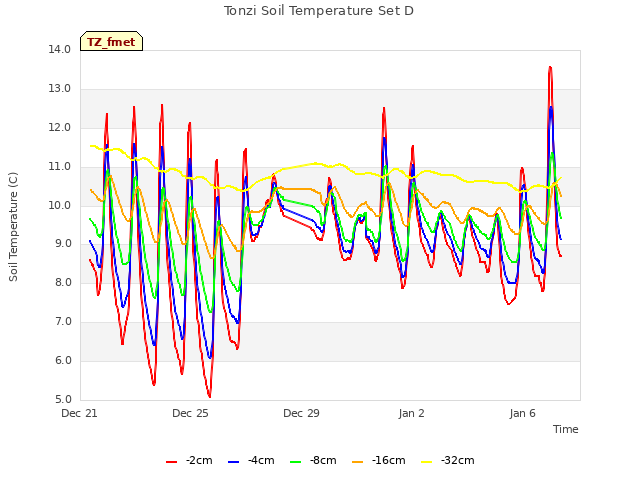

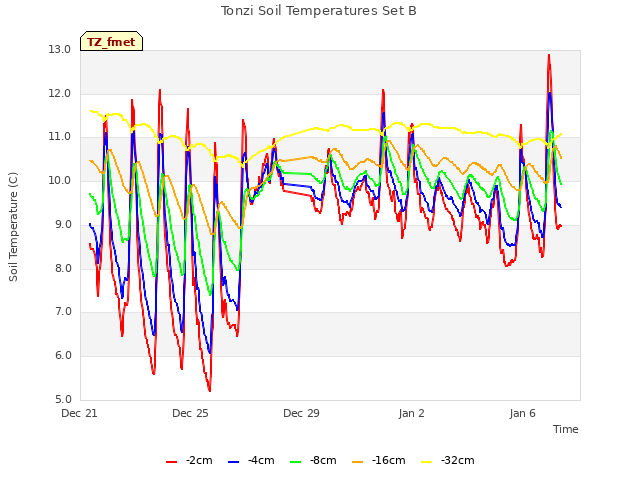

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
1 TZ_windprof graphs found
No data found for TZ_tflux.

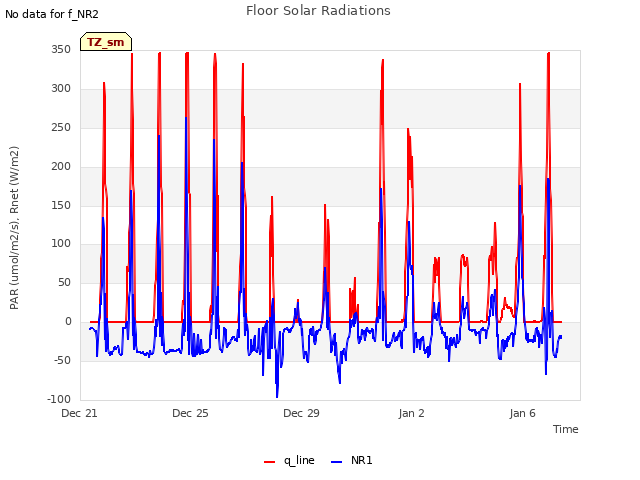

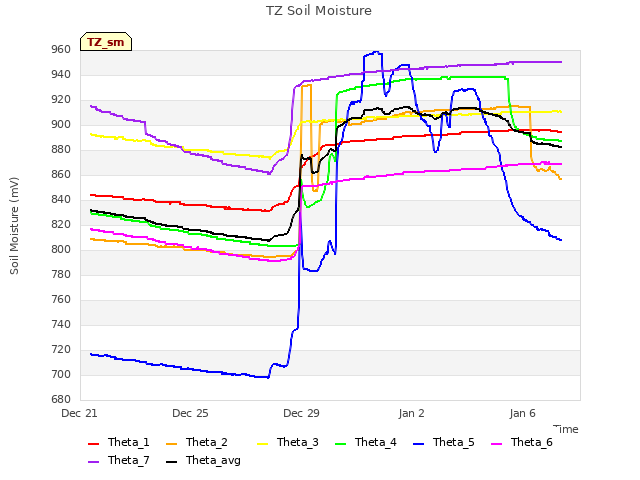

2 TZ_sm graphs found
Can't check TZ_met

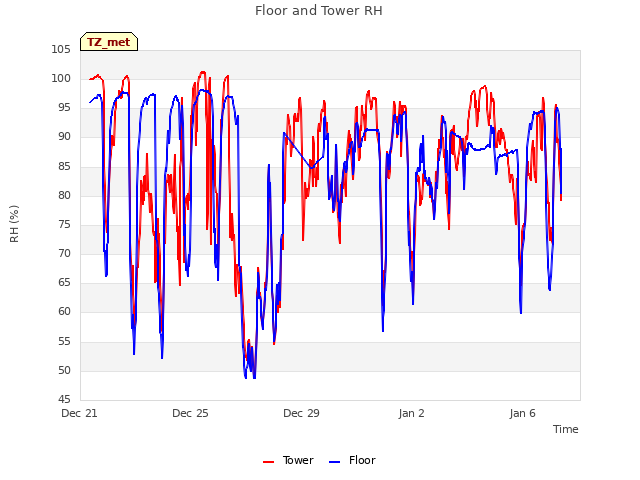

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
