Field Notes
<--2003-03-29 09:00:00 | 2003-04-03 09:00:00-->Other sites visited today: Vaira
Phenocam link: Searching...
Tonzi: 2003-03-30 09:00:00 (DOY 89)
Author: Ted Hehn
Others:
Summary: Finish Tower power upgrade, problems with PC restarts not getting sonic serial data.
| When: Thurs-Sun., Mar 27-30, JD 86-89 Where: Tonzi/Vaira Ranches Who: Ted Hehn Weather Trip Purpose: Tower reconfiguration to upgrade from 30 amp to 60 amp capability. Sunday – 09:00 Tower PC on, Gillsonic.exe running and displaying flat lines on all channels. Sonic is sending serial data stream but Gillsonic.exe not functioning – PC processor failure. Close Gillsonic.exe and reinitiate and it begins showing response on all channels. Continue with tower power reconfiguration. 13:10 Set tower watch dog timer to perform Time Event Driven Software (TEDS) reset at 13:15hr and the PC Gillsonic.exe failed to begin taking data. Disconnect battery lead to solar regulator to simulate a Low Voltage Drop Out Reset (LVDOR) and the system restarted and successfully reinitiated taking data. 17:00- Test the TEDS several times and it now seems to be functioning correctly. Reset TEDS time to 04:50hr Mr. Tonzi informed me that there were major violent winds during my absence. High winds can be a source for static charge build up on the systems. At some point the static charges will “discharge†and this usually results in microprocessor crash. This may be what caused the problems we experienced. Therefore, if anyone visits the site and finds any of the PCs or data loggers crashed, I strongly recommend that you use a “DAMP TOWEL†and wipe down the PCs, data loggers, and the inside and outside of all the enclosures to remove ant residual static charge. Misc Notes Get antibird spikes, etc on tower sonic- bird scat is literally hanging from xducers. RTV silicon holes in solar module terminal boxes. Order/build DC/DC converters for all LI7500s. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

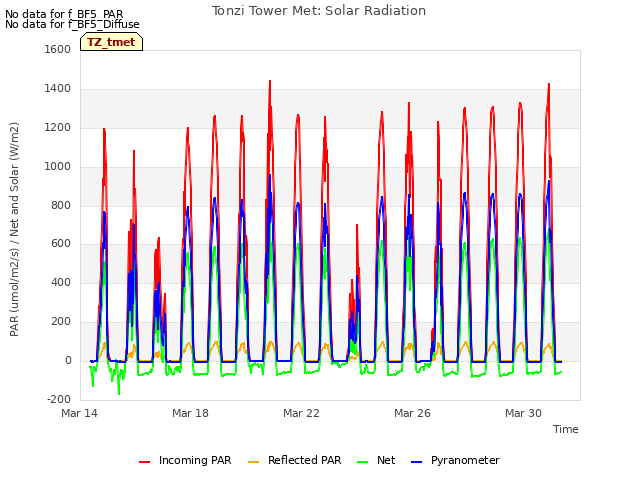

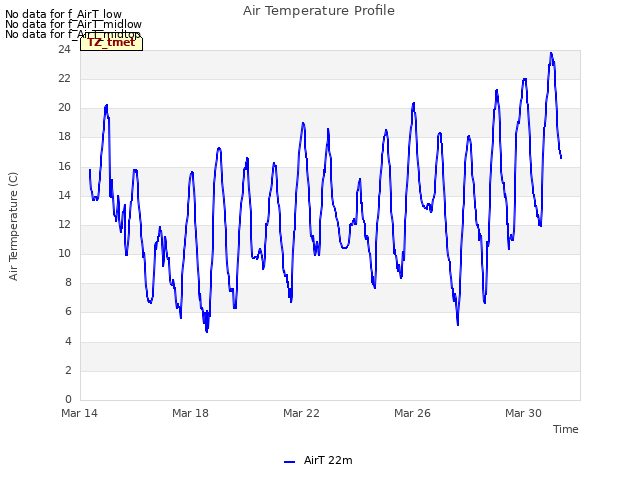

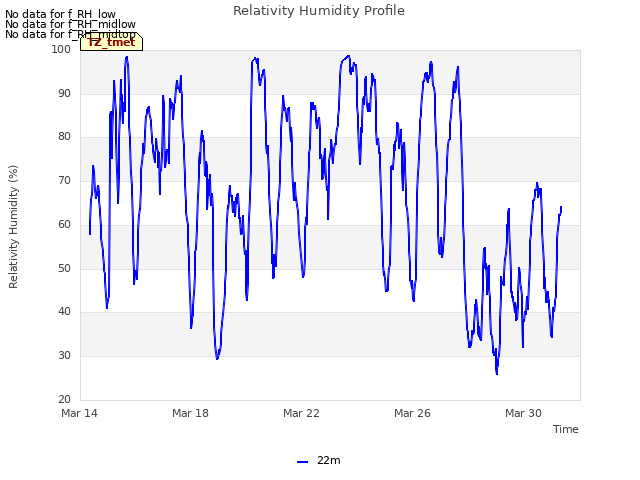

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found
No data found for TZ_fflux.

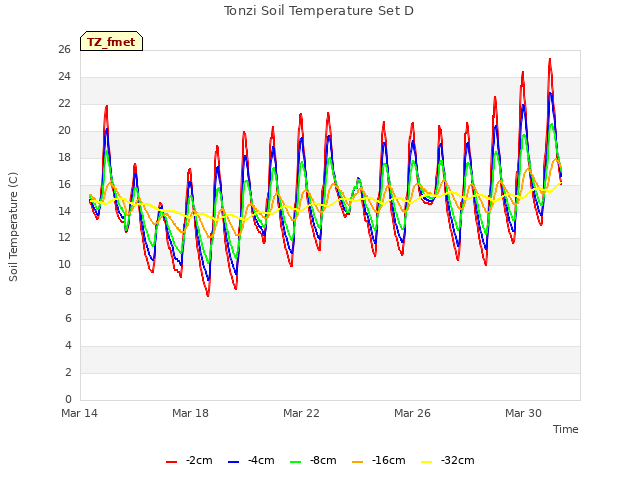

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

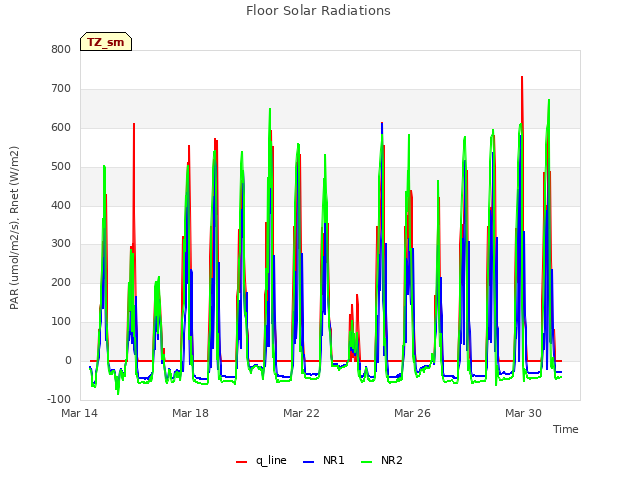

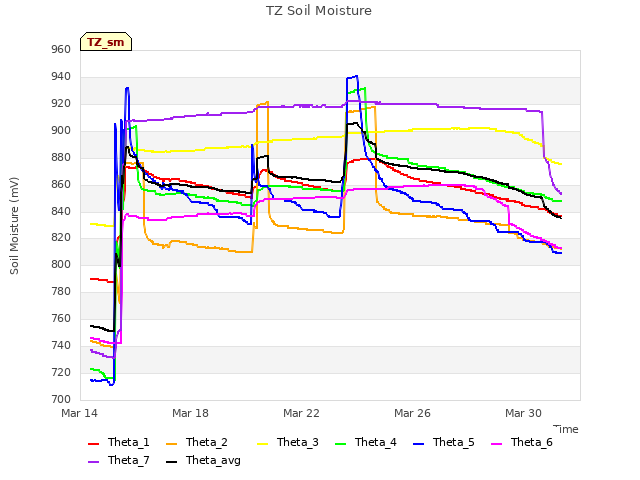

2 TZ_sm graphs found
Can't check TZ_met

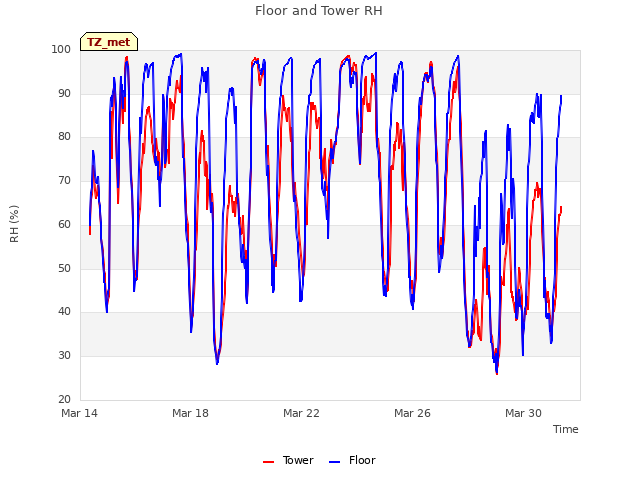

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
