Field Notes

<--2003-03-30 09:00:00 | 2003-04-04 11:00:00-->
Other sites visited today: Vaira
Phenocam link: Searching...

Tonzi: 2003-04-03 09:00:00 (DOY 93)
Author: Ted Hehn
Others:

Summary: Check and reboot PC on tower.

Thursday - Tower pc off upon arrival on Thursday morning. Turn PC on and it starts taking data. However, I was unable to shut Gillsonic.exe down with or which should minimize window. Reboot PC with on/off switch—no help pc will still not stop program with or . Reboot pc and try F8 key to boot up in “Safe Mode”. No help- F8 key does not work either. Appears some key strokes are not recognized!!!

Use to bring up the Task Manager window and stop the Gillsonic.exe that way.
Data files (Raw) intermittent during my absence. Unknown as to why. Appears 5:00 am reset did not function either.

Restart Gillsonic.exe from shortcut on desktop and I am now able to stop it in the normal fashion.
Tower PS-30 charge regulator :
Volts = 14.0
PVM amps = unstable around 12.8 THIS MAY BE AN IMPORTANT CLUE!!!!!!!!!!
Load amps = 1.9

9:50 Reset watchdog timer to perform auto-shut down/up at 10:00 am. Ok- PC/Gillsonic.exe powers down and back up successfully and then also stops program.

Test watchdog timer simulating low voltage condition and it works perfect. Test time shut down again and it again functions perfectly.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

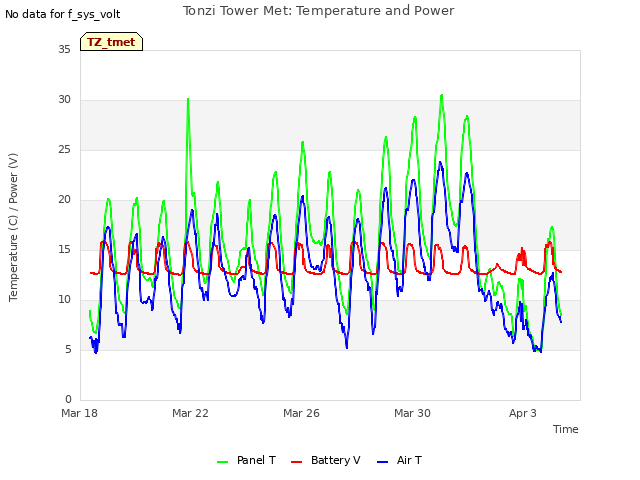

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

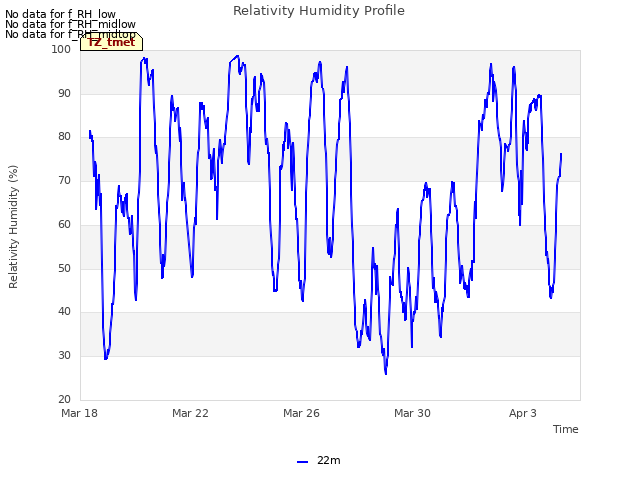

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

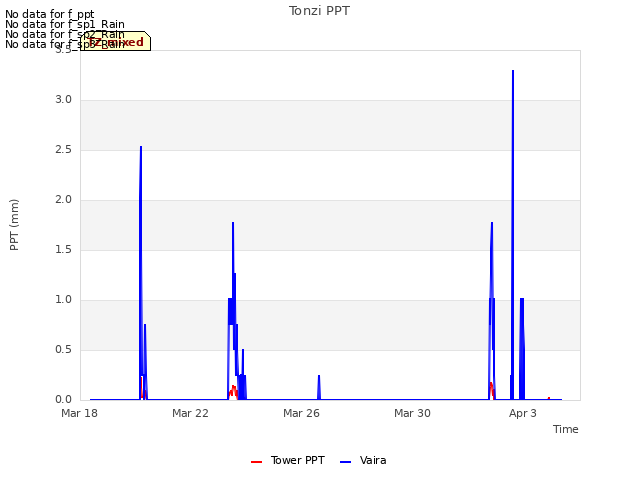

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

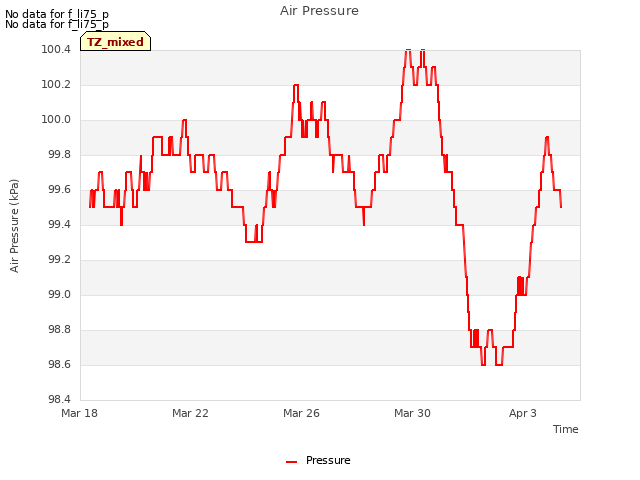

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

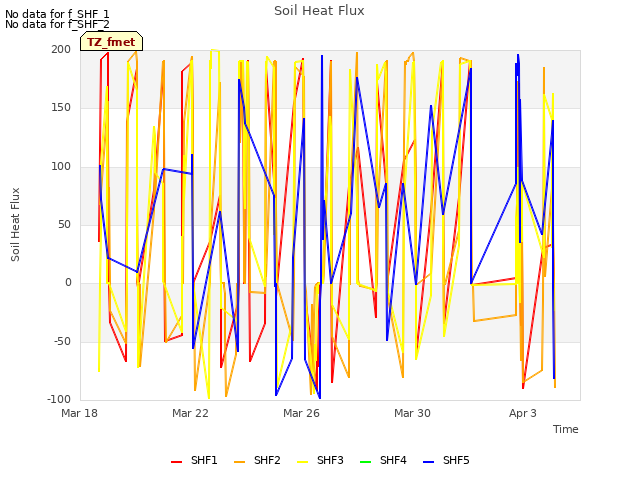

Explore the graph:Soil Heat Flux in a new window

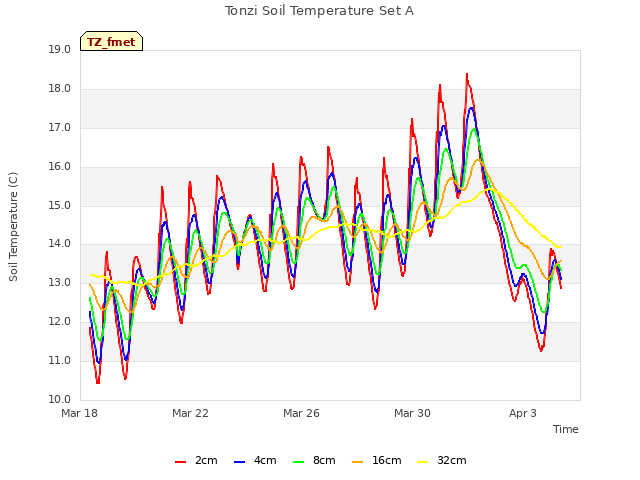

Explore the graph:Tonzi Soil Temperature Set A in a new window

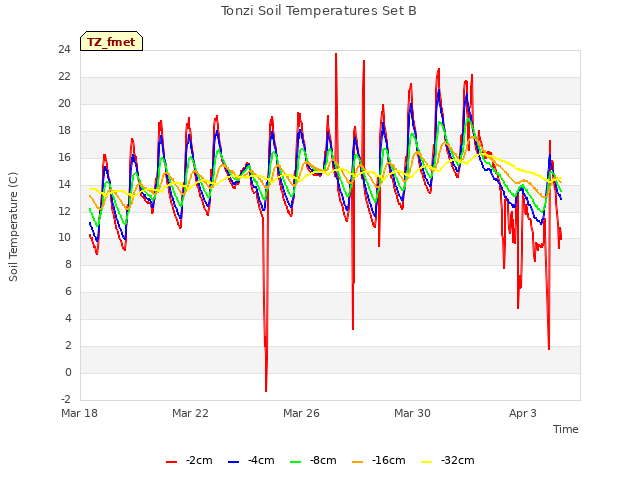

Explore the graph:Tonzi Soil Temperatures Set B in a new window

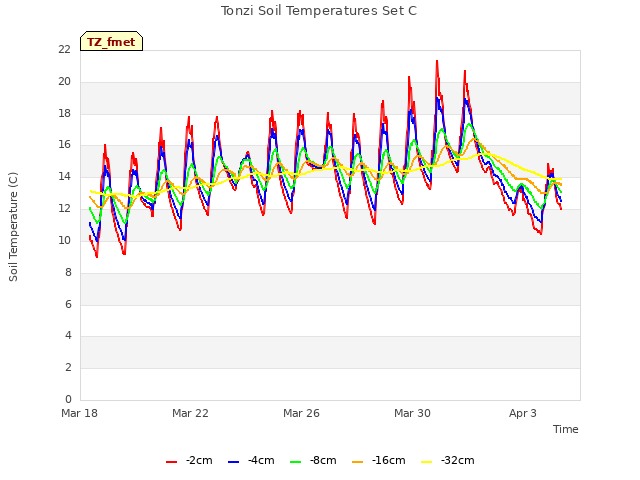

Explore the graph:Tonzi Soil Temperatures Set C in a new window

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

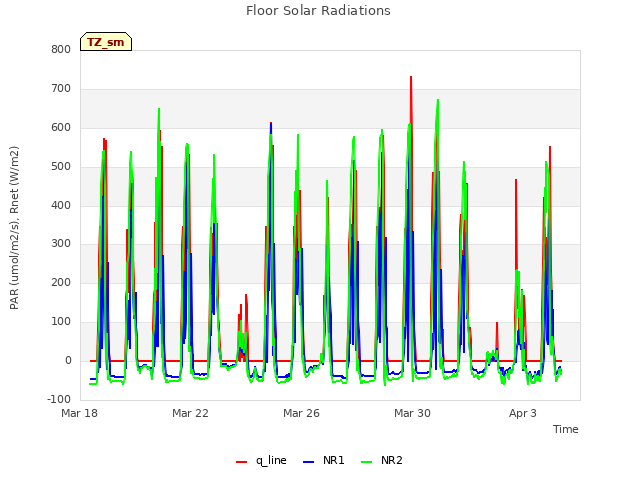

Explore the graph:Floor Solar Radiations in a new window

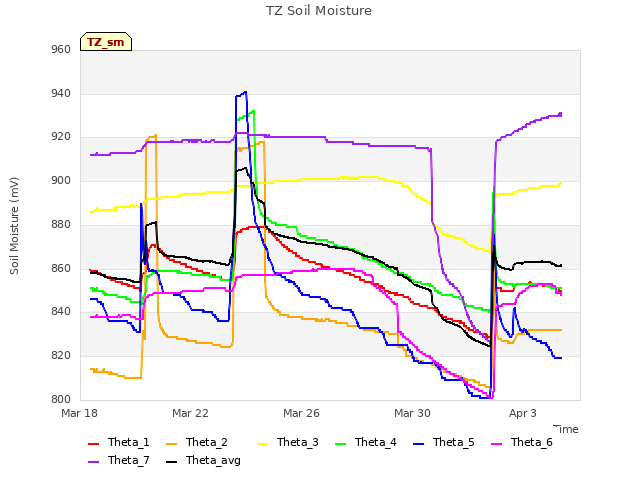

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

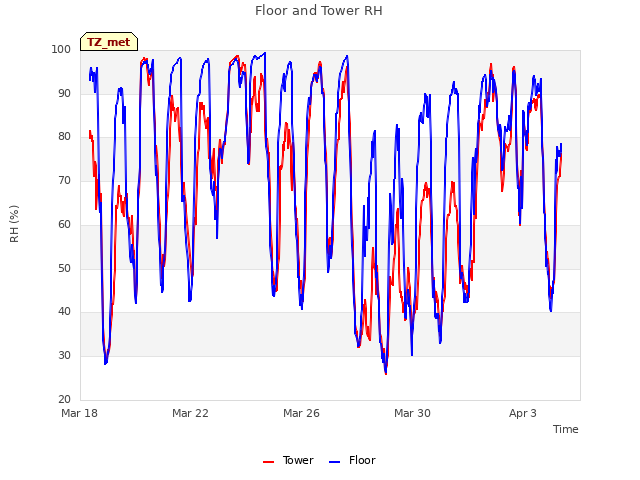

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
