Field Notes

<--2003-01-29 11:00:00 | 2003-02-13 10:00:00-->

Tonzi/Vaira: 2003-02-03 10:00:00 (DOY 34)
Author: Ted Hehn
Others:

Summary: Vaira new battery box, added fuses to solar system, new fence battery

When: Mon., 3Feb03, JD-34
Where: Tonzi/Vaira Ranches
Who: Ted Hehn
Weather Clear, Cool light breeze

Trip Purpose: Replace fence battery at Vaira

Buy rubber ties and 2 ft step ladder

Vaira Ranch:

-All appears well at site

-Check signal lead wiring on CR10x/MUX and discovered that the CM3 down had the polarity reversed. Change lead configuration to correct polarity.

-Replace fence battery and connect surface renewal solar panel to battery for added
charging capacity, install rubber tie to hold battery box closed

-Install 30 amp fuses on solar regulator battery input/output and 5 amp fuse on load
output—already had 30 amp fuse on solar input.

-Place flux system batteries in large blue plastic box and use rubber ties to tie shut. Rubber tie also used to hold 2 ft step ladder in place on top of box

-Readjust guy cable holding solar panels down

-Download all data

-Download old cr10x/mux program

Tonzi Ranch:

-All appears well (after sunset) at site

-Download all data

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

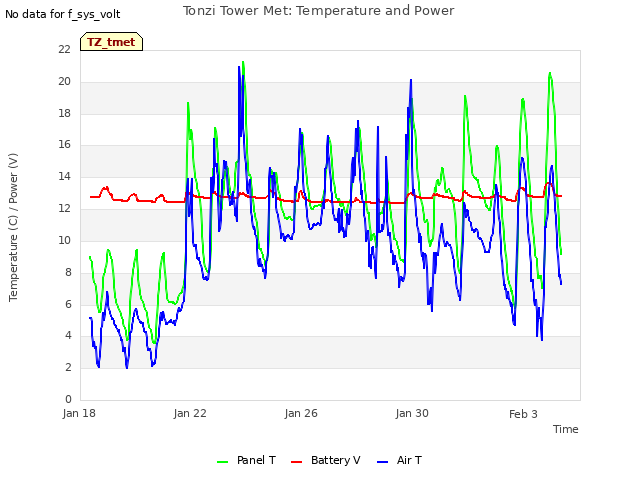

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

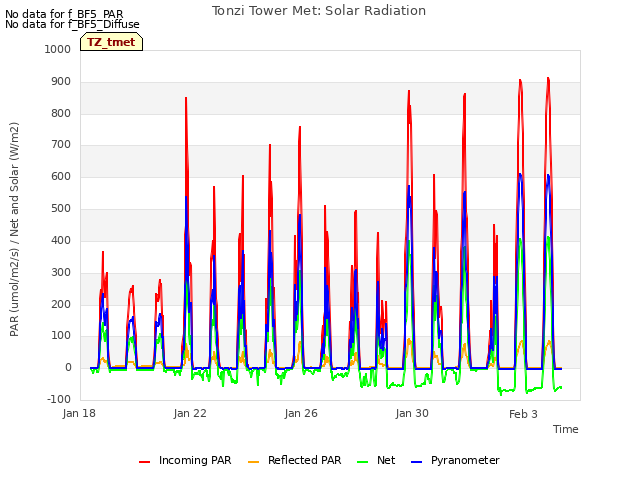

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

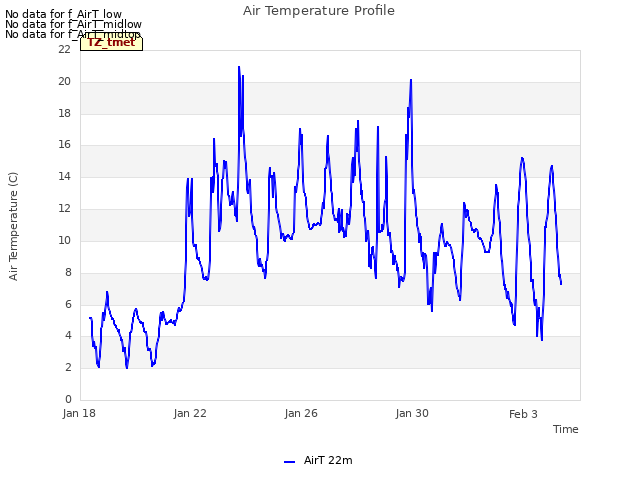

Explore the graph:Air Temperature Profile in a new window

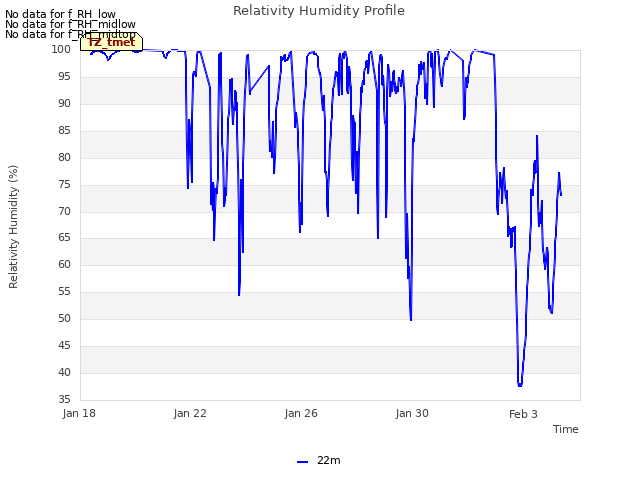

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

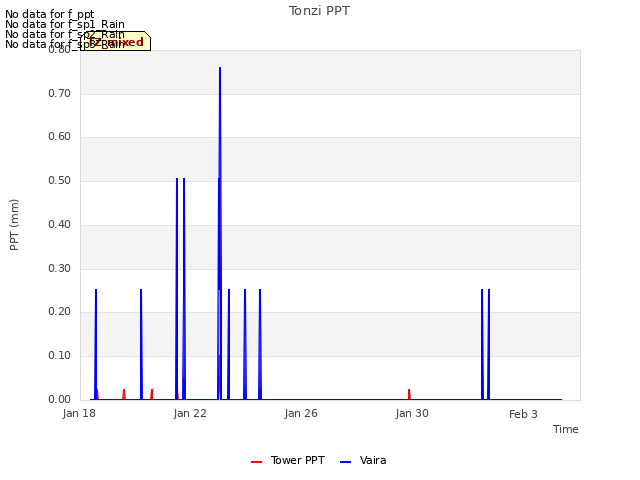

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

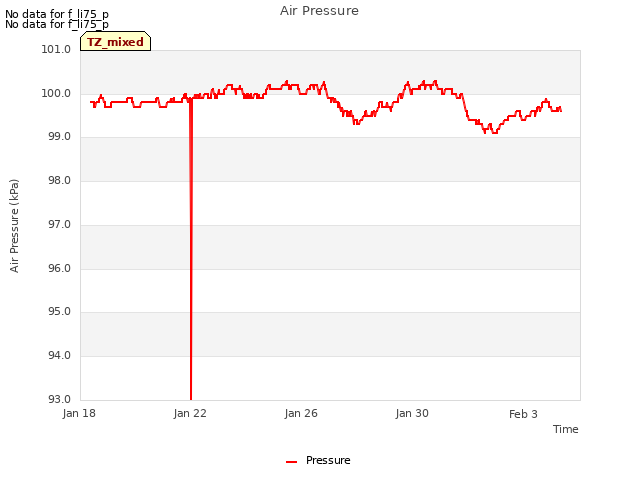

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

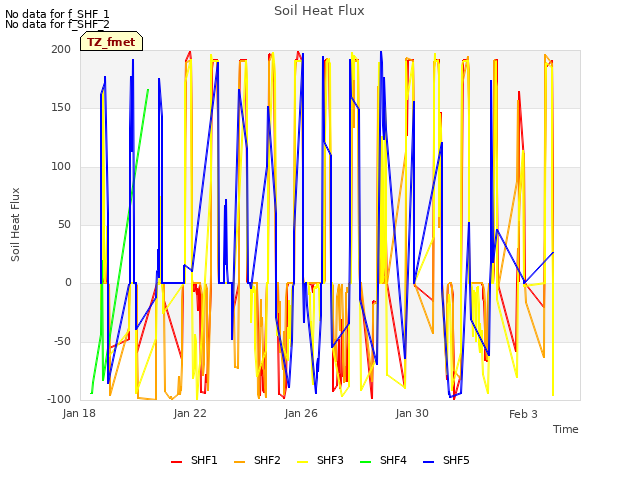

Explore the graph:Soil Heat Flux in a new window

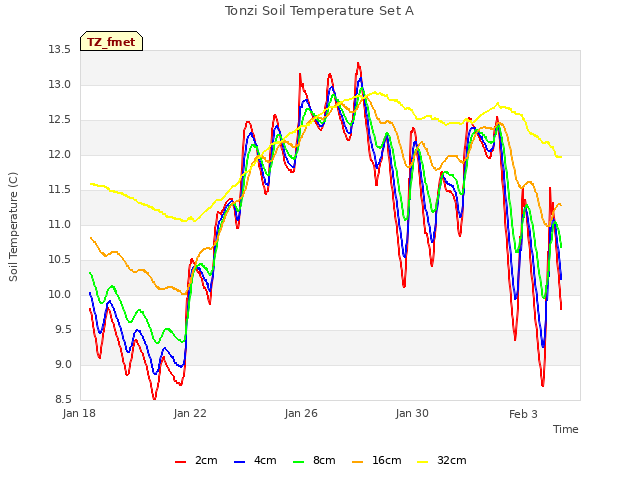

Explore the graph:Tonzi Soil Temperature Set A in a new window

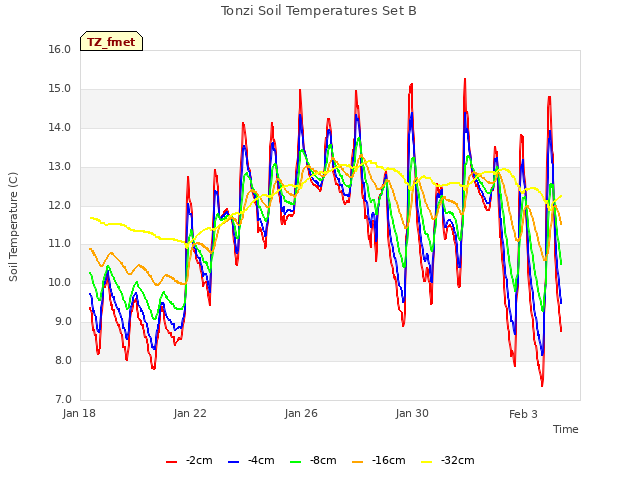

Explore the graph:Tonzi Soil Temperatures Set B in a new window

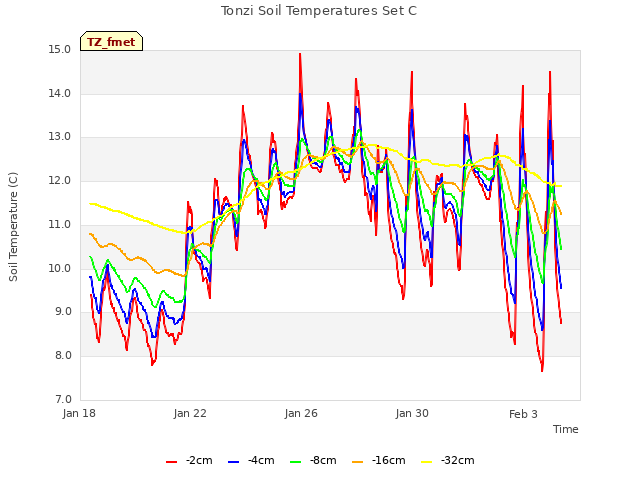

Explore the graph:Tonzi Soil Temperatures Set C in a new window

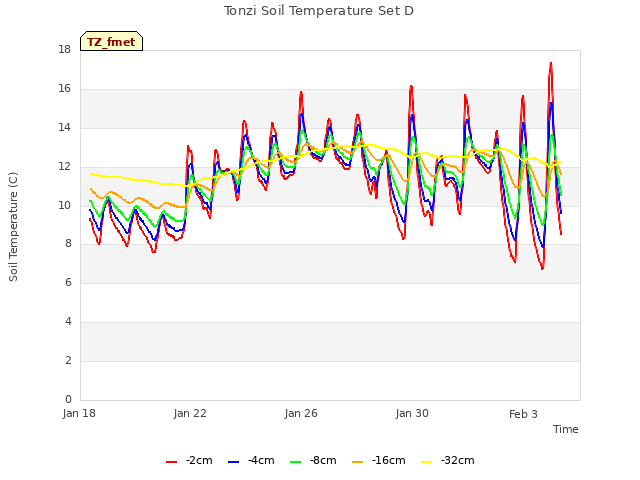

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

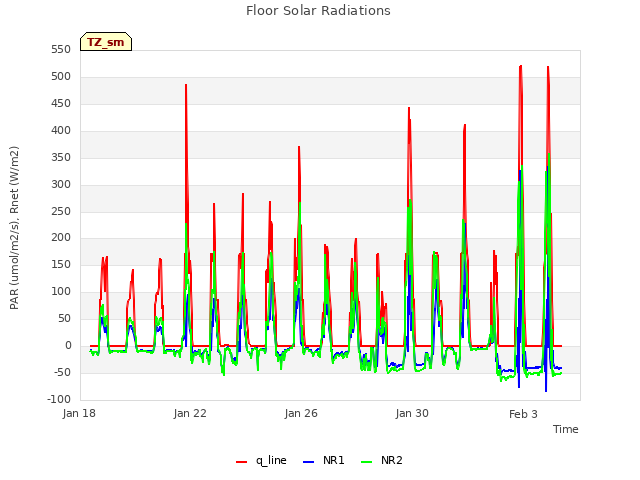

Explore the graph:Floor Solar Radiations in a new window

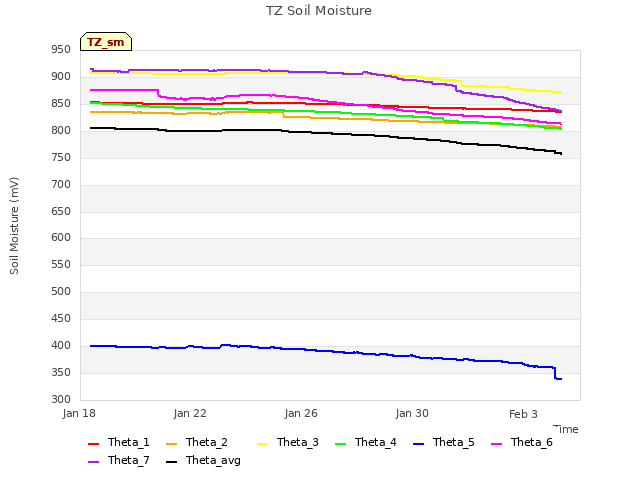

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

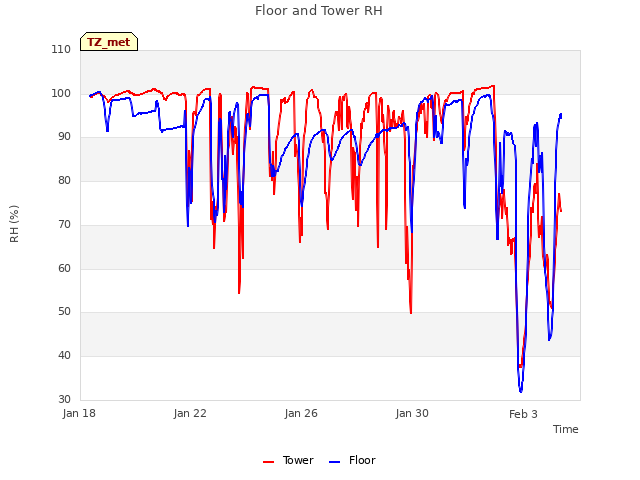

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
