Field Notes

<--2003-02-03 10:00:00 | 2003-02-21 10:00:00-->
Other sites visited today: Vaira
Phenocam link: Searching...

Tonzi: 2003-02-13 10:00:00 (DOY 44)
Author: Ted Hehn
Others:

Summary: New batteries at Tower, down load data, checked HFP #4, new keyboard for Floor PC

Where: Tonzi/Vaira Ranches Who: Ted Hehn Weather Trip Purpose: Increase battery capacity at the Vaira site, down load data 12feb03- Ione- buy 12 batts at Ione Autoparts Tonzi Ranch: Tonzi -- remove 4 batts & install 12 new with anti- seize compound on all battery and cable terminals sn BB-TT. New bat volt - 12.6 load Old batt volt - 12.3 no load -Tonzi soil moisture -tower –met station 1-36.3 2- 31.4 3-35.4 4-38.1 -floor-west - 1-26.7 2-27.9 3-35.9 4-49.5 -floor-east - 1- 39.7 2- 33.5 3-41.3 4-49.2 -floor soil flux-east 1-22.7 2-34.1 3-35.9 4-44.8 -floor soil flux-west 1-42.5 2-32.6 3-44.8 4-42.9 -tonzi grass height 1- 1” 2- 1.25” 3- 0.75” 4-1.5” 5-2” 6-1” 7-2.5” 8-0.5” 9- 1.75” 10-1” lnstall keyboard floor pc remove pn7000862 install pn7002021 -check soil h eat flux plate # 4 -tighten connectors -down load data -leave

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display: days

16 sets found

No data found for TZ_Fenergy.

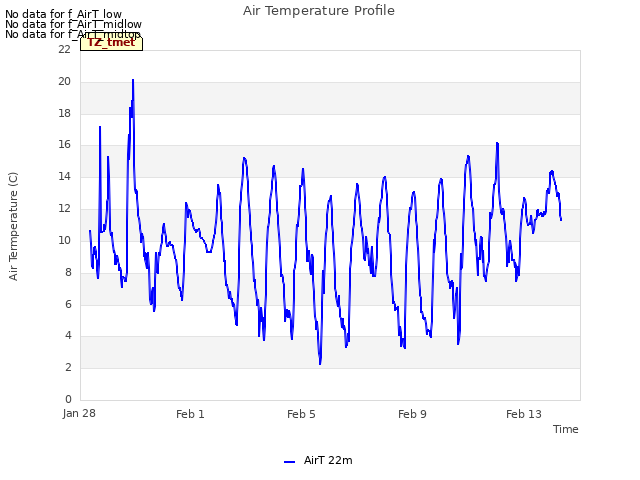

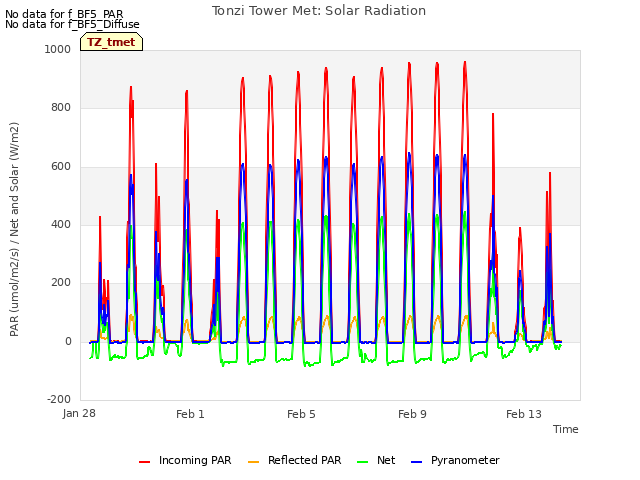

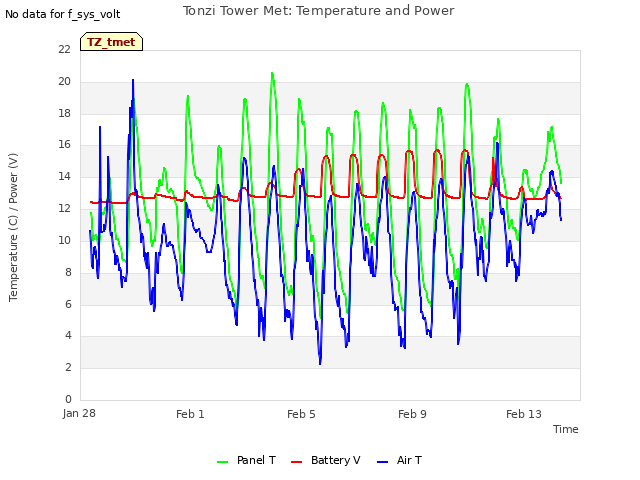

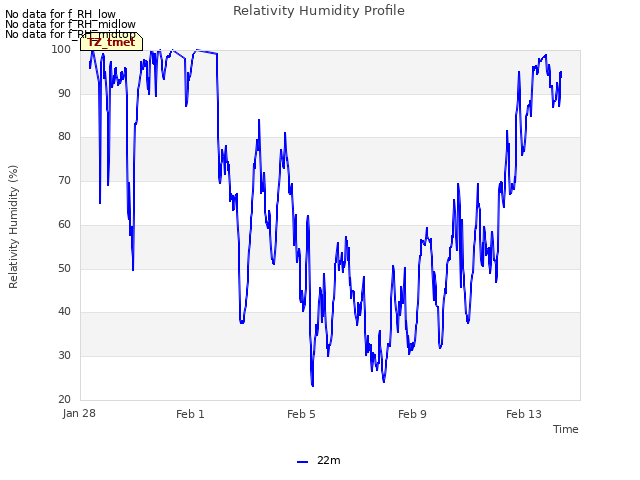

11 TZ_tmet graphs found

No data found for TZ_soilco2.
Can't check TZ_mixed

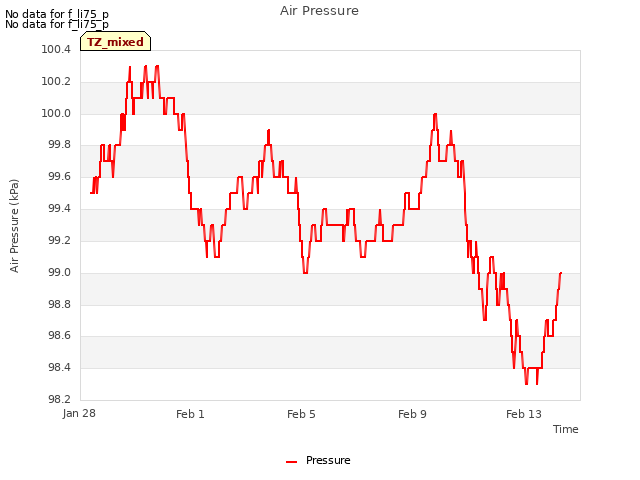

3 TZ_mixed graphs found

No data found for TZ_fflux.

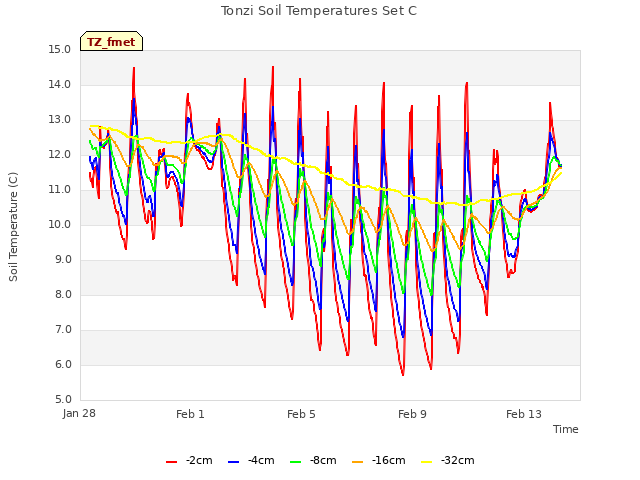

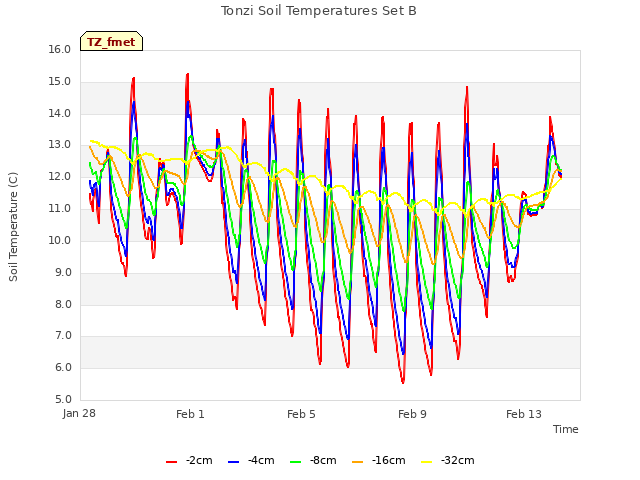

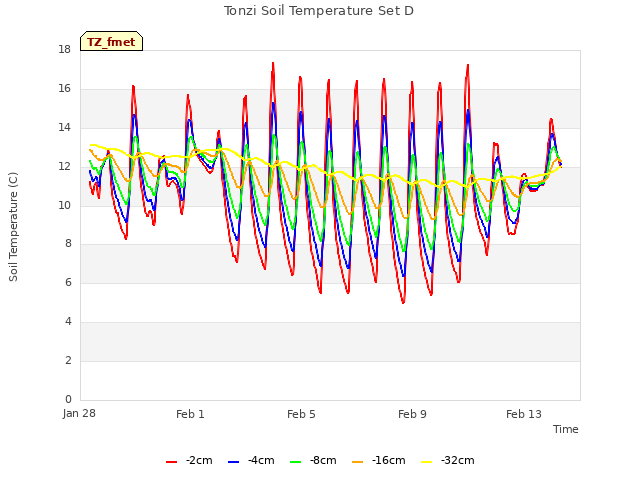

8 TZ_fmet graphs found

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

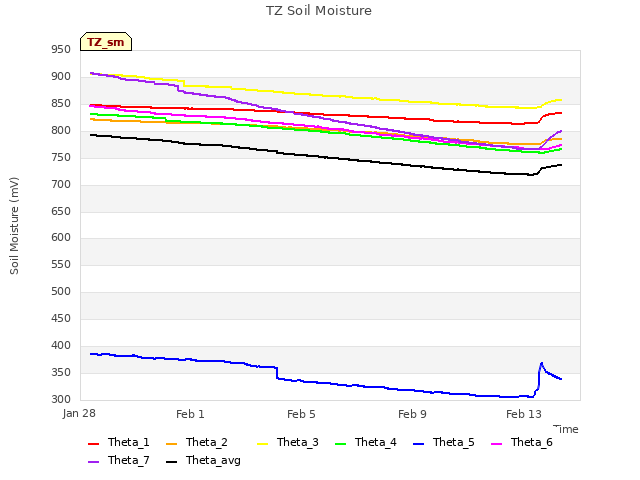

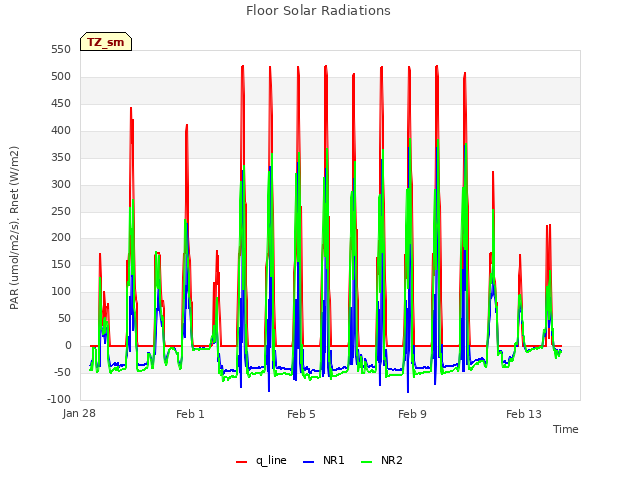

2 TZ_sm graphs found

Can't check TZ_met

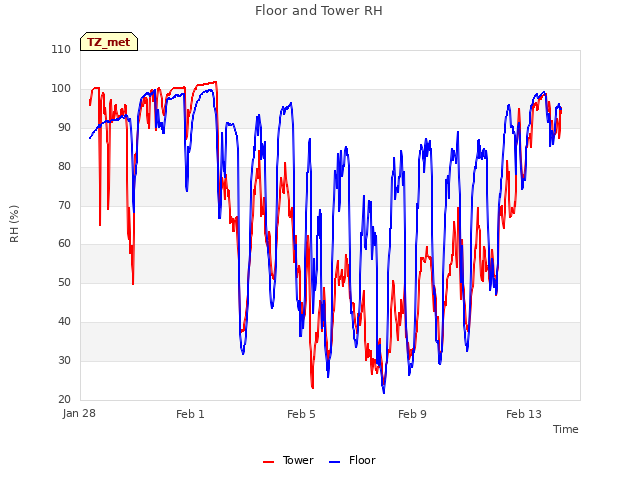

1 TZ_met graphs found

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
