Tonzi/Vaira: 2002-05-30 00:00:00 (DOY 150)
Author: LiuKang Xu
Others:

Summary: Standard fieldwork, predawn water potential, oak ACi curves, recent rains, Hot

When: May 30, 2002, d150 Thu
Where: Tonzi/Vaira Ranches
Who: Liukang Xu
Weather Sunny, temperature 97 F. Sacramento was 100 oF ! Very humid due to enough moisture and high temperature.

Trip Purpose: Predawn water potential, check 3 flux systems and download data, soil moisture probe reading, grass height measurement, dendrometer reading, A/Ci curve for oak leaf at Tonzi Ranch.

Overall: all flux systems were running great last week, except the Vaira one, which lost about half day’s data; All met instruments work fine.

Last week rain slowed the grass senescence at Tonzi ranch.

Tonzi Ranch: Arrived at 4:30 am, clear sky, temperature 70oF.

Predawn water potential

tree number Predaw water potential (bar)
1st leaf 2nd leaf
245 -3.5 -3
248 -3 -3.2
250 -3.6 -3
252 -3 -3.5
255 -3.5 -3.5
81 -3 -4
76 -3.5 -3.5
78 -2.5 -5.5
72 -3.5 -3.5
71 -4 -5

Dendrometer reading:

date 5/16/2002 5/30/2002
jday
time_pst 11:50 11:50
treetag
tree71 7.6 9.3
tree72 7.3 8.5
tree77 10.5 12.1
tree78 15.9 17.6
tree79 8.2 9.6
tree245 4.2 5.1
tree248 6.7 8.4
tree250 8.5 9.9
tree252 10.5 12.7
tree255 9.0 10.0
Xu Xu

Soil moisture probe reading:

5/30/2002 Tonzi Vaira
Xu 7931AF 402165 574B4B 402FF3 57632 573FAA 7933FDE
0 to 15 cm 11.17 9.30 16.27 5.70 17.80 7.80 8.00
15 to 30 cm 14.80 16.90 15.30 14.30 19.70 10.90 15.20
30 to 45 cm 19.67 20.30 20.93 14.70 11.57 11.13 13.17
45 to 60 cm 21.73 17.93 25.13 25.70 18.70 15.63 17.77

Tower flux system: Fence working, flux system was running. PV reading 13.4V, 8.0A, and 2.1A battery fully charged at 9:00am. Download data. No missing data since Ted’s last week trip. Sonic flux program output after I downloading data and reboot PC.

mean std
w 0.61 0.636
u -0.71 1.008
v 0.65 1.461
Tsonic 32.30 0.79
q 3.88 0.09
CO2 1.81 0.02

Floor system: Fence working, flux system running. Download data , PV reading 13.3V, 12.8A, and 1.8A, battery fully charged at 10:40 am

mean std
w 0.12 0.23
u 0.5 0.331
v -0.52 0.537
Tsonic 34.75 0.17
q 3.77 0.04
CO2 1.86 0.09

Grass height measurement (n=30, m=28.8cm and std=5.9)

Finish three A/Ci curve for oak leaf.

Vaira Ranch: 7:40 am arrive. Fence working, PV reading 12.4V, 2.9A, and 2.5A battery half full charged.

Soil moisture probe reading see above.

Gillsonic output after download and rebooting pc ;

mean std
w 0.27 0.202
u 0.45 0.342
v 0.71 0.492
Tsonic 25.39 0.46
Q 3.51 0.03
Co2 2.01 0.01

Grass height measurement (n=30, m=53.8, std=13.8)

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

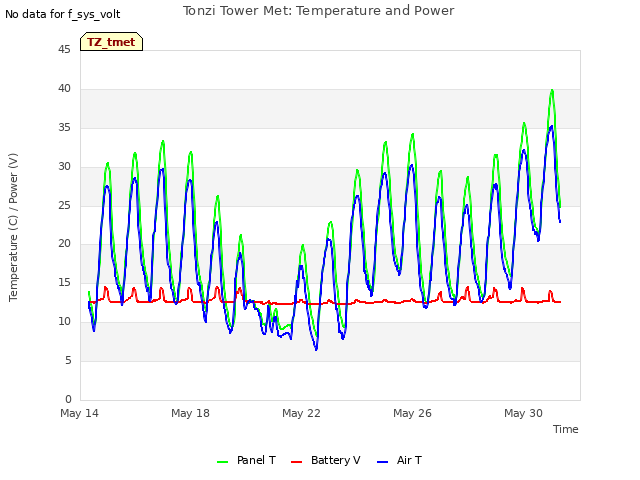

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

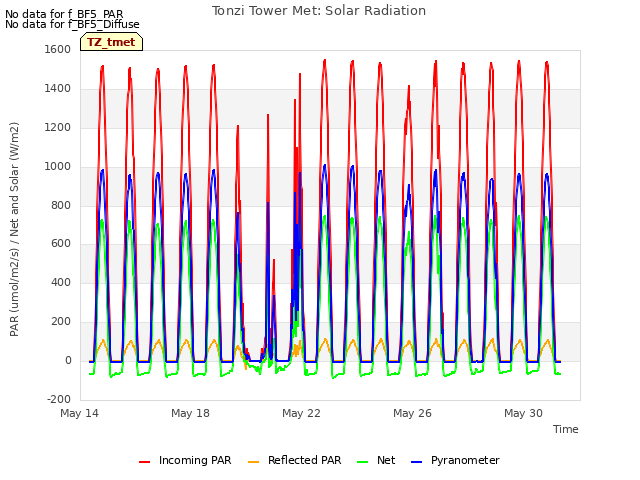

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

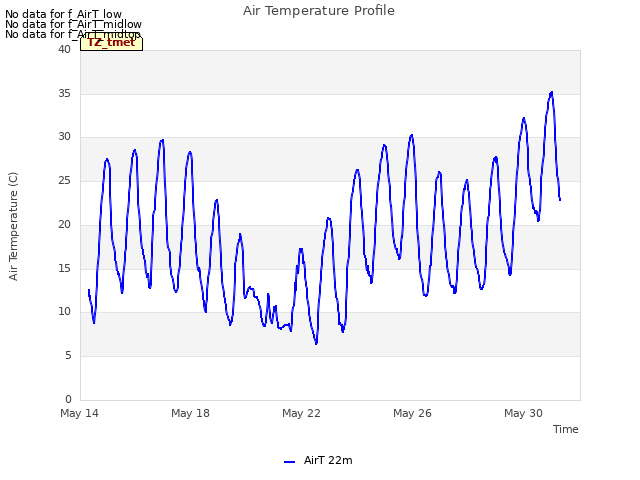

Explore the graph:Air Temperature Profile in a new window

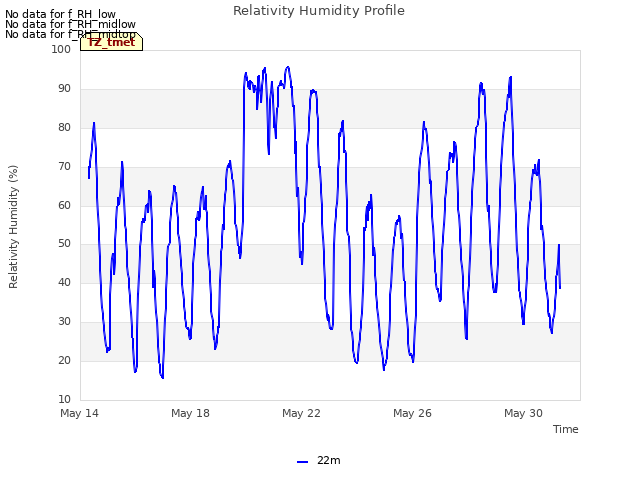

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

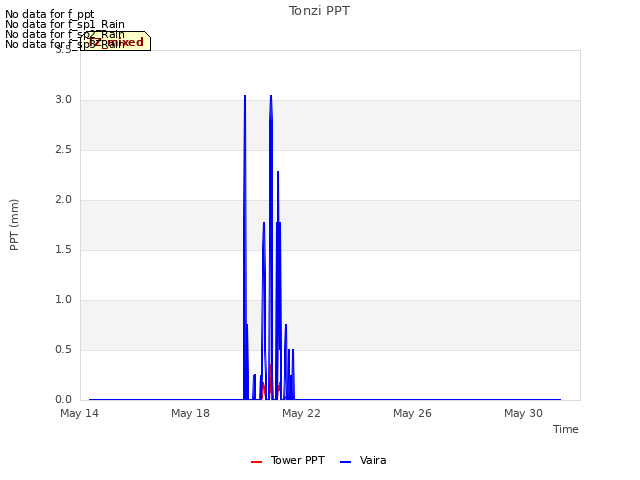

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

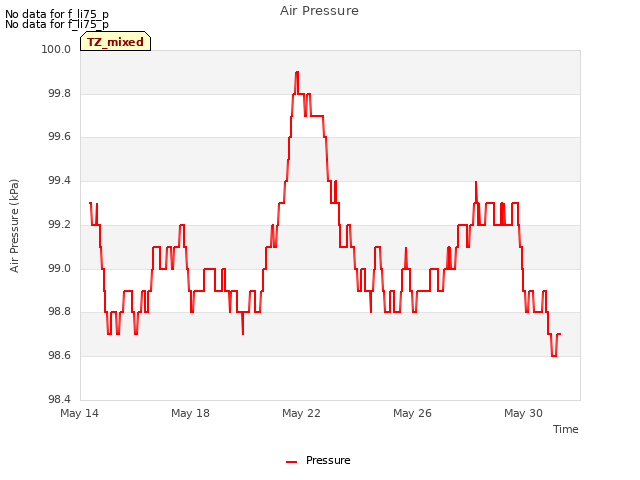

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

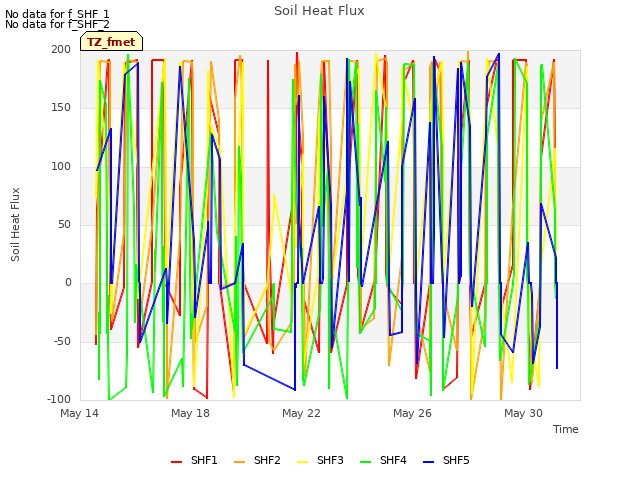

Explore the graph:Soil Heat Flux in a new window

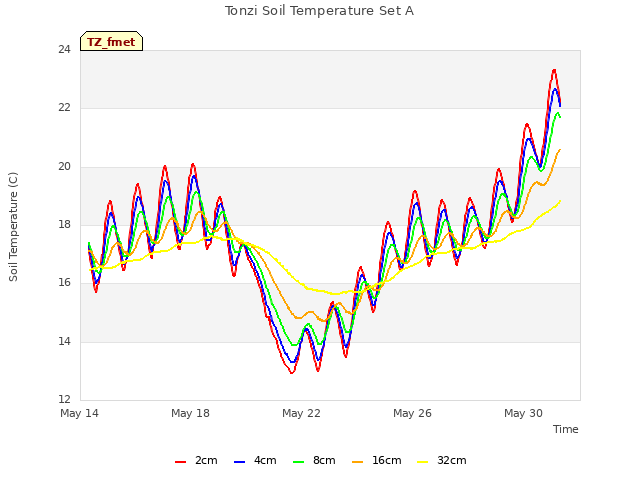

Explore the graph:Tonzi Soil Temperature Set A in a new window

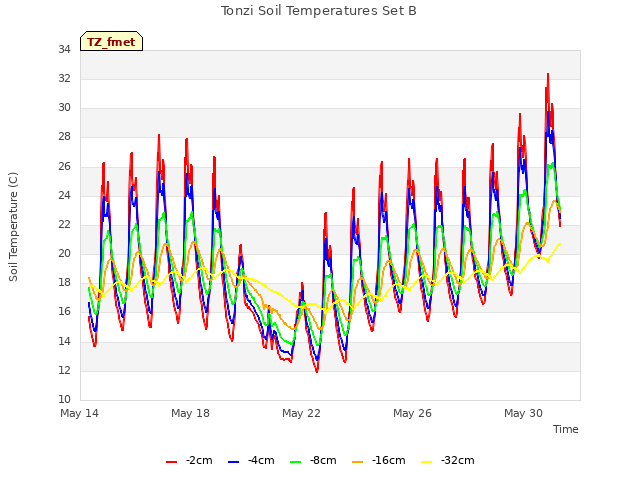

Explore the graph:Tonzi Soil Temperatures Set B in a new window

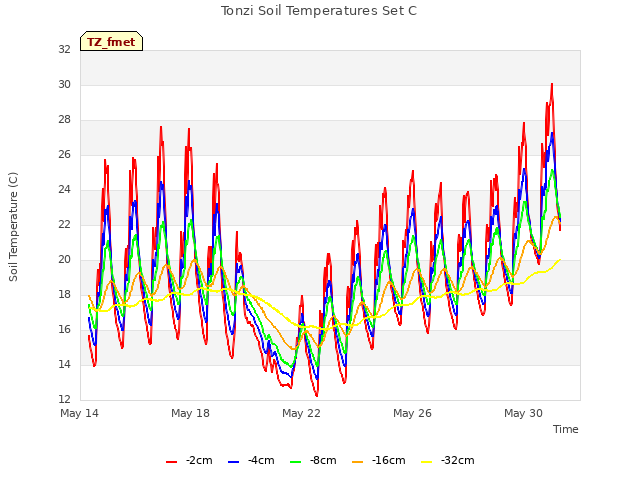

Explore the graph:Tonzi Soil Temperatures Set C in a new window

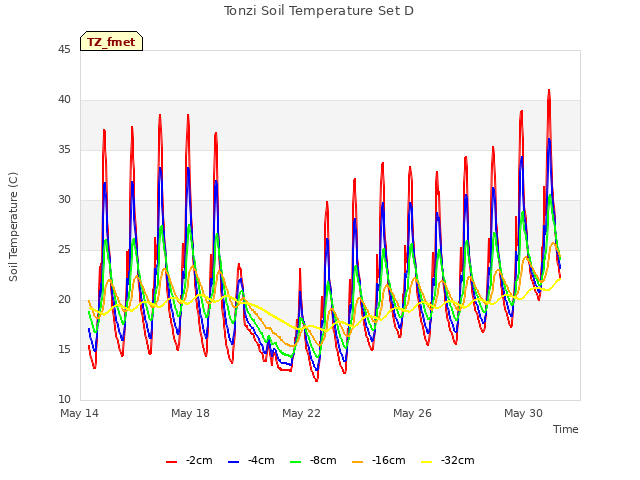

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

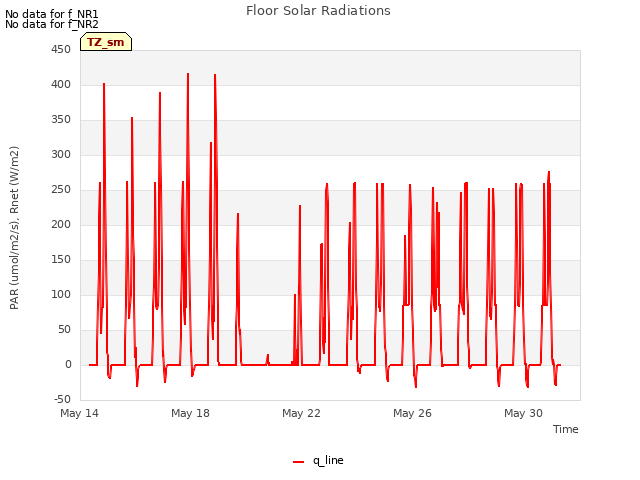

Explore the graph:Floor Solar Radiations in a new window

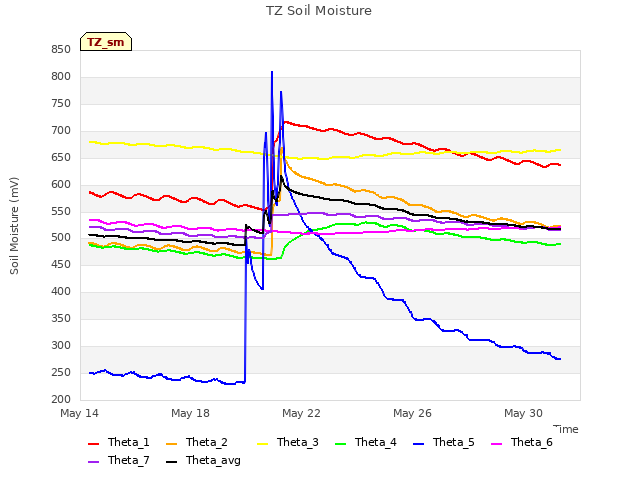

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

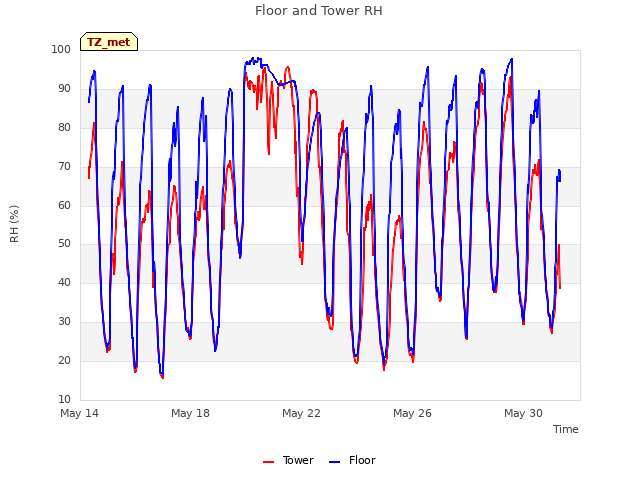

Explore the graph:Floor and Tower RH in a new window
