Field Notes

<--2002-03-01 13:06:00 | 2002-03-20 09:30:00-->

Tonzi: 2002-03-08 00:00:00 (DOY 67)
Author: Nancy Kiang
Others: Jianwu

Summary: Lots of rain the last few days, Updated sap flow data logger programs, Moisture Point readings

WHO: Nancy Kiang, Jianwu Tang
WHERE: Tonzi Ranch
WHEN: 3/8/02
WEATHER: 60 F. Clear after 2 days' rain (1")
WHAT: Load new CR10X program onto sapflow data loggers to do more data processing. Record Soil Moisture Point sensors.

Arrived 10:20 PST. 60 F, clear sky after 2 days' rain, lots of standing water on ground. Mr. Tonzi says last two days' rain were 1", and total this year is 19".

SAPFLOW: Loaded new program onto tz4 and tz5 CR10X's, SFHRAT3C.csi. This program increases the frequency of data sampling from once per hour (previous program) to every half hour, and returns the following fields:
time, battery voltage, initial temperatures (30), mean(log(temperature
change ratios)) (15)

The mean(log(temperature change ratios)) for each half hour are returned for calculation of heat pulse velocities following the heat ratio method (Burgess, 2001). Each half-hourly value must be post-processed to correct for sensor misalignment before calculating heat pulse velocities and integrating to tree sapflow.

SOIL MOISTURE POINT: Took replicates of 3 measurements each from the Moisture Point sensors, new data in:
Ione 1:\Sites\Tonzi_oak_savanna\Soil_Property\Soil Moisture\ Soil Moisture Profiles Moisture Point MP 917.xls

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

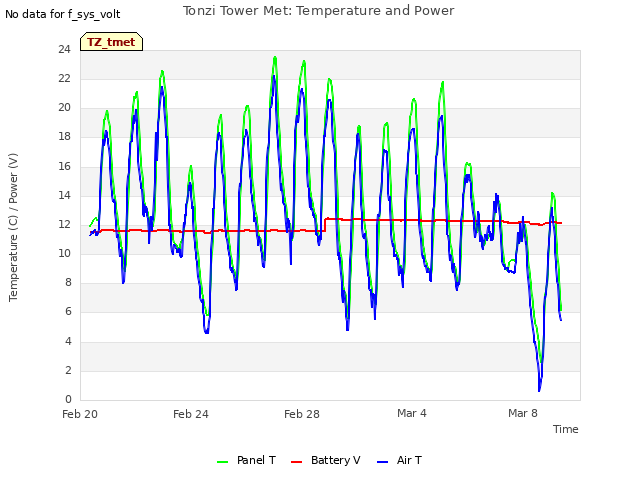

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

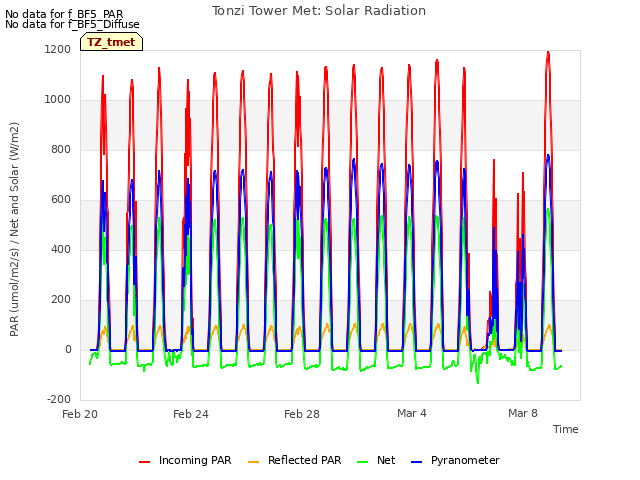

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

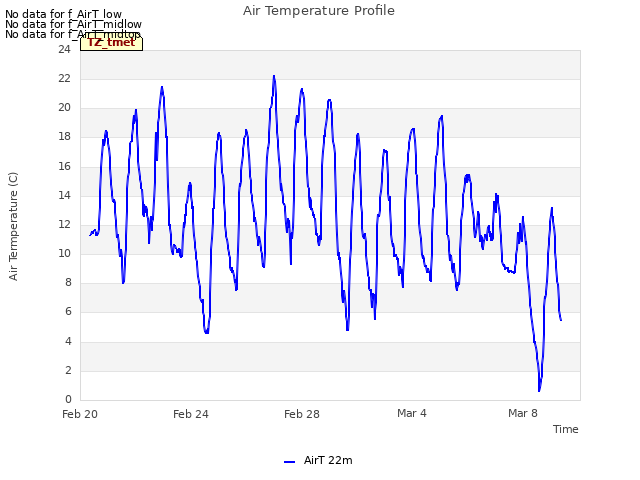

Explore the graph:Air Temperature Profile in a new window

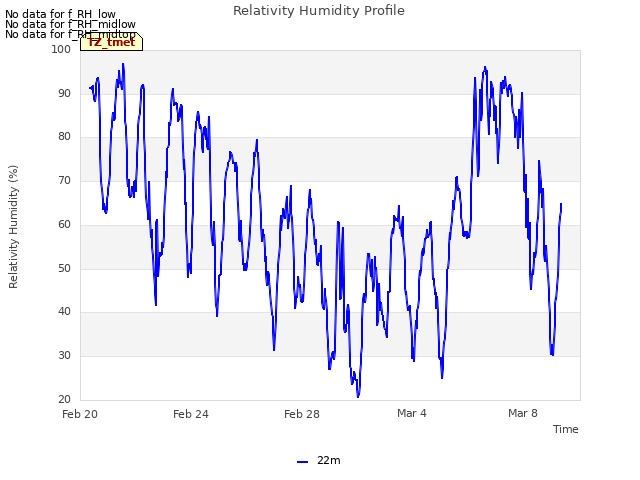

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

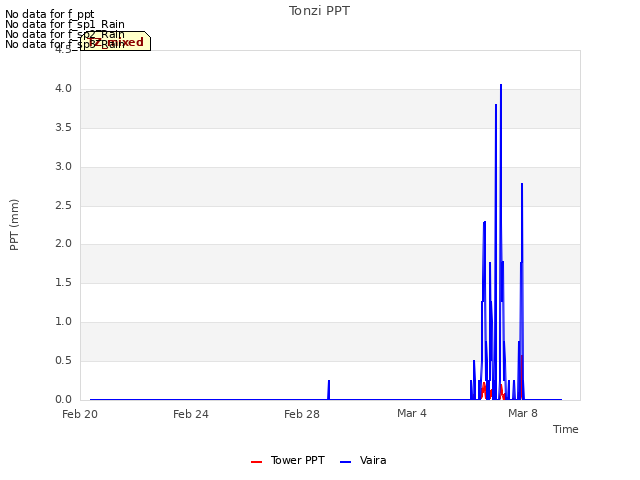

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

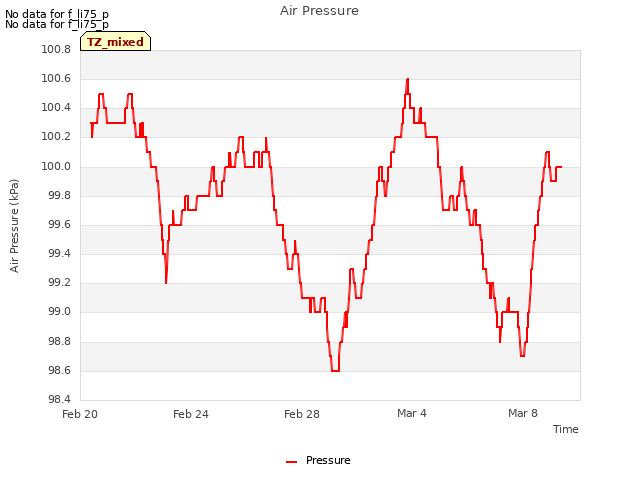

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

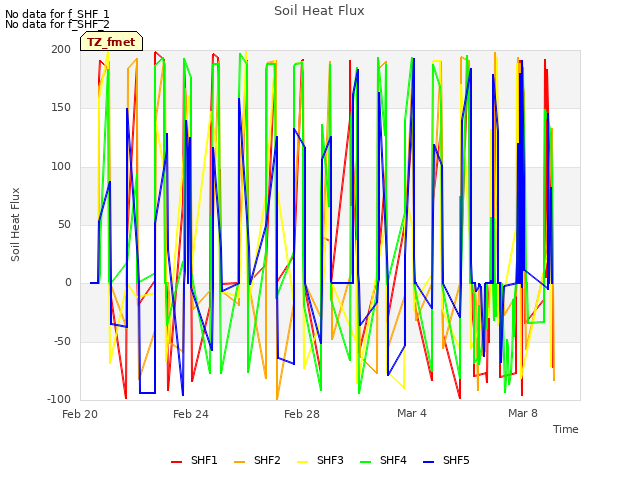

Explore the graph:Soil Heat Flux in a new window

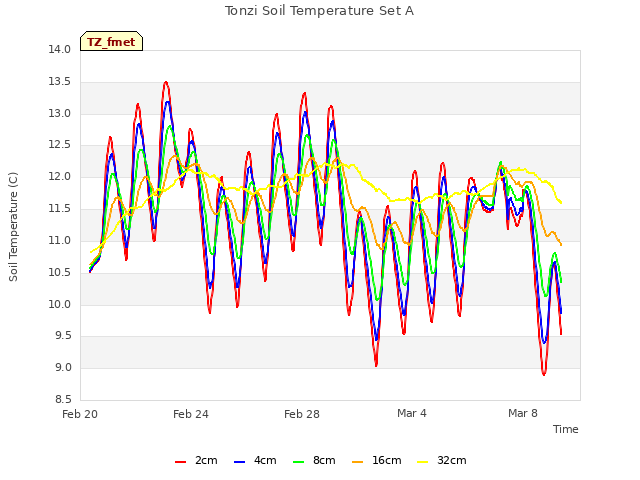

Explore the graph:Tonzi Soil Temperature Set A in a new window

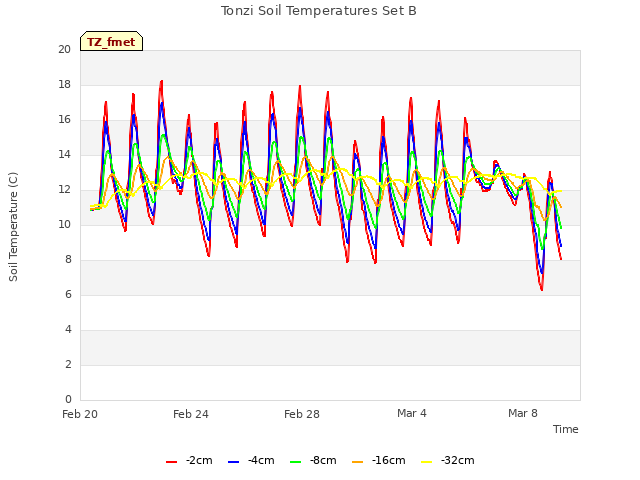

Explore the graph:Tonzi Soil Temperatures Set B in a new window

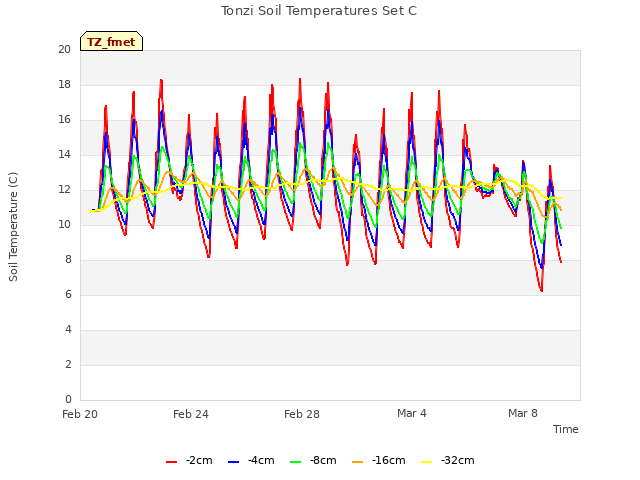

Explore the graph:Tonzi Soil Temperatures Set C in a new window

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

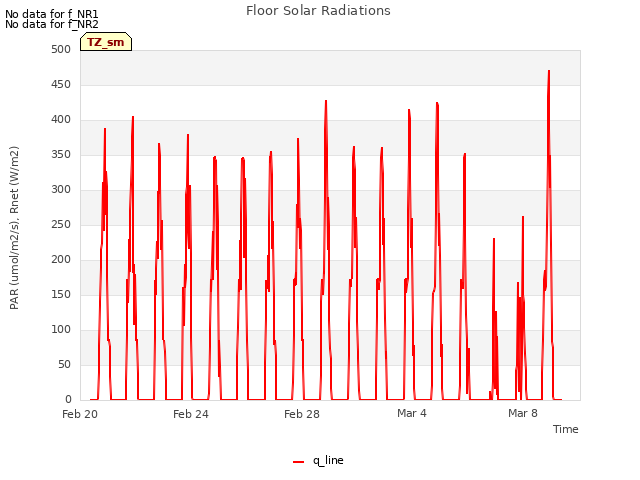

Explore the graph:Floor Solar Radiations in a new window

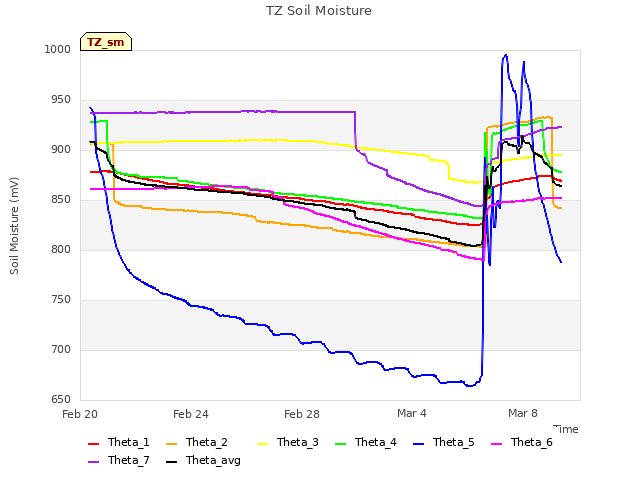

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

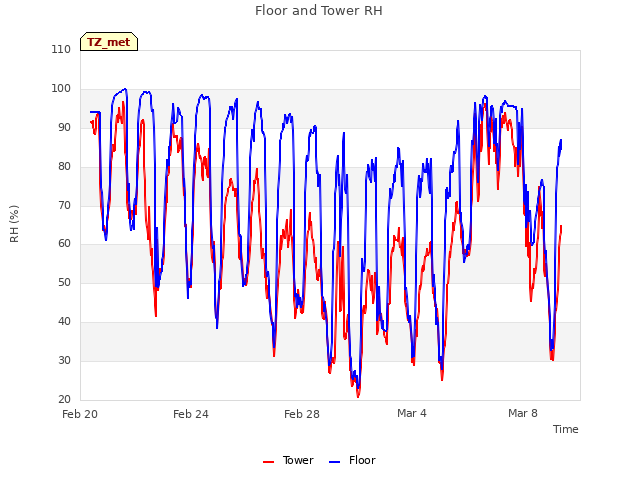

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
