Sherman Wetland: 2020-07-24 11:30:00 (DOY 206)
Author: Patty Oikawa
Others:

Summary: LGR data download, water low

Patty arrived 11:30am
Moderate wind, clear skies, warm
Noticed rain gauge top was missing, looked around but didn’t see it (just see you noted this last time)
Water really low, water sensors under boardwalk not submerged
Cleaned some spiderwebs from LI7500
Cal tank at 1300psi
CO2=444.3ppm
D13C=-15.79per mil
D18O=-94.55per mill
H2O=404.9ppm
Gas temp=44.65C
P=119.77torr
Laser response=12.81us
Downloaded data
Replaced top inlet filter. Others looked ok. Lowest inlet really deep in the cattails
Didn’t notice any ants

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

Explore the graph:Temperatures in a new window

Explore the graph:Water Temperature Profile A in a new window

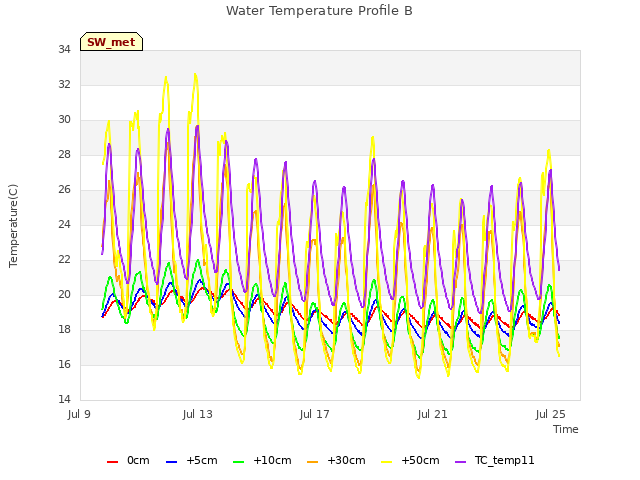

Explore the graph:Water Temperature Profile B in a new window

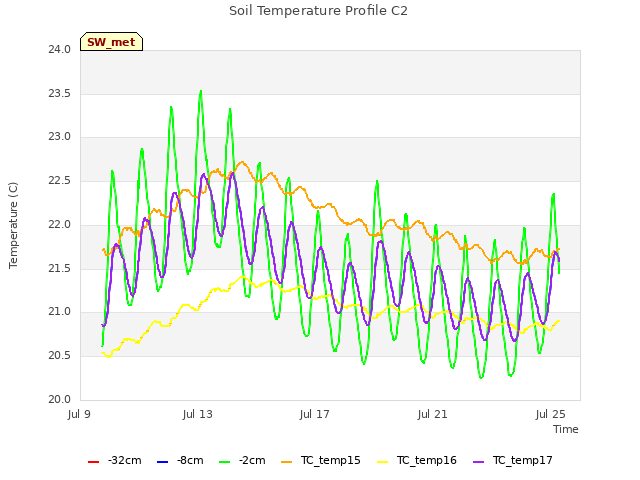

Explore the graph:Soil Temperature Profile C2 in a new window

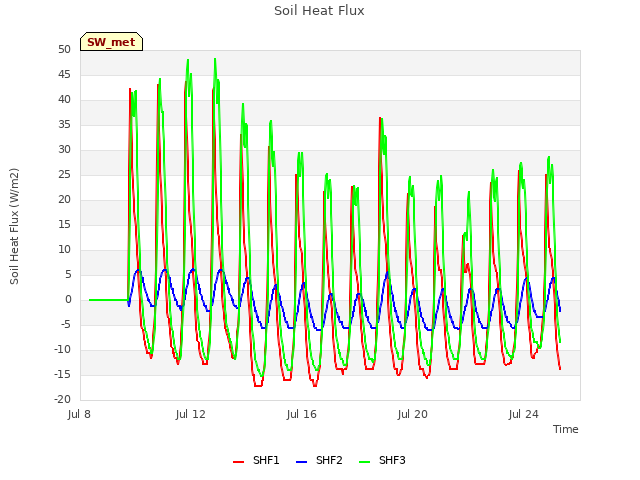

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four channel Radiometer in a new window

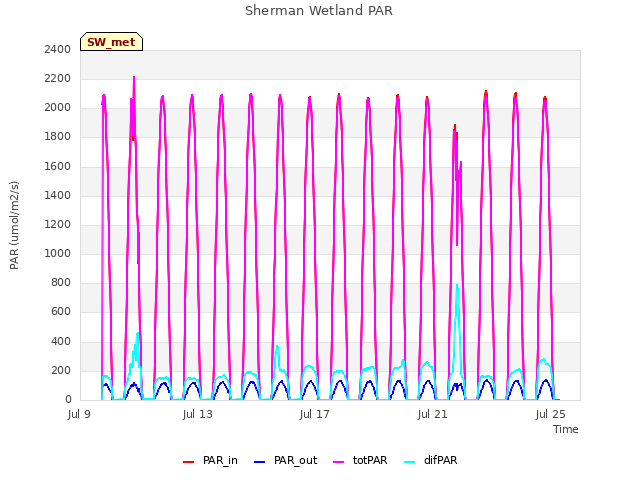

Explore the graph:Sherman Wetland PAR in a new window

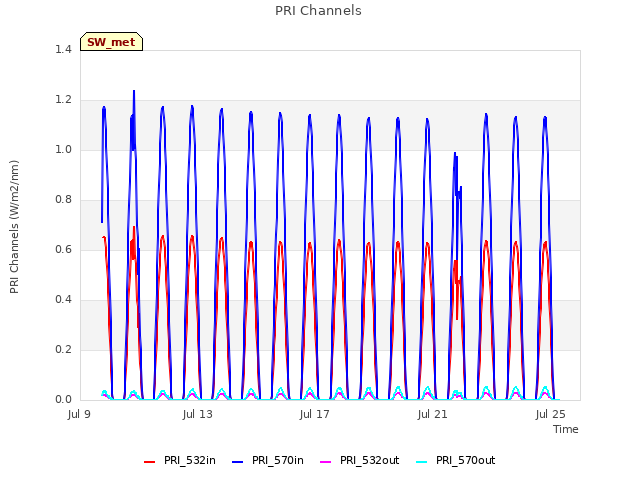

Explore the graph:PRI Channels in a new window

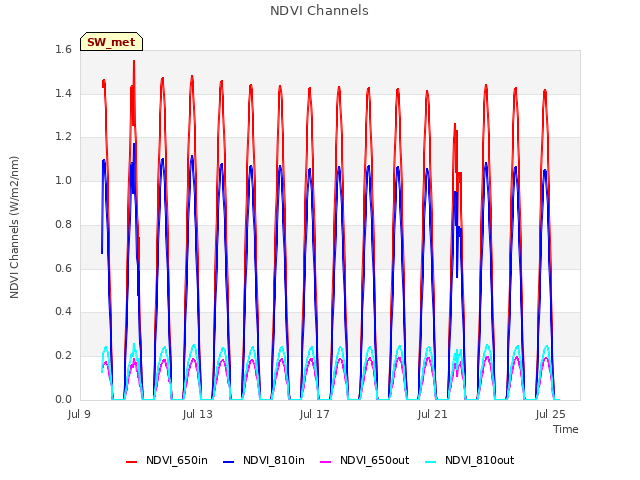

Explore the graph:NDVI Channels in a new window

Explore the graph:Water level and Rain in a new window

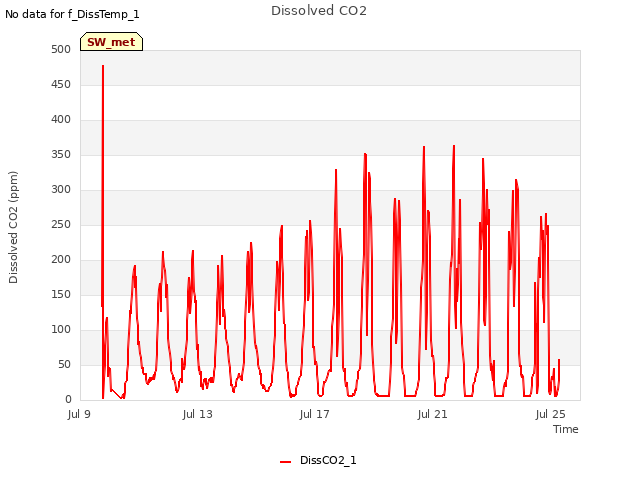

Explore the graph:Dissolved CO2 in a new window

Explore the graph:Air Pressure in a new window

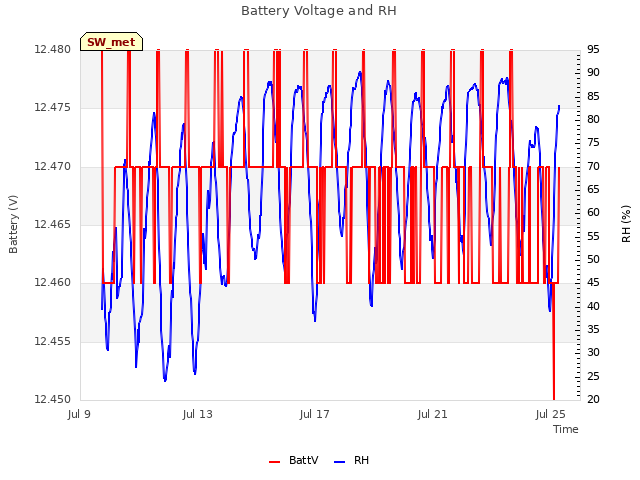

Explore the graph:Battery Voltage and RH in a new window

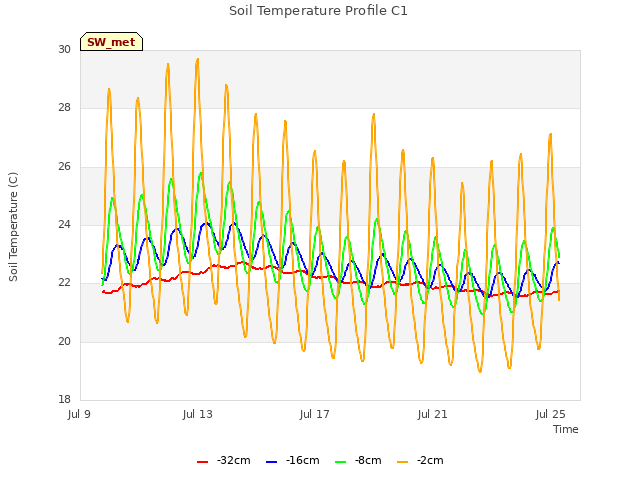

Explore the graph:Soil Temperature Profile C1 in a new window

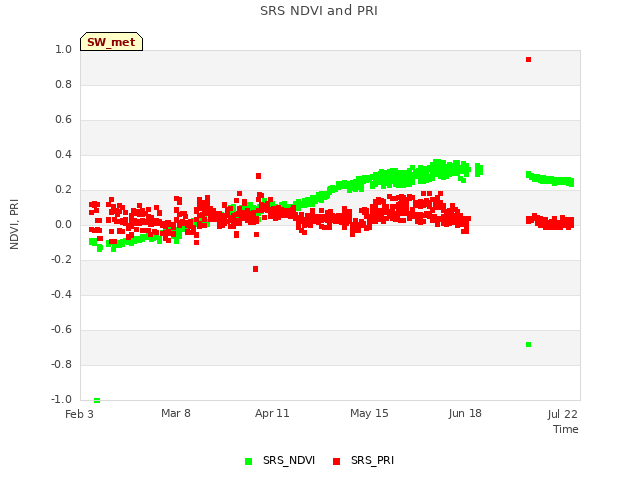

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

Explore the graph:CO2 and H2O in a new window

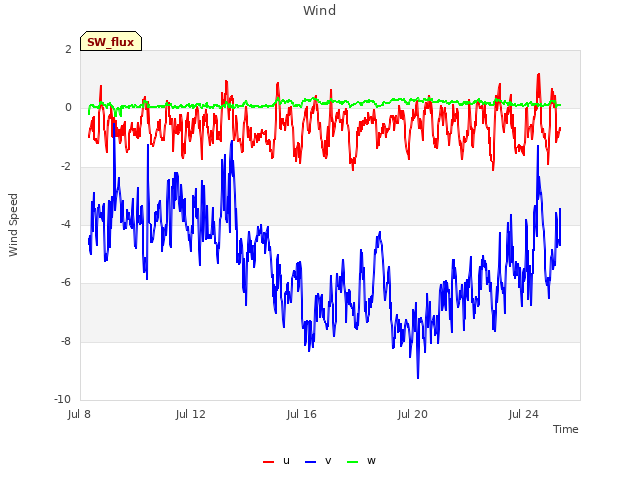

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

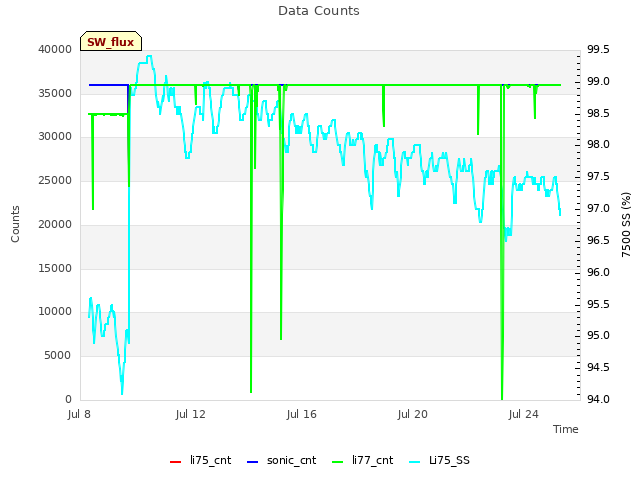

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

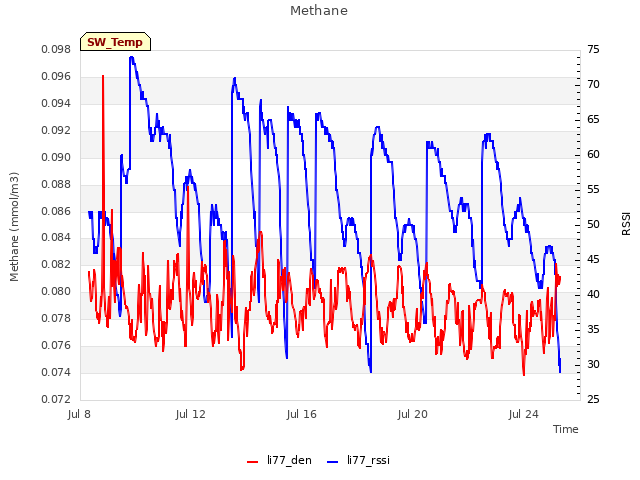

Explore the graph:Methane in a new window

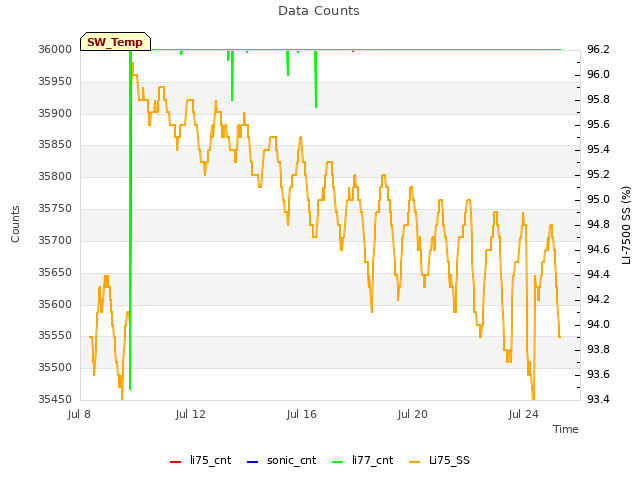

Explore the graph:Data Counts in a new window

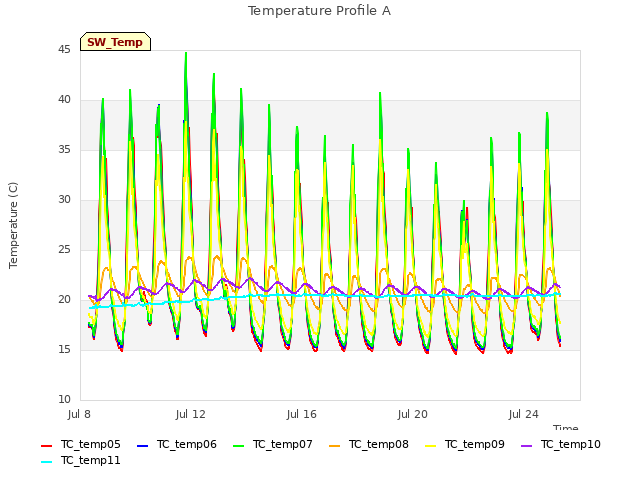

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

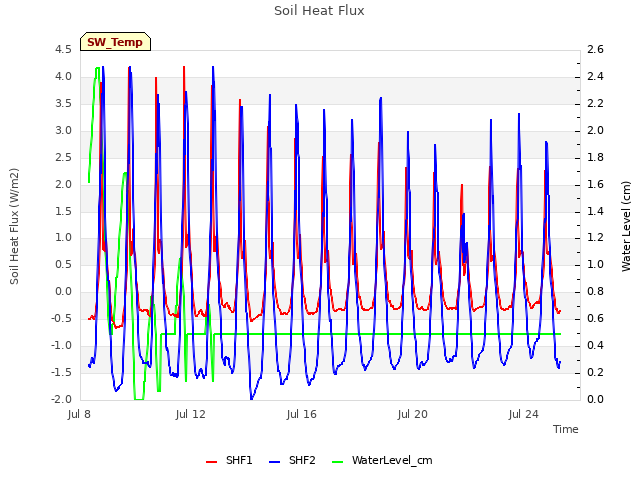

Explore the graph:Soil Heat Flux in a new window

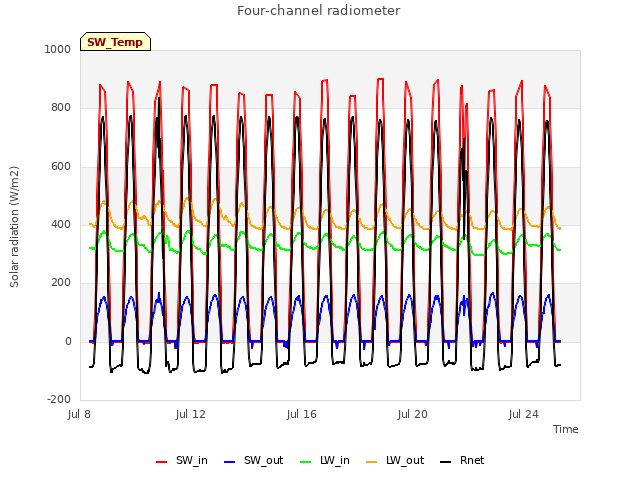

Explore the graph:Four-channel radiometer in a new window

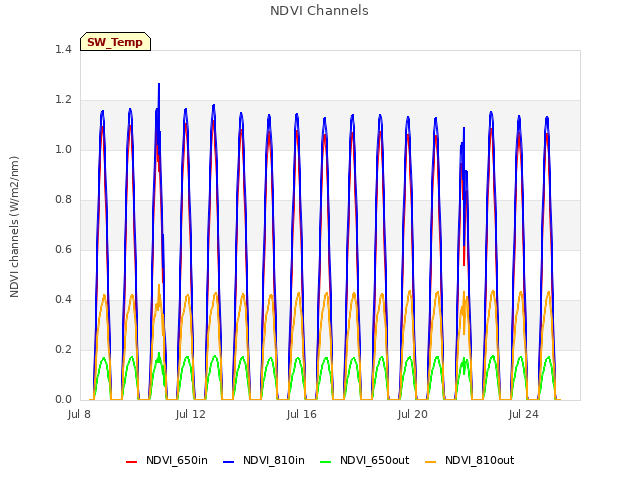

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

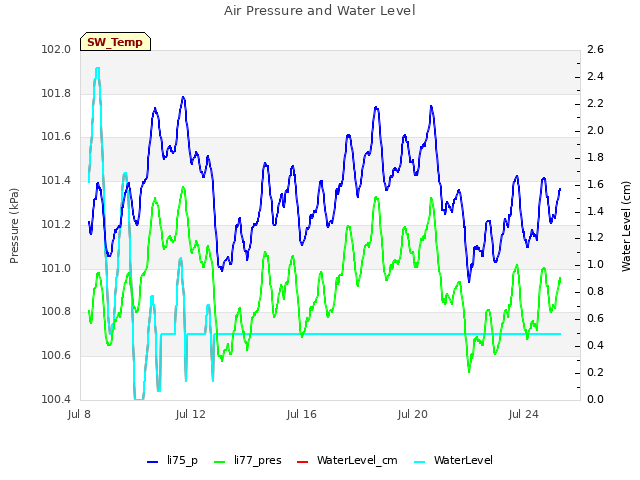

Explore the graph:Air Pressure and Water Level in a new window

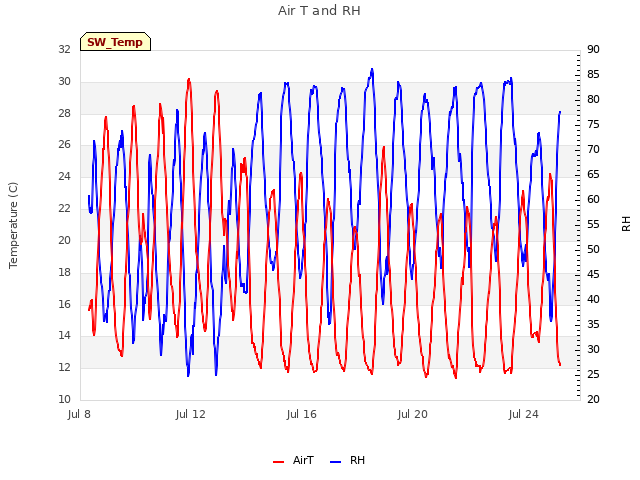

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
