Tonzi: 2018-04-25 10:30:00 (DOY 115)
Author: Joe Verfaillie
Others: Siyan, Ana

Summary: Missing Phenocam image, replaced clock batteries in zcam 2 and 3, checking solar equipment

Tonzi
2018-04-25

I arrived at Tonzi about 10:30 with Siyan and Ana. It was clear, sunny and hot. Everything is still green here, the trees more so than last time. The ground is damp but the road is dry except for the areas where puddles form.

Ana used the ASD again to collect a spectrum library.

I collected all the data. There were only partial images from the tower. Maybe I need to buy new CFM cards. I serviced the z-cams and replaced the clock batteries in z-cam 2 and 3. The battery in 2 was already dead and the one in 3 was at 2.8V. I replaced the battery in a-cam 1 some months ago.

Both the soil co2 and the Floor solar charge controllers are 30A but I could not see the serial numbers on the backs without serious disassembly. We could swap the soil CO2 one for a 15A version. On the soil co2 system, I dug the bottom of the larger solar panels out of the dirt and put them on a boardwalk. This made their angle slightly more flat and I adjusted the smaller ones to match.

I moved a fence post on the Floor site so the wires now miss the stump that is always touching the bottom wire.

Siyan did the standard fieldwork including leaf water potential.

Field Data

No tank data

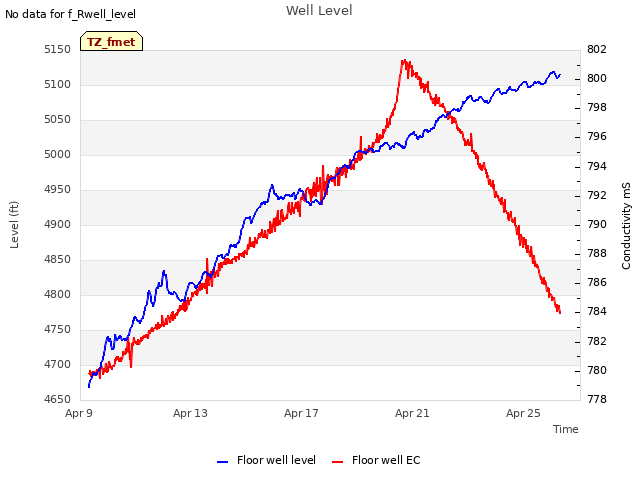

Well Depth

Date	Location	Depth (feet)
2018-04-25	TZ_floor	19.3
2018-04-25	TZ_road	28.4
2018-04-25	TZ_tower	23.1
2018-04-25	VR_pond	21.36

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-04-25	115	0	nan	21.4	10.6	25.6	19.7	13.5	9.4	15.9	9.4	16.8	22.6	17.9	31.6	25.8	29.8	27.1	22.5	27.1	27.4	11.8	23.1	11.9	25.1	29.9	38	39.6	37.4	23.7	27.9	31.5	28.8	32.7	31.8	35.7	40.3	58	56.6	46.8	29.9	41.4	47.7	26.8	43.7	49.4	49.7
2018-04-25	115	1	nan	21.2	8.8	23.9	18.5	13.2	14.1	15.3	9.4	16.8	22.3	18.5	31.6	28.9	29.5	27.4	23.1	26.5	27.4	11.8	22.5	11.5	27.4	30.7	37.7	39.6	37.4	24.6	28.6	31	29.3	32.9	31.3	34.6	39.7	58	58.9	46.8	30.2	42	49.4	26.5	42	47.7	49.1
2018-04-25	115	Avg	0-15cm																																													0
2018-04-25	115	Avg	15-30cm																																													0
2018-04-25	115	Avg	30-45cm																																													0
2018-04-25	115	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-04-25	115	0	nan	13.8	12.4	17.6	6.5	21.3	23.4	16.1	13.9	24.8	12	17.9	24.3	36.7	23.4	18.2	27.1
2018-04-25	115	1	nan	14.1	12.4	17.1	6.5	21.3	22.8	16.4	13.6	24.6	12.3	17	23.5	37.4	23.4	18.9	25.9
2018-04-25	115	Avg	0-15cm																	0
2018-04-25	115	Avg	15-30cm																	0
2018-04-25	115	Avg	30-45cm																	0
2018-04-25	115	Avg	45-60cm																	0

Grass Height TZ 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-04-25	30	24	21	23	24	14	16	12	25	35	21	28	15	16	17	GH_ALL	21.4	15	6.29

Grass Height VR 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-04-25	30	40	50	35	41	35	43	51	33	44	19	26	32	28	20	GH_ALL	35.13	15	9.44

Tree DBH

Date	Tag#	Reading (mm)
2018-04-25	1	16.9
2018-04-25	102	9.5
2018-04-25	2	22.3
2018-04-25	245
2018-04-25	3	17.8
2018-04-25	4	8.1
2018-04-25	5	7.8
2018-04-25	7	21.3
2018-04-25	72	13.9
2018-04-25	79	11.9
2018-04-25	8	24.0

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2018-04-25 12:40:00	OAK	102	-7	-5	-8
2018-04-25 12:40:00	OAK	35	-10	-7	-20
2018-04-25 12:40:00	OAK	92	-11	-18	-20
2018-04-25 13:05:00	PINE	OLD	-8	-18	-4
2018-04-25 13:05:00	PINE	YNG	-1	-1	-4
