Tonzi: 2019-10-09 11:15:00 (DOY 282)
Author: Daphne Szutu
Others: Siyan
Summary: Regular data collection, trees starting to lose leaves
2019-10-09 Tonzi Siyan and I arrived at 11:15. It was a sunny, breezy and day, with blue skies and hazy horizons. It was mega windy driving through the Delta--there were some small tree branches on the road. Most of the Bay Area hills are under a Red Flag warming, and classes were canceled on campus due to an imminent PG&E power shutoff. All of the grass and wildflowers were dead. The oak trees were starting to lose their leaves, and about 1/3 of the trees had sections of brown leaves. I downloaded met/tower CO2 profile/FLIR images from the latte panda. I also downloaded GHG USB phenocam, zcam, FLIR cal panel, floor well, soil CO2, and IRT data. I cleaned the radiometers and z-cams. I couldn't connect to the Licor systems on the white netbook, only the silver netbook, even though the Ethernet settings seemed to be the same. I also went to download the road well data, but accidentally deleted the history before saving a file, so we are missing the last two weeks of data. When the Road well global logger was 11:30, I reset the clock to 11:27 to match the laptop time. Siyan did her regular data collection: soil moisture, well depths, dendrometers. We did not do mid-day water potential since the trees have already started dropping their leaves. TF LI-7500 readings: CO2 408ppm H2O 282ppm T 20.1C P 98.8kPa SS 96 --> 99 after cleaning TT LI-7500 readings: CO2 415ppm H2O 286ppm T 19.7C P 98.7kPa SS 110 We left at 12:50. We left the fence chargers off. |
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
---|---|---|
2019-10-09 | VR_well | 28.3 |
2019-10-09 | TZ_floor | 26.4 |
2019-10-09 | TZ_tower | 31.2 |
2019-10-09 | TZ_road | 35.7 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_West
[3] => Soil_Transect_4
[4] => Soil_Transect_3
[5] => Soil_Transect_2
[6] => Soil_Transect_1
[7] => SoilCO2_West_A
[8] => SoilCO2_West_B
[9] => SoilCO2_West_C
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_West |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2019-10-09 | 282 | 0 | 0-15cm | 4.7 | 8.3 | 8.3 | 0.6 | 4.7 | 5.6 | 0.3 | 10.3 | 2.1 | 0.1 | |||
2019-10-09 | 282 | 0 | 15-30cm | 10.3 | 4.8 | 3.2 | 8.1 | 14.5 | 12.7 | 4.5 | 8.1 | 0.3 | 12.1 | |||
2019-10-09 | 282 | 0 | 30-45cm | 13.1 | 7.3 | 10.1 | 12.3 | 17 | 13.1 | 15.9 | 14.8 | 14 | ||||
2019-10-09 | 282 | 0 | 45-60cm | 16.9 | 11.3 | 18.8 | 23.9 | 12.2 | 14.8 | 17.6 | 22.5 | |||||
2019-10-09 | 282 | 1 | 0-15cm | 4.5 | 10.9 | 8.6 | 0.6 | 5.6 | 5 | 0.1 | 10.6 | 1.5 | 1.5 | |||
2019-10-09 | 282 | 1 | 15-30cm | 10.6 | 4.2 | 8.7 | 8.1 | 13.9 | 11.2 | 4.5 | 8.1 | 0.3 | 12.1 | |||
2019-10-09 | 282 | 1 | 30-45cm | 12.9 | 8.7 | 10.1 | 12.3 | 16.5 | 13.4 | 15.9 | 14.5 | 12 | ||||
2019-10-09 | 282 | 1 | 45-60cm | 17.6 | 11.6 | 19.3 | 24.8 | 12.2 | 15 | 17.9 | 23.4 | |||||
2019-10-09 | 282 | Avg | 0-15cm | 4.6 | 9.6 | 8.45 | 0.6 | 5.15 | 5.3 | 0.2 | 10.45 | 1.8 | 0.8 | 4.7 | 10 | 20 |
2019-10-09 | 282 | Avg | 15-30cm | 10.45 | 4.5 | 5.95 | 8.1 | 14.2 | 11.95 | 4.5 | 8.1 | 0.3 | 12.1 | 8.02 | 10 | 20 |
2019-10-09 | 282 | Avg | 30-45cm | 13 | 8 | 10.1 | 12.3 | 16.75 | 13.25 | 15.9 | 14.65 | 13 | 12.99 | 9 | 18 | |
2019-10-09 | 282 | Avg | 45-60cm | 17.25 | 11.45 | 19.05 | 24.35 | 12.2 | 14.9 | 17.75 | 22.95 | 17.49 | 8 | 16 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Flux_Tower
[1] => Biomass_Cage
[2] => Solar_Panels
)
Date | DOY | Rep | Depth | Flux_Tower |
Biomass_Cage |
Solar_Panels |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|
2019-10-09 | 282 | 0 | 0-15cm | 3.6 | 3 | ||||
2019-10-09 | 282 | 0 | 15-30cm | 12.1 | 7.5 | 12.6 | |||
2019-10-09 | 282 | 0 | 30-45cm | 6.2 | 16.8 | 16.8 | |||
2019-10-09 | 282 | 0 | 45-60cm | 18.5 | 19.9 | 28.5 | |||
2019-10-09 | 282 | 1 | 0-15cm | 4.2 | 2.7 | ||||
2019-10-09 | 282 | 1 | 15-30cm | 12.1 | 7.5 | 12.1 | |||
2019-10-09 | 282 | 1 | 30-45cm | 5 | 16.5 | 15.6 | |||
2019-10-09 | 282 | 1 | 45-60cm | 16.8 | 19.6 | 28.2 | |||
2019-10-09 | 282 | Avg | 0-15cm | 3.9 | 2.85 | 3.38 | 2 | 4 | |
2019-10-09 | 282 | Avg | 15-30cm | 12.1 | 7.5 | 12.35 | 10.65 | 3 | 6 |
2019-10-09 | 282 | Avg | 30-45cm | 5.6 | 16.65 | 16.2 | 12.82 | 3 | 6 |
2019-10-09 | 282 | Avg | 45-60cm | 17.65 | 19.75 | 28.35 | 21.92 | 3 | 6 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|---|---|
2019-10-09 | 1 | 19.3 |
2019-10-09 | 102 | 9.1 |
2019-10-09 | 2 | 12.9 |
2019-10-09 | 245 | 10.4 |
2019-10-09 | 3 | 19.0 |
2019-10-09 | 4 | 5.0 |
2019-10-09 | 5 | 15.5 |
2019-10-09 | 7 | 19.0 |
2019-10-09 | 72 | 3.6 |
2019-10-09 | 79 | 15.9 |
2019-10-09 | 8 | 7.2 |
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

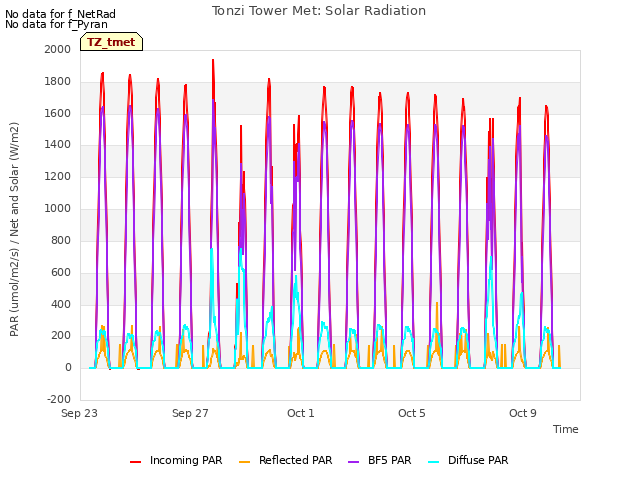

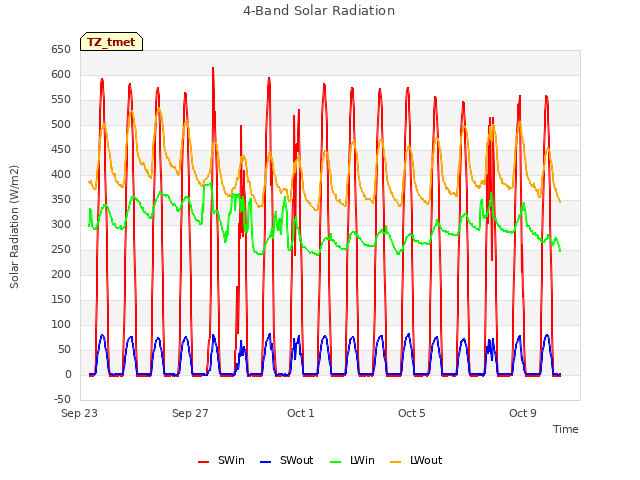

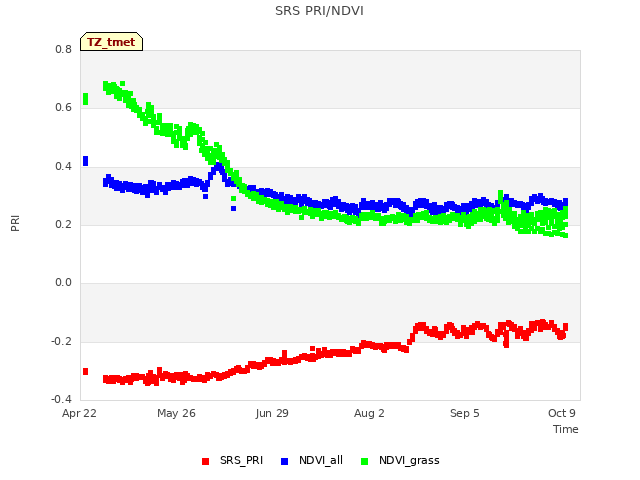

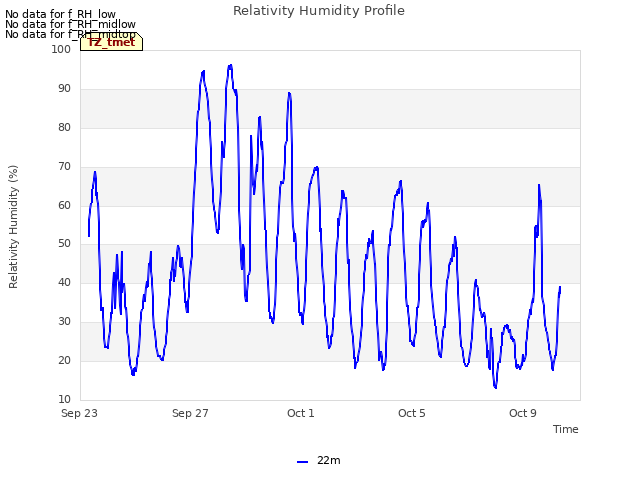

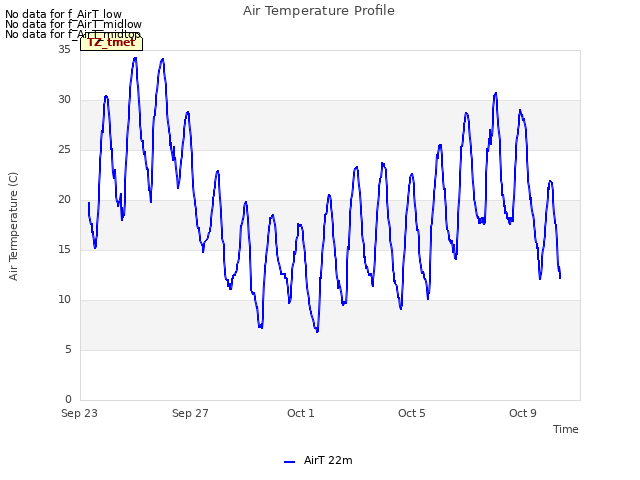

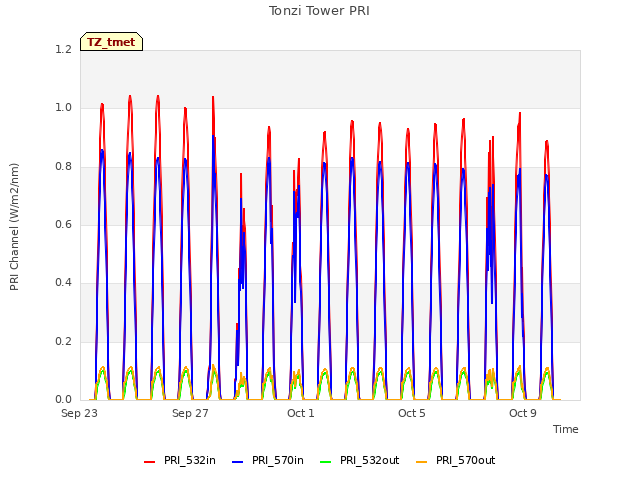

11 TZ_tmet graphs found

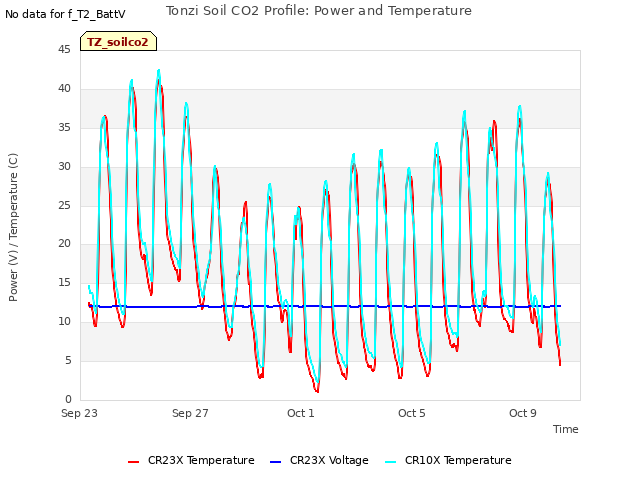

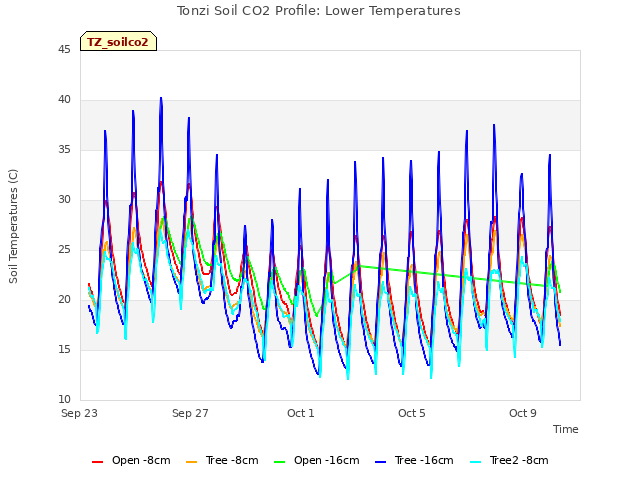

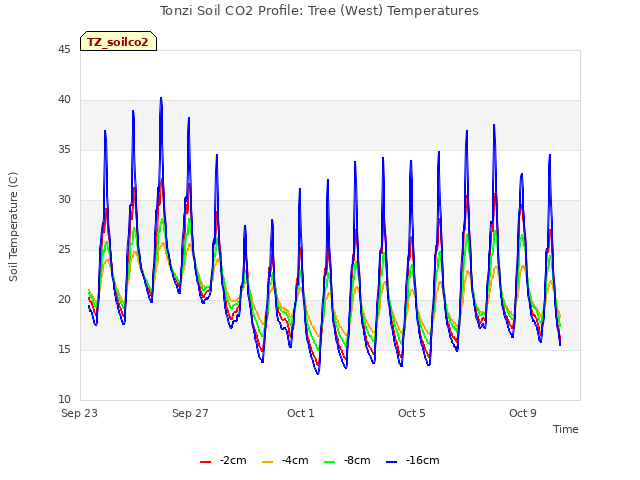

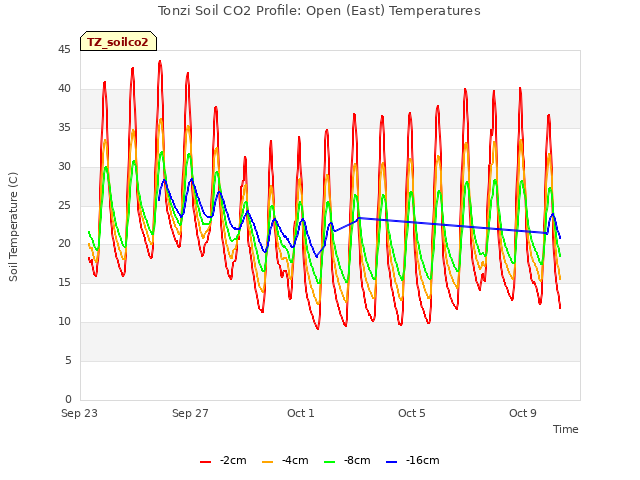

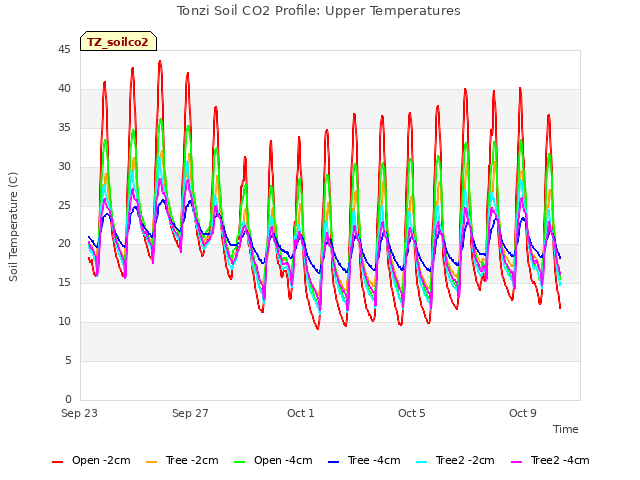

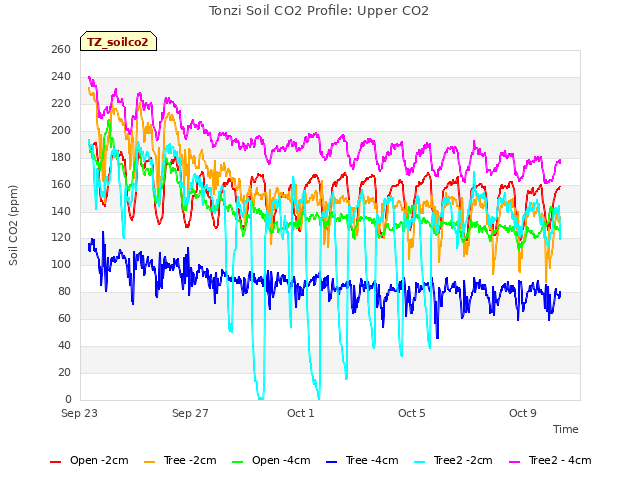

11 TZ_soilco2 graphs found
Can't check TZ_mixed

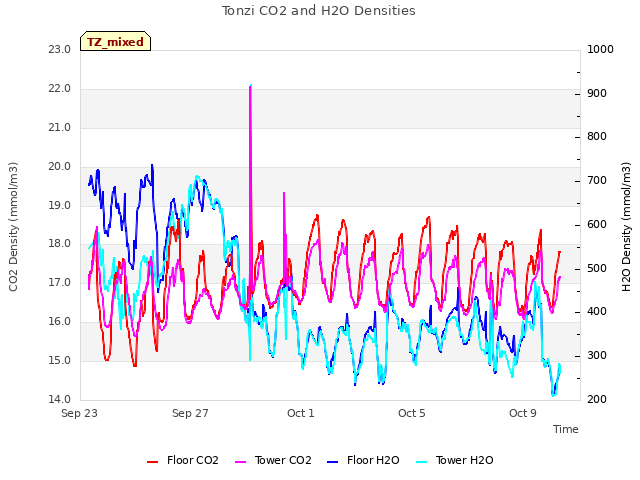

3 TZ_mixed graphs found

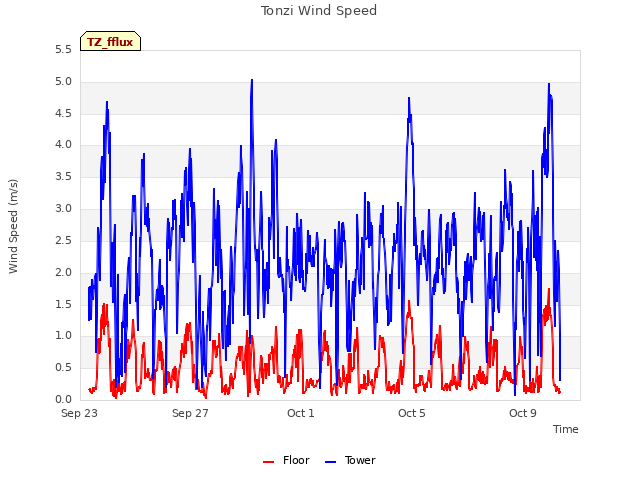

1 TZ_fflux graphs found

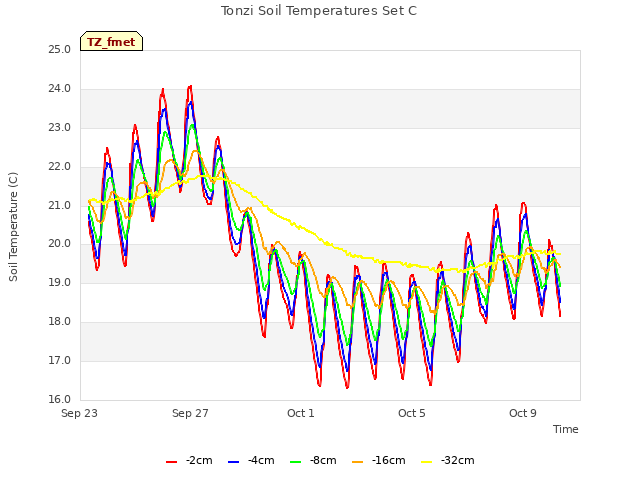

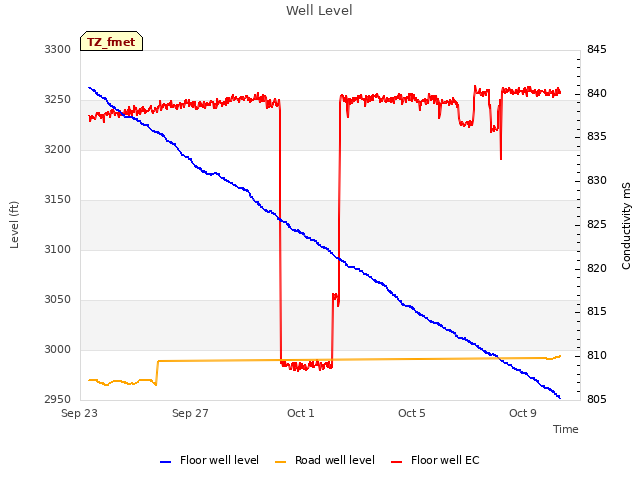

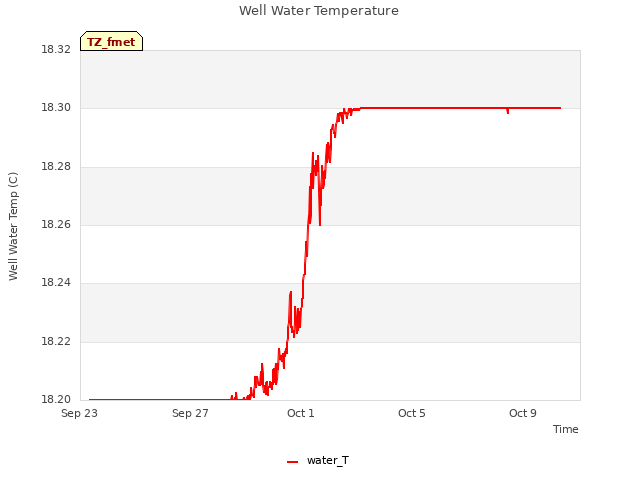

8 TZ_fmet graphs found
No data found for TZ_tram.

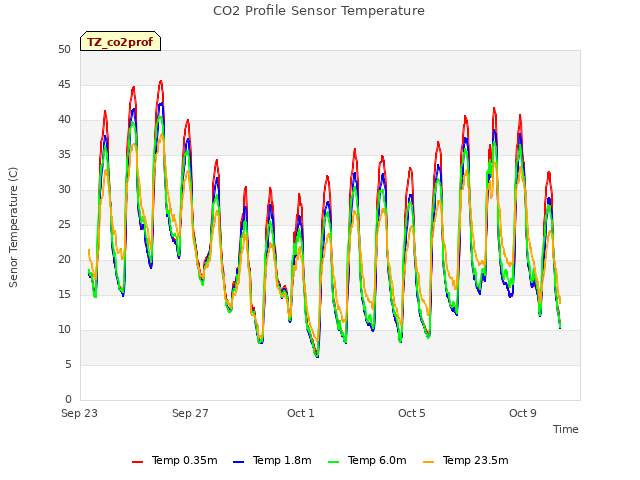

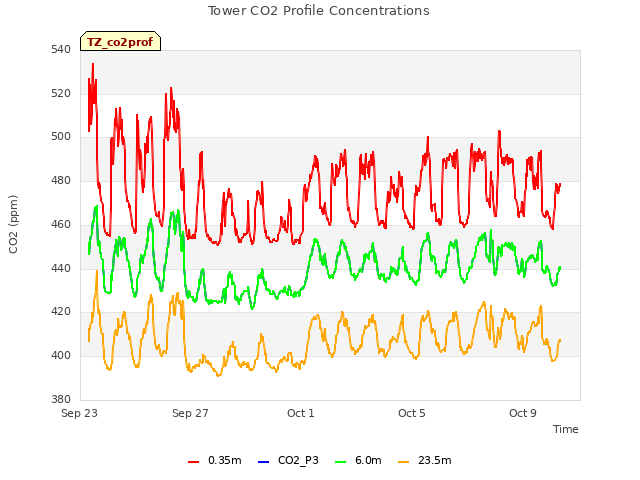

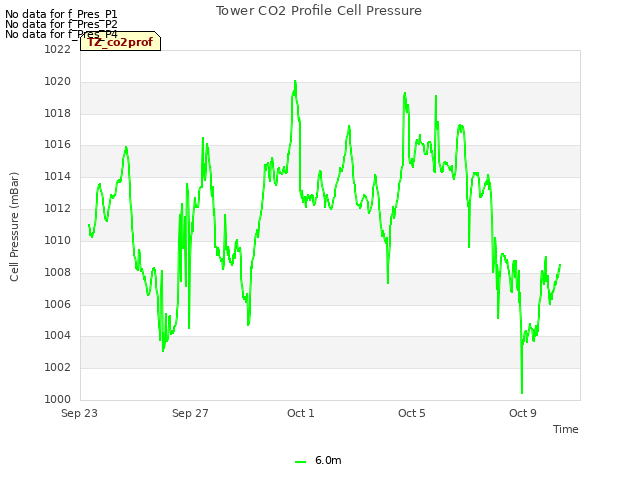

3 TZ_co2prof graphs found

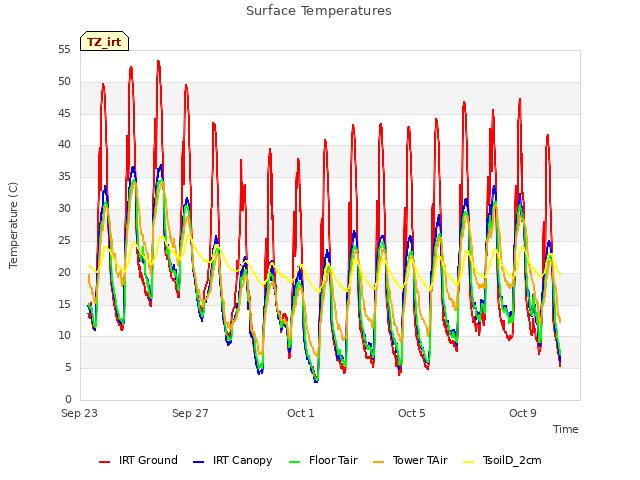

1 TZ_irt graphs found
No data found for TZ_windprof.
1 TZ_tflux graphs found
2 TZ_sm graphs found
Can't check TZ_met

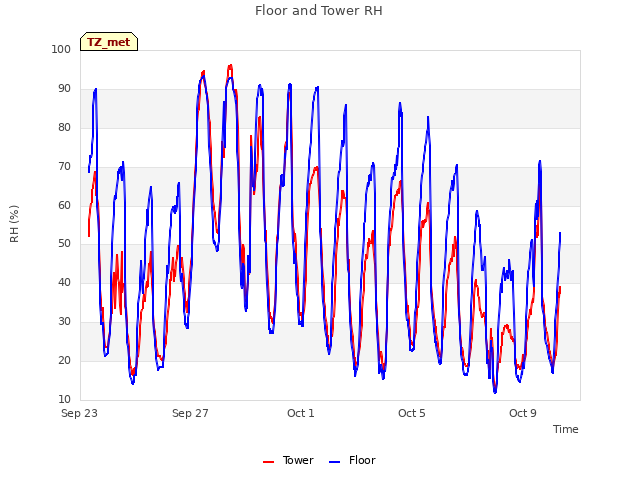

1 TZ_met graphs found
Can't check TZVR_mixed

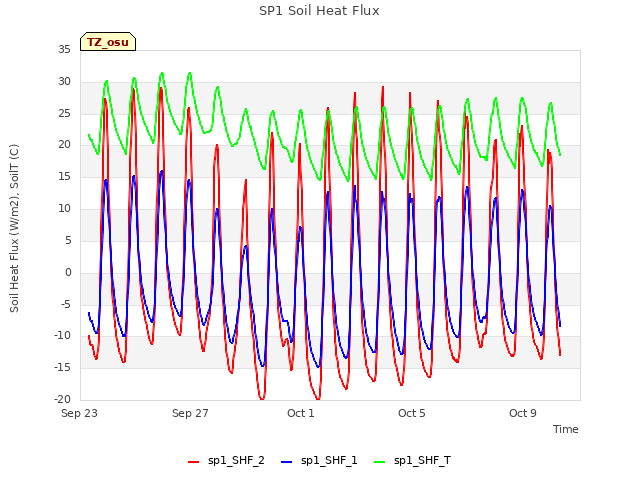

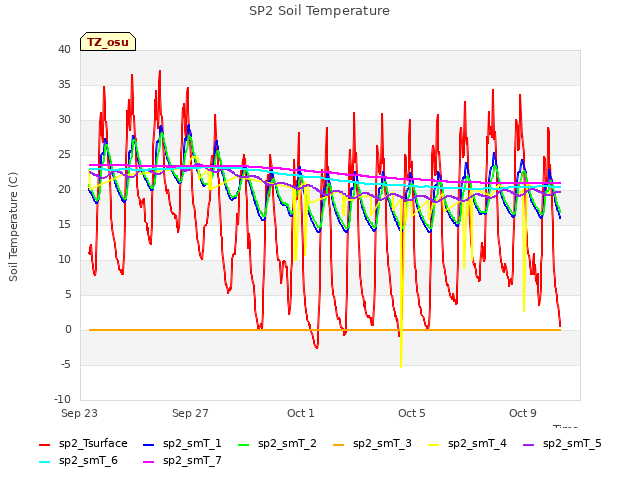

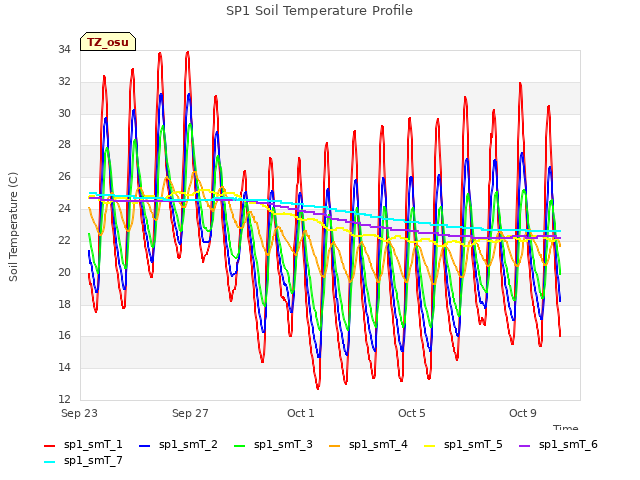

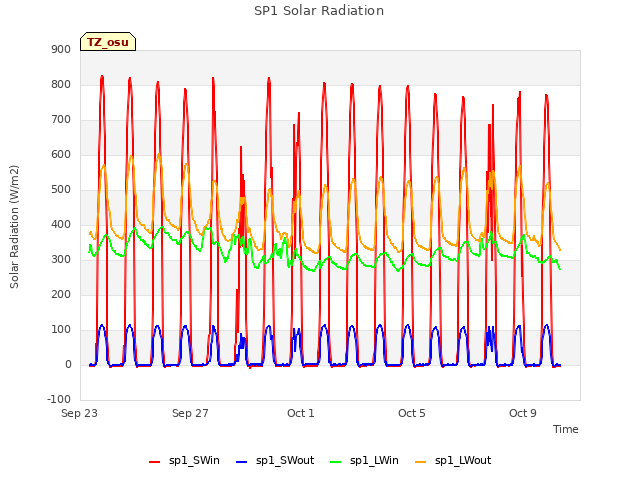

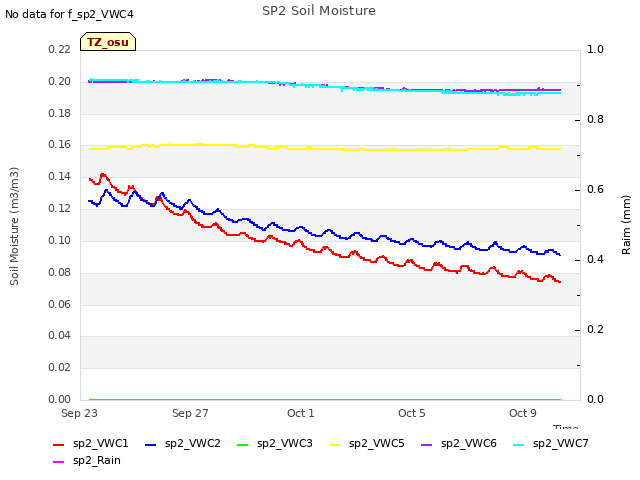

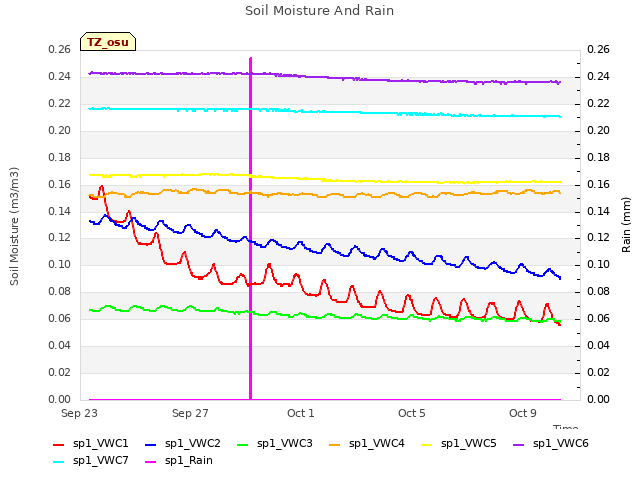

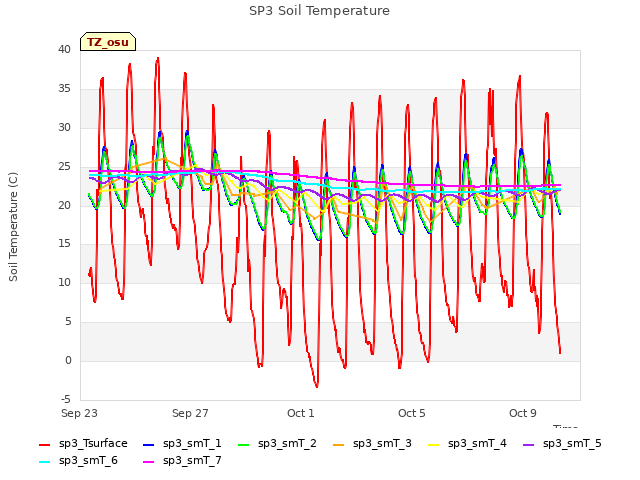

8 TZ_osu graphs found
No data found for TZ_fd.
Tonzi Z-cam data
