Vaira: 2005-01-17 12:35:00 (DOY 17)
Author: Siyan Ma
Others:

Summary: Power down due to failing solar system, eddy on with solar reset, but met still down

When: Date: 1/17/2005 , Day: 17 , Watch Time: 12:35pm
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: Cloudy, foggy, very wet on the grass

Summary

  1. Vaira Rain Gange SN# = 24875-9999, Model = TR-525I-R1
  2. No power for Vaira Datalogger. Maybe need bring fully charged battery to Vaira site.
  3. No power for Vaira fence.
  4. Floor and Vaira Flux systems shut down because of “LVD”. After restart the power regulator, flux systems are working.
  5. Measure soil moisture.
  6. Collect leave samples: Vaira grass, Tonzi understory grass

Vaira_Grass Site

  1. Fence and gate power: <12.0 v.
  2. Panel and Batteries: 12.2 v; 2.4 amps; Lvd amps. After restart it, “Lvd” turned into 2.2 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)
    Time 12:48:53
    Path/File name VR5_17.flx
    mean std mean std
    w 0.11 - Ts 11.313 -
    u 1.21 - H2O 3.733 -
    v -0.66 - CO2 4.012 -
  4. Download data.
  5. No power on datalogger. Swap with the fence battery (11.8v), still 3.42v on the datalogger.
  6. Closed gate and set up fence.
  7. Rain Gange SN# = 24875-999, Model = TR-525I-R1

Field Data

No tank data

No VR Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

Explore the graph:Temperatures in a new window

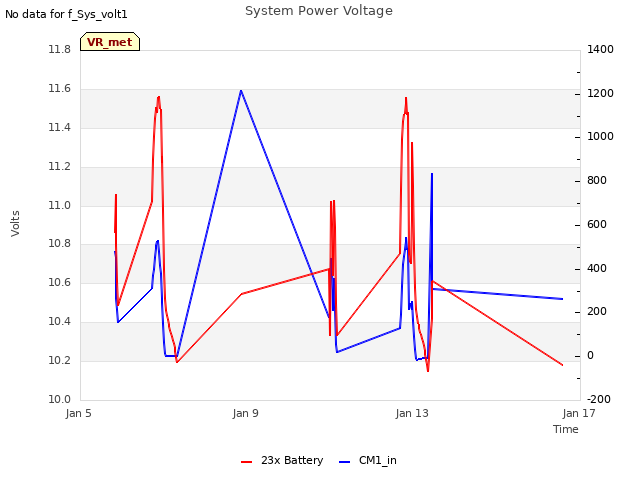

Explore the graph:System Power Voltage in a new window

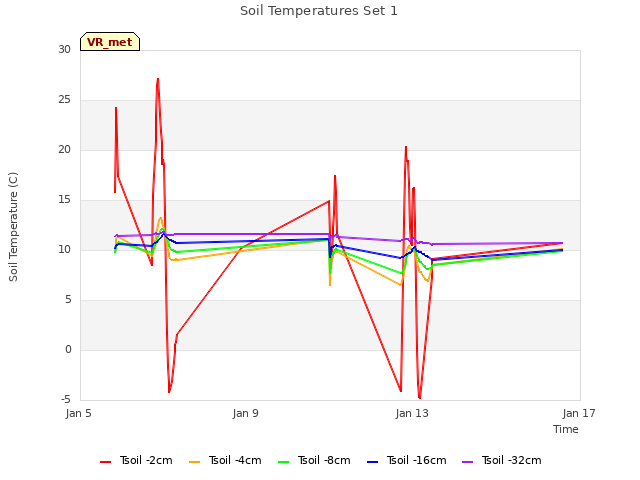

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

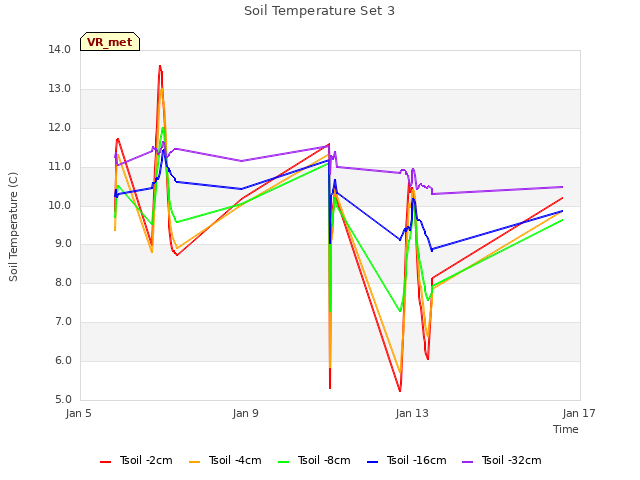

Explore the graph:Soil Temperature Set 3 in a new window

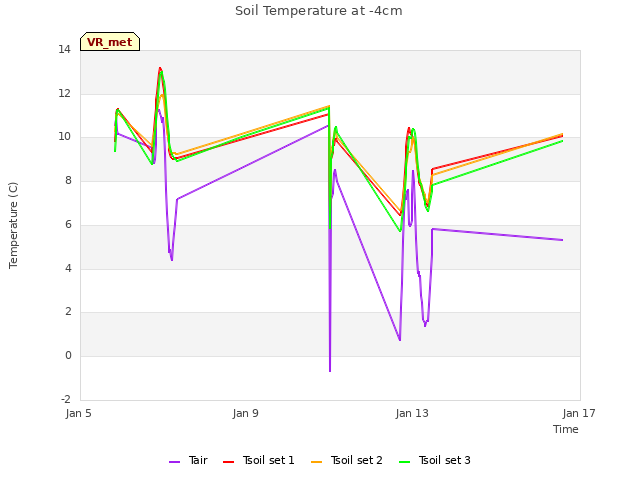

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:Photosynthetic Active Radiation in a new window

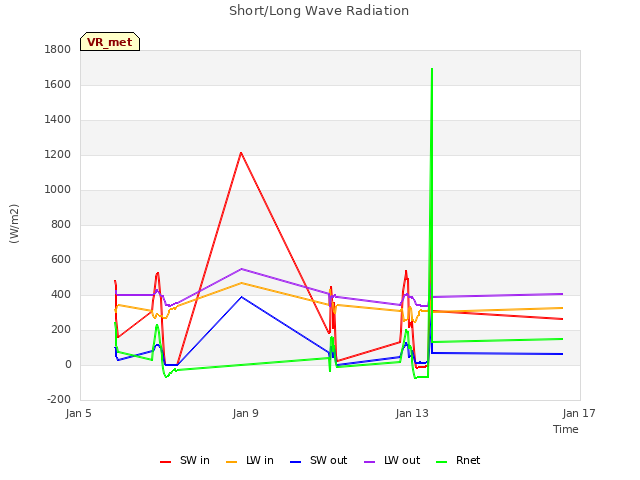

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

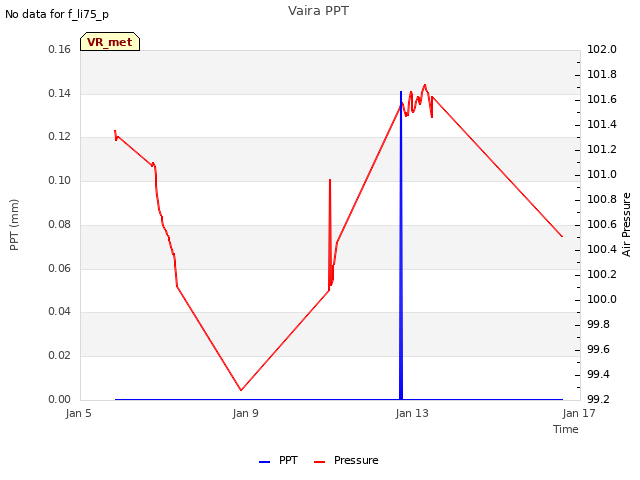

Explore the graph:Vaira PPT in a new window

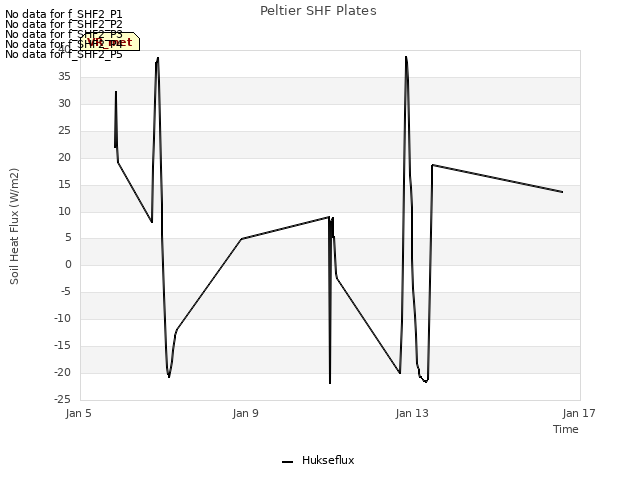

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

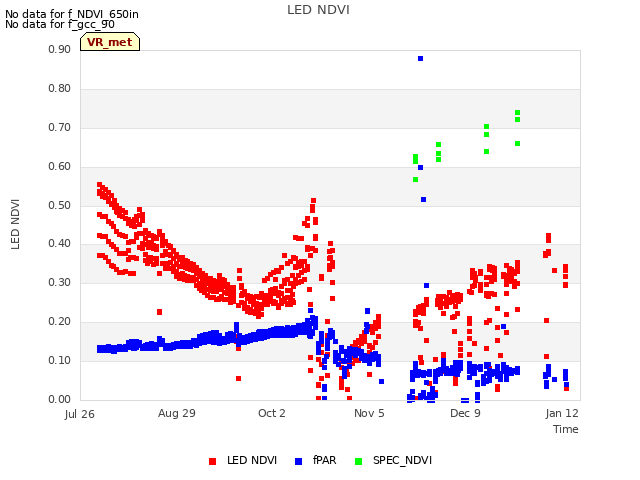

Explore the graph:LED NDVI in a new window
