Vaira: 2004-11-02 10:30:00 (DOY 307)
Author: Siyan Ma
Others:

Summary: Swapped 7500, grass beginning to grow, soil samples, spectral measurements

When: Date: Nov, 2,2004 , Day: 307 , Watch Time: 10:30am .
Where: Vaira Ranch
Who: Siyan
Weather: clear, sunny
Phenology: green up, grass about 2 cm high

Summary

  1. Swap Li-7500 in Vaira (remove sn 0041, install sn 0418)
  2. I did the spectrometer measurement.
  3. Soil moisture increased ~20%.
  4. leave and grass samples: Vaira grass, Tonzi understory grass, and Tonzi tree
  5. Soil samples: 2 in Vaira.

Vaira_Grass Site

  1. Fence and gate power: >12.0 v.
  2. Panel and Batteries: 13.9 v; 21.0 amps; 1.8 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)
    Time 10:30:19
    Path/File name VR4-307.flx
    mean std mean std
    w -0.43 0.316 Ts 18.388 0.692
    u -0.11 0.755 H2O 1.64 0.065
    v -0.49 0.403 CO2 2.064 0.152
  4. Reading from Gillsonic screen after downloading data or swapping Li-7500 Analyzer. (Remove sn 0041; install sn 0418)
    Time 10:47:16
    Path/File name VR4-307.flx
    mean std mean std
    w 0.07 0.32 Ts 19.507 0.694
    u 2.43 1.03 H2O 2.13 1.641
    v 1.43 0.481 CO2 1.14 0.566
  5. Check CR23X with two multiplexers
    Loc 74: Sys_vot = 2.0852
    Loc 75: PC_start = 2.1285
  6. Closed gate and set up fence.

Field Data

No tank data

No VR Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

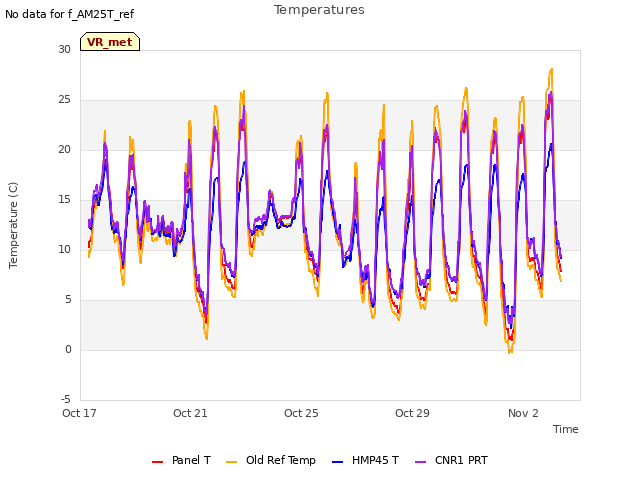

Explore the graph:Temperatures in a new window

Explore the graph:System Power Voltage in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

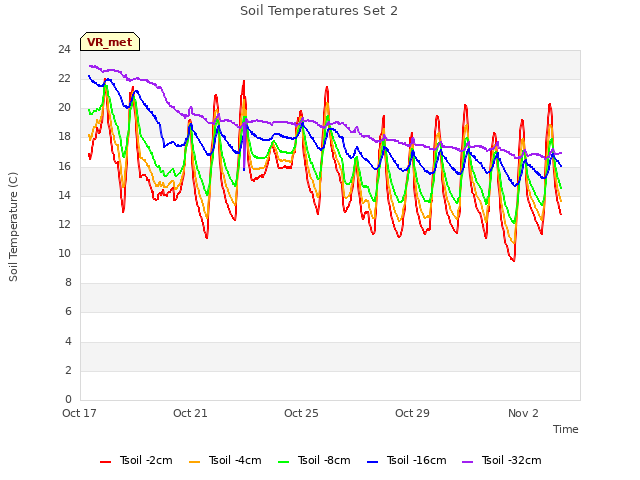

Explore the graph:Soil Temperatures Set 2 in a new window

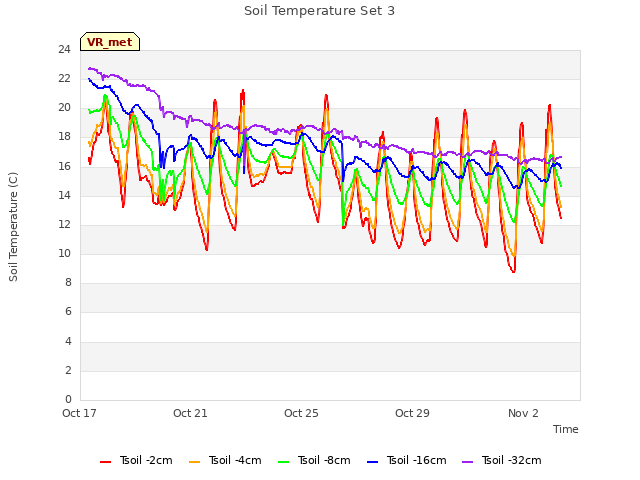

Explore the graph:Soil Temperature Set 3 in a new window

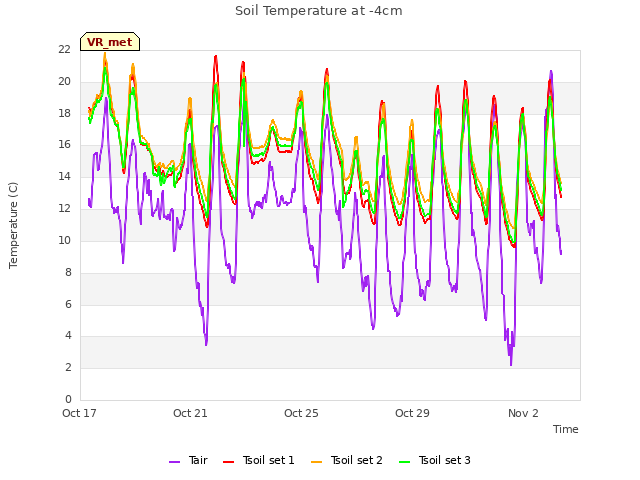

Explore the graph:Soil Temperature at -4cm in a new window

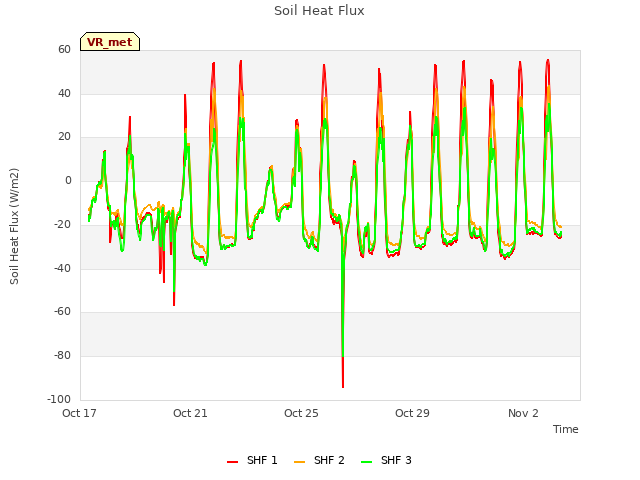

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

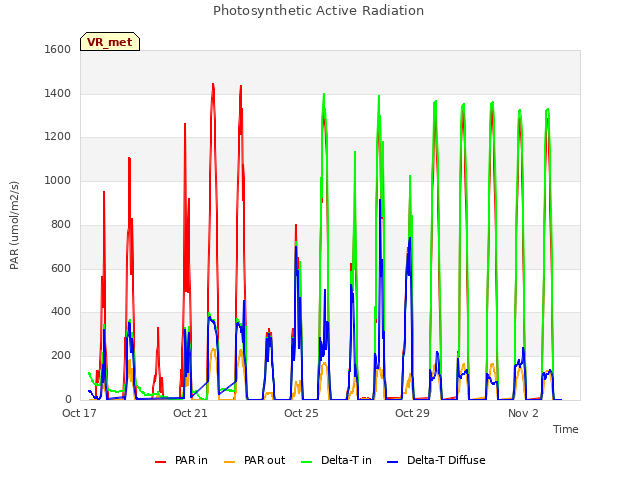

Explore the graph:Photosynthetic Active Radiation in a new window

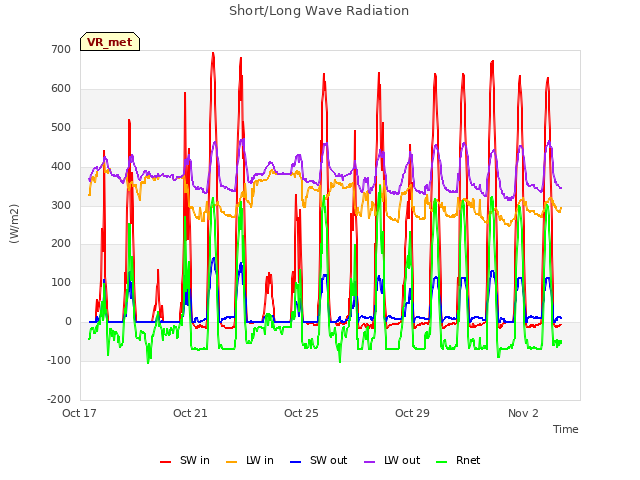

Explore the graph:Short/Long Wave Radiation in a new window

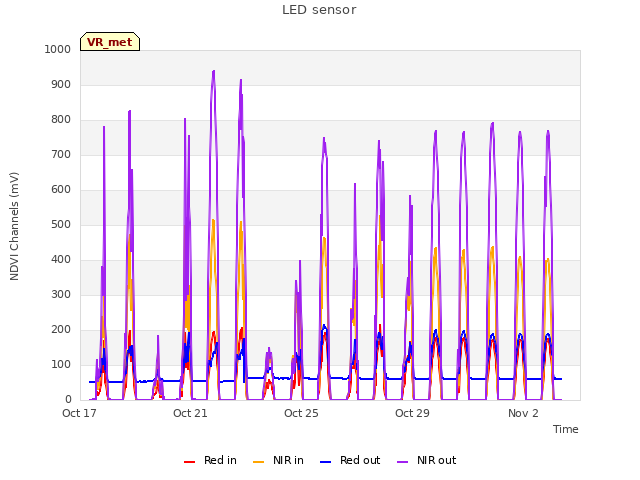

Explore the graph:LED sensor in a new window

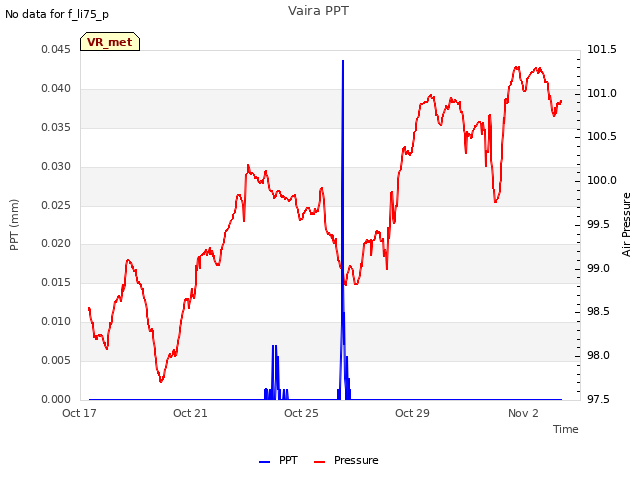

Explore the graph:Vaira PPT in a new window

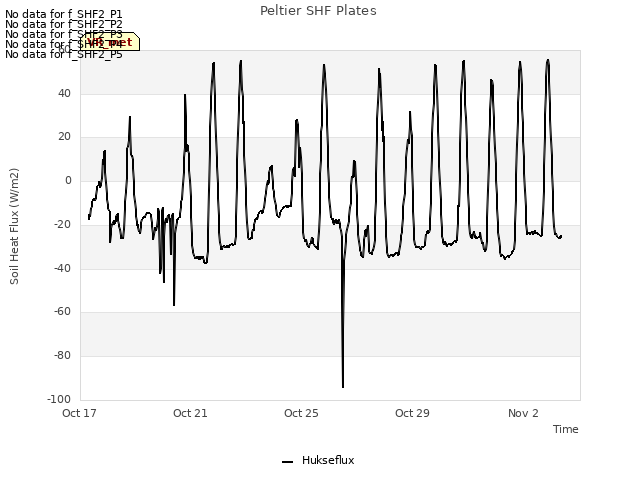

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

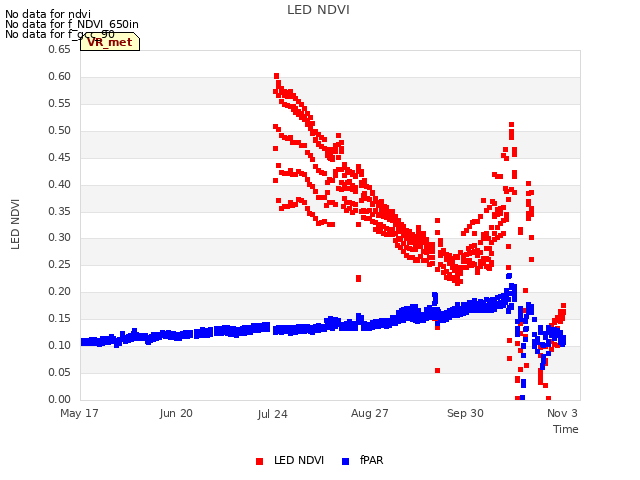

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
