Tonzi: 2004-04-30 13:30:00 (DOY 121)
Author: Ted Hehn
Others:

Summary: Finish installing folding radiation boom, gillsonic.exe hung up - restarted

When: Thur-Fri, 29-30 Apr04, JD120-121
Where: Tonzi Ranch
Who: Ted Hehn
Weather Clear & warm

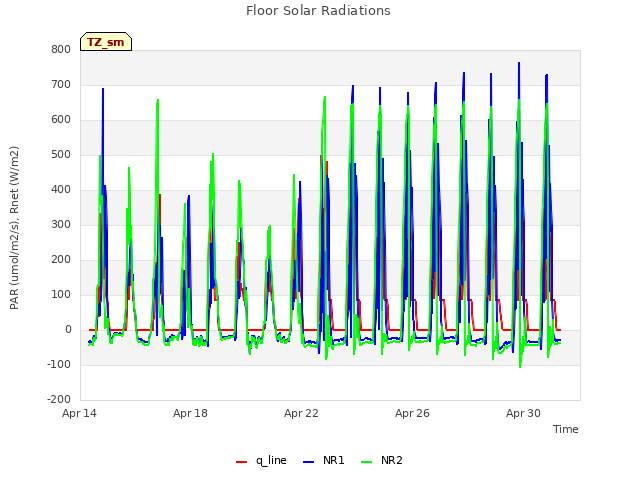

13:30 Friday julian day 121 remove signal leads from differential channel 5 which is the net radiometer to lengthen signal leads to reconfigure to new boom arm.

16:10 Net rad signal leads restored. Sn 990351 13.9 uv/w m2

Install Kipp & Zonen PAR up sensor on tower and place leads into the PAR calibration channel. The PAR down sensor is connected to nothing. After a side by side calibration on the Licor PAR sensors is performed the Licor sensors will be removed and the K&Z PARs will replace them.

K&Z up sn 010159 5.16 umol/m2/s
K&Z dn sn 030382 5.29 umol/m2/s

Pyranometer sn 996981 5.03 uv/w/m2

Licor PAR up sn Q29892 6.66 uA/1000umol s-1 m-2
Licor PAR dn sn Q29881 6.65 uA/1000umol s-1 m-2

16:33 level all radiation sensors: Net Rad, pyran, 2 Licor Pars, 2 K&Z Pars

20:44 Tower PC not taking data sonic working gillsonic locked in infinite loop. Stop gill sonic and let PC208 start â€“ ok begins taking data.

20:47 all now working

Remove net radiometer from met station near tower base - unit to the east of the tower sn 990352 14.2 uv/w/m2.

Net rad to north of tower left operating

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found
