Field Notes

<--2004-03-06 17:45:00 | 2004-03-25 10:00:00-->
Other sites visited today: Vaira

Tonzi: 2004-03-12 10:00:00 (DOY 72)
Author: LiuKang Xu
Others:

Summary: Bird poop on Tower 7500 window, Tress beginning to leaf out

When: Mar 12 2004
Where: Tonzi/Vaira Ranch
Who: Liukang Xu
Weather: Sunny, temperature upper 70s, about 30% of oak trees near Irish Rd already leaf out, but not for trees near our flux tower.

Tower EC system was running great. Fence OK. PV reading 13.8, 0, 4.6. Gillsonic output for q and CO2 were 3.101 and 0.355 V, caused by bird poop on the lens of li7500. Cleaned the lens and reboot pc gave me right values for all the channels.

mean std mean std
w 0.78 0.549 Ts 27.607 0.266
u 1.45 1.307 q 2.883 0.037
v 1.42 0.843 CO2 1.922 0.011

On Mar 4th, Ted replaced the pc, systems seems running better, but I do see the watchdog problem once.

Floor EC, system was running great. Download data, PV reading 13.9, 14.1, 2.5.Gillsonic outputs are all in the right range.

mean std mean std
w 0.03 0.195 Ts 28.9 0.623
u -0.63 0.351 q 3.028 0.153
v 0.76 0.431 CO2 1.863 0.026

All Jianwu’s 8 probes are working.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

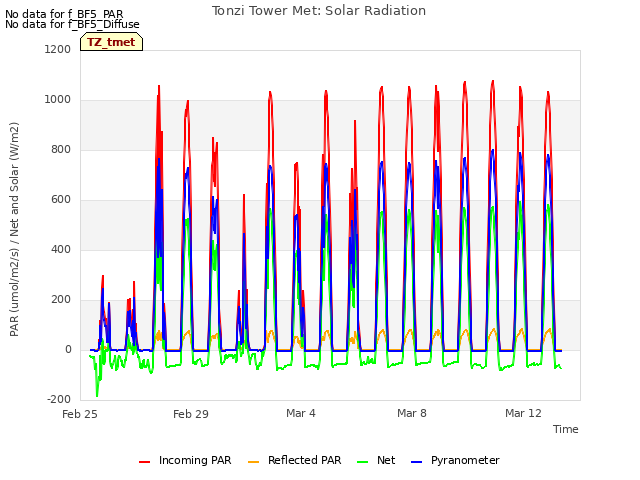

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

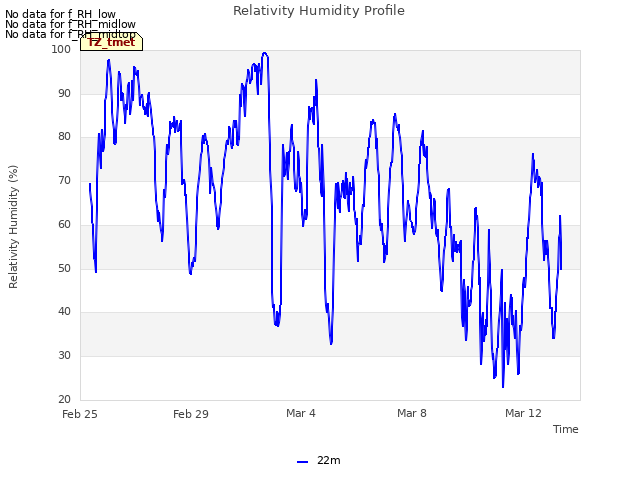

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

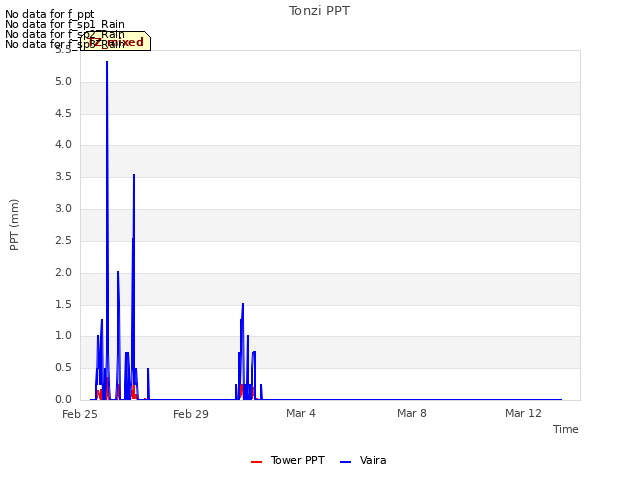

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

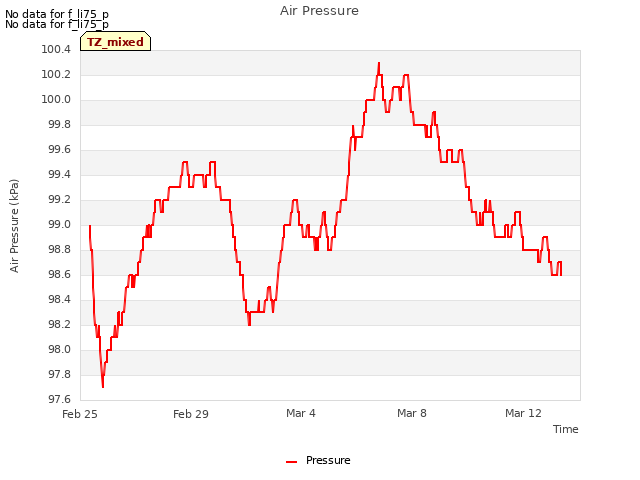

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

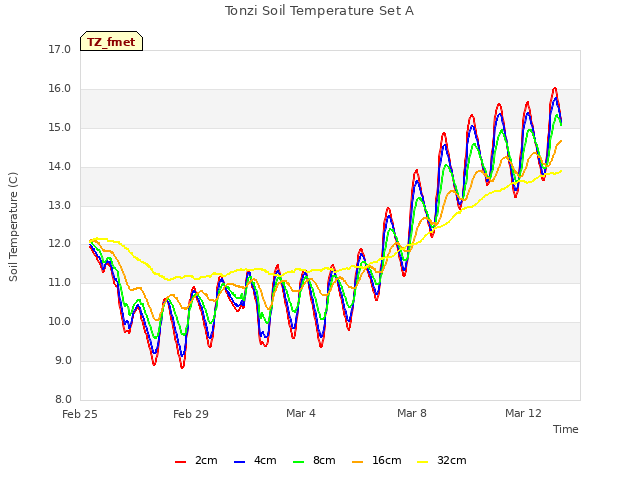

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

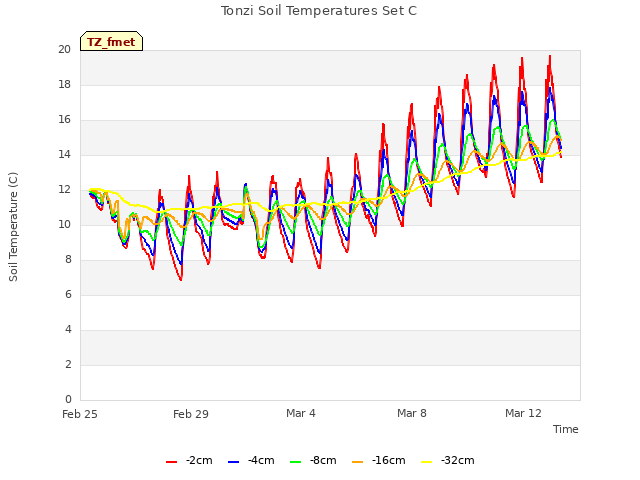

Explore the graph:Tonzi Soil Temperatures Set C in a new window

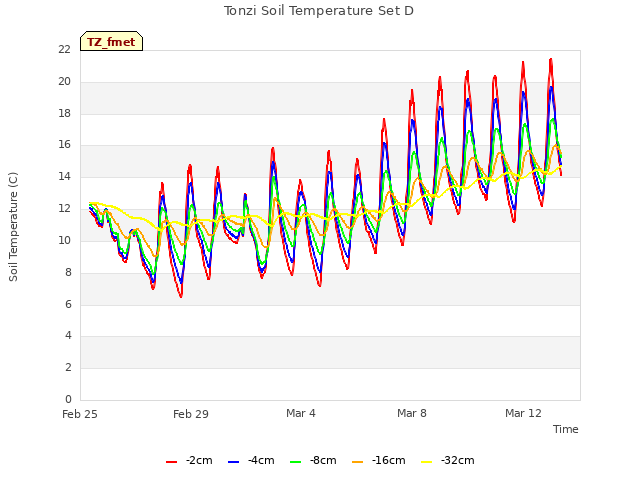

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
1 TZ_windprof graphs found

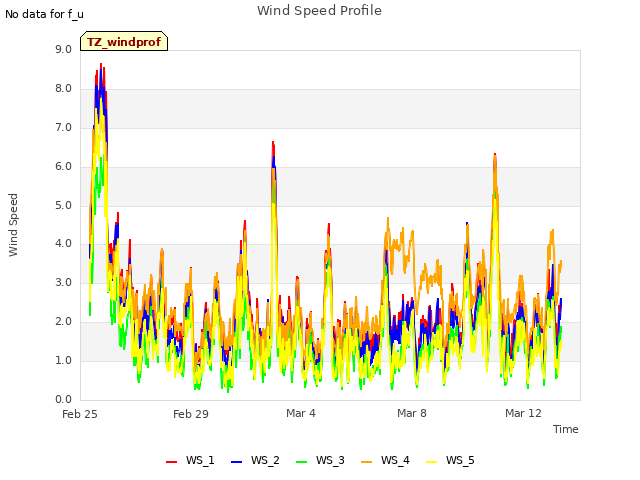

Explore the graph:Wind Speed Profile in a new window

No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

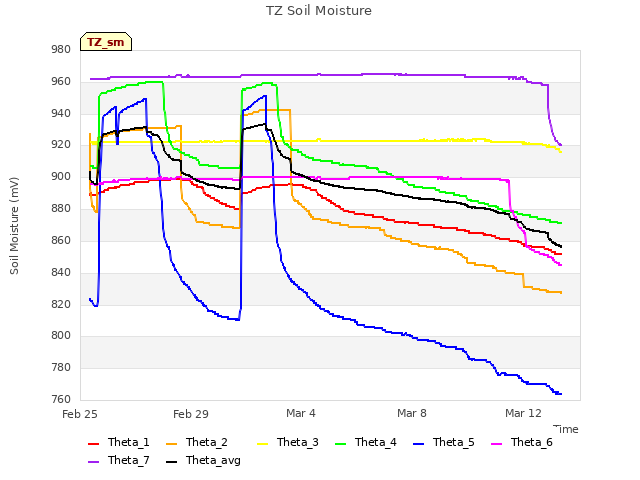

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

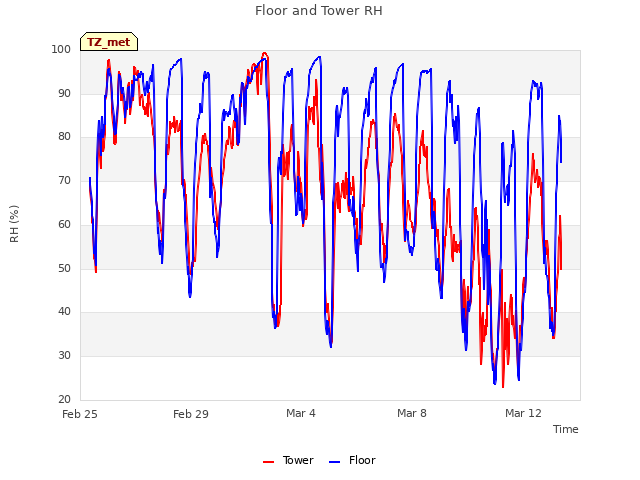

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
