Field Notes

<--2003-03-17 10:45:00 | 2003-03-22 00:00:00-->
Phenocam link: Searching...

Tonzi: 2003-03-21 00:00:00 (DOY 80)
Author: Ted Hehn
Others:

Summary: Download data, install new tower power enclosure, repair data logger.

When: 20-22 Mar03, JD-79-81
Where: Tonzi/Vaira Ranches
Who: Ted Hehn
Weather Clear, cool & calm

Trip Purpose: Tower CR23X/enclosure taking on water – repair and replace data logger. Install new tower power regulator enclosure.

Tonzi Ranch: 21Mar03 09:00

Download all data to flash card.

Remove Zip drive from site.

Knock plastic plug out of top of tower CR23x enclosure. It was leaking and allowing water to contaminate 23x. Scrape all surfaces clean and refill hole with regular epoxy.

Remove & replace CR23x6 data logger and reprogram with new version of PC WATCHDOG timer program. This program has Time Event Driven Software (TEDS) moved to 1st program table so it will no longer be interrupted by residing in the 2nd program table.

Lost communication from floor pc to all data loggers. Begin diagnostics: Remove CR23x6 coax lead from MD9 and retry communication – no help. Remove CR10x 4 & 5 coax lead from floor pc system – no help. Remove coax line at floor pc that connects loggers 2,3 & 6 and regain communication with loggers 4 & 5. Problem therefore lies with leads/loggers 2,3 6. Begin diagnostics on leads/loggers 2,3 & 6. Discovered that cr10x2 had locked up and I could not get any response with manual keyboard/display. Remove power from cr10x2 and power up again. Ok, system now fully operational.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

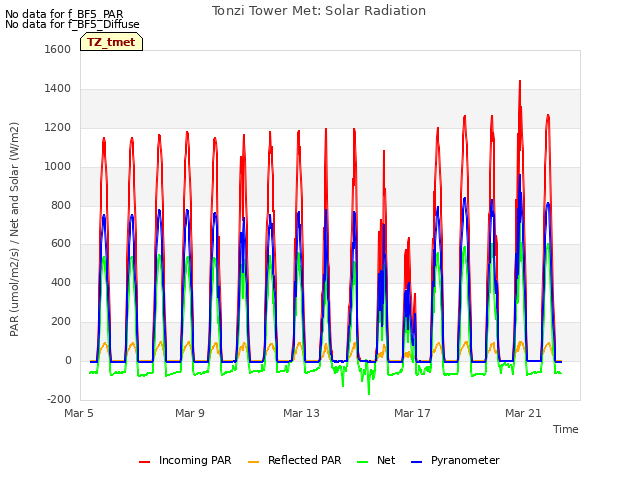

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

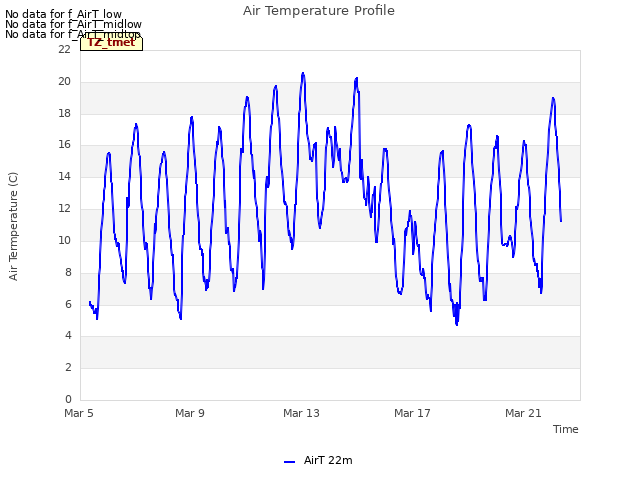

Explore the graph:Air Temperature Profile in a new window

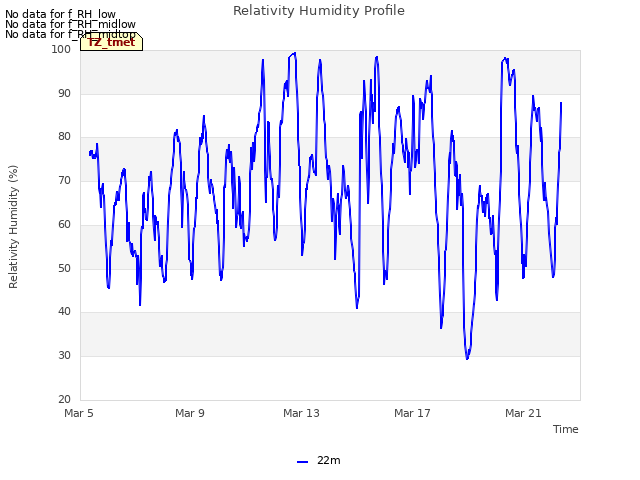

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

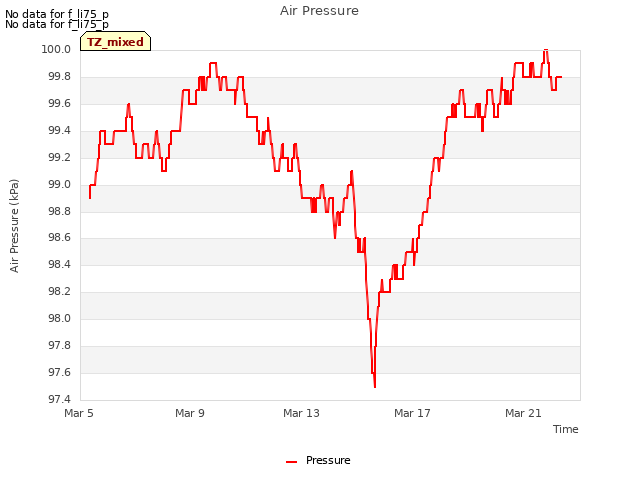

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

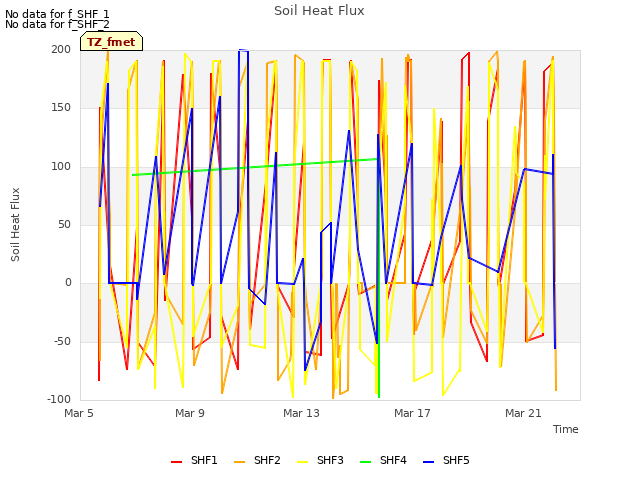

Explore the graph:Soil Heat Flux in a new window

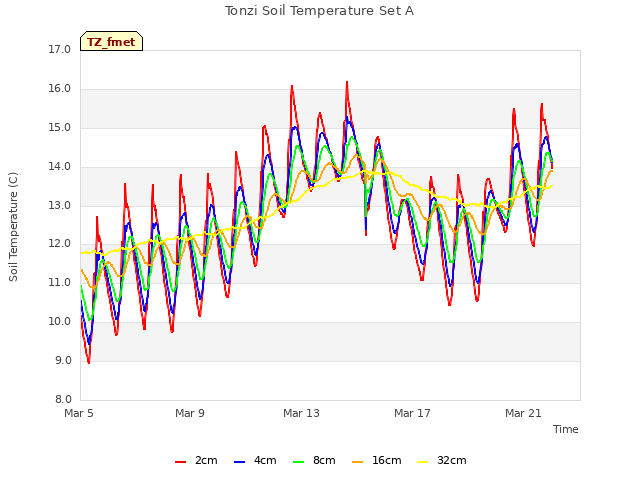

Explore the graph:Tonzi Soil Temperature Set A in a new window

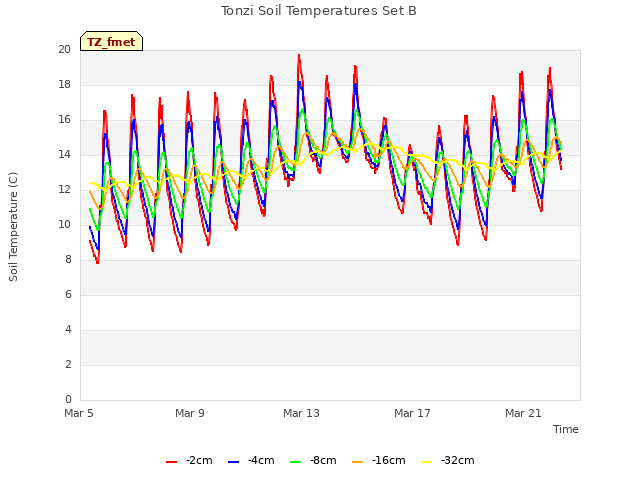

Explore the graph:Tonzi Soil Temperatures Set B in a new window

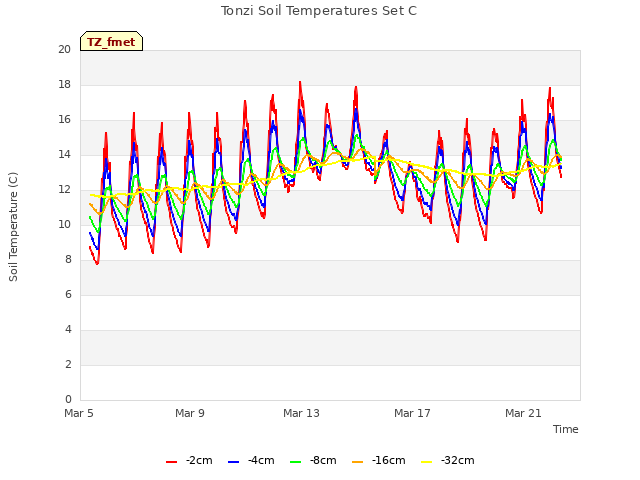

Explore the graph:Tonzi Soil Temperatures Set C in a new window

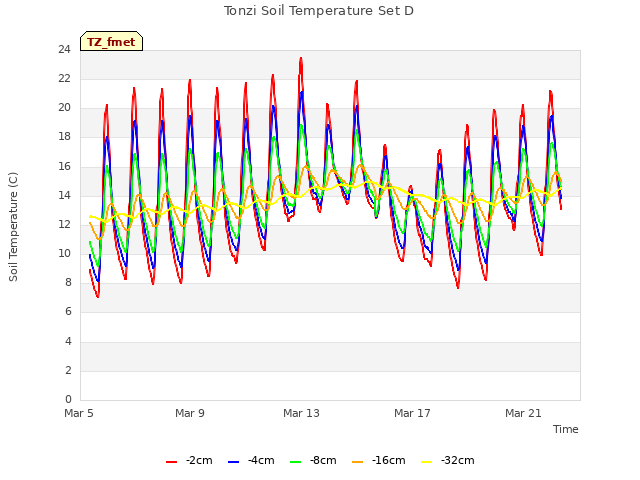

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

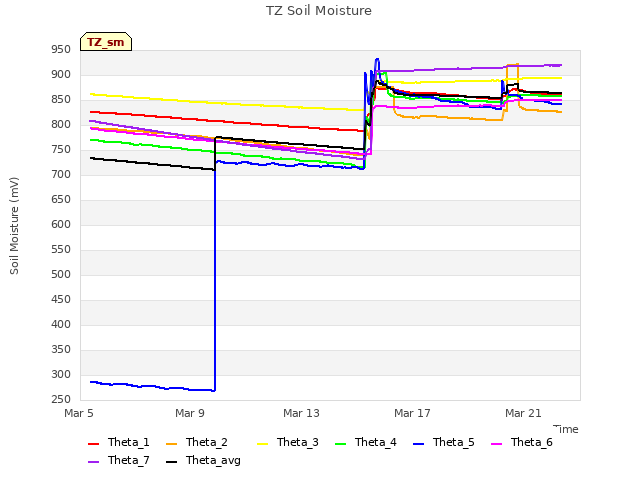

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

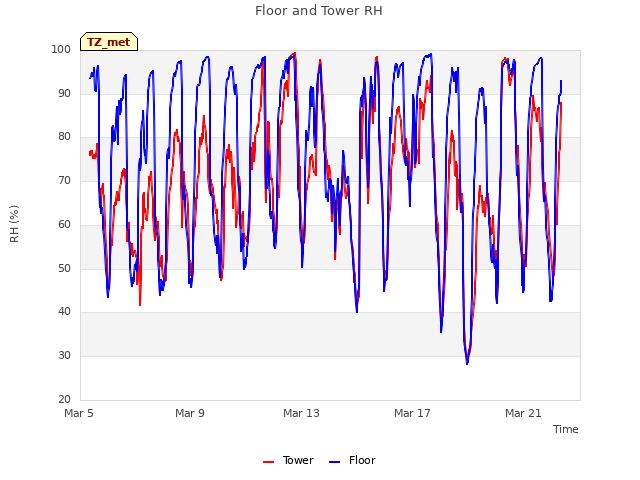

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
