Field Notes
<--2003-11-07 09:00:00 | 2003-11-10 09:00:00-->Other sites visited today: Tonzi
Phenocam link: Searching...
Vaira: 2003-11-08 00:00:00 (DOY 312)
Author: Ted Hehn
Others:
Summary: Flux platform not operational, fix and check other systems.
| When: Sat, 8Nov03, JD-312 Where: Tonzi/Vaira Ranches Who: Ted Hehn Weather Clear and cool. Trip Purpose: Repair solar power failure at Vaira site. Vaira Ranch: 10:00 Arrive – flux platform not operational. Fuse holder on PS30M solar regulator burned up. Remove regulator and check solar/batt/load leads for short/open circuits. 20 volts present on solar leads; 11.7 present on batt leads and no voltage and hi resistance is present on load leads. Install new PS30M and system returns to operational status. Tripod for diffuse radiation/4way net rad was seriously out of level. It was corrected. All systems operational and PC/logger communications exist. Leave site. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

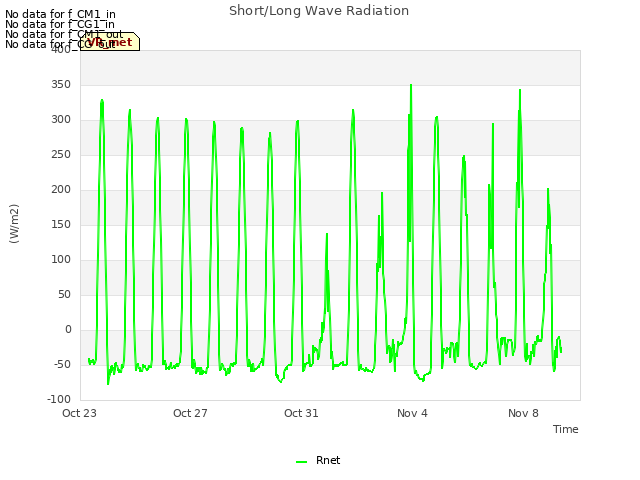

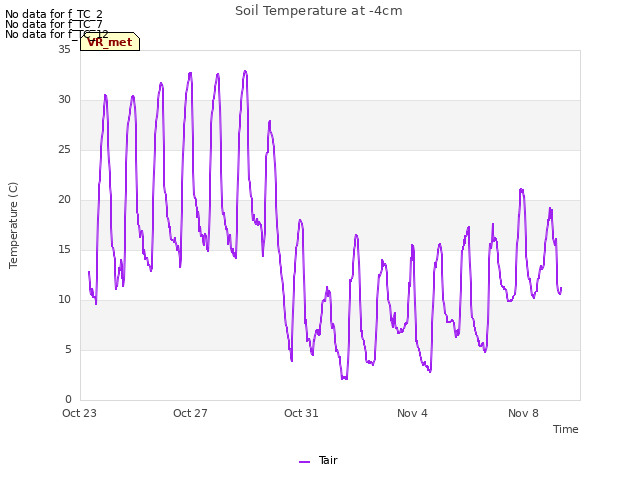

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
