Field Notes
<--2002-04-18 04:30:00 | 2002-04-26 09:50:00-->Phenocam link: Searching...
Tonzi: 2002-04-24 13:23:00 (DOY 114)
Author: Ted Hehn
Others:
Summary: Change execution interval on Tonzi 23x and CR 10, added precipitation gauge, mounted tower PC enclosure, installed power line.
| On 24 Apr I changed the execution interval on the TONZI 23x from 2 sec to 6 sec - the delays that were used in that program to wait until the probe readings stabilized totaled 5 sec so data loss resulted from the 2 sec setting I also changed the execution interval on the TONZI CR 10 from 2 sec to 4 sec for the same reason as above. A precip guage was also added at the Tonzi site - data was appended to the end of the output file in units of inches Please note these changes in your records Last week I was able to mount the tower PC enclosure, the licor enclosure, the sonic and licor mount bracket (with anti fall stop) short one quick coupler, install the power line from the tower base to the top. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

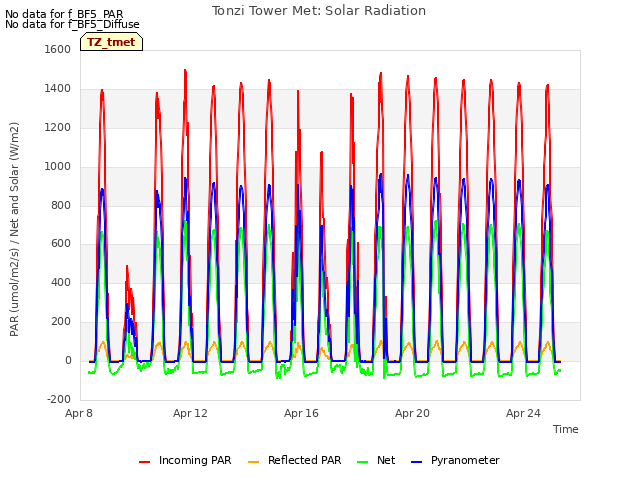

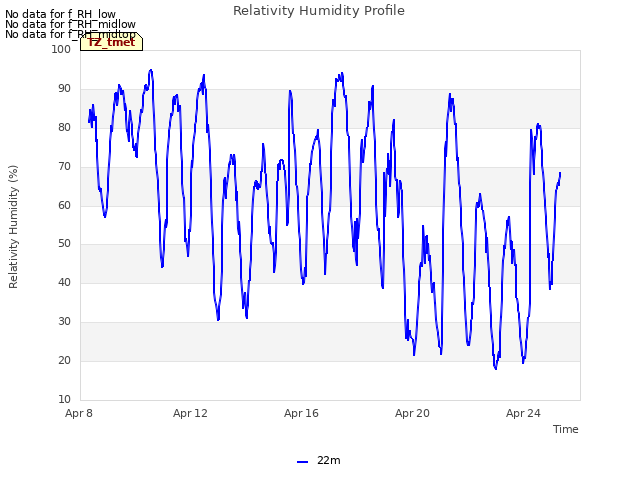

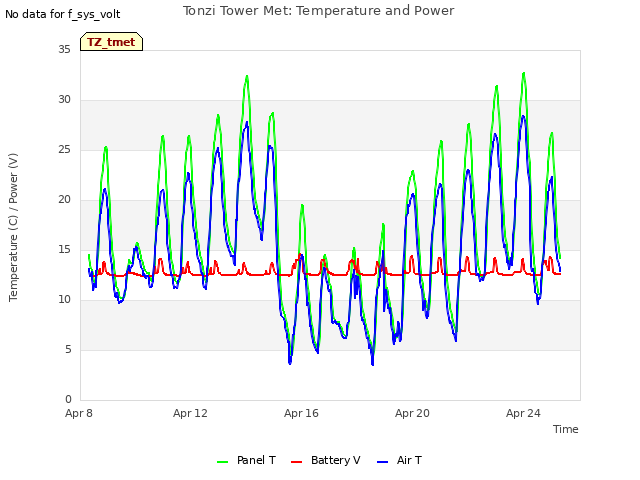

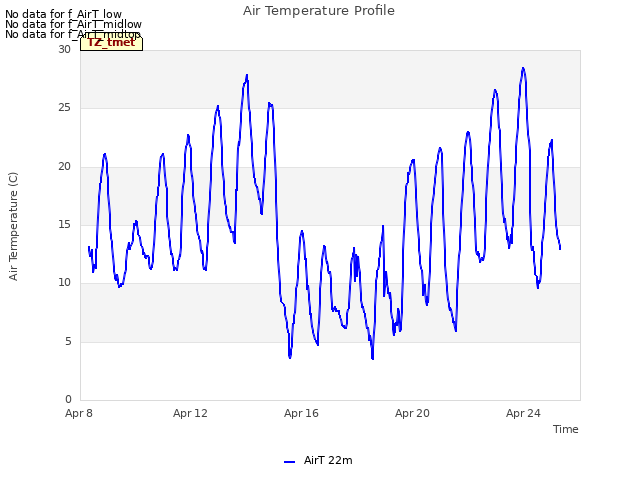

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

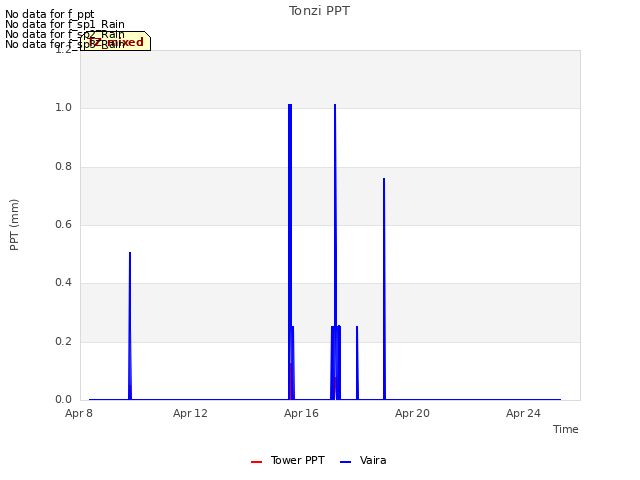

3 TZ_mixed graphs found
No data found for TZ_fflux.

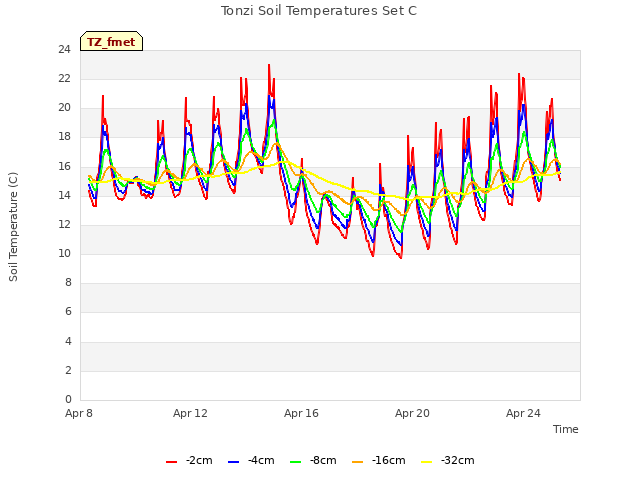

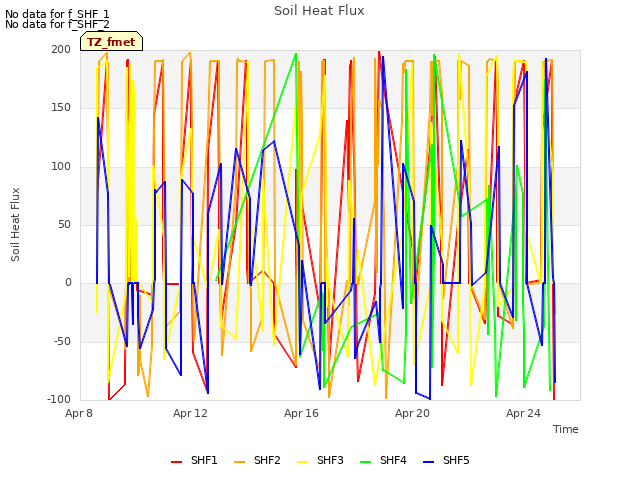

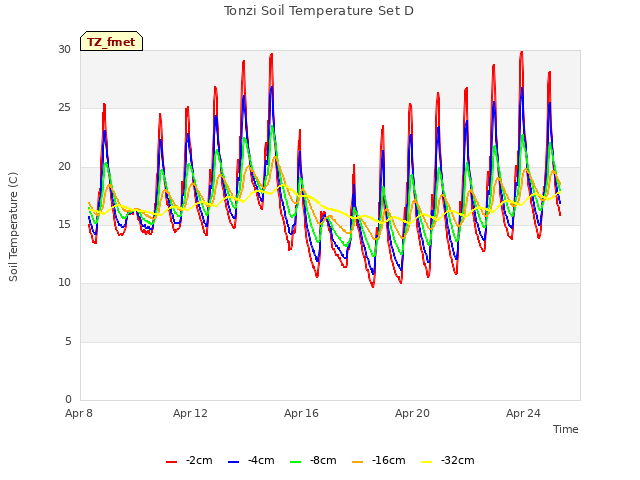

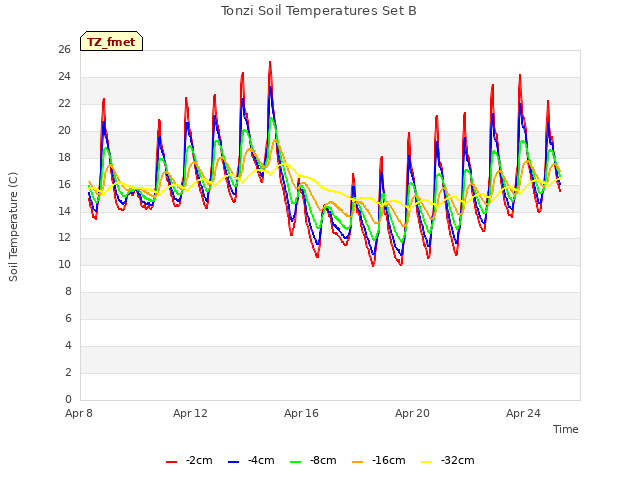

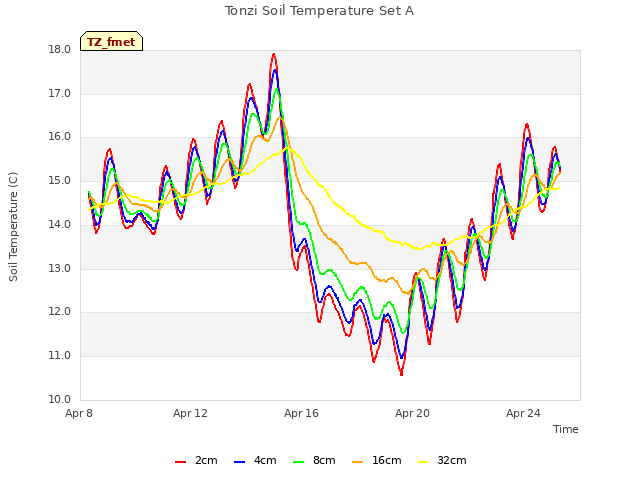

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

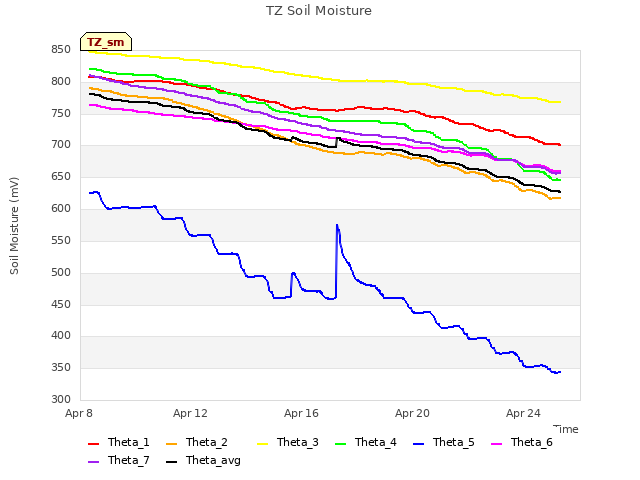

2 TZ_sm graphs found
Can't check TZ_met

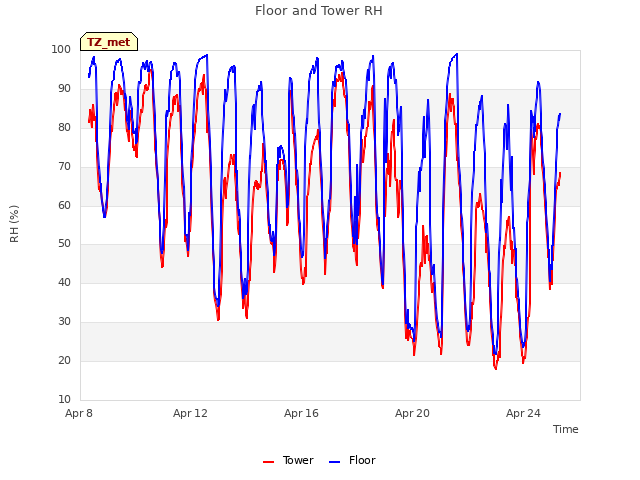

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
