<--2002-02-08 00:00:00 | 2002-02-23 10:46:00-->Other sites visited today: Tonzi/Vaira
Tonzi: 2002-02-08 15:34:00 (DOY 39)
Author: Ted Hehn
Others: Dennis
Summary: Replace IRGAs, install bird spikes,install Netradiometer
| Tonzi Tower - Hehn & Baldocchi arrive clear, cool & breezy - remove IRGA sn 0042 from tower - install IRga sn 0073 on tower - install bird spikes on tower LICOR and Sonic - install Netradiometer inside orange fence sn 990350 calib= 13.5 uV/W -Sq meter add 2 statements to CR10x program: P02,1,13,5,50,1,0 P71, 1,50 these statements will out put 1/2 hr average of the milivolt response Tonzi Floor - remove IRGA sn 0035 - install IRGA sn 0041 Note: need to construct pivot boom arm on solar rad platform on tower need to order new 250 Mbyte zip drive need to order 0.5 amp solar panels for data logger power system need to order new Dell laptop |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

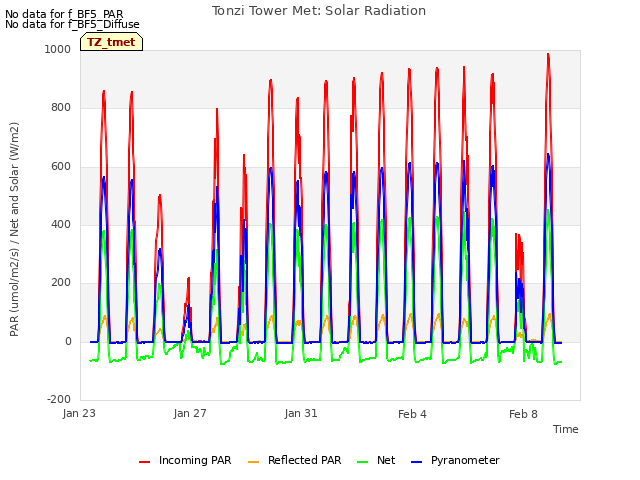

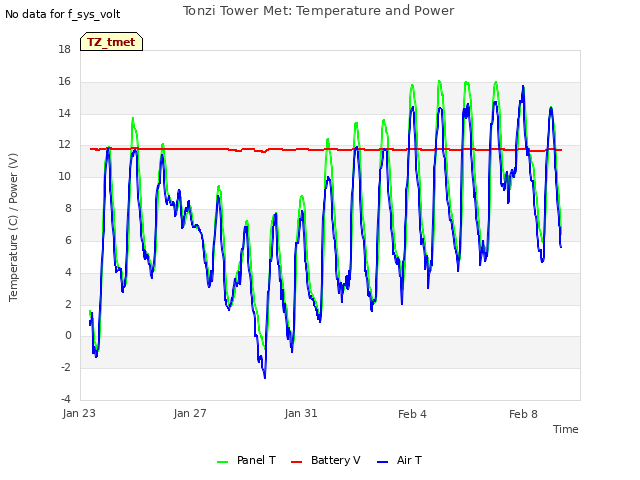

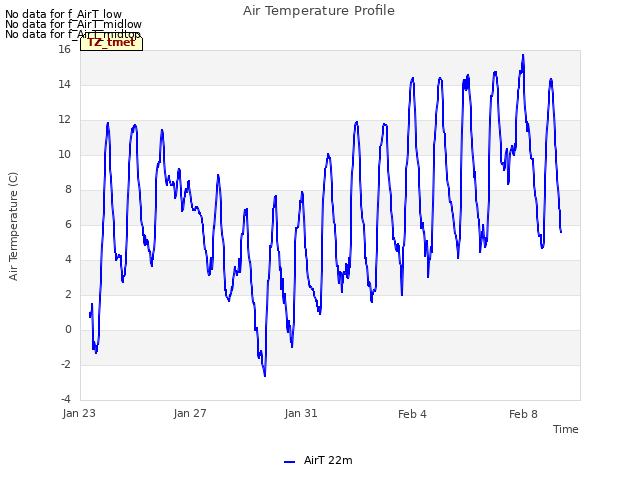

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

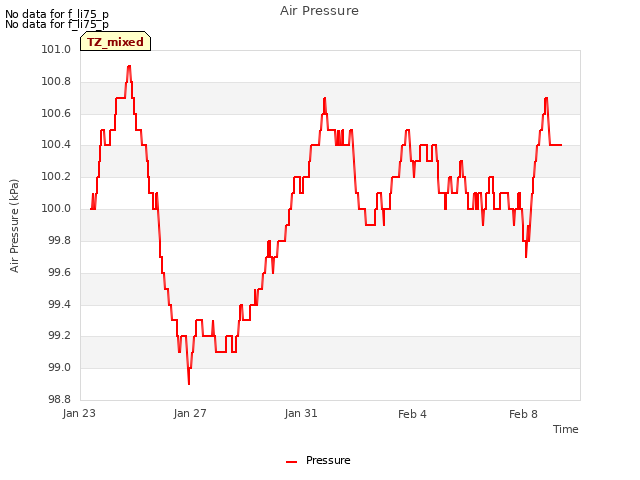

3 TZ_mixed graphs found
No data found for TZ_fflux.

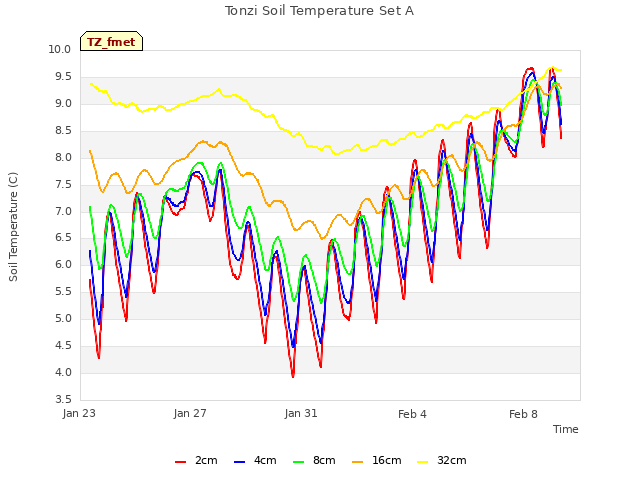

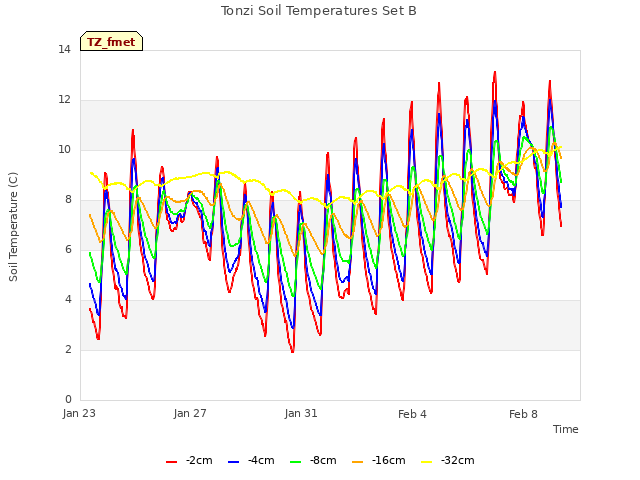

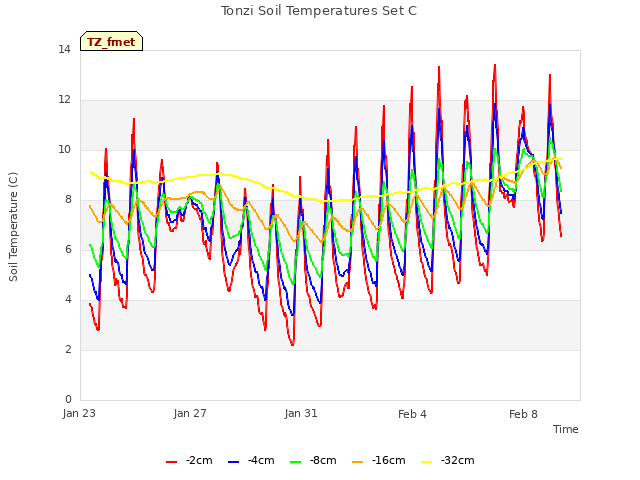

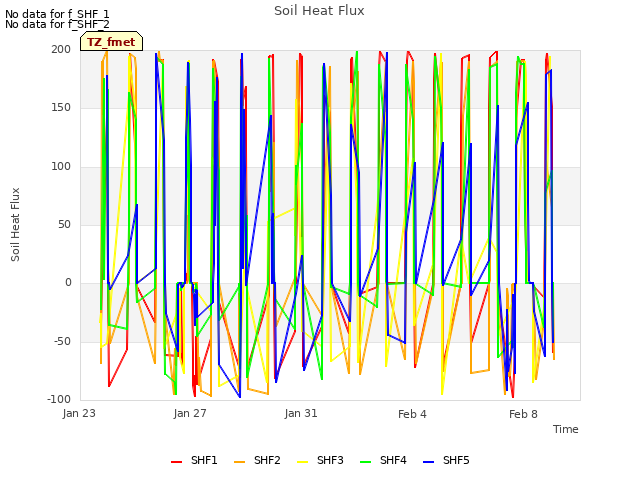

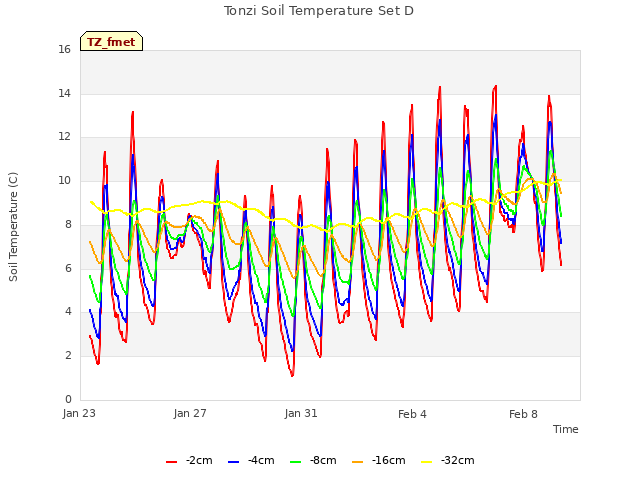

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

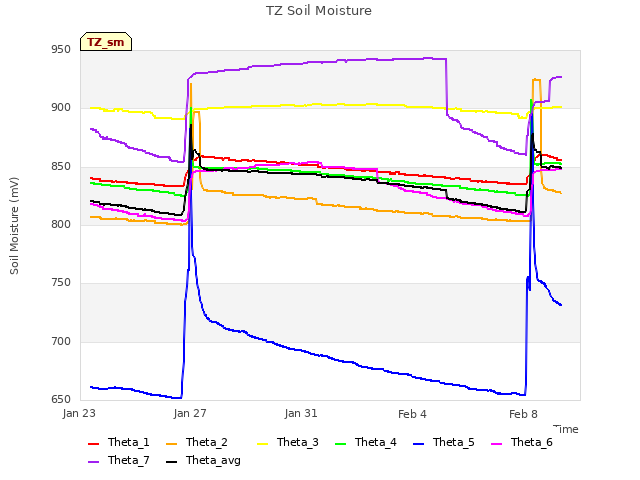

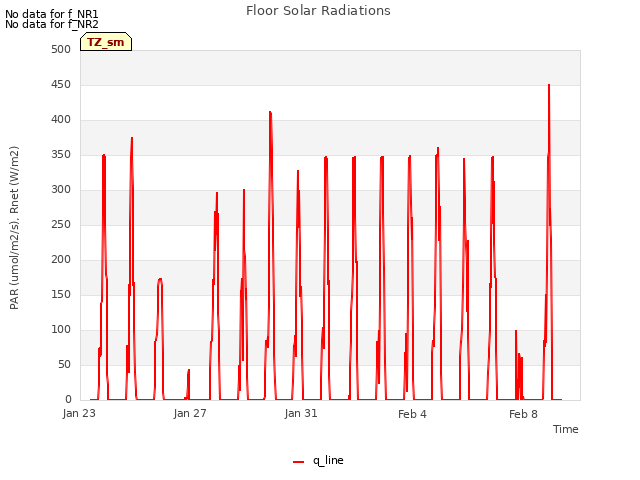

2 TZ_sm graphs found
Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
