Tonzi: 2017-10-25 11:00:00 (DOY 298)
Author: Joe Verfaillie
Others: Siyan

Summary: Added FD chamber, calibrated Vaisala CO2 probes, worked on the tower CO2 profile system.

Tonzi
2017-10-25

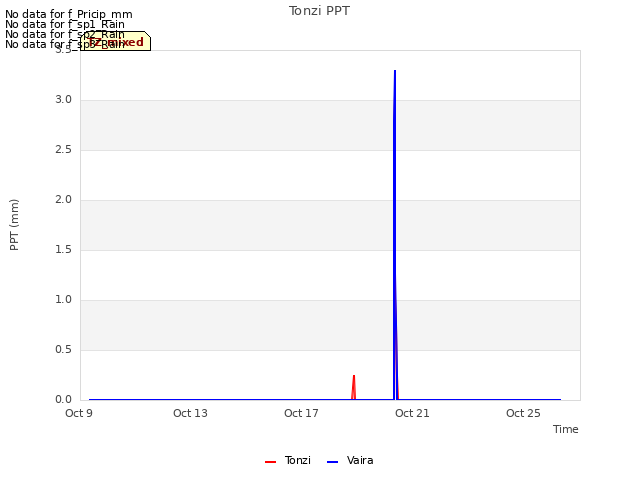

Siyan and I arrived at about 11:00am. It was warm and sunny with little to no wind. There was some rain in the wee hours of the morning of the 20th. The ground is still dry but the dead grass may be a little less brittle with the moisture. The trees still have leaves, but there are dead leaves on the ground under the trees.

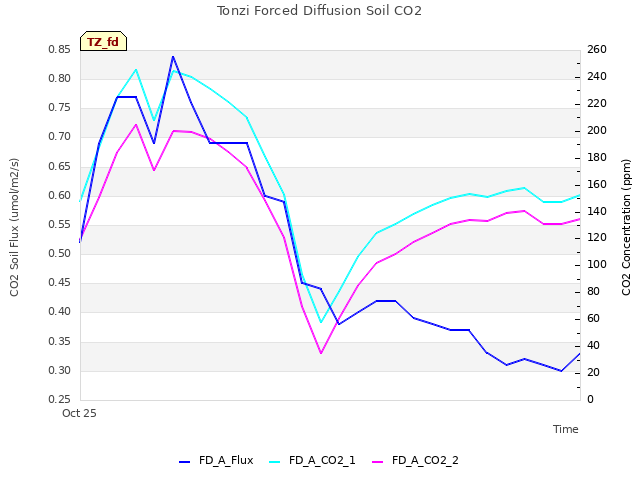

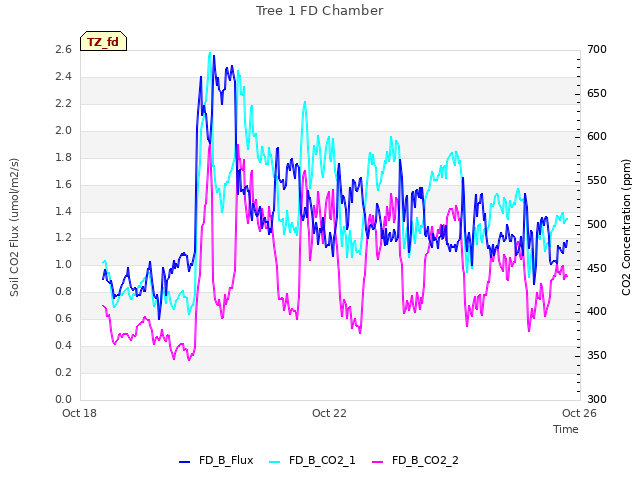

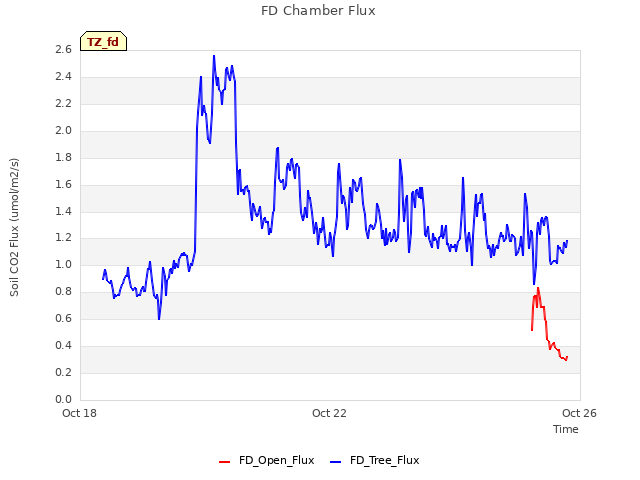

I installed FD chamber sn 20160002 near the Open co2 soil profile. The chamber started up just fine this time â€“ must have been too warm to start last time. I collected data from both chambers but did not clear their memories.

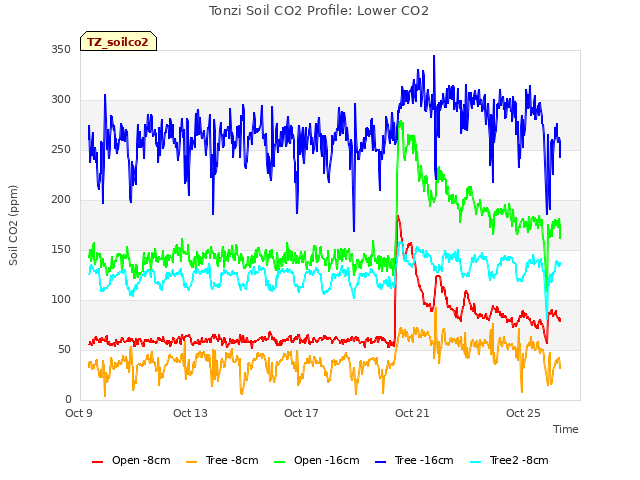

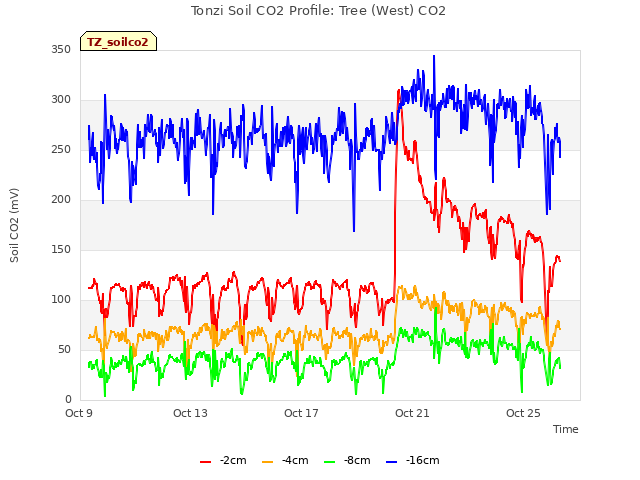

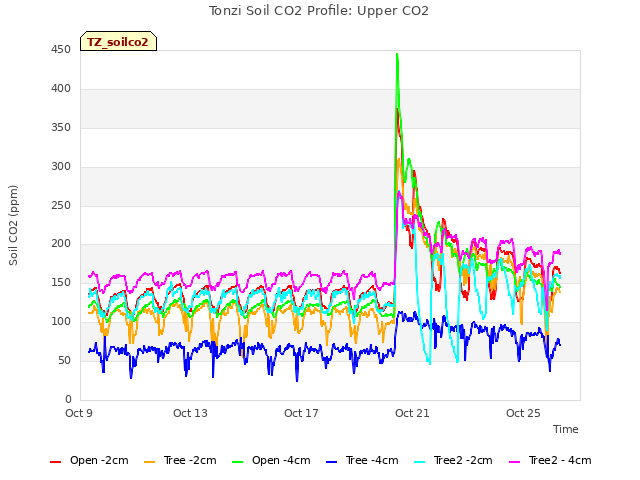

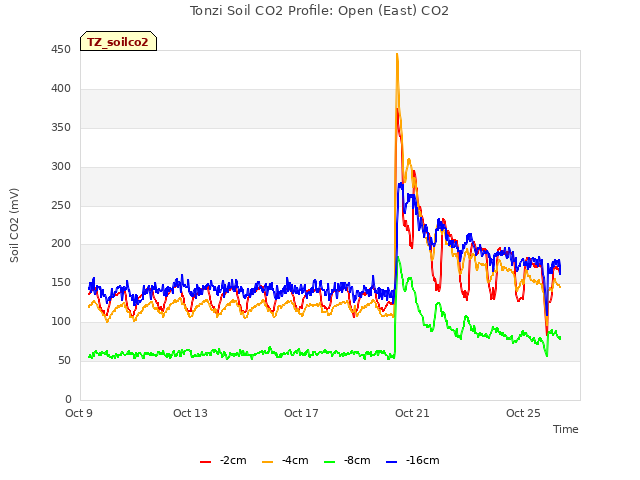

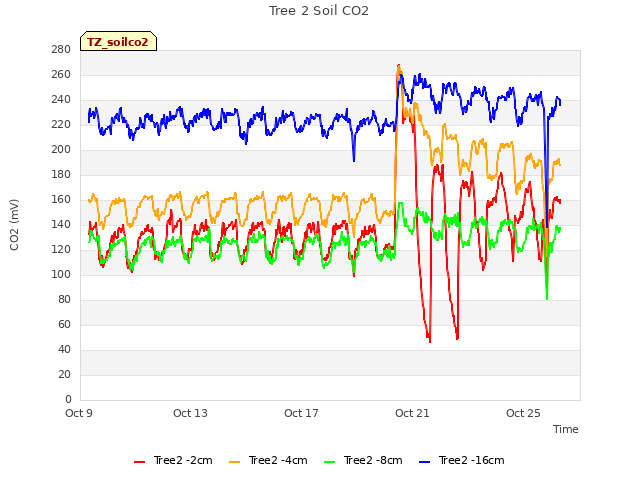

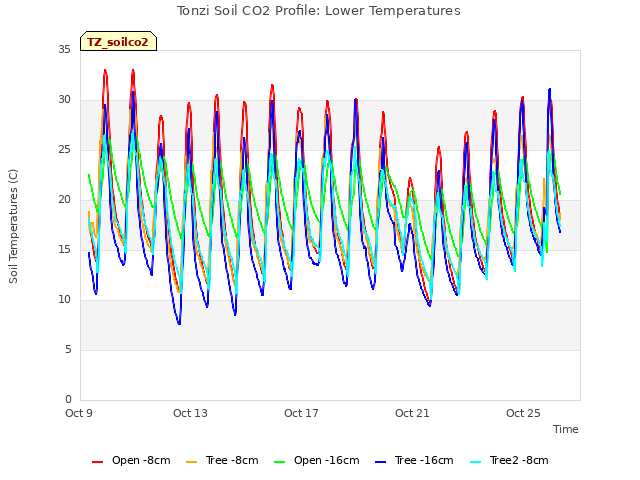

I finally got the Vaisala CO2 calibration to run. Previous attempts were partially foiled by a program bug where the scan time and â€œif timeâ€ for output were the same. The trick was to remove the â€œif timeâ€ statement and to just set the output flag high each scan. I ran the cal system at the Open profile, then the Tree 1 profile and then the Tree 2 profile for about 20min in each location. I need to double check the order in which the probes are connected to the data logger.

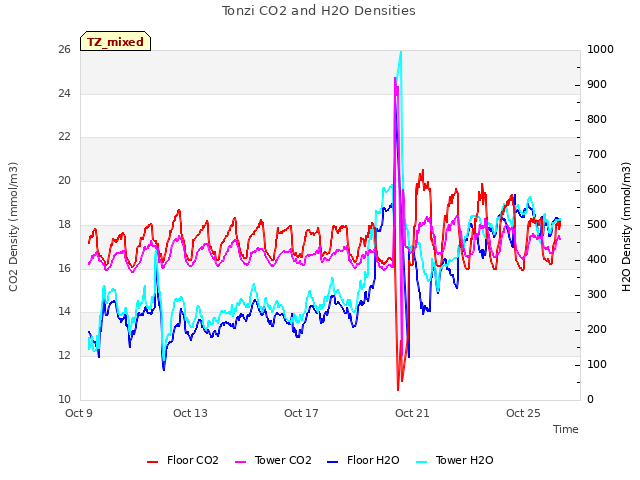

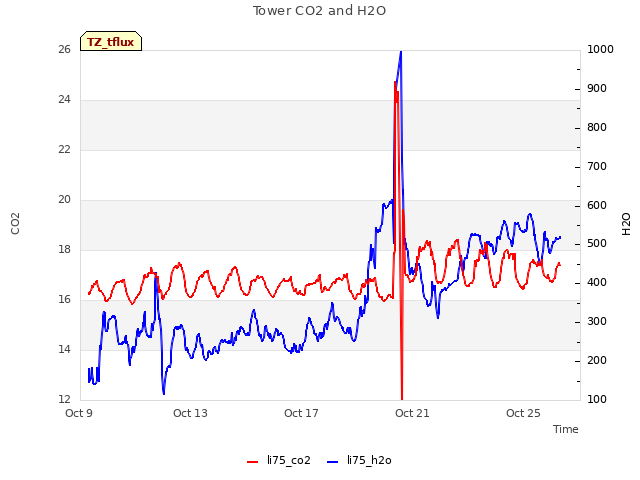

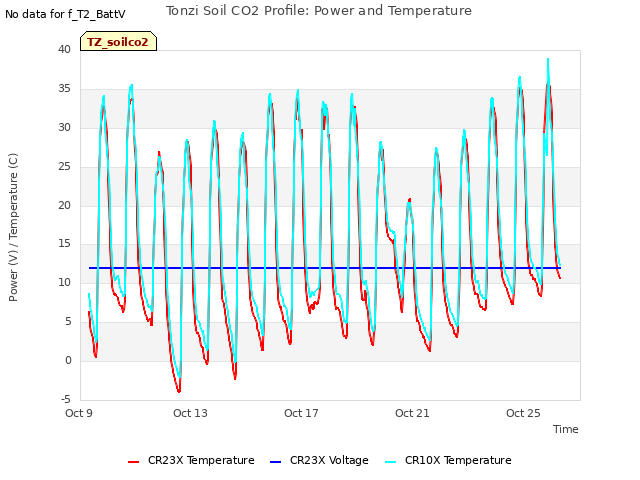

I also worked on the CO2 profile system on the tower. I got the system powered with two DC-DC converters to step down the 24V from the batteries to 12V for the pump, data logger and solenoids. The LI-820 can run directly on the 24V. The pump was okay, the analyzer looked good and the data logger was okay once I reset its clock. But all but one solenoid were stuck. I brought in the solenoid set to see if I can get it unstuck. I left the 10x running but disconnected the LI-820. There is a null modem in the box at the base of the tower but it would be nice to have one at the LI-820 so that we can plug in with a laptop.

Siyan did all the standard fieldwork and data collection.

Field Data

No tank data

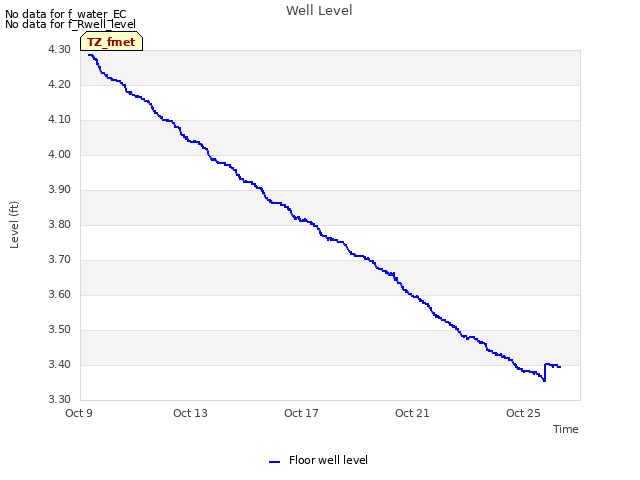

Well Depth

Date	Location	Depth (feet)
2017-10-25	TZ_floor	27
2017-10-25	TZ_road	36.2
2017-10-25	TZ_tower	31.8

mode = both

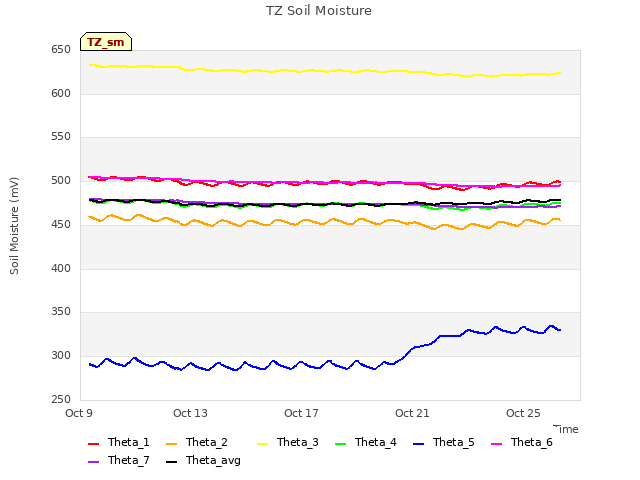

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Tower_4 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Soil_Transect_4_4 [36] => Soil_Transect_3_4 [37] => Soil_Transect_2_4 [38] => Soil_Transect_1_4 [39] => SoilCO2_West_A_4 [40] => SoilCO2_West_B_4 [41] => SoilCO2_West_C_4 [42] => Floor_West_3 [43] => Floor_West_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_3	Floor_West_4	Spacial Count
2017-10-25	298	0	nan	4.5	5.7	6.2	10	6.6	3	3.6	0.9	1.2	5.3	3.3	12.4	10.3	11.2	5.4	6.1	3.9	11.8	4.2	8.7	1.5	11.5	14.5	7.3	13.4	9.2	11.5	15.9	13.4	15.9	15.1	13.1	15.3	2.7	13.3	10.7	18.5	25.4	11.3	14.2	13	22.5
2017-10-25	298	1	nan	3.9	3.4	6.8	11.9	7.2	3	3.6	0.9	1.8	6.8	3.3	12.1	10.6	12.4	2.9	8.4	12.1	11.8	4.2	6.6	1.5	11.2	13.7	7.6	12.9	9.5	12.6	15.6	13.7	16.2	15.4	13.4	15	2.2	13.8	11.3	19.3	25.6	10.7	14.8	11.6	22.8	12.3	17.9
2017-10-25	298	Avg	0-15cm																																													0
2017-10-25	298	Avg	15-30cm																																													0
2017-10-25	298	Avg	30-45cm																																													0
2017-10-25	298	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-10-25	298	0	nan	3.6	2.1	5.3	1.5	7.8	6.6	5.1	4.5	15.1	3.7	7.8	13.7	27.4	14.8	11.3	17.6
2017-10-25	298	1	nan	5	2.1	5.3	1.2	7.8	6.3	5.1	4.5	15.4	3.9	7.8	14	27.4	15	11	17
2017-10-25	298	Avg	0-15cm																	0
2017-10-25	298	Avg	15-30cm																	0
2017-10-25	298	Avg	30-45cm																	0
2017-10-25	298	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2017-10-25	1	10.5
2017-10-25	102	6.4
2017-10-25	2	20.5
2017-10-25	245	5.4
2017-10-25	3	7.4
2017-10-25	4	6.9
2017-10-25	5	2.8
2017-10-25	7	18.7
2017-10-25	72	6.9
2017-10-25	79	8.5
2017-10-25	8	21.9
