Sherman Wetland: 2017-09-08 00:00:00 (DOY 251)
Author: Patty Oikawa
Others: Max Burnham

Summary: Added funnel and filter to top inlet, removed 0.5m inlet from tower

Max and I arrived at 2pm. The top inlet to the LGR needed a proper filter and funnel, so we took the funnel off of the 3m inlet and put it on the top inlet. This 3m inlet was removed and replaced with the 0.5m inlet with has a good filter and funnel on it. I checked the filter paper in all the inlets and they looked clean. The ref gas is now at 650 psi. I decreased sampling from the ref gas as LGR drift appears to be minimal. New program:
Valve 1 tower 6600s
Valve 4 1.5m 300s
Valve 3 3m 300s
repeat 6 x
Valve 2 ref gas 120s

To do next time: Make sure 3m inlet is at 3m (we forgot to measure height before we left), clean out tubing we removed from the tower (it fell in the water as we removed it).

0 photos found

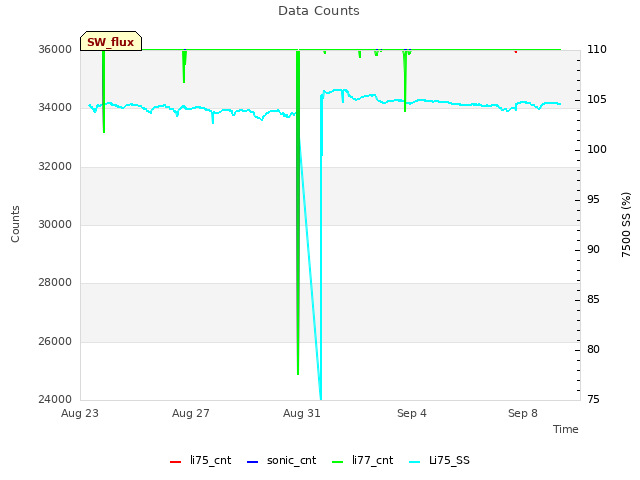

7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

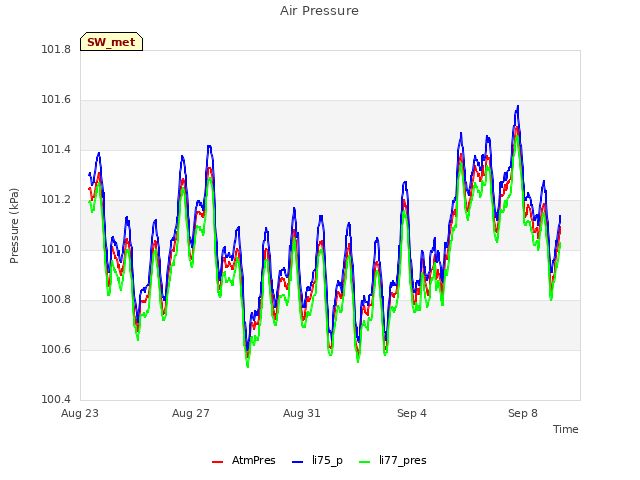

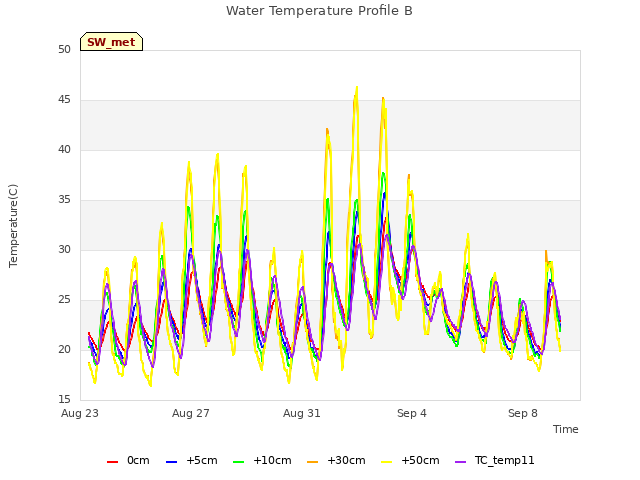

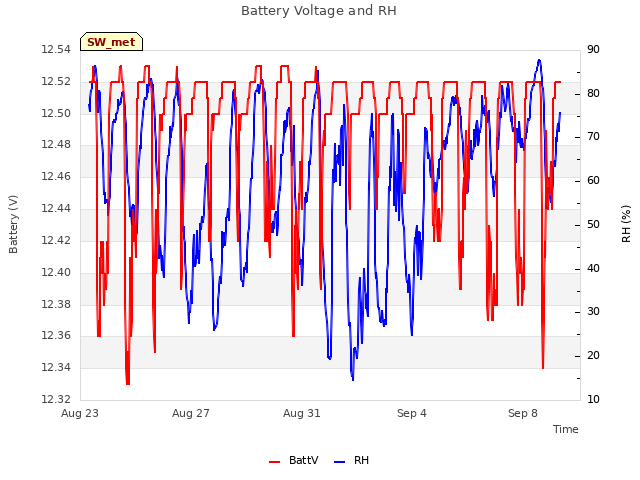

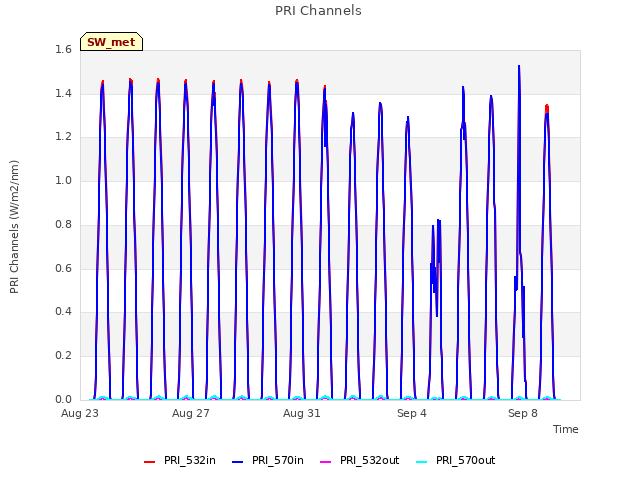

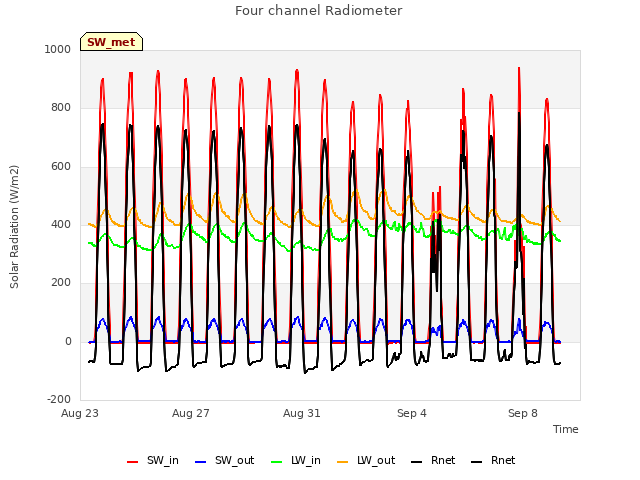

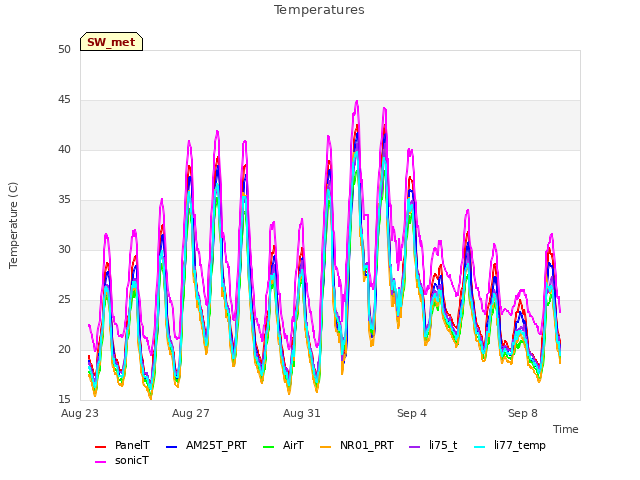

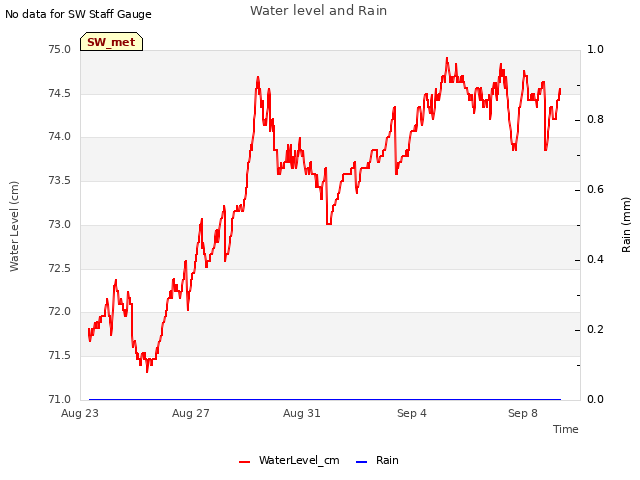

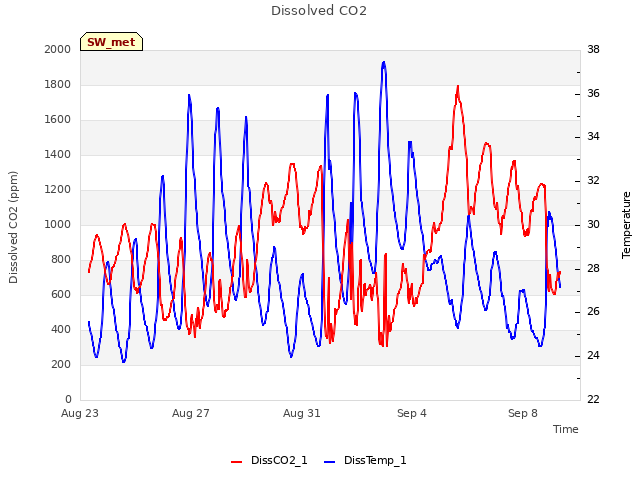

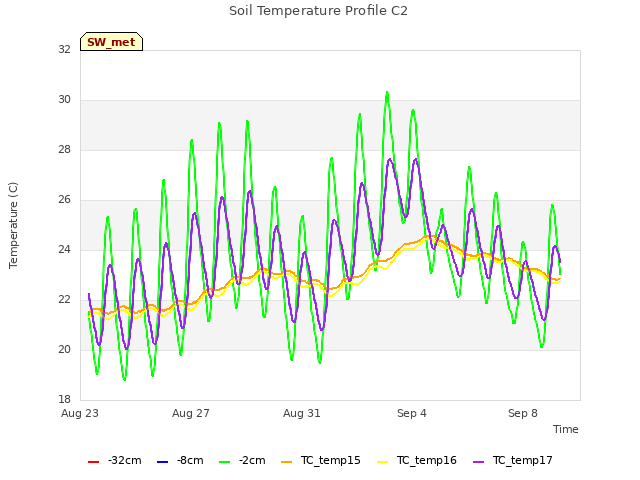

15 SW_met graphs found
