Field Notes

<--2017-02-01 10:30:00 | 2017-03-02 10:30:00-->

Tonzi: 2017-02-15 10:30:00 (DOY 46)
Author: Siyan Ma
Others:

Summary: Standard field work, everything very wet, clip plots, raised well sensor at Tonzi

When: Date: 2/15/2017 , Day: 46 , Watch Time: 10:30 am .

Where: Tonzi/Vaira Ranch

Who: Siyan

Weather: cloudy

Phenology: wet, standing water on the road, full ponds both at Tonzi and Vaira, shallow groundwater depth


Summary

  1. Swapped memory cards of CR1000s at three sites.
  2. Checked and downloaded phenocam images from PC at Tower and Vaira
  3. Downloaded Tonzi soilCO2 profile data manually at the Tower PC. The PC may have problems to connect to the datalogger on the daily basis.
  4. Read dendrometers
  5. Measured soil moisture
  6. Measure groundwater well and download GlobalWater data; shortened the yellow cable of the GlobalWater sensor due to increases in the groundwater level
  7. Collect grass samples for LAI
  8. Spectrum of Vaira grassland
  9. Download IRT data

Vaira_Grass Site

  1. Fence worked.
  2. A lot of ants in the PC enclosure; tried cleaning up but still some.
  3. Downloaded Phenocam images.
  4. Swapped the memory cards of CR1000.
  5. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  6. Checked levels of Radiation sensors, clear up surfaces.YES!
  7. Checked rain gage, make sure not clogged. YES!
  8. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence worked.
  2. swapped the memory cards of CR1000.


  1. download Phenocam images. Yes!
  2. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Checked rain gage, make sure not clogged. YES!
  4. Screens of met dataloggers:

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile: connecting problems between PC and the datalogger on the daily basis?




7. CO2 profile system: not running

8. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence worked.
  2. Swapped the memory cards of CR1000.


  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2017-02-15TZ_floor17.4
2017-02-15TZ_road24.6
2017-02-15TZ_tower19.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2017-02-15 46 0 0-15cm 41.1 37.6 43.4 39.9 37.3 33.2 21.7 29.9 36.7 38.7 35.8 38.7
2017-02-15 46 0 15-30cm 43.6 40.8 39.3 41.7 39.9 38.4 33.8 33.5 28.6 33.8 30.4 34.1
2017-02-15 46 0 30-45cm 39.4 43.5 45.2 42.7 45.5 40.2 34.3 35.7 37.7 36.6 39.4 38
2017-02-15 46 0 45-60cm 40.5 61.2 60 44 41.1 36 48 49.4 39.7 46.3 51.7 48
2017-02-15 46 1 0-15cm 40.5 37 46.1 39.9 42 33.2 21.4 29.7 36.1 38.2 36.1 38.7
2017-02-15 46 1 15-30cm 43.3 42.3 40.2 42 40.5 37.4 33.2 32.9 28.9 34.1 31.6 33.8
2017-02-15 46 1 30-45cm 38.5 41.9 44.6 43 43 39.1 34.6 37.1 37.1 36.8 39.4 39.4
2017-02-15 46 1 45-60cm 39.1 52.6 61.7 45.7 41.7 36 48 48.8 39.1 45.4 52.6 48.6
2017-02-15 46 Avg 0-15cm 40.8 37.3 44.75 39.9 39.65 33.2 21.55 29.8 36.4 38.45 35.95 38.7 36.37 12 24
2017-02-15 46 Avg 15-30cm 43.45 41.55 39.75 41.85 40.2 37.9 33.5 33.2 28.75 33.95 31 33.95 36.59 12 24
2017-02-15 46 Avg 30-45cm 38.95 42.7 44.9 42.85 44.25 39.65 34.45 36.4 37.4 36.7 39.4 38.7 39.7 12 24
2017-02-15 46 Avg 45-60cm 39.8 56.9 60.85 44.85 41.4 36 48 49.1 39.4 45.85 52.15 48.3 46.88 12 24

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2017-02-15 46 0 0-15cm 32.3 25.3 36.1 11.2
2017-02-15 46 0 15-30cm 31 29 21.6 23.7
2017-02-15 46 0 30-45cm 31.8 16.2 25.4 32.1
2017-02-15 46 0 45-60cm 42.8 30.2 23.1 33.7
2017-02-15 46 1 0-15cm 31.7 25.6 35.8 11.8
2017-02-15 46 1 15-30cm 3.6 29.5 21 24.3
2017-02-15 46 1 30-45cm 31.3 16.8 25.4 32.1
2017-02-15 46 1 45-60cm 43.1 31.4 22.8 33.4
2017-02-15 46 Avg 0-15cm 32 25.45 35.95 11.5 26.23 4 8
2017-02-15 46 Avg 15-30cm 17.3 29.25 21.3 24 22.96 4 8
2017-02-15 46 Avg 30-45cm 31.55 16.5 25.4 32.1 26.39 4 8
2017-02-15 46 Avg 45-60cm 42.95 30.8 22.95 33.55 32.56 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2017-02-15125.6
2017-02-1510223.1
2017-02-15219.9
2017-02-1524523.3
2017-02-15323.7
2017-02-15420.
2017-02-15521.1
2017-02-15717.6
2017-02-157223.5
2017-02-157923.2
2017-02-15820.9

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

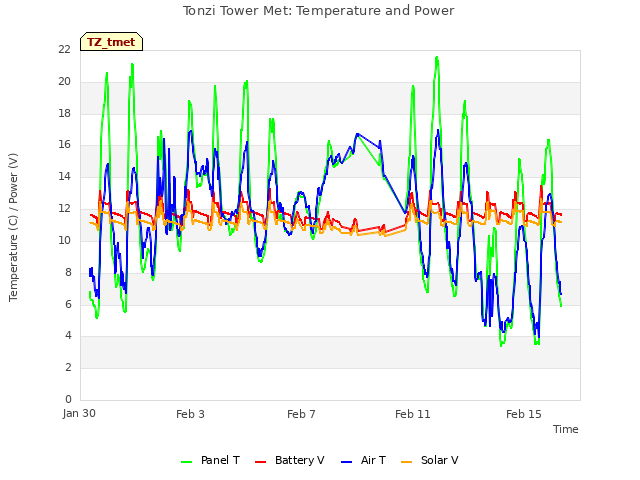

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

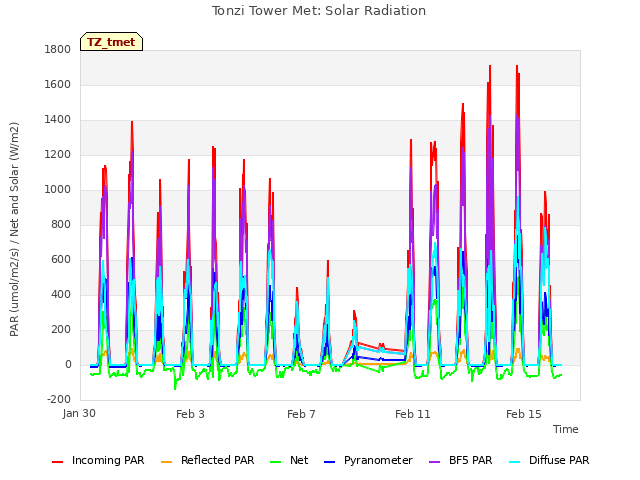

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

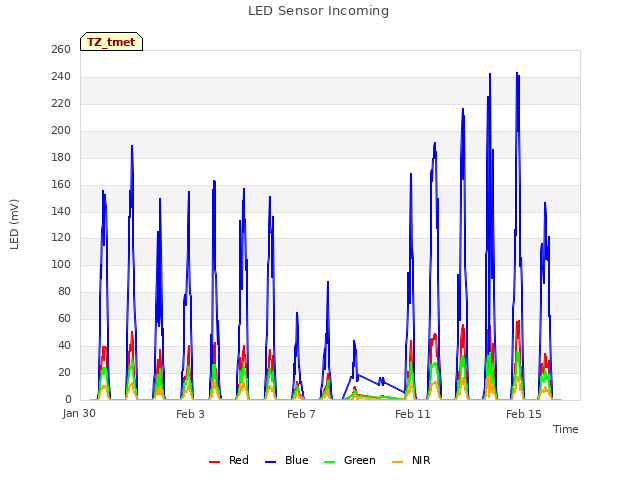

Explore the graph:LED Sensor Incoming in a new window

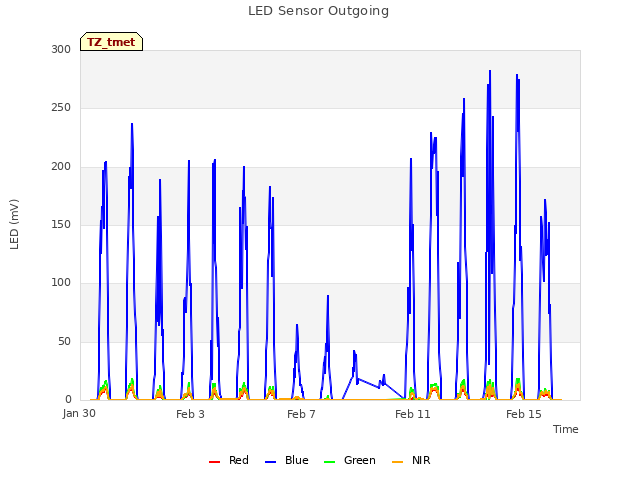

Explore the graph:LED Sensor Outgoing in a new window

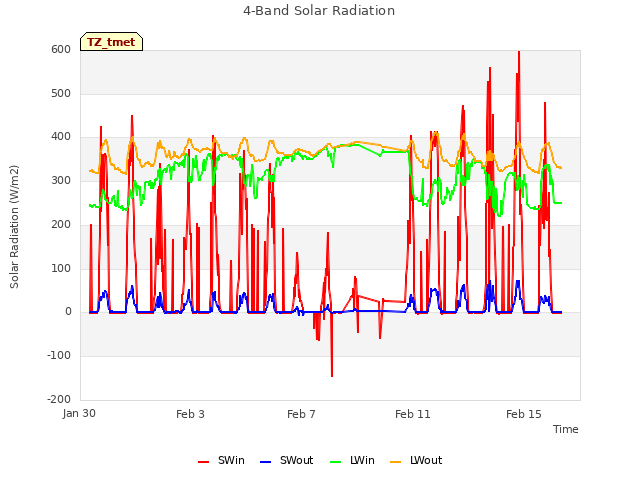

Explore the graph:4-Band Solar Radiation in a new window

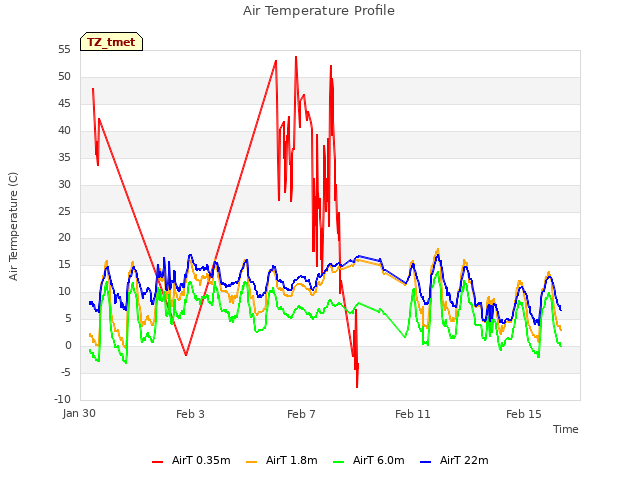

Explore the graph:Air Temperature Profile in a new window

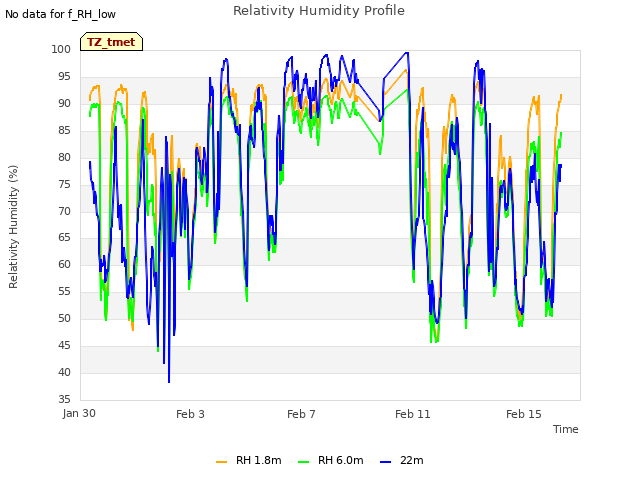

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

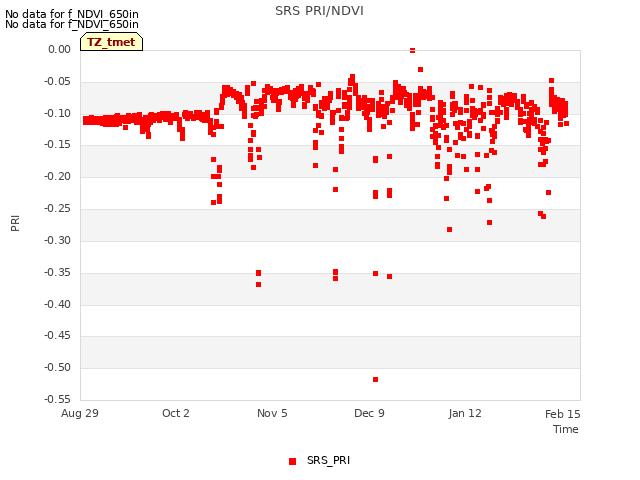

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

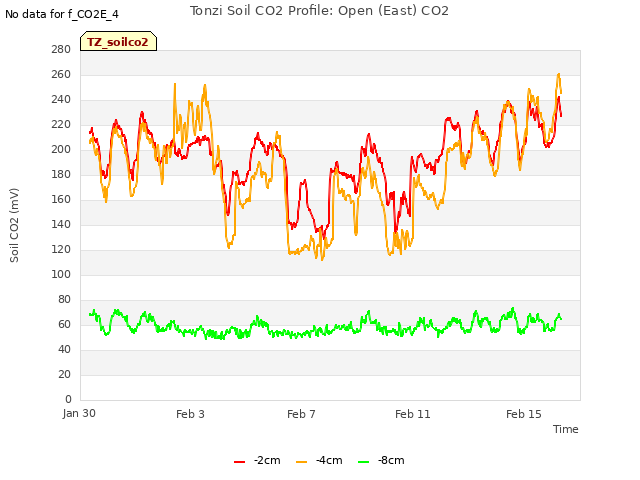

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

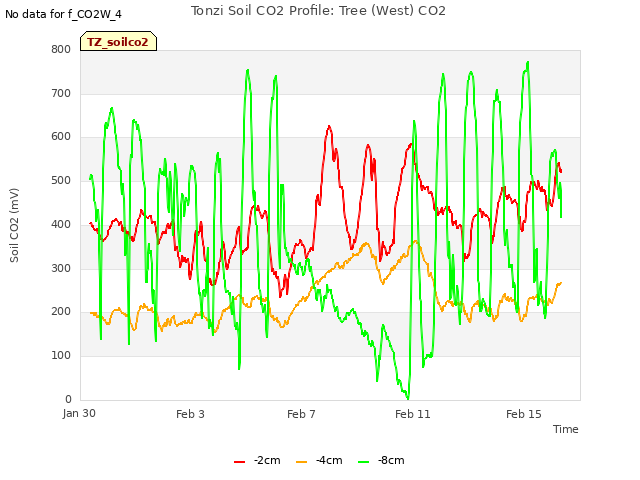

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

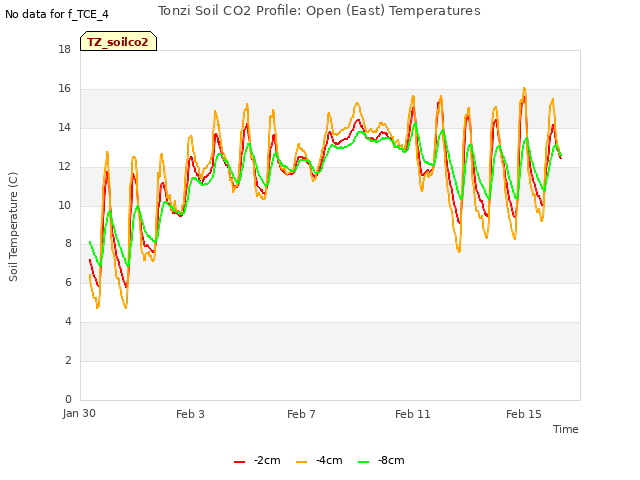

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

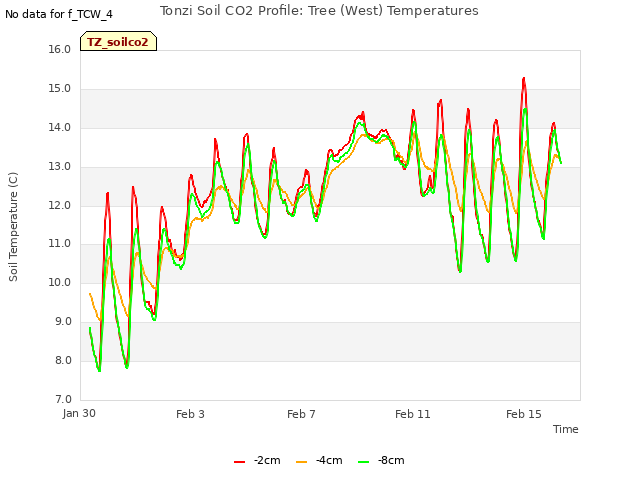

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

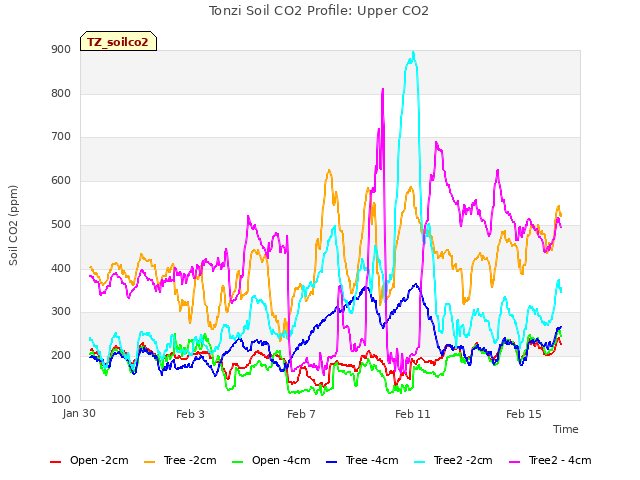

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

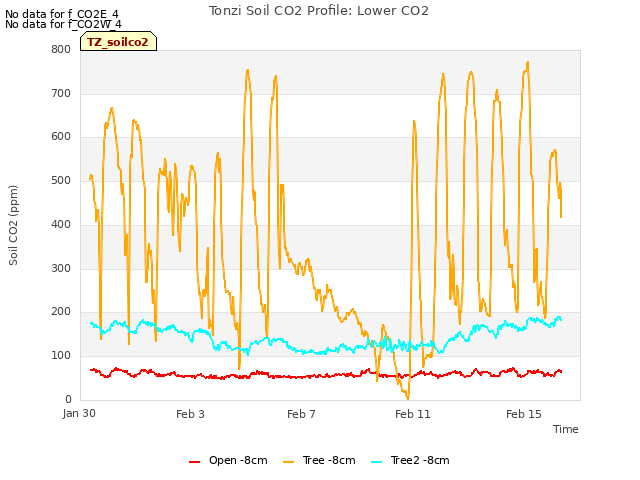

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

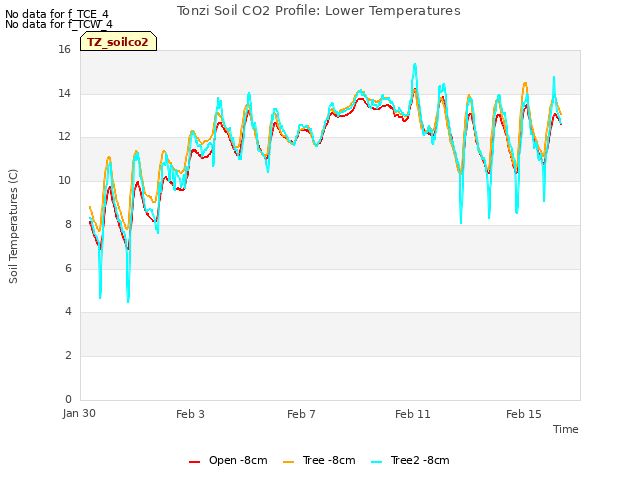

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

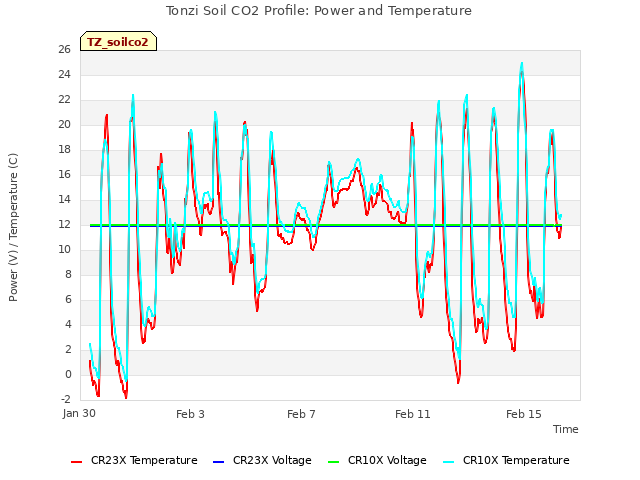

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

Explore the graph:Tree 2 Soil CO2 in a new window

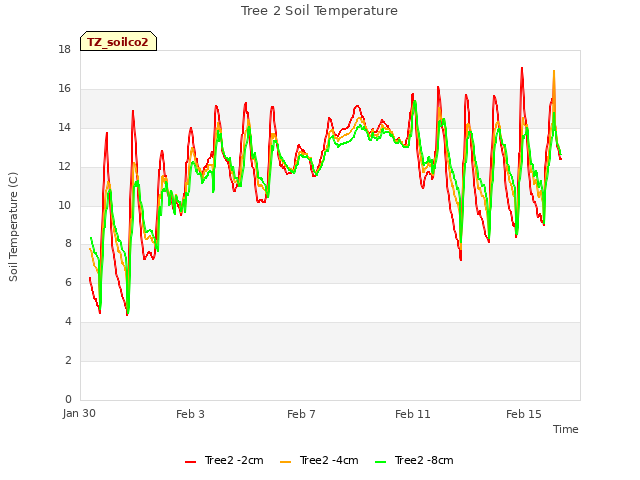

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

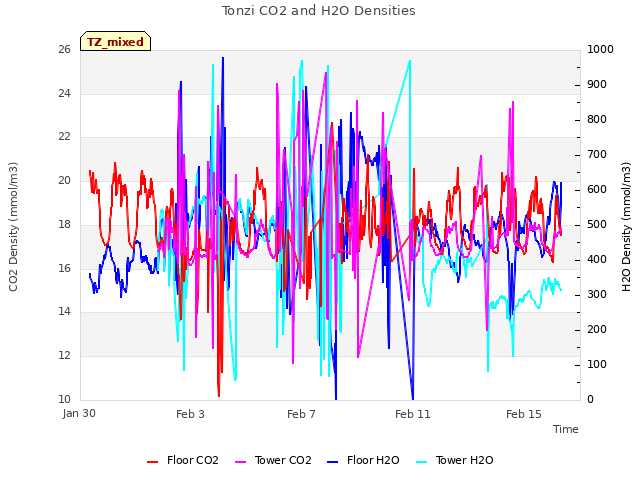

Explore the graph:Tonzi CO2 and H2O Densities in a new window

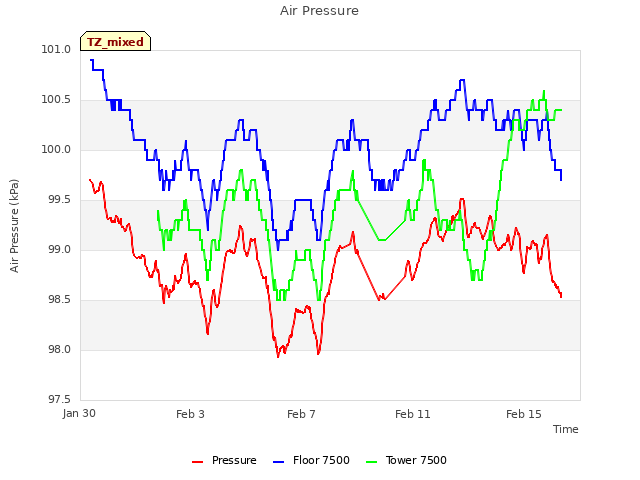

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

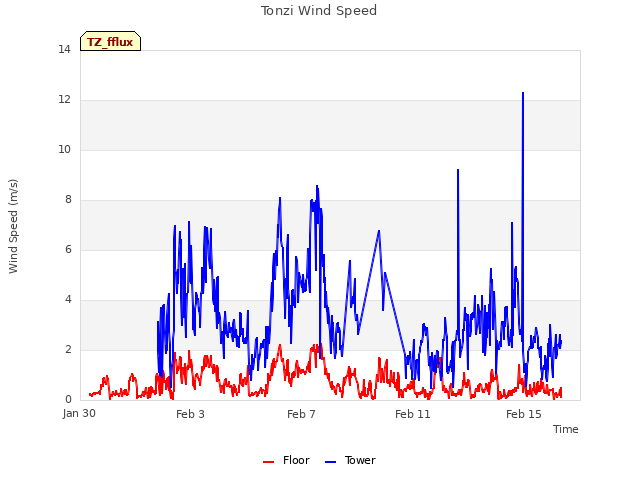

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

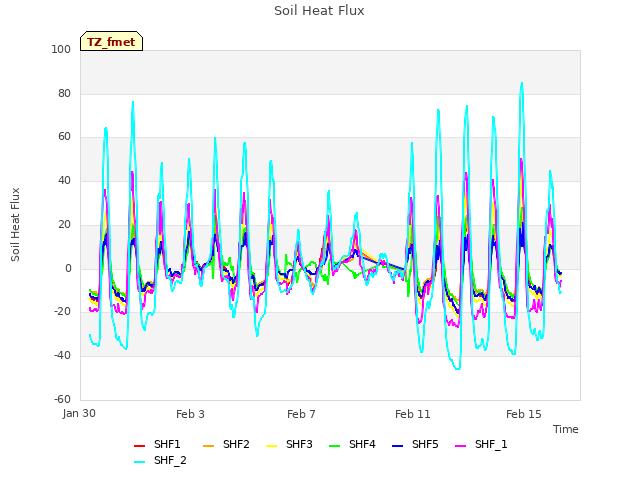

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

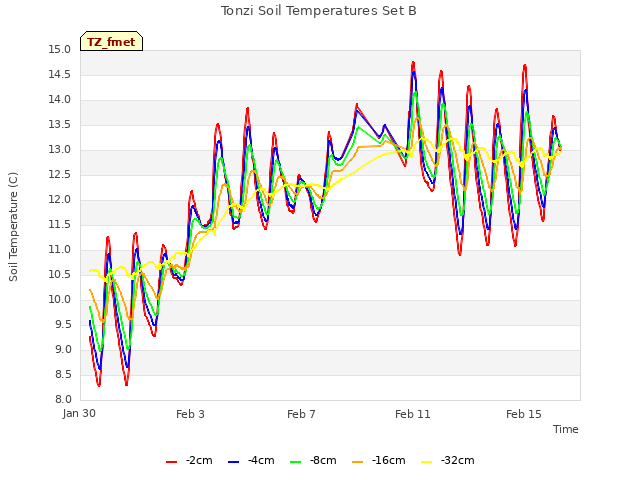

Explore the graph:Tonzi Soil Temperatures Set B in a new window

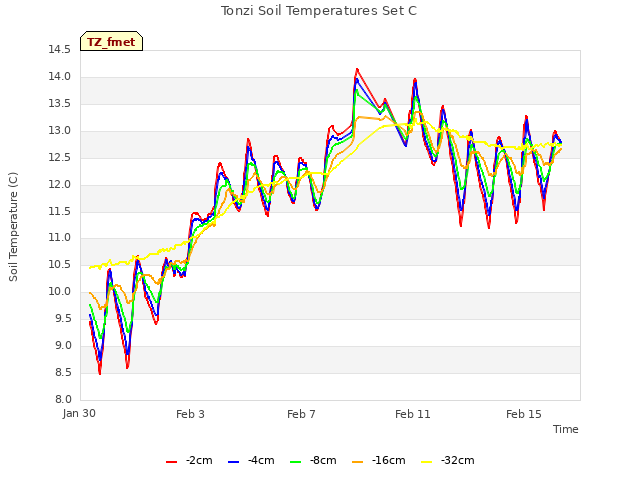

Explore the graph:Tonzi Soil Temperatures Set C in a new window

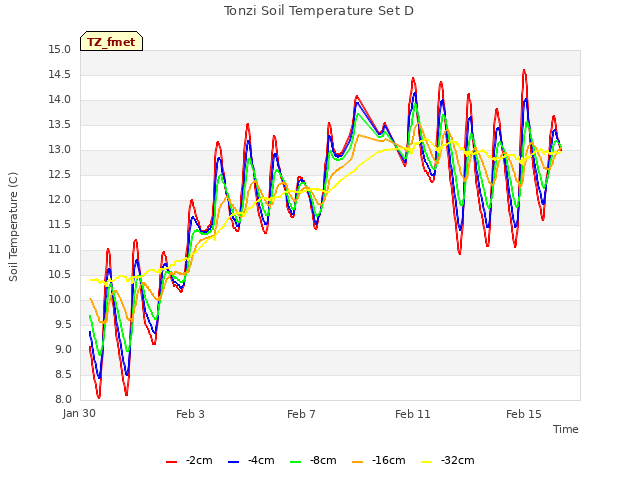

Explore the graph:Tonzi Soil Temperature Set D in a new window

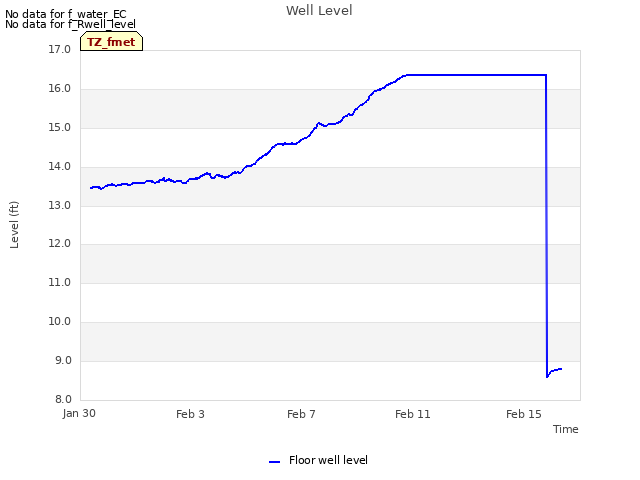

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

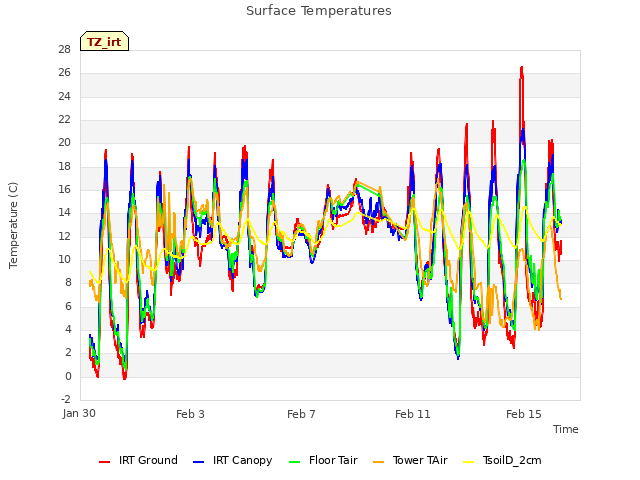

Explore the graph:Surface Temperatures in a new window

No data found for TZ_windprof.
1 TZ_tflux graphs found

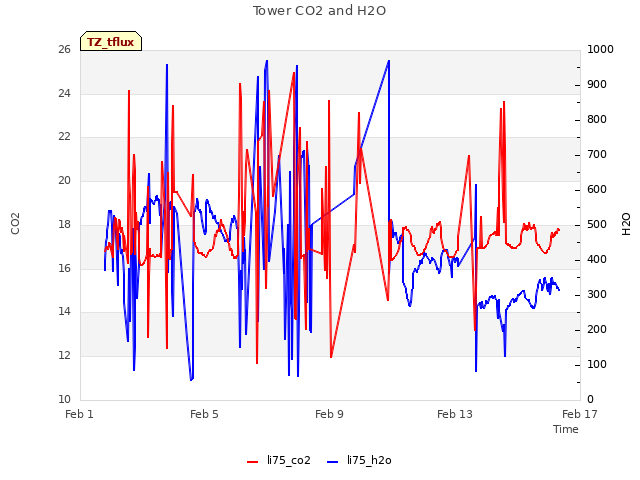

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

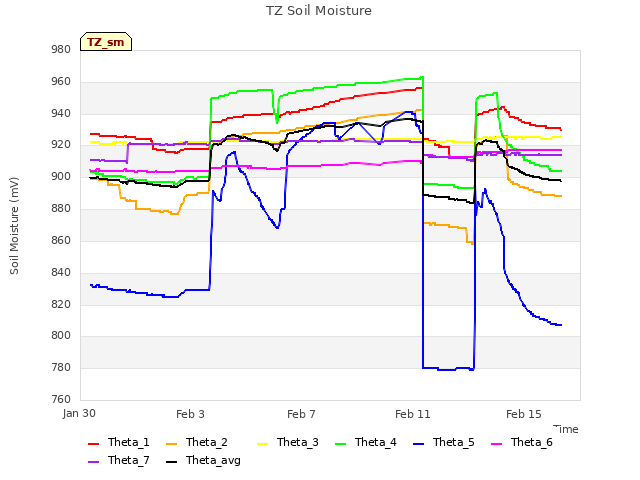

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

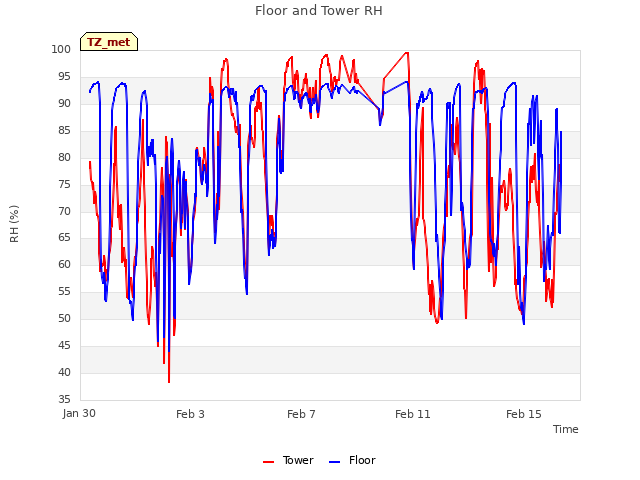

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
