Tonzi: 2007-05-25 11:00:00 (DOY 145)
Author: Siyan Ma
Others: Stefania, Kevin, Todd

Weather: clear
Phenology: Varia grass starts turning to yellow (>80%). Clovers dominated the understory layer of the grassland and showed purple follows. Tonzi grass turned to yellow (>80%).
Summary
1. Help Stefania on oak sugar sampling. Kevin did photosynthesis measurement at the same time. Todd measured midday water potential at the same time. Photosynthesis rate 2 – 11 umol m-2 s-1, ci/ca 0.4 -0.7, gs pretty consistant, water potential -29 - -31 psi(?). Great variations in individual trees. Pine needles had similar photosynthesis rate to oak leaves.
2. collect grass samples at Tonzi and Vaira, almost the last samples of the season.
3. did not download data and check the systems. Ted was here yesterday.

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2007-05-25TZ_floor27.44
2007-05-25TZ_road36.98
2007-05-25TZ_tower32.34

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

Water Potential - mode: raw

TimeSpeciesTreereadings (bar)
2007-05-25 15:32:00 OAK 2 -17.5 -18
2007-05-25 15:42:00 OAK 3 -28.5
2007-05-25 16:00:00 OAK 102 -23.5 -26 -26 -27
2007-05-25 16:04:00 OAK 255 -27 -25.5 -27

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

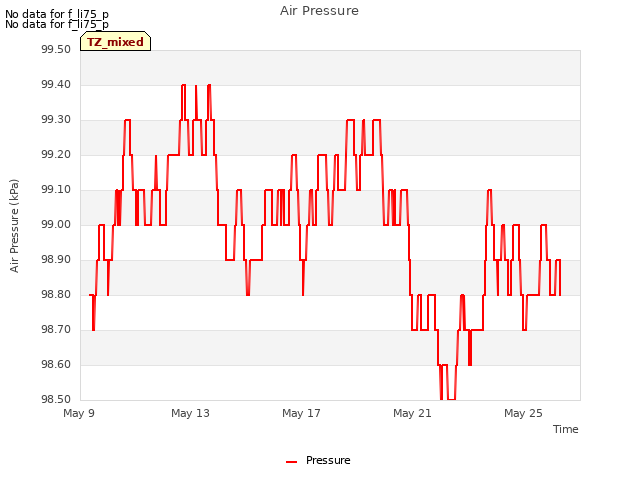

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

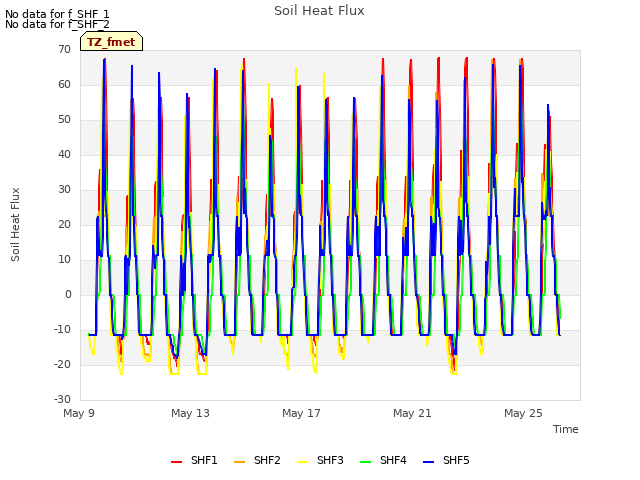

Explore the graph:Soil Heat Flux in a new window

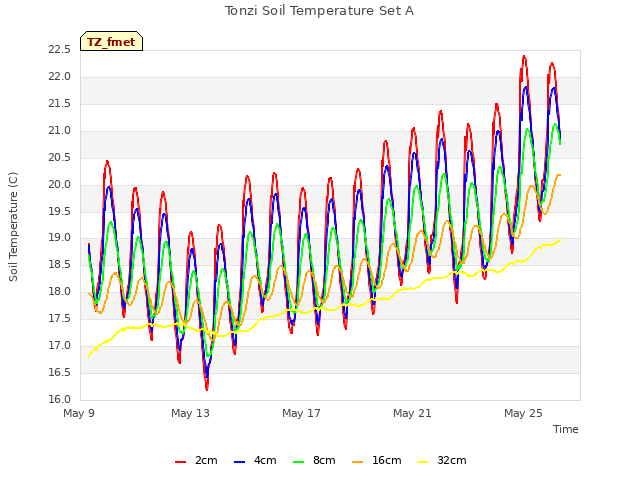

Explore the graph:Tonzi Soil Temperature Set A in a new window

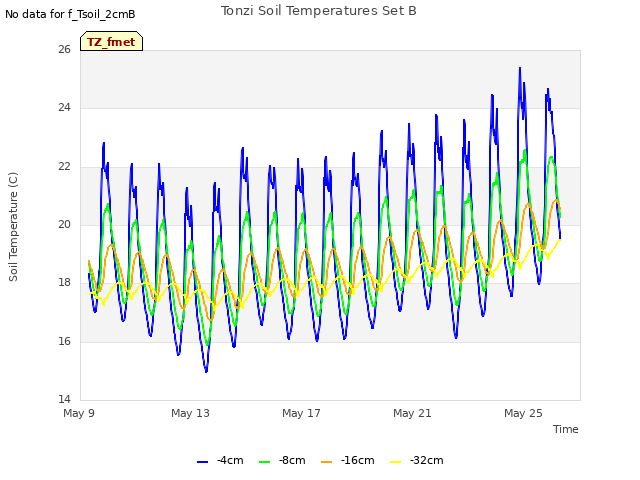

Explore the graph:Tonzi Soil Temperatures Set B in a new window

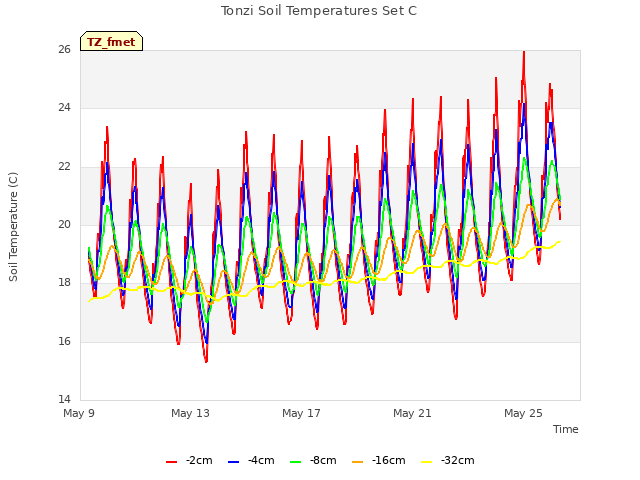

Explore the graph:Tonzi Soil Temperatures Set C in a new window

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
3 TZ_co2prof graphs found

Explore the graph:Tower CO2 Profile Concentrations in a new window

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

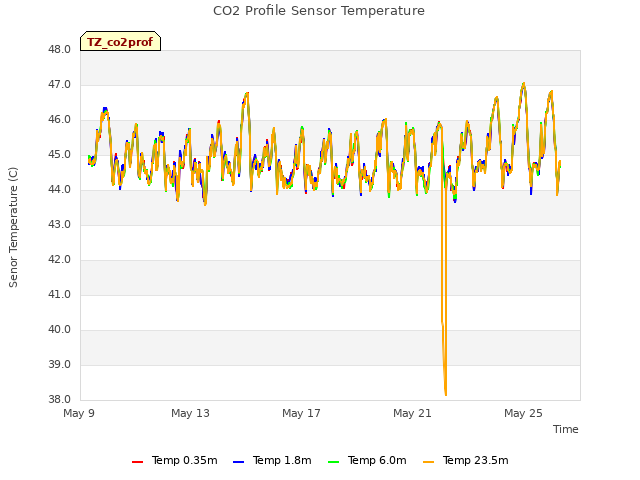

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
1 TZ_windprof graphs found

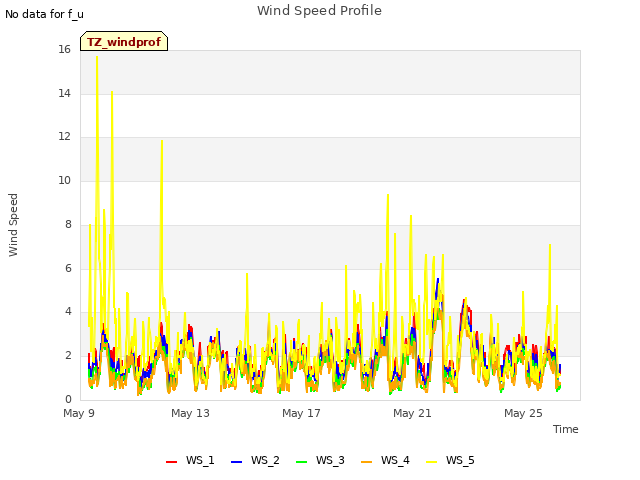

Explore the graph:Wind Speed Profile in a new window

No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

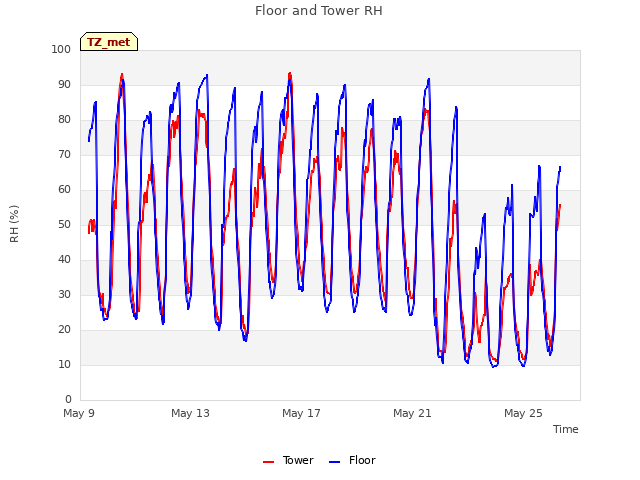

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
