Field Notes

<--2006-12-19 00:00:00 | 2007-03-06 12:17:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2007-01-10 10:20:00 (DOY 10)
Author: Siyan Ma
Others: Dennis, Youngryel, Becca,


Phenology: more grass germinated in Vaira, haven’t grown very much since last visit. Grasses under the trees were greener and bigger than those in the open area. During the nighttime, more long-wave radiations were reflected by tree canopies back to the ground. Minimum temperature was higher under the tree than in the open area.
Summary
  1. Power on Floor site is OK. No data lost. Hoarry!!!
  2. Soil CO2 profile worked well.
  3. Check and download data at Tower and Varia. EC systems worked well.
  4. Ta&Rh sensor was hung out of shield, no aspirator, no protection from radiation!!! Dennis fixed it. Old data will have bias.
  5. DDB cleaned Pyranometer, NDVI surfaces – looks like dead decomposing spider on ~10% of surface.
  6. dendrometer, soil moisture, and spectrume were measured. Dendrometers need reset because some have been out of range!!!

Vaira_Grass Site
  1. Fence and gate power: >12 v.
  2. Panel and Batteries: 13.3 v; 8.7 amps; 2.7 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Time

10:21:34

Path/File name

D:\Data\V07_010 .flx
D:\Data\VR0701010000.raw


mean

std


mean

std

w

-0.22

0.462

Ts

15.15

0.297

u

-2.11

1.013

H2O

1.85

0.033

v

-0.69

0.799

CO2

2.19

.013




TC

0.922

0.023
  1. downloading data OK
  2. check the fans of air temp. and relative humidity sensors at Vaira. Ta&Rh sensor was hung out of shield, no aspirator, no protection from radiation!!! Dennis fixed it. Old data will have bias.
  3. DDB cleaned Pyranometer, NDVI surfaces – looks like dead decomposing spider on ~10% of surface.
  4. Check MD-9 system connections OK
  5. Closed gate and set up fence. Went back and turn it on.
  6. Youngryel took spectrum measurement on the normal points and under the tree. Grasses looked greener and bigger under the tree.

Field Data

No tank data

No VR Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

Explore the graph:Temperatures in a new window

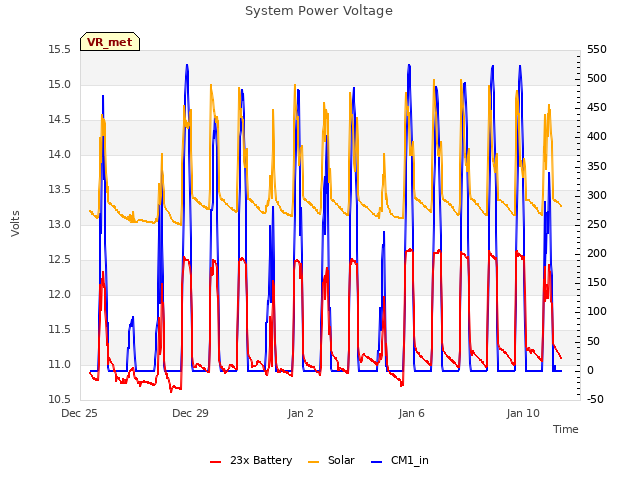

Explore the graph:System Power Voltage in a new window

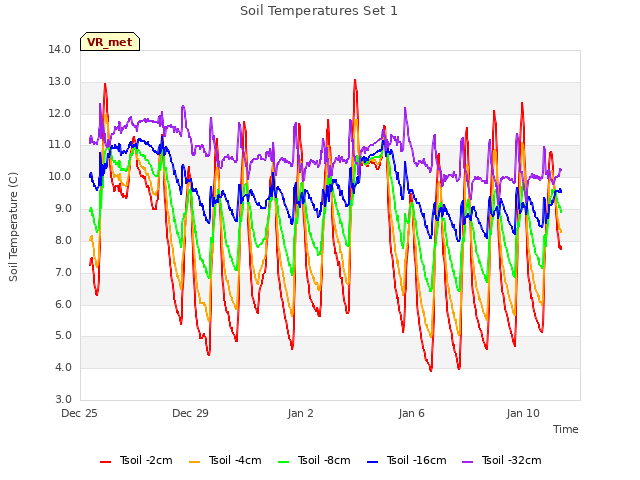

Explore the graph:Soil Temperatures Set 1 in a new window

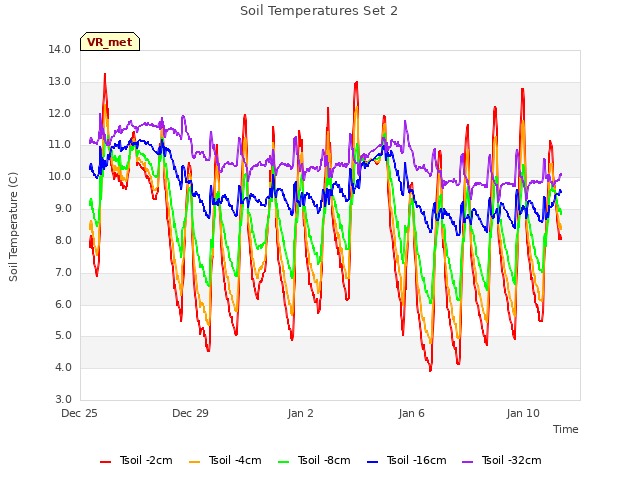

Explore the graph:Soil Temperatures Set 2 in a new window

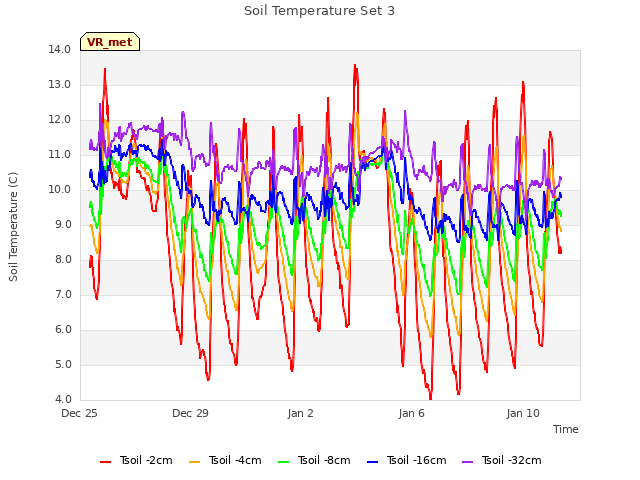

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

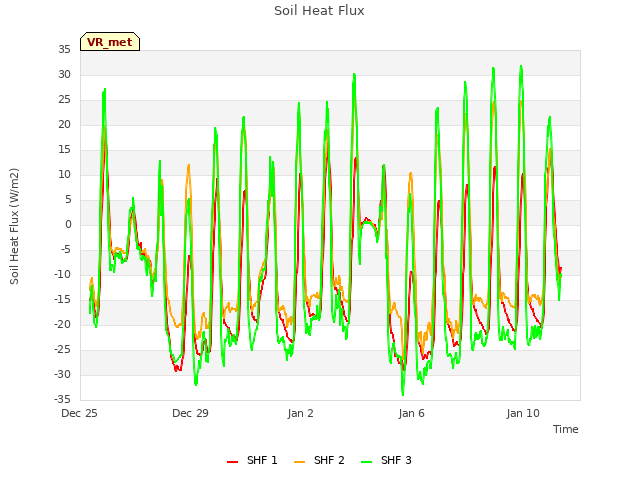

Explore the graph:Soil Heat Flux in a new window

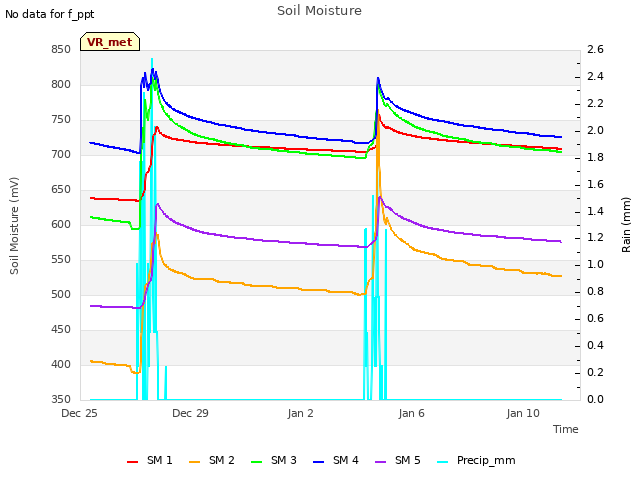

Explore the graph:Soil Moisture in a new window

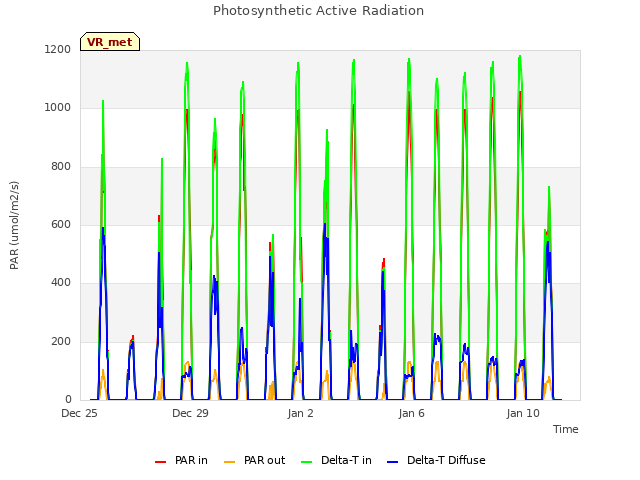

Explore the graph:Photosynthetic Active Radiation in a new window

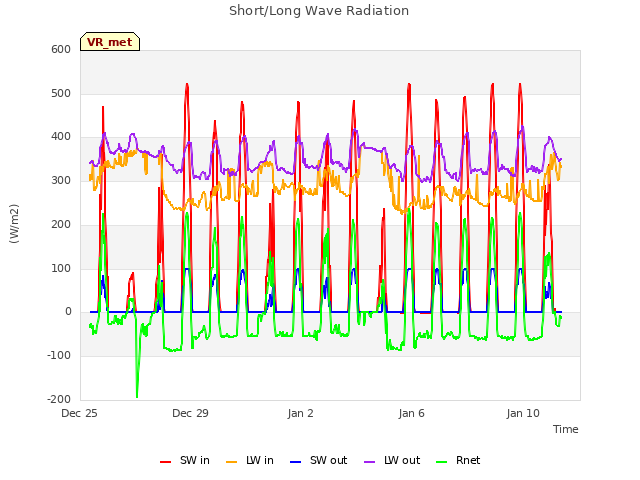

Explore the graph:Short/Long Wave Radiation in a new window

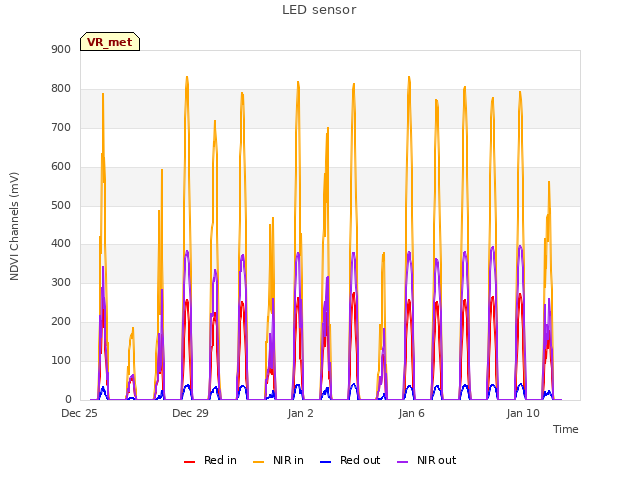

Explore the graph:LED sensor in a new window

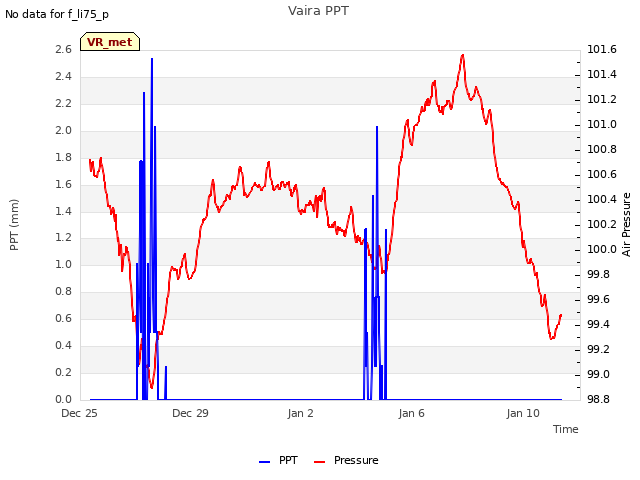

Explore the graph:Vaira PPT in a new window

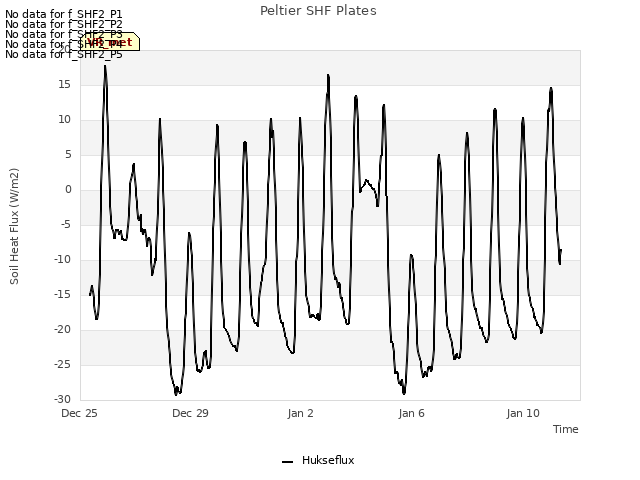

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
