Field Notes
<--2001-06-01 18:01:00 | 2001-06-06 16:30:00-->Phenocam link: Searching...
Tonzi: 2001-06-02 10:00:00 (DOY 153)
Author: LiuKang Xu
Others:
Summary: Computer on floor system was dead; PAR sensors still had issues.
| Who: LX When: June 2, 2001 Where: Tonzi At Tonzi Ranch: 10:00 arrived hot and litter overcast. The computer of the floor system was dead. The plug for the power cable was loose. Restart the computer and sonic program. At the top of the tower, connected shield wires of all the PAR sensors to the ground of the CR23X data logger. The voltage output from the two upward PAR sensors was around 2.8 -3 mv which is only about 600 umol/m2s of PAR. so the PAR sensors still have some problem. replaced MD9 and ribbon cable at the top of the tower, still no communication with the computer of the floor system. at 10:40 opened Nancy's datalogger box, the one near the floor flux system, show the visiting professor the sap flow measurement and data logging system. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

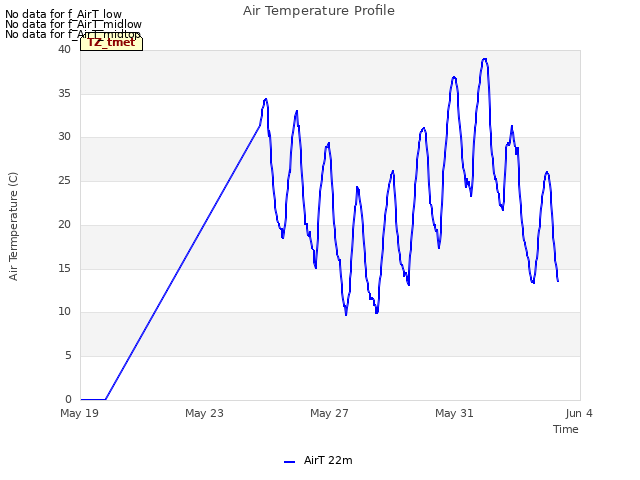

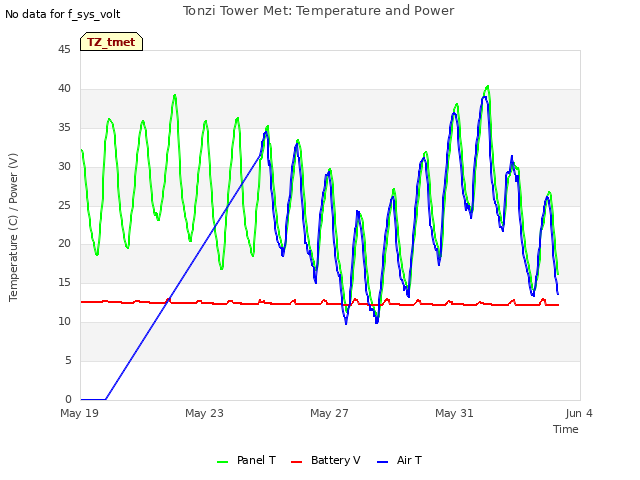

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

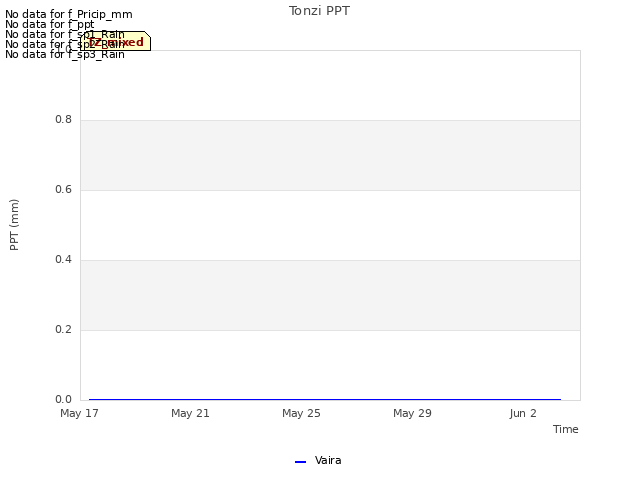

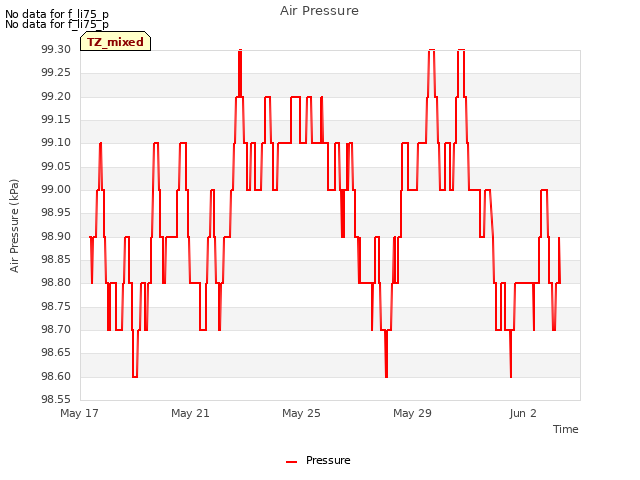

3 TZ_mixed graphs found
No data found for TZ_fflux.

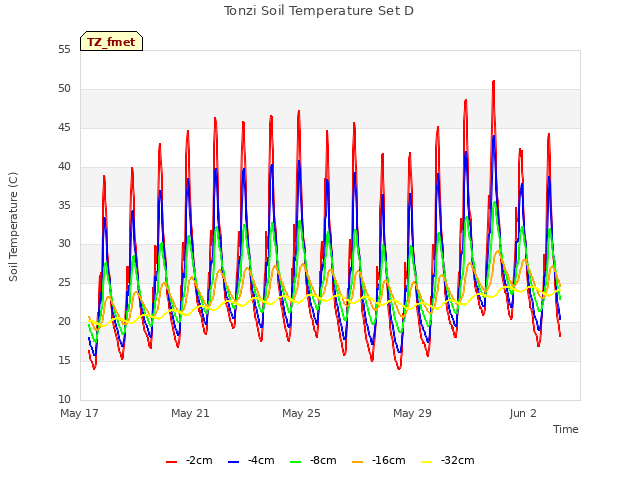

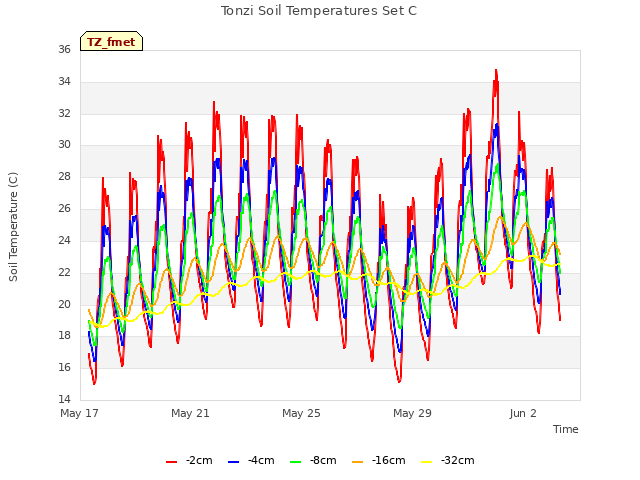

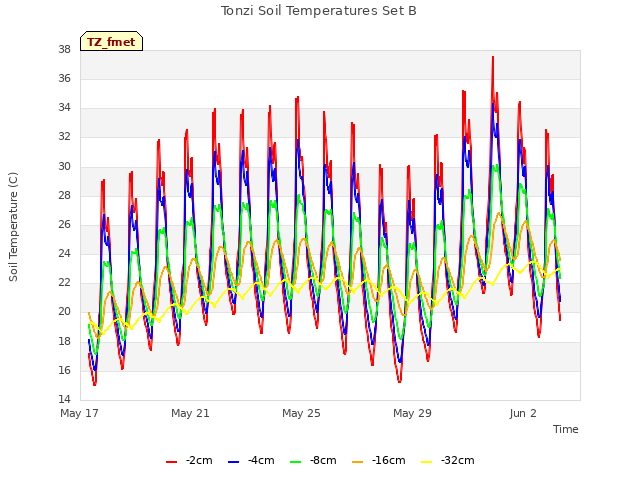

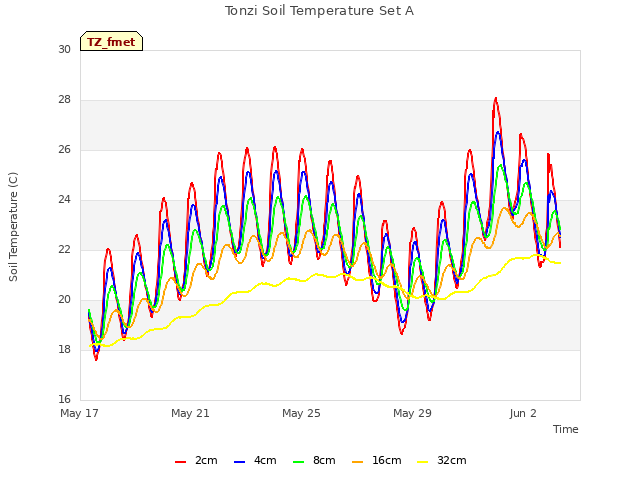

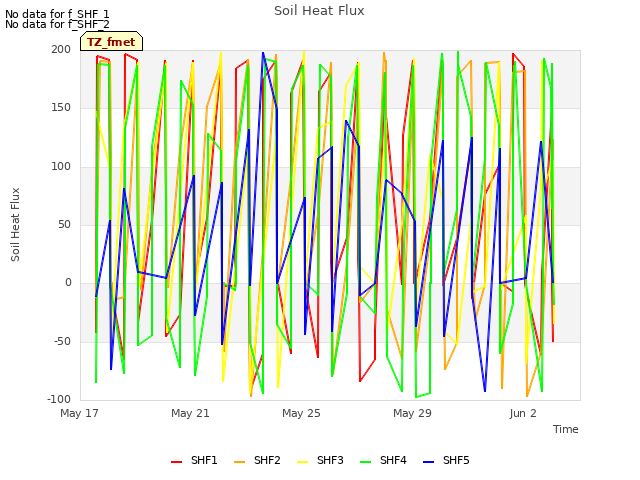

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

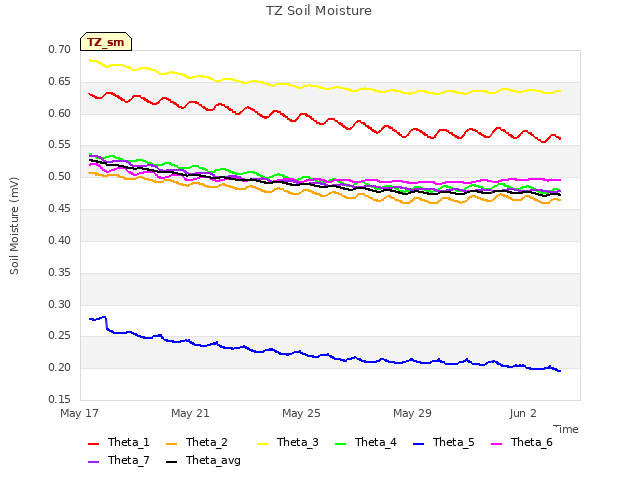

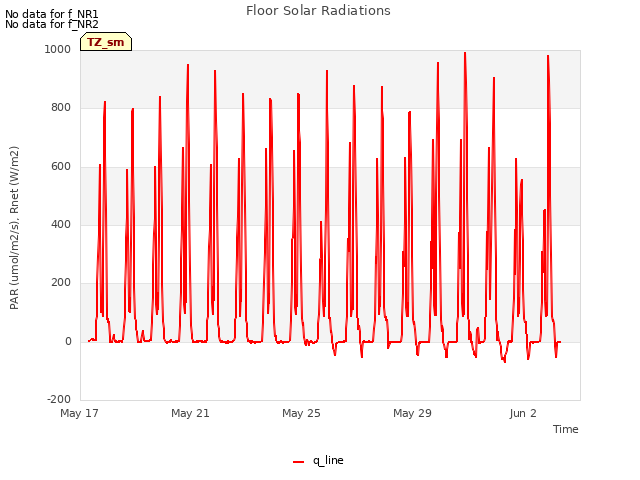

2 TZ_sm graphs found
Can't check TZ_met

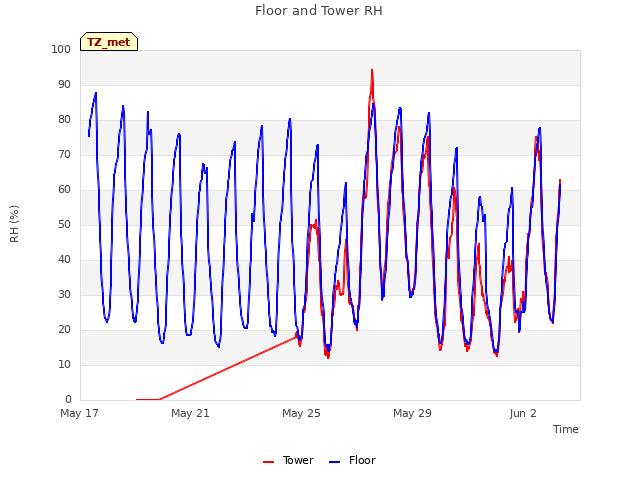

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
