Phenocam link: Searching...

Tonzi: 2010-09-02 05:27:00 (DOY 245)
Author: Siyan Ma
Others: Joe

Summary: Predawn water potential, standard field work, collected left and needle samples.


When: Date: 9/2/2010 , Day: 245 , Watch Time: 5:27am .
Where: Tonzi/Vaira Ranch
Who: Joe, Siyan
Weather: clear, hot
Phenology: yellow grass, green oak leaf, see acorns at Tree #92
Summary
  1. measured predawn water potential: oak=-32 bar; pine=-16 bar.
  2. checked and downloaded data at Tower, Floor, and Vaira
  3. took back Rain Gage at Vaira for checking (Joe)
  4. calibrated Li-800 in the field
  5. collected leaf and needle samples
  6. read dendrometers
  7. measured soil moisture
  8. took spectrometer measure at Vaira
  9. groundwater well

Date
DOY
Location
Depth (no the black thing) (feet)

9/2/2010
245
Floor
26.03



Tower
30.60



roadside
35.35

Vaira_Grass Site
  1. Fence and gate power: ok v.
  2. Panel and Batteries: ok v; ok amps; ok amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Vaira Gill sonic plots screen before downloading data
  1. downloaded data YES!
  2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
  3. Check MD-9 system connections YES!
  4. Check CR23X with two multiplexers
Screen shot of Vaira data logger table
  1. Check levels of Radiation sensors, clear up surfaces. YES!
  2. took back the rain gage for checking in the lab (Joe).
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: ok v.
  2. Panel and Batteries: ok v; ok amps; ok amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Tower Gill sonic plots screen before downloading data
  1. downloading data Yes!
  2. check the fans of air temp. and relative humidity sensors on the tower and the floor. Yes!
  3. Joe moved the rain gage to a new place to reduce influence of bars.
  4. Check calibration cylinders;
CO2 2100 psig; flow 20 psi. 384.08 ppm
N2 1550 psig; flow 20 psi.

Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt

Is the pump running‌ Yes!

Readings of each channel:

Screen shot of Li-800 calibration pre-cal

Screen shot of Li-800 calibration span pre-cal

Zero
Screen shot of Li-800 calibration zero pre-cal
span
Screen shot of Li-800 calibration span post-cal

  1. close gate and set up fence. Yes!

Toniz_Floor Site
  1. Fence and gate power: ok v.
  2. Panel and Batteries: ok v; ok amps; ok amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)


Floor Gill sonic plots screen before downloading data
  1. downloading data Yes!
  2. Check MD-9 system connections

CR23X3 – floor-Met
CR23X5 – soil CO2 profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow
CR10X7 – CO2 profile
CR10X8 – wind profile
Screen shot of floor met data logger table

Screen shot of soil moisture data logger table

Screen shot of soil co2 data logger table
Screen shot of tower met data logger table

  1. Soil CO2 profile

Reading from panels of analyzers

depth
Open
order
depth
Tree
order

2cm (1%)
470
1
2cm (1%)
1640
1

4cm
2180
2
4cm
2110
4

8cm
720
3
8cm
1990
2

16cm
610
4
16cm
4040
3
  1. Close gate and set up fence. Yes!

tonzi
7931AFE
402165
574B4B
402FF3
574632
7A432E
7A3C6E
7A3B40
7A4AAA

9/2/2010
245









sm








0-15
5.8
1.2
10.0
3.6
6.4
1.8
5.0
3.2
3.6

15-30
13.8
8.7
11.8
11.2
7.1
9.0
13.9
12.0
4.7

30-45
18.2
8.3
11.8
13.9
6.2
10.1
15.5
16.2
13.9

45-60
15.4
8.4
16.1
12.5
21.1
11.6
15.8
24.1
10.8












A6D882B
A3D04E8
A6D72F5
















0-15
7.0
1.2
4.1






15-30
7.1
1.4
13.8






30-45
16.9
15.9
13.4






45-60
17.5
21.1
41.4
















vaira
57318a
7933dee







0-15
broken
0.4







15-30
broken
11.8







30-45
broken
15.8







45-60
broken
28.5








Tonzi





Dendrometer










Date
Day
Tag #
Reading (mm)


9/2/2010
245
72
11.4




79
15.9




245
12.4




250
21.2
(reset to 10.5 on May 7, 2009)



1
21.2




2
10.1




3
18.2




4
8.6




5
13.6




7
15.3




8
16.9
11828



102
X




71
X




77
X
‌



78
X
‌



248
X
broken



255
X
‌



‌252‌
X
‌



6
X


Notes: “X” means not working any more.
Line plot showing leaf water potential 2008-2010


Dendrometers installed by Gretchen group
Diagram of dendrometer tree locations

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2010-09-02TZ_floor26.03
2010-09-02TZ_road35.35
2010-09-02TZ_tower30.6

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

Water Potential - mode: raw

TimeSpeciesTreereadings (bar)
2010-09-02 05:01:00 OAK UNKNOWN -39 -41.5 -41.5 -36.5 -42.5 -44.2 -15 -14.5 -14
2010-09-02 05:01:00 PINE UNKNOWN -20 -14 -19.2 -17.5 -5 -21 -24 -22.5
2010-09-02 12:03:00 OAK UNKNOWN -41 -39 -34.5 -35 -34.5 -31 -35
2010-09-02 12:03:00 PINE UNKNOWN -3.2 -3 -17 -5 -18.5

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

16 photos found

Dawn from the Tower at Tonzi
Dawn from the Tower at Tonzi

Sun rise over the canopy at Tonzi
Sun rise over the canopy at Tonzi

Tipping rain bucket and radiometers on Tonzi Tower
Tipping rain bucket and radiometers on Tonzi Tower

Bird poop blocking tipping bucket rain gauge
Bird poop blocking tipping bucket rain gauge

Pre dawn view from the tower
Pre dawn view from the tower

Sap flow east station
Sap flow east station

Sap flow east station
Sap flow east station

Sap flow north station
Sap flow north station

Sap flow north station
Sap flow north station

Sap flow needles installed in an oak trunk
Sap flow needles installed in an oak trunk

Sap flow south station
Sap flow south station

Tress used for south sap flow station
Tress used for south sap flow station

West sap flow data logger box
West sap flow data logger box

View of the Tonzi tower in late summer
View of the Tonzi tower in late summer

View of oak trees changing color from the tower
View of oak trees changing color from the tower

View of oak trees changing color from the tower - dark exposure
View of oak trees changing color from the tower - dark exposure

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

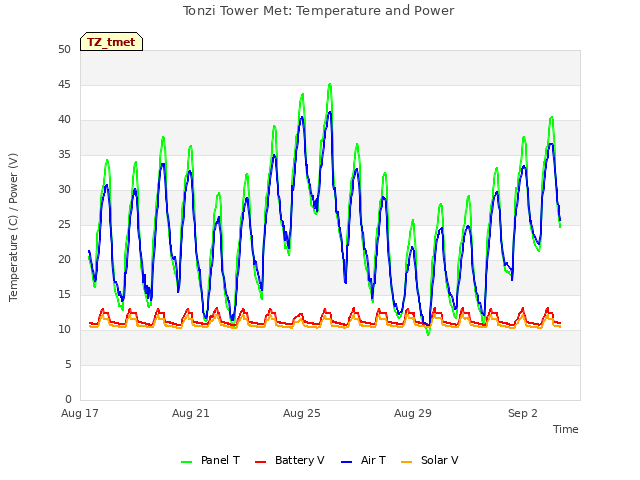

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

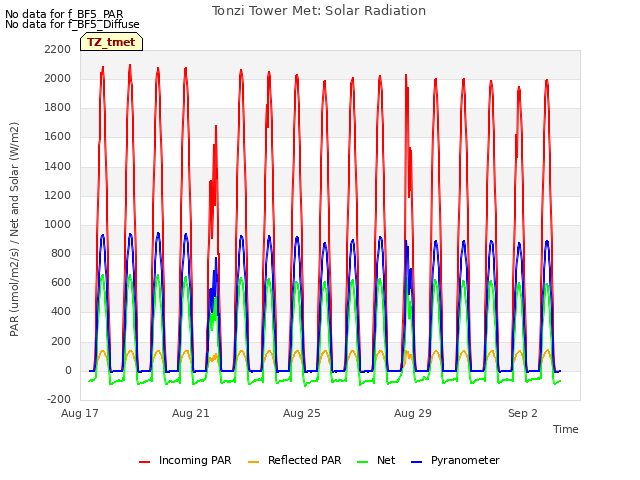

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

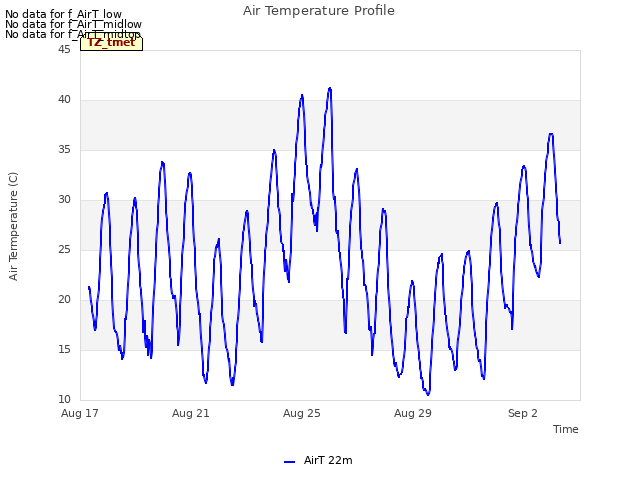

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

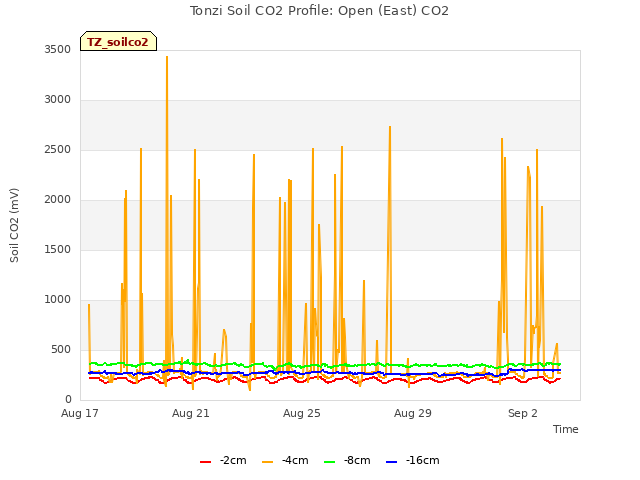

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

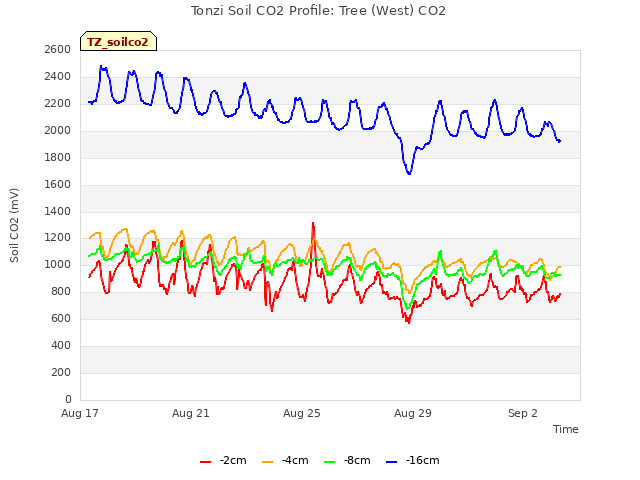

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

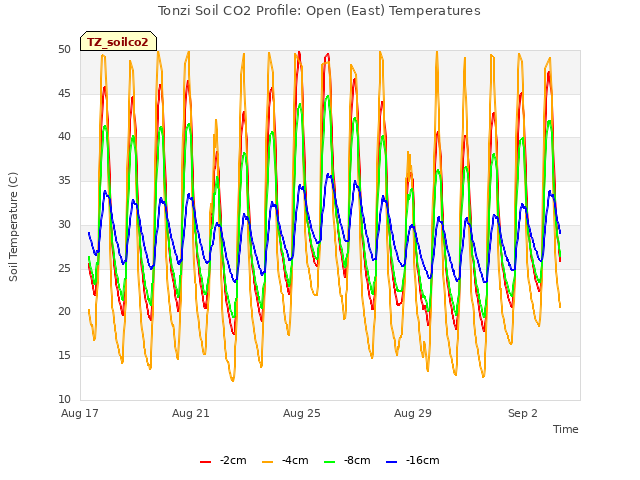

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

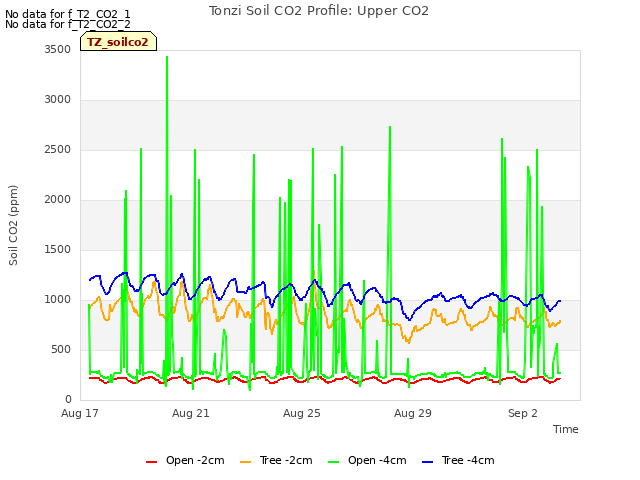

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

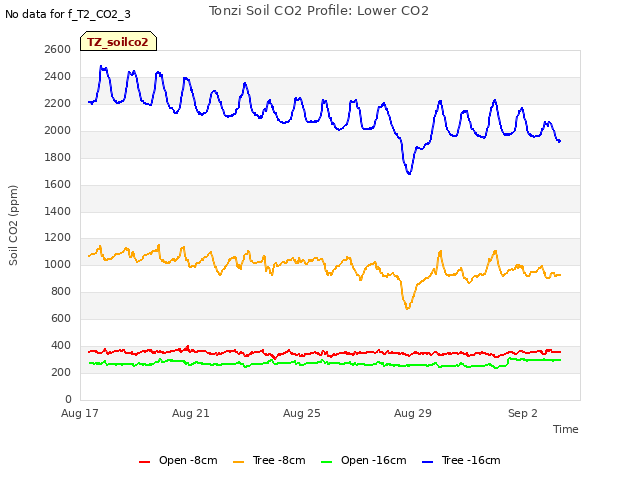

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

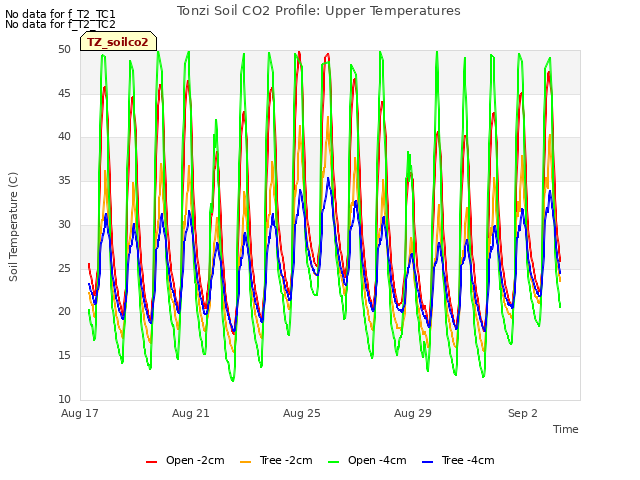

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

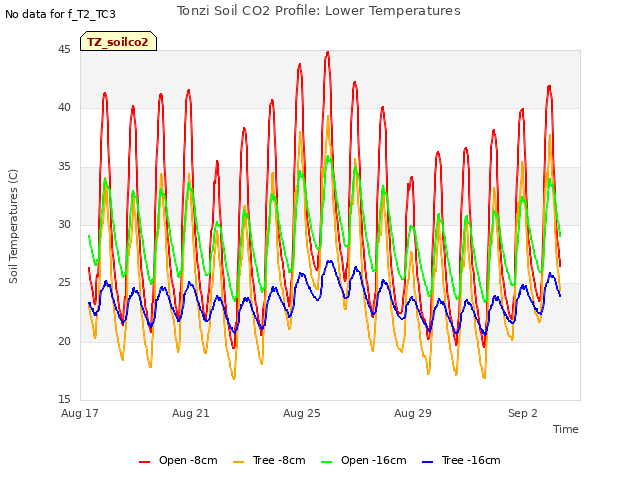

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

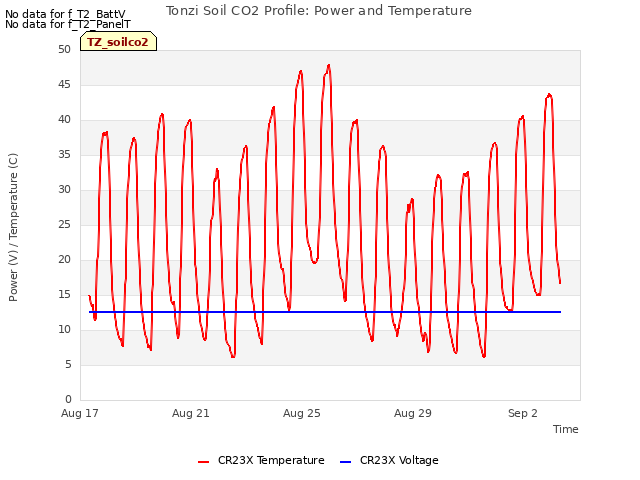

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

Explore the graph:Tree 2 Soil CO2 in a new window

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

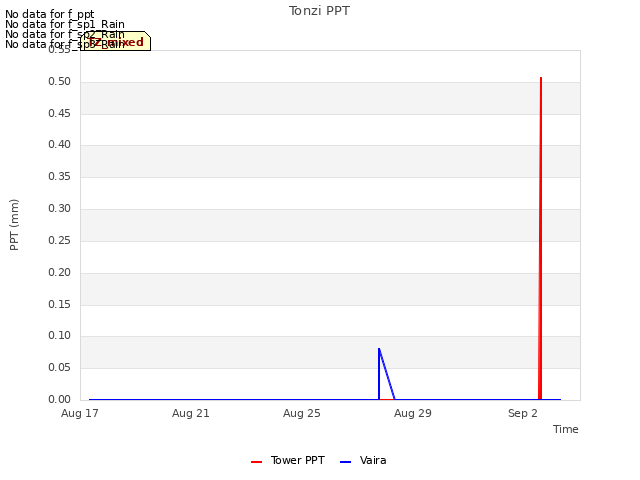

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
No data found for TZ_fmet.
1 TZ_tram graphs found

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

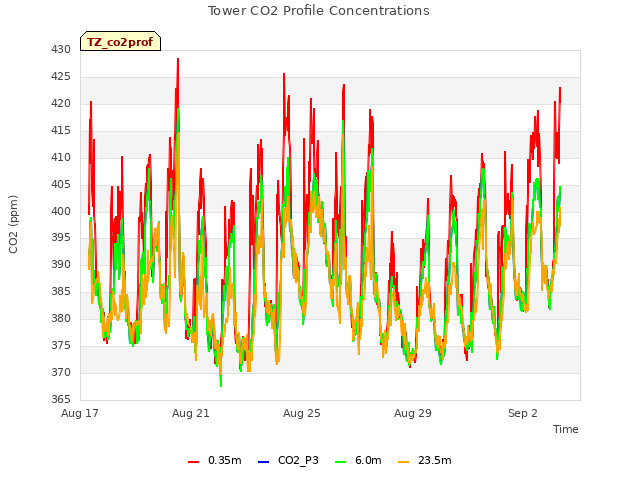

Explore the graph:Tower CO2 Profile Concentrations in a new window

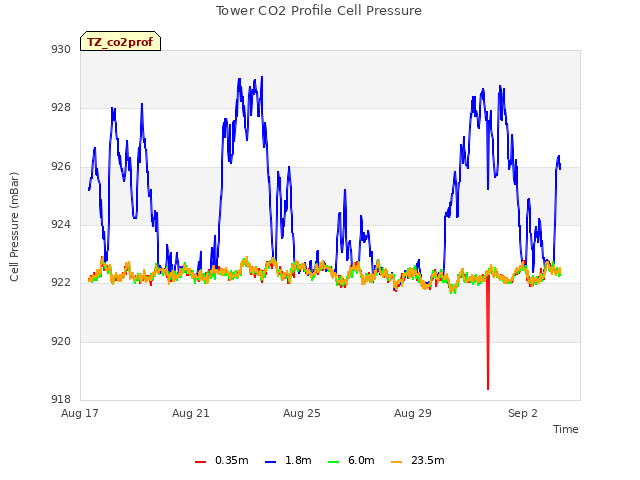

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

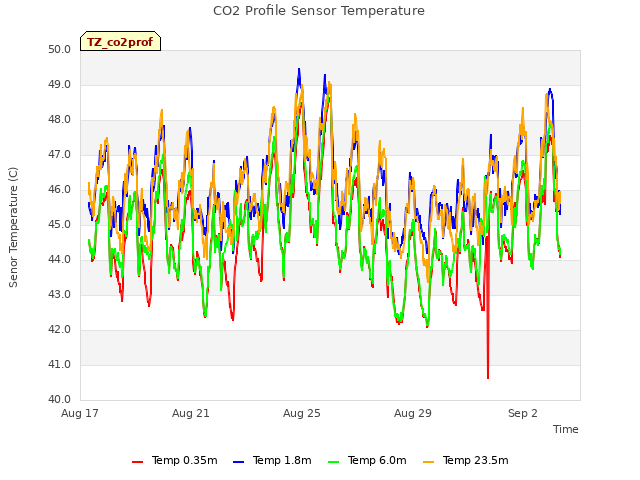

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

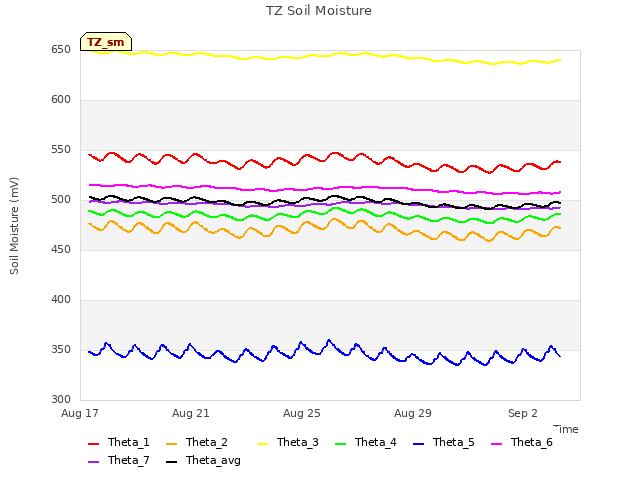

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

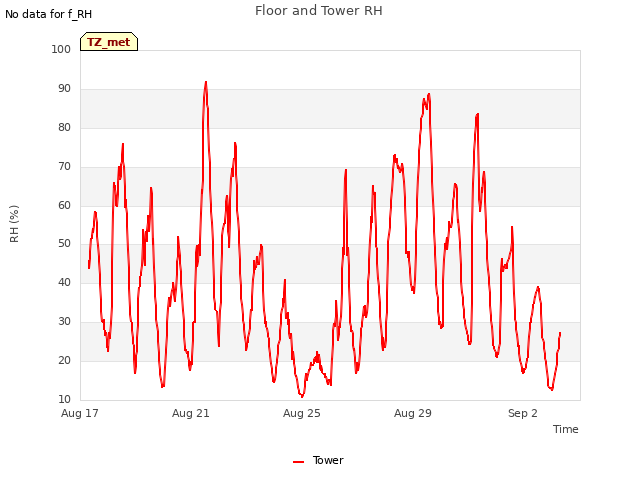

Explore the graph:Floor and Tower RH in a new window
