Twitchell Alfalfa: 2015-07-01 09:30:00 (DOY 182)
Author: Joe Verfaillie
Others: Sara, Miguel, Visitors

Summary: Check on the LGR system, added line conditioner and UPS, field work, soil respiration, data collection, visitors

Alfalfa
2015-07-01

I arrived about 9:30 with Sara and Miguel. It was hot and humid with a very light breeze from the SSW. I could smell the diesel exhaust when I was standing at the tower. There were some high thin clouds that kept the sun from being too scorching. The field to the south has been mowed and the edges that were previously mowed have been baled.

Also with us were visiting scientists Xiangming Xiao and Chang Yong Choi from the University of Oklahoma who were here looking at rice fields. Sara took the visitors on a tour of the sites then returned to do field work. Miguel did soil respiration reps again.

The LGR trailer seemed to be running just fine. I’m not sure what was preventing the TeamViewer login, but I think TeamViewer changes its keys daily. The laptop also had LogMeIn running on it, which I stopped. The power settings were okay though – it should not go to sleep.

I turned everything off and added a line conditioner and UPS to the extension cord from the generator. The line conditioner seemed to work well boosting the voltage from about 100VAC to about 112VAC. Everything rebooted fine and Yi-wen was able to connect to the laptop. When I tested the UPS by disconnection the generator power, the UPS popped a breaker and everything turned off. I tried the UPS that was in the trailer, but it had a dead battery and complained of an overload. So I put the Analyzer on the line conditioner and put the laptop and hotspot and trailer fan on the working UPS.

Everything seemed to be running okay when I left.

I collected data from the LGR system and from our tower system.

Veg Height (cm): Tape measure from ground to top of plant
49, 56, 53, 58, 56, 56, 71, 66, 58, 61, 50, 61, 56, 69, 61, 49, 54, 52, 64, 47, avg = 57.4, stdev = 6.68

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

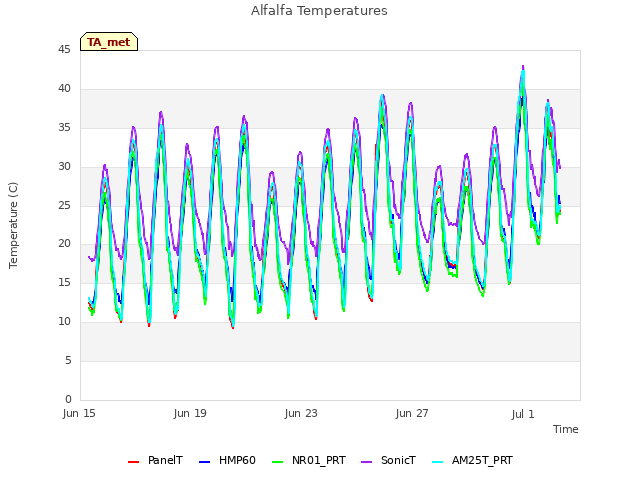

Explore the graph:Alfalfa Temperatures in a new window

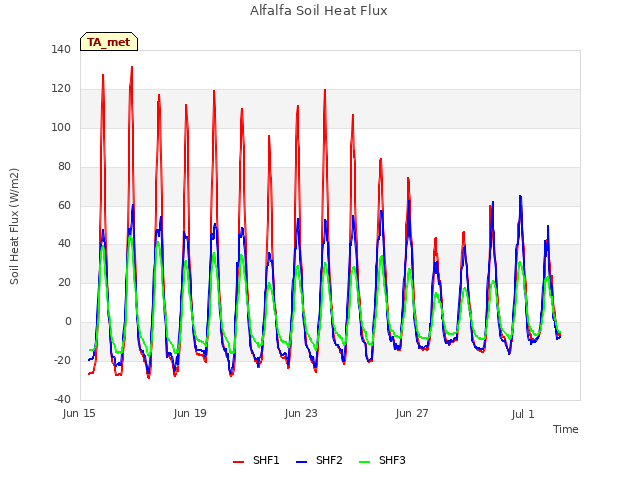

Explore the graph:Alfalfa Soil Heat Flux in a new window

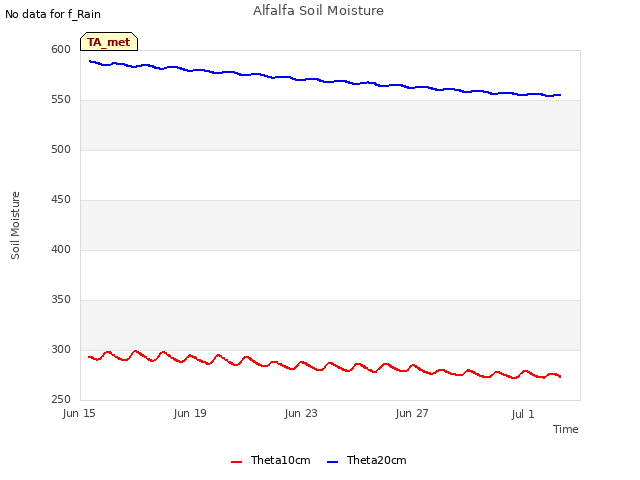

Explore the graph:Alfalfa Soil Moisture in a new window

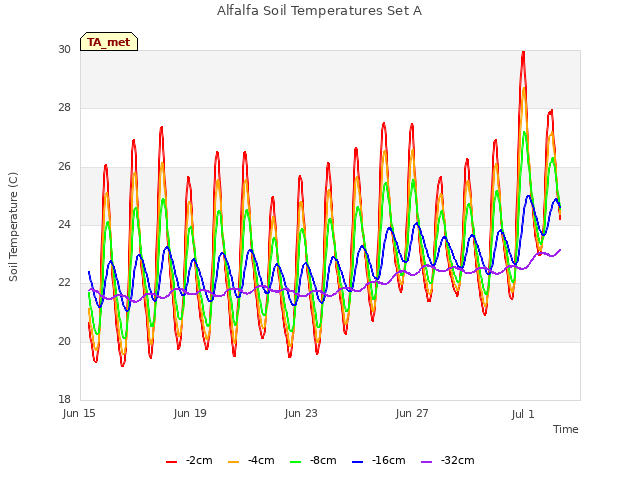

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

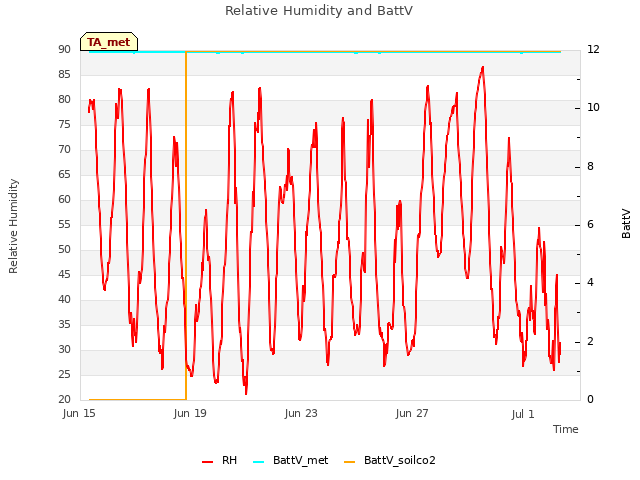

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

Explore the graph:Alfalfa Radiation in a new window

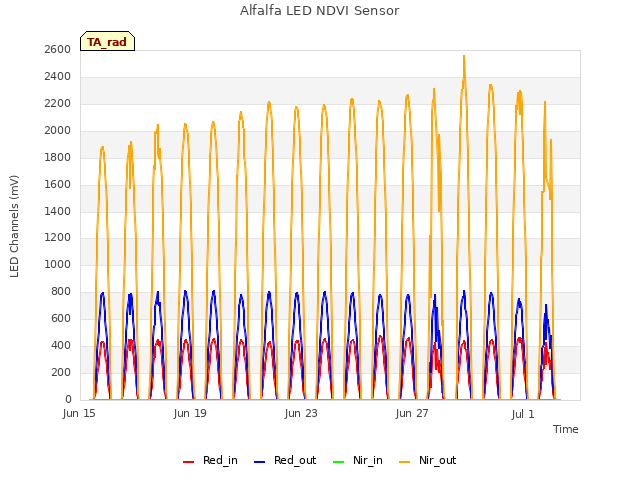

Explore the graph:Alfalfa LED NDVI Sensor in a new window

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

Explore the graph:Alfalfa Sonic Wind in a new window

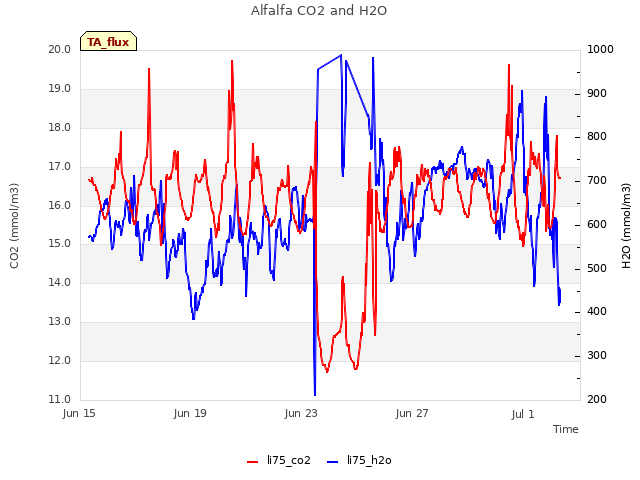

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

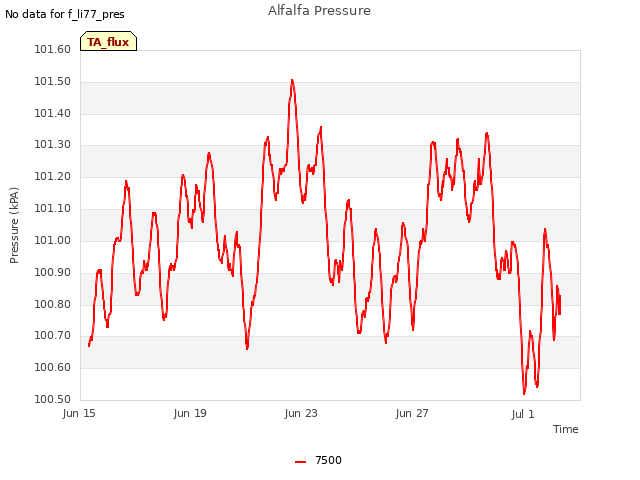

Explore the graph:Alfalfa Pressure in a new window

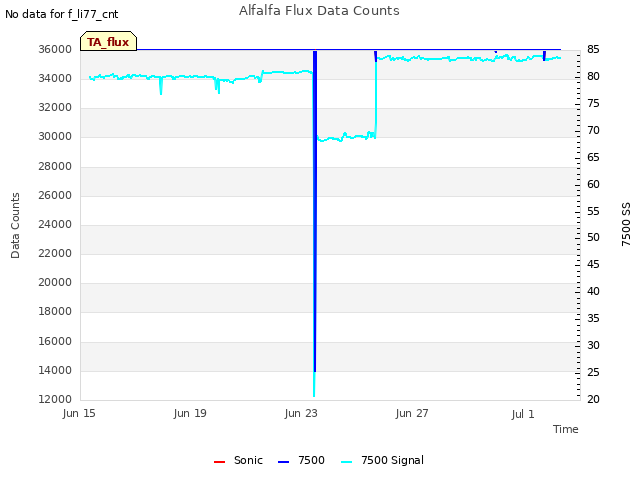

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

Explore the graph:Set A Soil CO2 in a new window

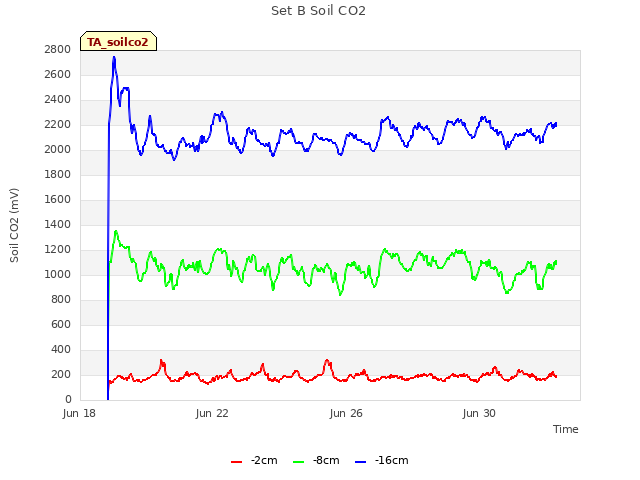

Explore the graph:Set B Soil CO2 in a new window

Explore the graph:Soil CO2 Soil Moisture in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

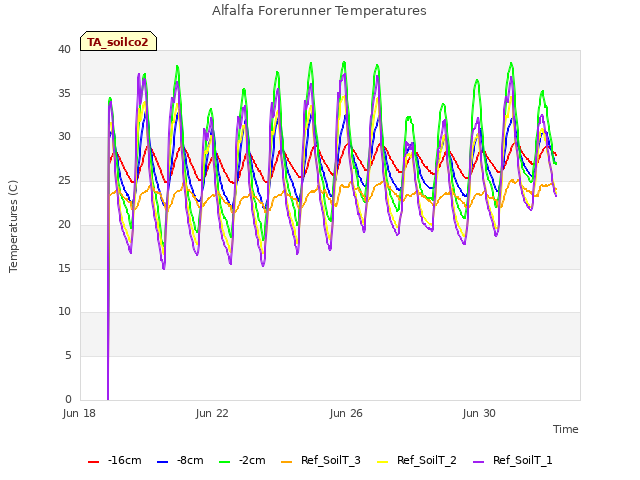

Explore the graph:Alfalfa Forerunner Temperatures in a new window

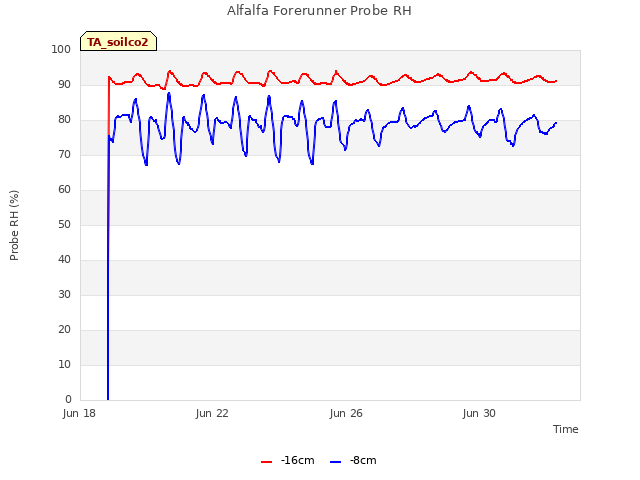

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

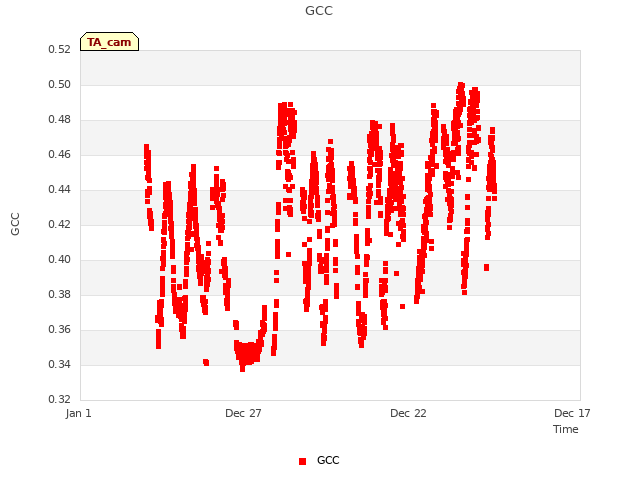

Explore the graph:GCC in a new window
