Tonzi: 2015-03-16 10:00:00 (DOY 75)
Author: Siyan Ma
Others: Ana

Summary: Standard field work, trees all leafing out 20 days early, Showing Ana the routine.

When: Date: 3/16/2015 , Day: 75 , Watch Time: 10:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Ana
Weather: clear, sunny
Phenology: all trees have leaves; pretty color; this is the second dry-winter year in a row; about two weeks earlier than the average leaf-out date.

Summary

Swapped memory cards of CR1000s at three sites. Everything worked well.
Checked and downloaded winflux and met data from PC at Tower, Floor, and Vaira.
calibrated the CO2 profile system
Read dendrometers

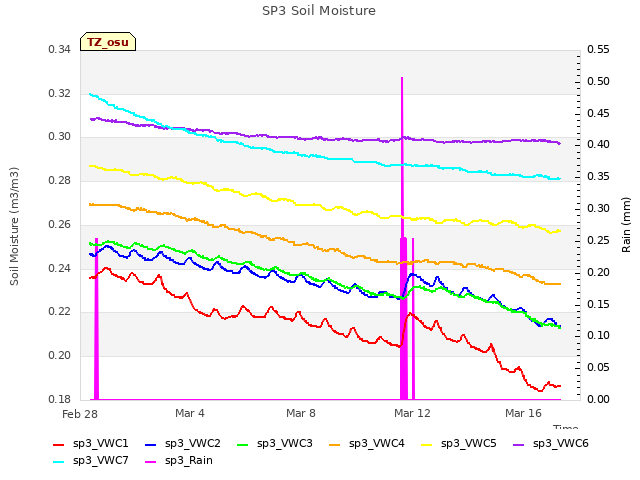

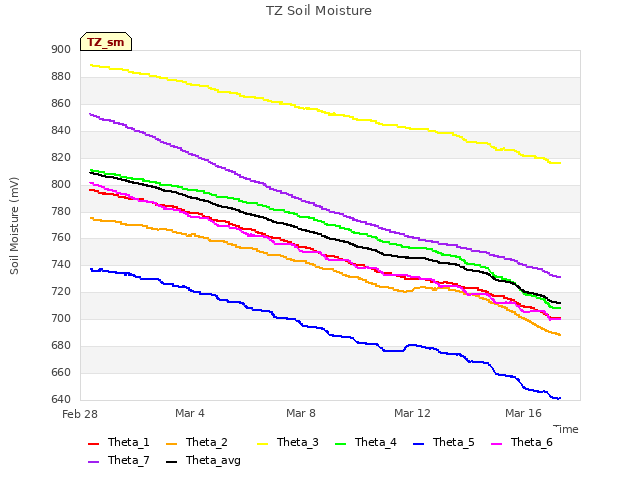

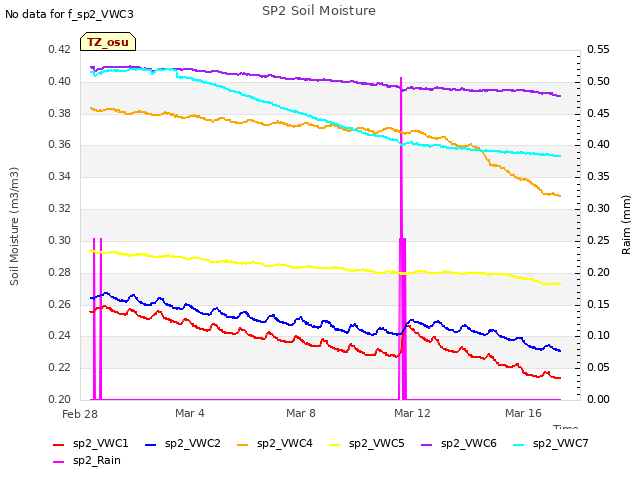

Measured soil moisture
Measured grass height
Measure groundwater well

Vaira_Grass Site

Downloaded Phenocam images.
Swapped the memory cards of CR1000.
Checked the fans of air temp and relative humidity sensors at Vaira. YES!
Downloaded met and soil CO2 profile data:

Screen shot of Vaira met data logger table

Screen shot of Vaira soil co2 data logger table

Ana checked levels of Radiation sensors, clear up surfaces.YES!
Ana checked rain gage, make sure not clogged. YES!
Closed gate and set up fence. YES!

Tonzi_Tower Site

Fence and gate power: 12 v.
downloaded Winflux data from PC. YES!

Tower Gill sonic plots screen before downloading data

swapped the memory cards of CR1000.

Screen shot of tower flux data logger table

download Phenocam images. Yes!

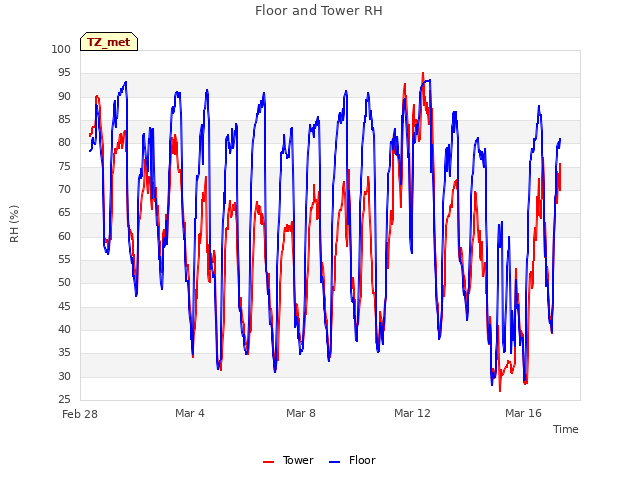

checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
Checked rain gage, make sure not clogged. YES!
Downloaded met data from PC

Screen shot of Li-800 calibration pre-cal

Screen shot of rad tram data logger table

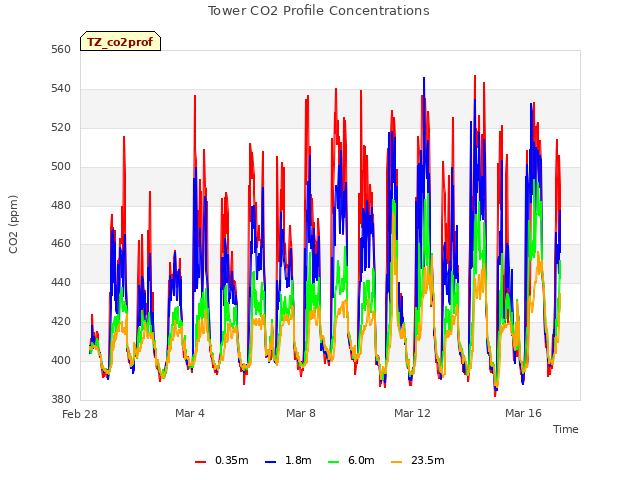

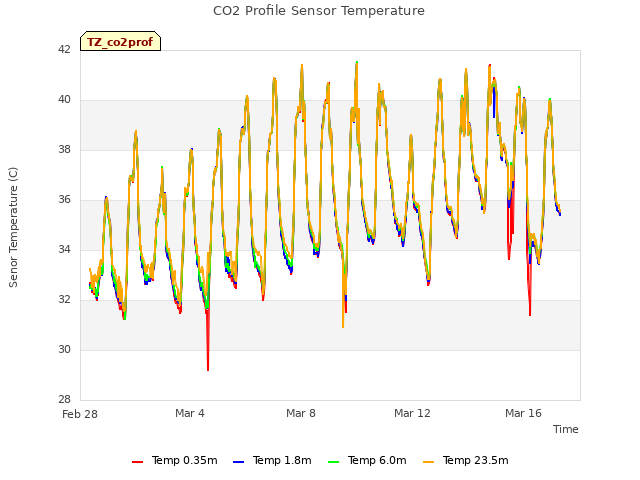

Checked CO2 profile:

Is the pump runningâ€Œ YES!
Before and after zero:
Screen shot of Li-800 calibration zero pre-cal

Screen shot of Li-800 calibration zero post-cal

Before and after span:
Screen shot of Li-800 calibration span pre-cal

Screen shot of Li-800 calibration span post-cal

9. closed gate and set up fence. YES!
Toniz_Floor Site

Fence and gate power: 12 v.
downloaded Winflux data from PC. YES! (no screen shots)
Swapped the memory cards of CR1000. (no screen shots)
downloaded met data from PC. YES! (no screen shots)

CR23X3 â€“ floor-Met
CR23X6 â€“ tower-Met
CR10X2 â€“ floor-Met

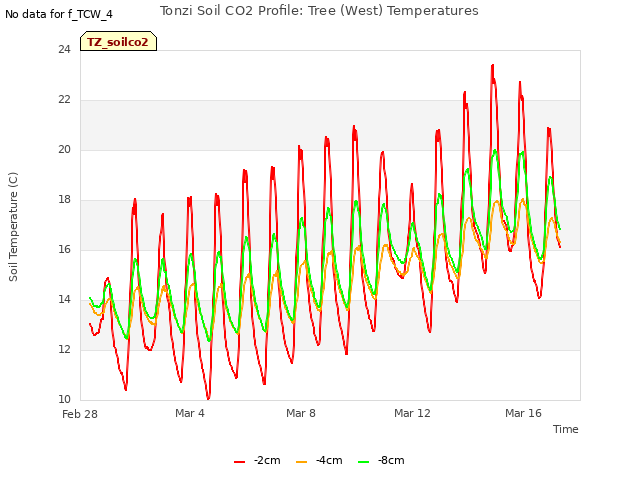

Soil CO₂ profile: CR23X5 â€“ soil CO₂ profile

Closed gate and set up fence. YES!

Field Data

CO2 Profile Tanks

Date	Tank	Pressure (psi)	ppm
2015-03-16	CO2	1700	405
2015-03-16	N2	1100	0

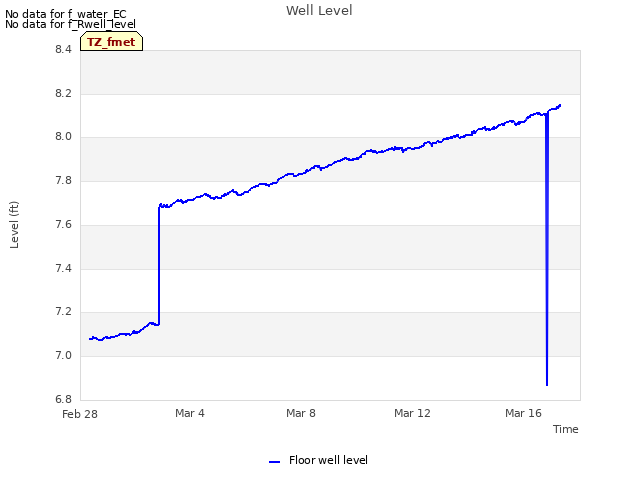

Well Depth

Date	Location	Depth (feet)
2015-03-16	TZ_floor	28.6
2015-03-16	TZ_road	36.6
2015-03-16	TZ_tower	32

mode = both
Moisture Point Probes TZ
Array ( [0] => Floor_South_1 [1] => Floor_West_1 [2] => SoilCO2_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_C_1 [9] => Floor_South_2 [10] => Floor_West_2 [11] => SoilCO2_2 [12] => Soil_Transect_4_2 [13] => Soil_Transect_3_2 [14] => Soil_Transect_2_2 [15] => Soil_Transect_1_2 [16] => SoilCO2_West_A_2 [17] => SoilCO2_West_C_2 [18] => Floor_South_3 [19] => Floor_West_3 [20] => SoilCO2_3 [21] => Soil_Transect_4_3 [22] => Soil_Transect_3_3 [23] => Soil_Transect_2_3 [24] => Soil_Transect_1_3 [25] => SoilCO2_West_A_3 [26] => SoilCO2_West_C_3 [27] => Floor_South_4 [28] => Floor_West_4 [29] => SoilCO2_4 [30] => Soil_Transect_4_4 [31] => Soil_Transect_3_4 [32] => Soil_Transect_2_4 [33] => Soil_Transect_1_4 [34] => SoilCO2_West_A_4 [35] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Floor_South_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_C_1	Floor_South_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_C_2	Floor_South_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_C_3	Floor_South_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_C_4	Spacial Count
2015-03-16	75	0	nan	4.5	30.6	18.8	16.8	16.8	15	39.9	16.2	10.3	19.4	26.8	26.8	19.4	10	27.1	12.1	21.9	23.1	32.1	36	43.5	20.1	29.9	29.8	29.9	30.4	30.7	47.1	45.4	17.6	27.4	48.8	45.7	25.6	40.5	48.8
2015-03-16	75	Avg	0-15cm																																					0
2015-03-16	75	Avg	15-30cm																																					0
2015-03-16	75	Avg	30-45cm																																					0
2015-03-16	75	Avg	45-60cm																																					0

mode = both
Moisture Point Probes VR
Array ( [0] => Gate_1 [1] => Solar_Panels_2 [2] => Gate_2 [3] => Biomass_Cage_2 [4] => Solar_Panels_3 [5] => Gate_3 [6] => Biomass_Cage_3 [7] => Solar_Panels_4 [8] => Flux_Tower_4 [9] => Gate_4 [10] => Biomass_Cage_4 [11] => Solar_Panels_1 )

0000

Date	DOY	Rep	Depth	Gate_1	Solar_Panels_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Solar_Panels_1	Spacial Count
2015-03-16	75	0	nan	6.8	17.6	10	12.4	21.8	14.5	21.2	34	21.6	13.3	23.1
2015-03-16	75	1	nan		18.8		12.1	22.1		21.2	34.8			22.8	7.7
2015-03-16	75	Avg	0-15cm													0
2015-03-16	75	Avg	15-30cm													0
2015-03-16	75	Avg	30-45cm													0
2015-03-16	75	Avg	45-60cm													0
