Field Notes
<--2015-01-07 09:30:00 | 2015-01-20 15:46:00-->Other sites visited today: East End
Mayberry: 2015-01-15 13:30:00 (DOY 15)
Author: Joe Verfaillie
Others:
Summary: swapped 7500 and 7550, removed tule PAR for repair, improved boardwalk, added bolts to scaffolding frames.
| Mayberry 2015-01-15 I arrived about 1:30pm. It was sunny but hazy with almost no wind. The berms are green and the cattails are dead. I swapped out the 7550 box and the 7500head – sn AIU-0614 and sn 75H-2176 came off and sn AIU-1285 and sn 75H-2514. The problem was that the box thought it was connected to the 0065 head. And this means the Rice has got the wrong head too. I collected the data. Before swap: 400.6ppm CO2, 2784mmol/m3, 51.8SS, 9.81C, 102.28kPa After swap: 440.9ppm CO2, 451.6mmol/m3, 101.8SS, 10.21C, 102.46kPa The 7700 read: 2.54ppm CH4, 55.6RSSI – I cleaned some spider webs but did not clean the mirrors. The Tule PAR sn 010163 was reading INF. I could not find a problem with the cable. I removed it for repair in the lab. I improved the boardwalk. I put bolts in all the joints between the scaffolding frames. The ants in the 23x box are dead. We need to clean up the bodies. The CR23X clock was 10min slow. We need to correct this next time. |
1 photos found
view of field site
11 sets found

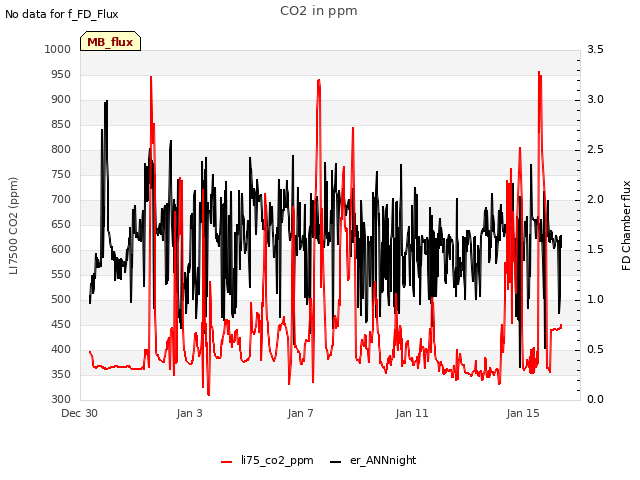

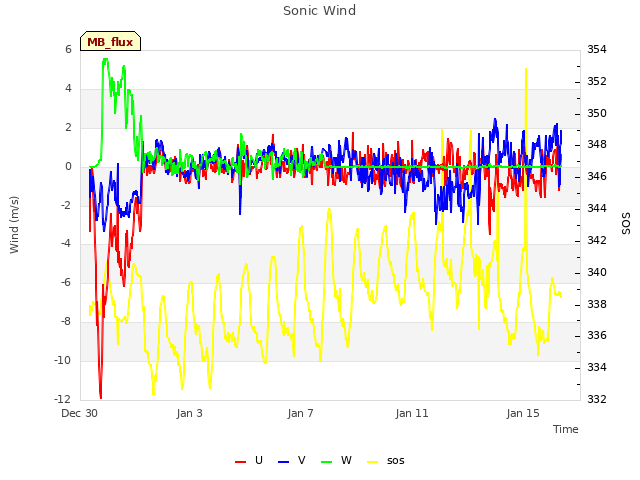

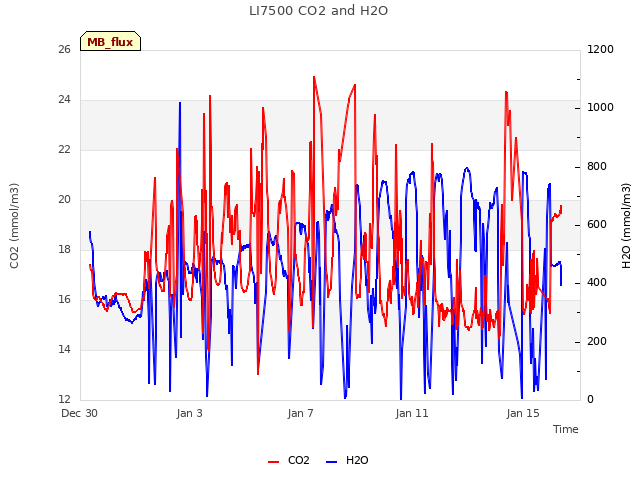

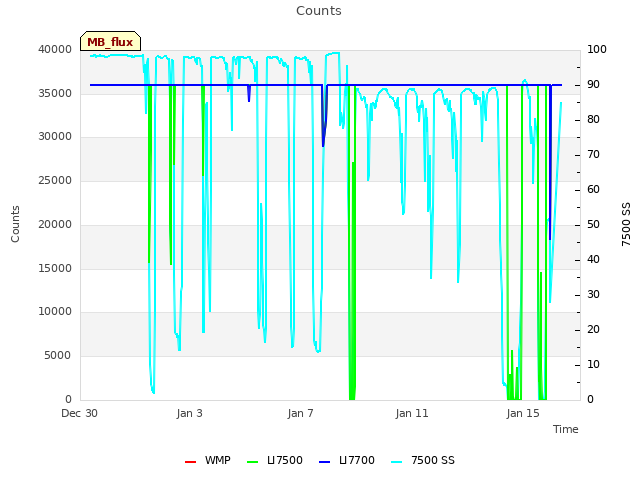

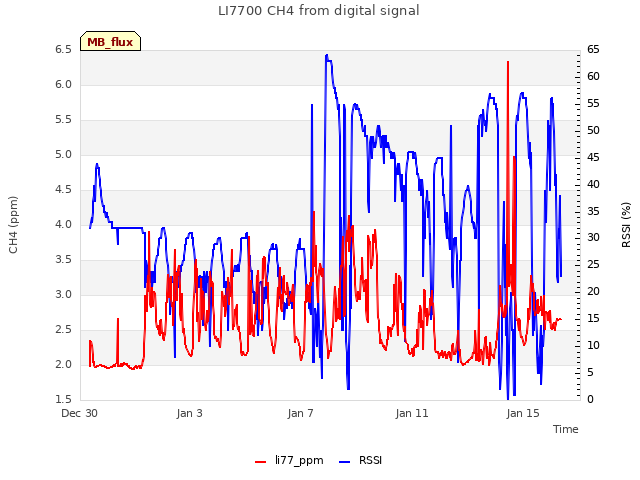

7 MB_flux graphs found
No data found for MB_met.

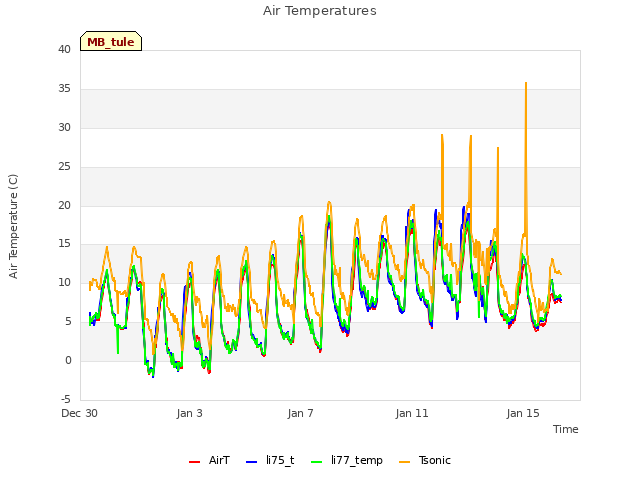

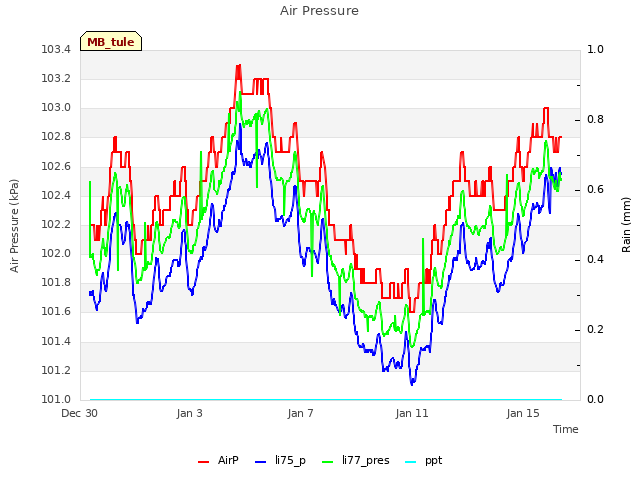

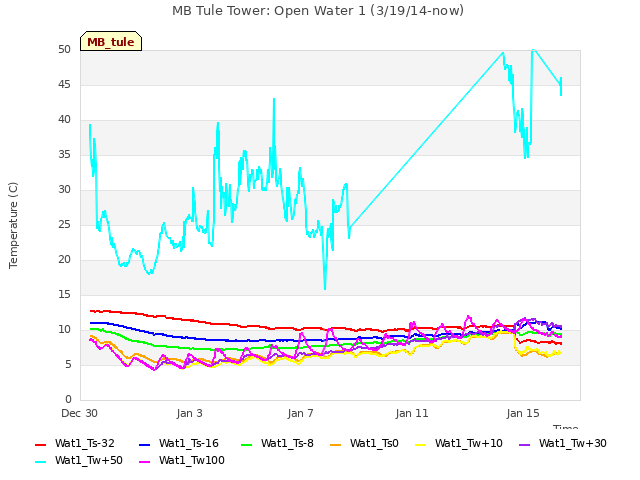

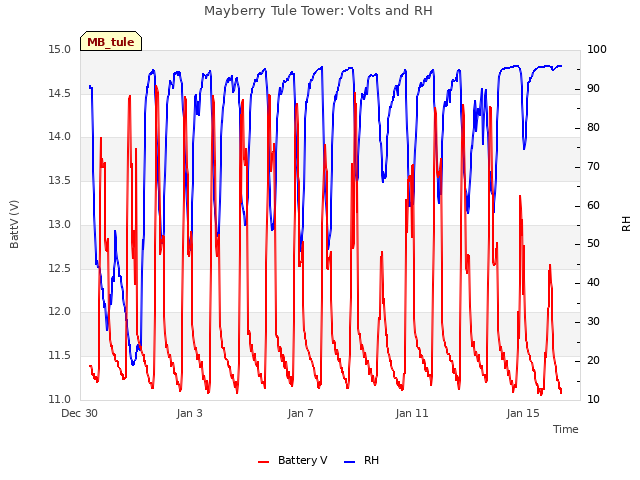

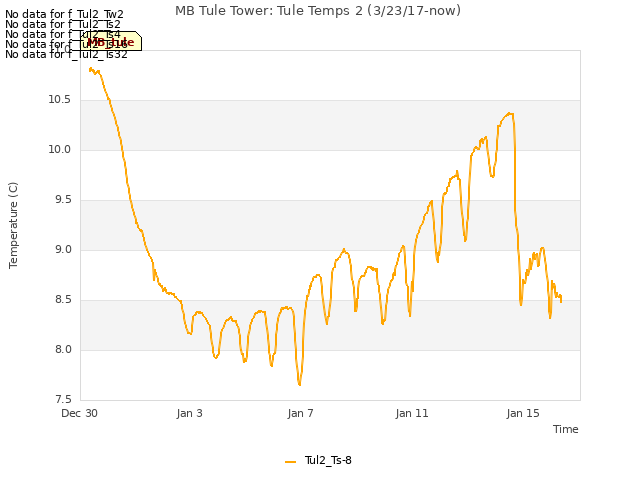

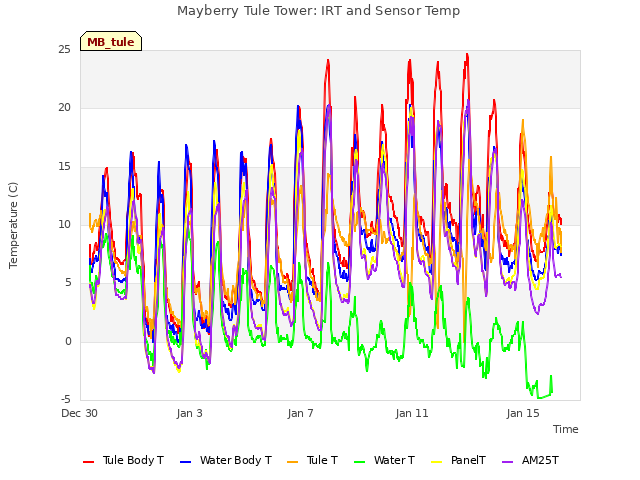

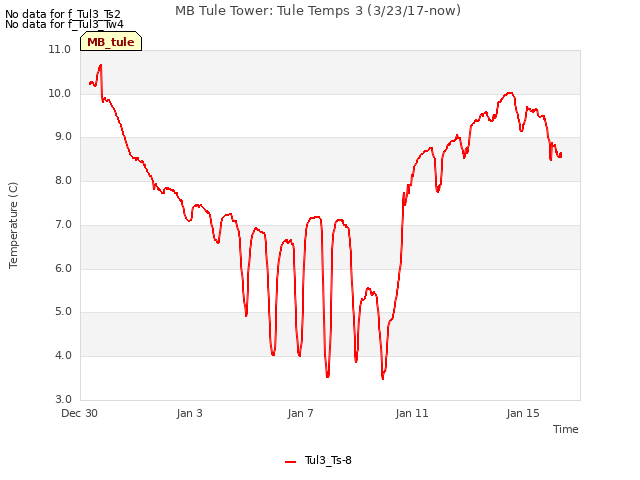

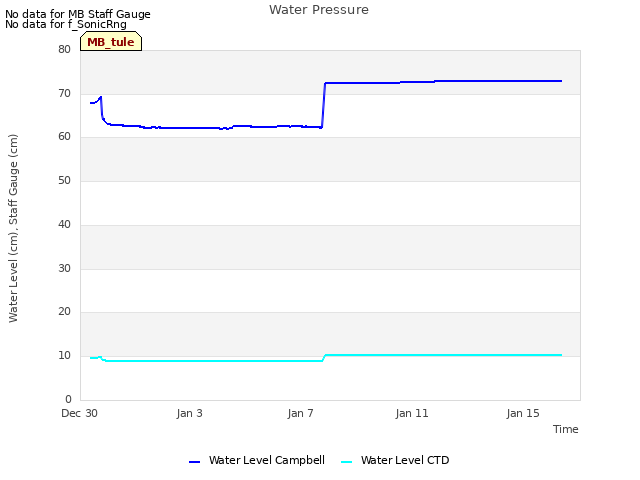

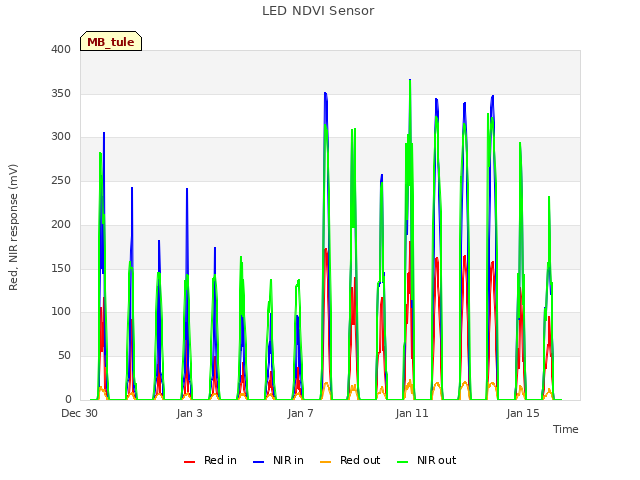

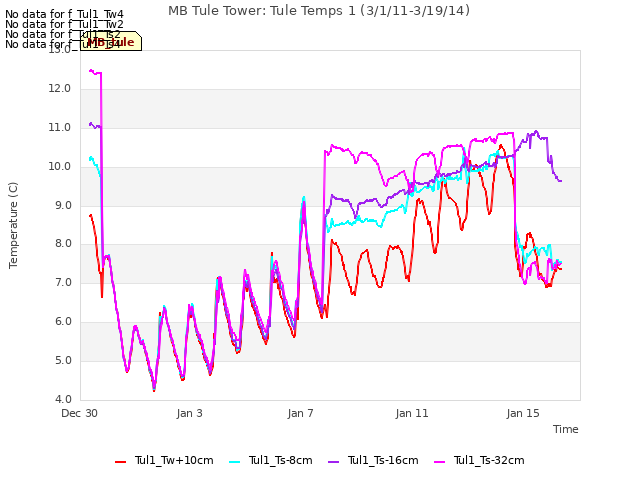

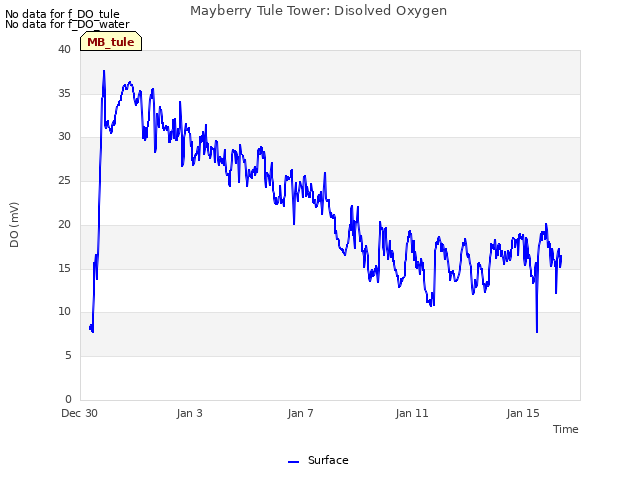

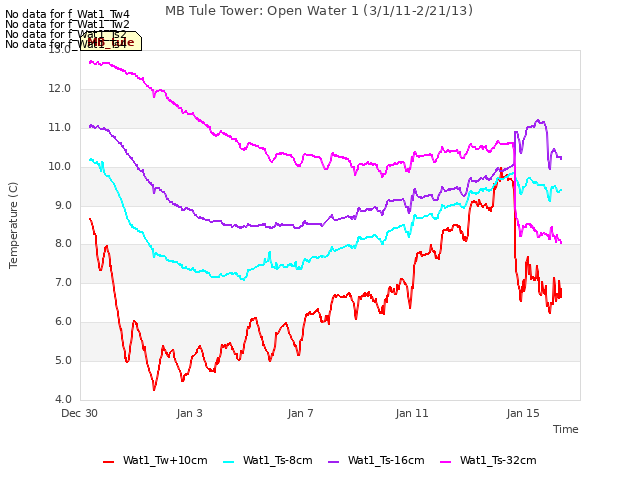

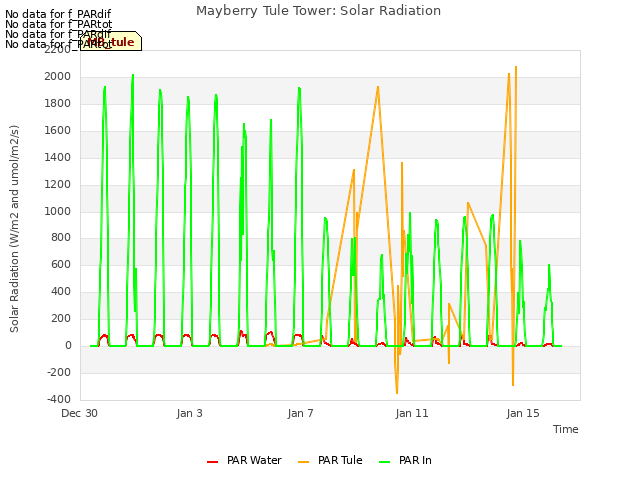

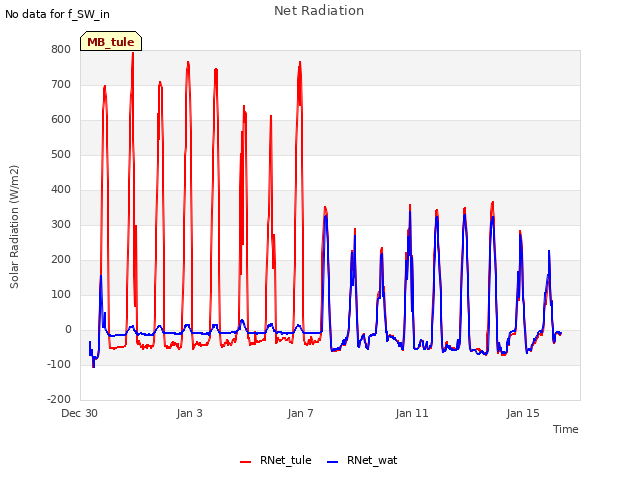

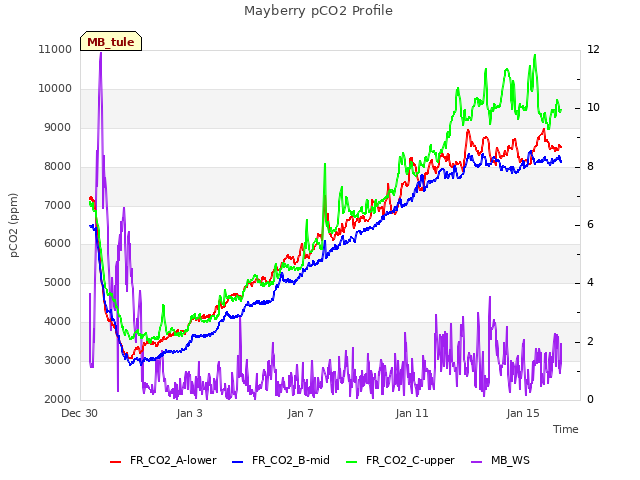

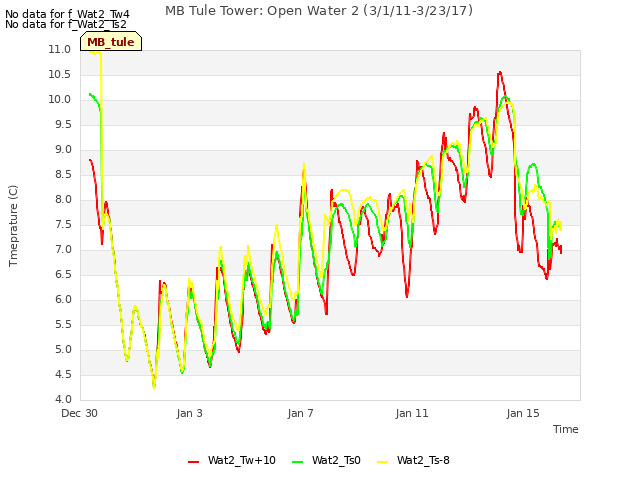

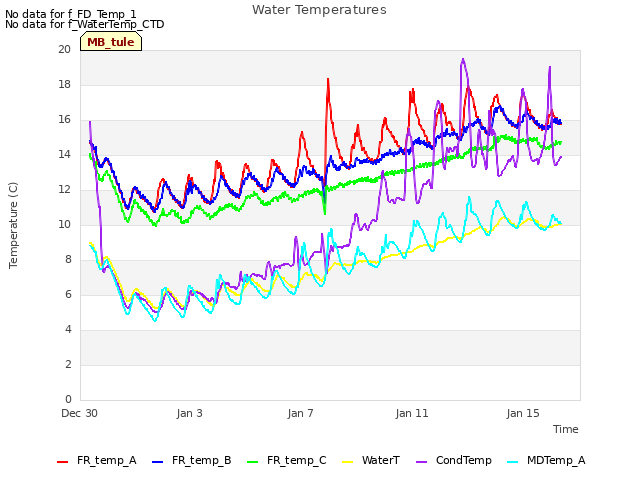

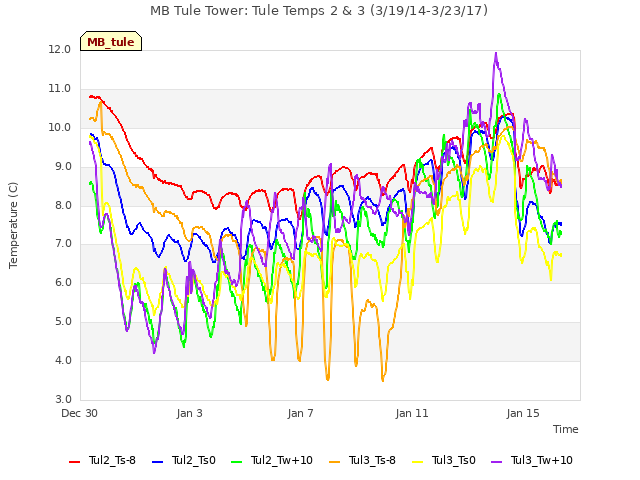

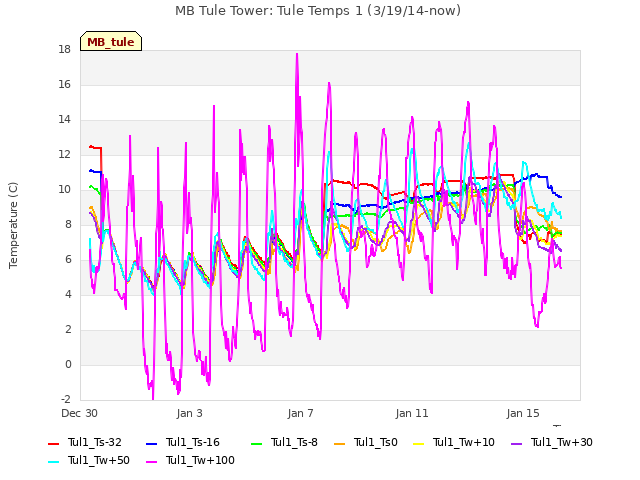

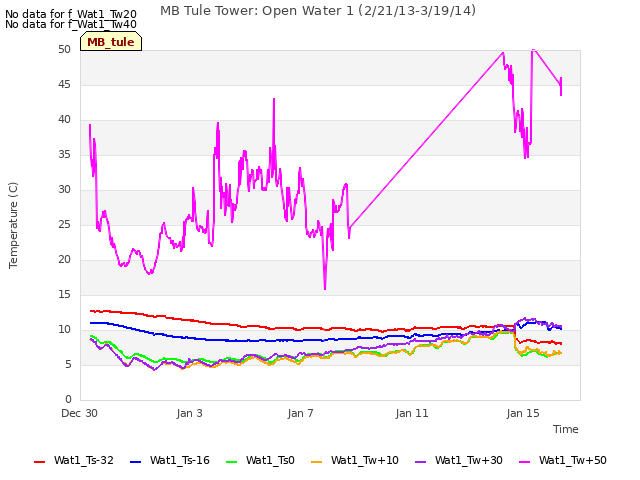

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

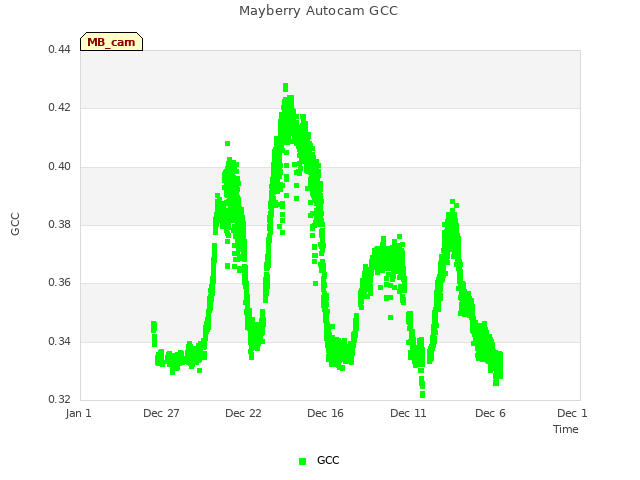

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

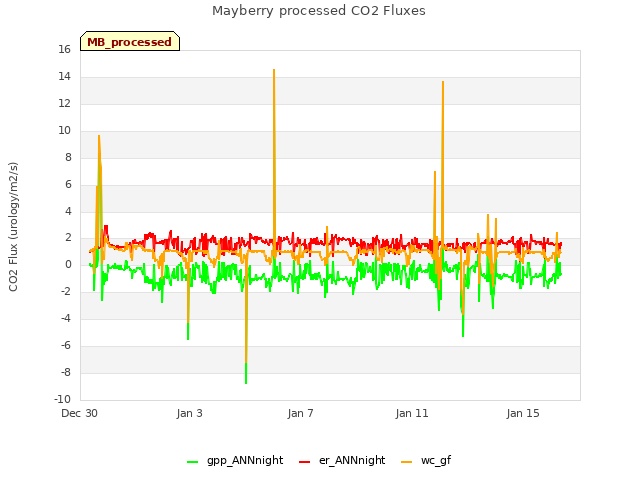

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
