Field Notes
<--2008-11-13 08:58:00 | 2008-11-19 08:30:00-->Other sites visited today: Vaira
Tonzi: 2008-11-14 00:00:00 (DOY 319)
Author: Joe Verfaillie
Others:
| At Tonzi Floor
The tram car was in dock. The voltage in the charging pins read 11.8V but the solar charge controller read above 12V for the battery bank. It is possible that the tram is not charging fully and that its data logger program is not moving it out of dock. The two extra batteries I added to the Floor solar power system last time were also low on water. I used all the water there to fill them, but they still need some more. At the Floor tower the computer was having problems. It seemed to be powered up and running but no display to the screen. On reboot the usual boot up info showed on the screen but as the OS loaded the screen reported no signal and the computer didn't sound like it was fully running. Lastly, I rebooted with the screen off, the computer seemed to go through a normal boot and sounded like it was fully running. I suppose it could be power problems though the solar charge controller reported voltages above 12V and reasonable loads. Could also be a bad or failing video card in the computer or perhaps a video driver. I plan to look at the Data Siyan collected last time and go out again on Tuesday with a spare computer. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

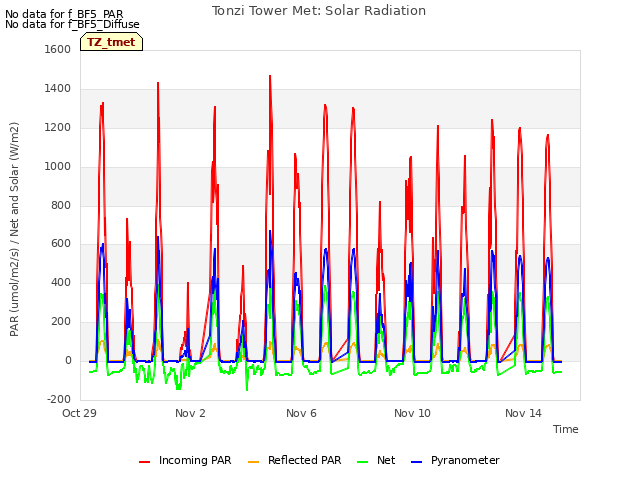

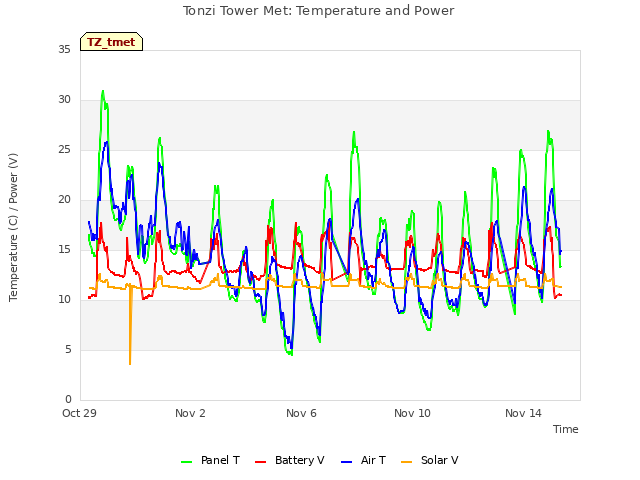

11 TZ_tmet graphs found

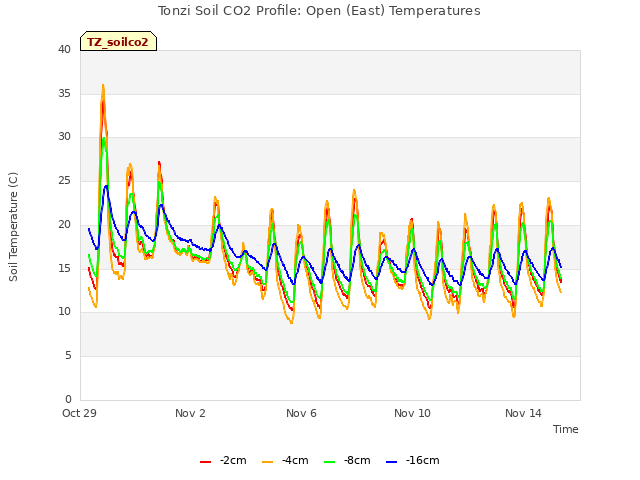

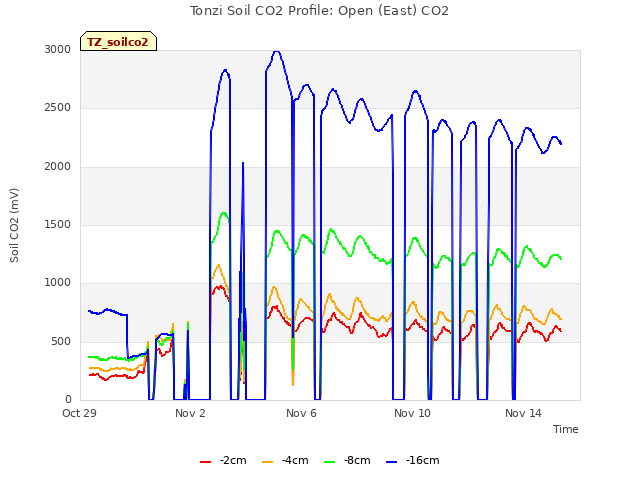

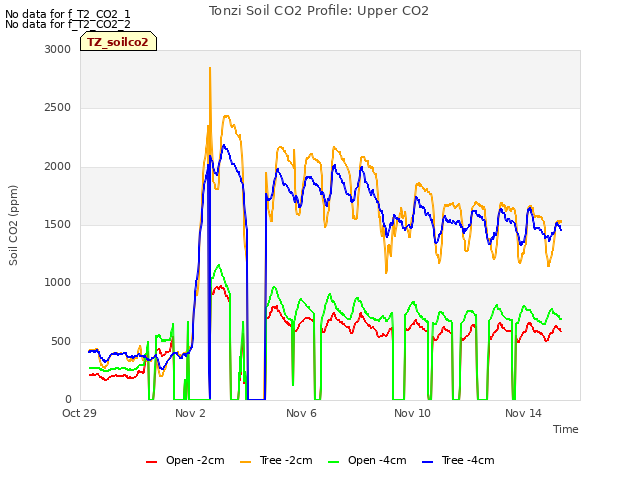

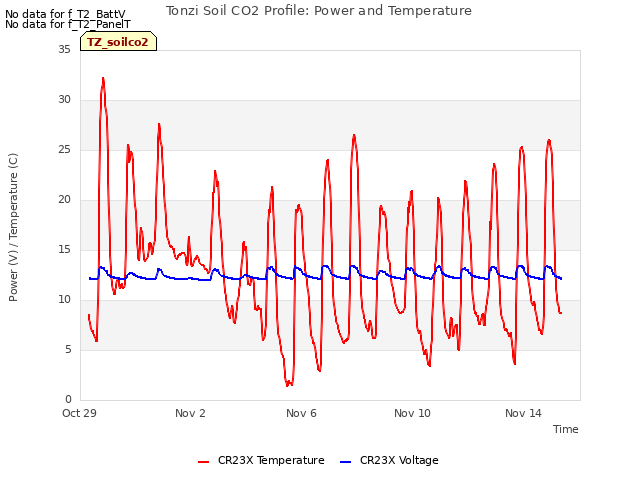

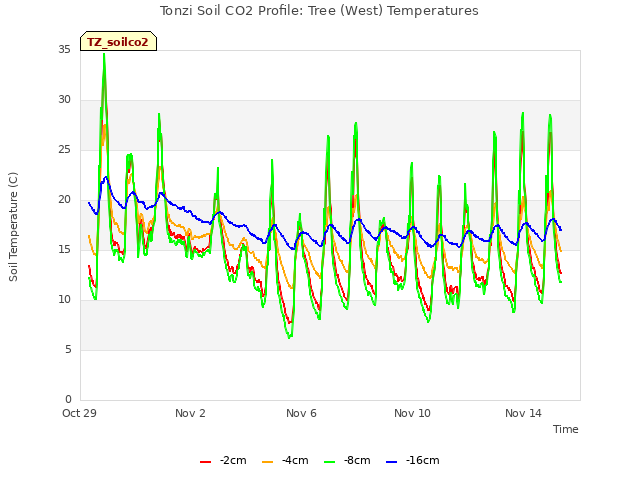

11 TZ_soilco2 graphs found
Can't check TZ_mixed

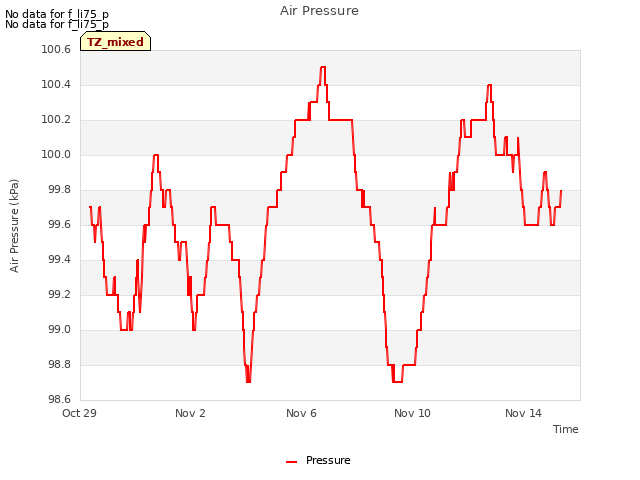

3 TZ_mixed graphs found
No data found for TZ_fflux.
8 TZ_fmet graphs found
No data found for TZ_tram.

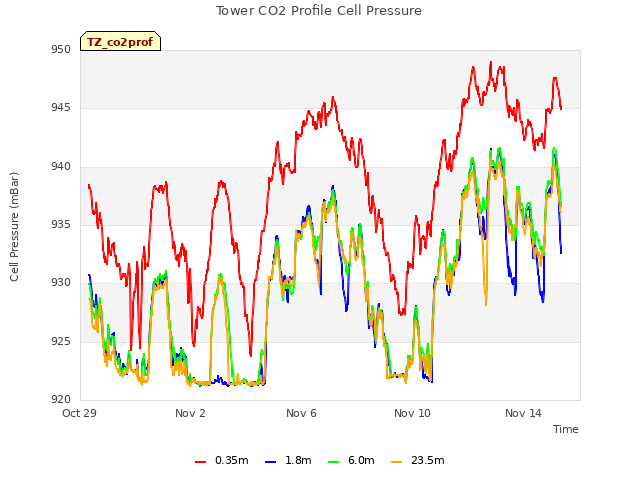

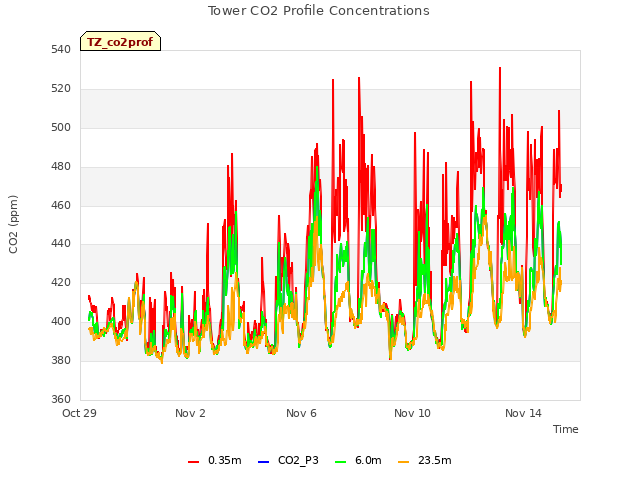

3 TZ_co2prof graphs found
No data found for TZ_irt.
1 TZ_windprof graphs found
No data found for TZ_tflux.

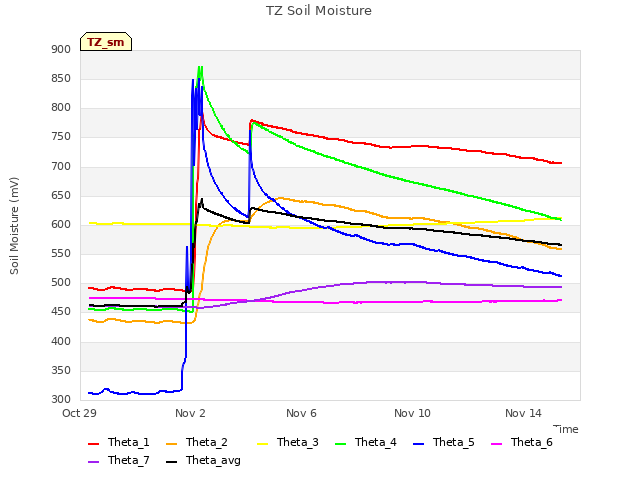

2 TZ_sm graphs found
Can't check TZ_met

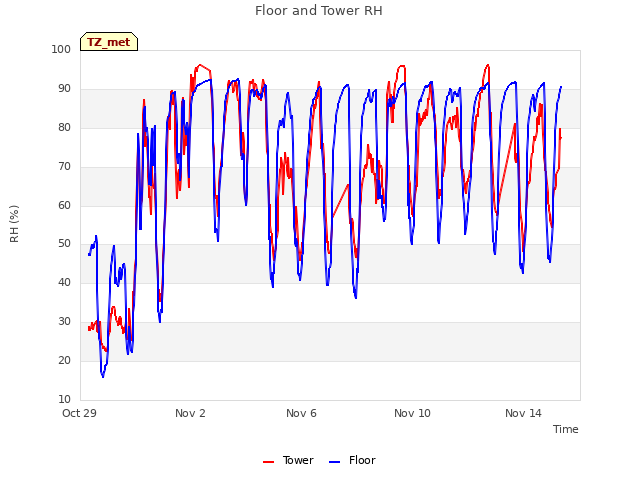

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
