Field Notes

<--2003-07-25 10:00:00 | 2003-08-30 10:00:00-->
Phenocam link: Searching...

Tonzi: 2003-07-31 09:00:00 (DOY 212)
Author: Dennis Baldocchi
Others: T Dawson, K Tu, Tasha and Anthony. Ted

Summary: Show and tell, standard systems check

Where: Tonzi/Vaira Ranch
Who: DDB, accompanied by T Dawson, K Tu, Tasha and Anthony. Ted was at site
When July 31, 2003, d212

Arrived ~9:00 hrs. Mild day, high scattered clouds. Tair 27, RH 40%. Will be a good case study for Ps and lags in Respiration.

Wind profile is installed above the canopy for canopy aerodynamics

W: 1.2; u 2.56; v –2.5; T 33.6; q: 2.87; C 1.5

Downloaded data. Signals look good. Sucking up CO2.

On CO2 profile system, tanks aok
N2 800 psi
CO2 1800 psi

10:03 at Floor

Panels 13.3 v; 14 am gen; 2.5 amp load

W: .42; u -/14; v .74; T 32.3; q: 3.12; c: 1.57

Installed md9_8.exe on the Pc208 programs for renaming U profile data. Ted will need to set scheduler. Cr10x8.dat is the normal file.

Took soil moisture data

7931AFE 402165 574B4B 402FF3 57632 7A432E 7A3C6E 7A3B40 7A4AAA

573FAA

 7933FDE
canopy canopy open drip line open open open
7/31/2003, 212 tower understory solar panel sap flow resp trans solar panel flux tower
0-15cm 6 3.4 6.85 1.25 5.85 6.15 5.85 4.7 0.3 1.85 0.25
15-30cm 12.65 13.55 12.65 11.55 12.65 5.65 12.55 10.8 1.9 6.15 10.2
30-45cm 17.05 5.85 14.4 13 2.5 9.1 14.4 15.55 11.7 10.45 15.15
45-60cm 12.25 6.6 12.8 10.75 10.5 10.6 6.3 17.5 7.95 20.3 21.3

Jianwu said it rained after 4 pm and he did a pulse study. Nice case study on respiration. No rain through tree, but rain to open systems.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

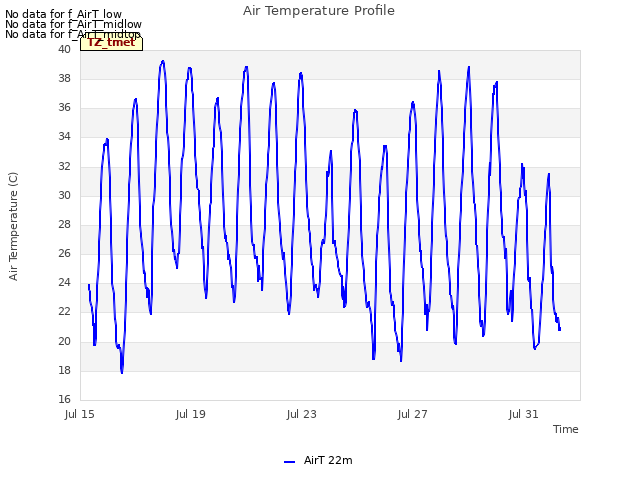

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

Explore the graph:Tonzi Soil Temperatures Set C in a new window

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

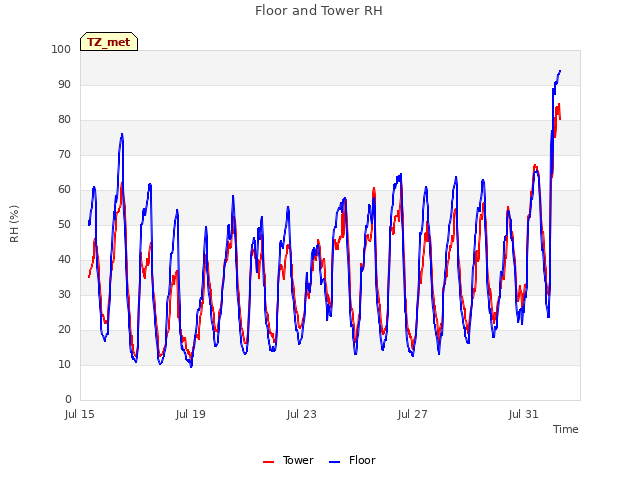

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
