Field Notes

<--2003-06-20 04:35:00 | 2003-06-26 10:00:00-->
Phenocam link: Searching...

Tonzi: 2003-06-25 10:00:00 (DOY 176)
Author: Jianwu Tang
Others: Qi Chen

Summary: Check soil co2 gradient system, 6400 soil co2 respiration

Trip note On June 25, 2003 (d176)
Who: Jianwu Tang and Qi Chen
Weather; Sunny, air temperature as high as 40-45oC

The electronic fences work well. We measured soil CO2 efflux along the transect and check the soil CO2 profile measurements, and measure tree respiration.

CO2 efflux averaged 2 mmol m-2 s-1 under trees, while 0.5 mmol m-2 s-1 in the open areas. The average soil profile is 1600PPM (2cm), 6000ppm (8cm), and 9000ppm (16cm) under trees, and 380PPM (2cm), 1000ppm (8cm), and 2000ppm (16cm) in the open area. The average of tree respiration is 2.5 mmol m-2 s-1.

Soil moisture probe reading

Tonzi 7931AFE 402165 574B4B 402FF3 57632
6/25/2003 canopy canopy open drip line open
Tang tower understory solar panel sap flow resp trans
0-15cm 7.85 5.12 11.10 2.90 9.75
15-30cm 13.30 14.95 13.75 12.83 14.45
30-45cm 18.52 7.98 14.40 13.55 2.20
45-60cm 14.35 8.89 11.15 14.21 10.91
5/21/2003 7A432E 7A3C6E 7A3B40 7A4AAA
Jianwu's transect
0-15cm 7.71 7.40 6.02 2.32
15-30cm 4.33 14.08 11.72 1.68
30-45cm 8.25 14.63 17.95 13.50
45-60cm 9.66 7.17 19.60 9.31

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

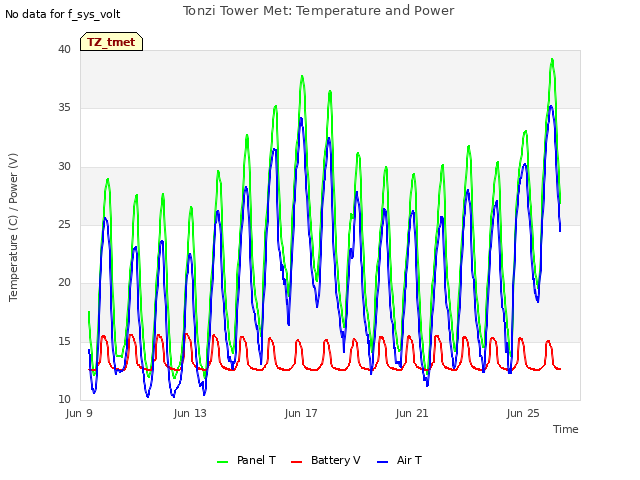

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

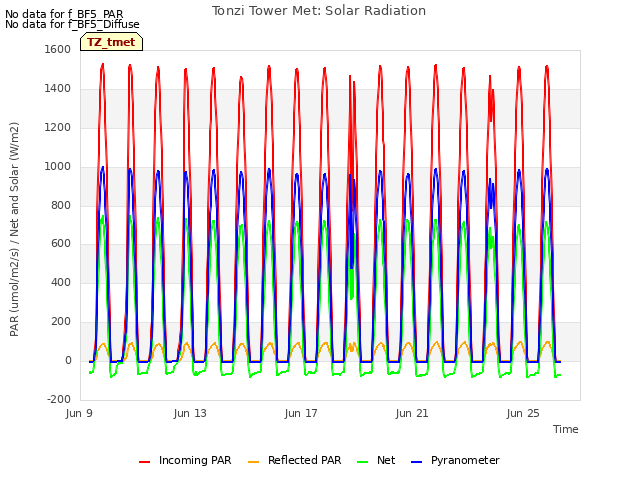

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

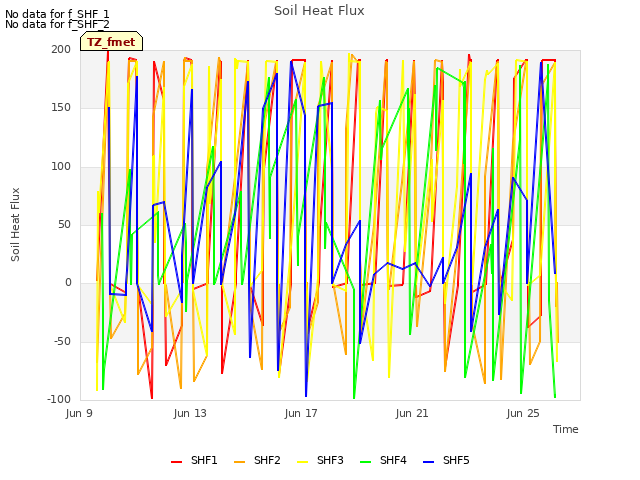

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

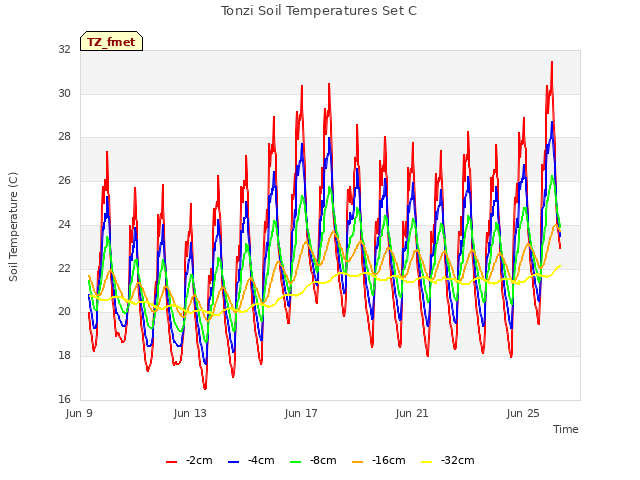

Explore the graph:Tonzi Soil Temperatures Set C in a new window

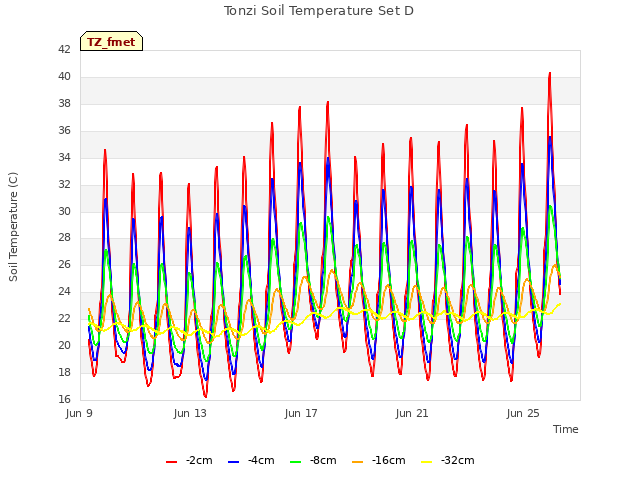

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

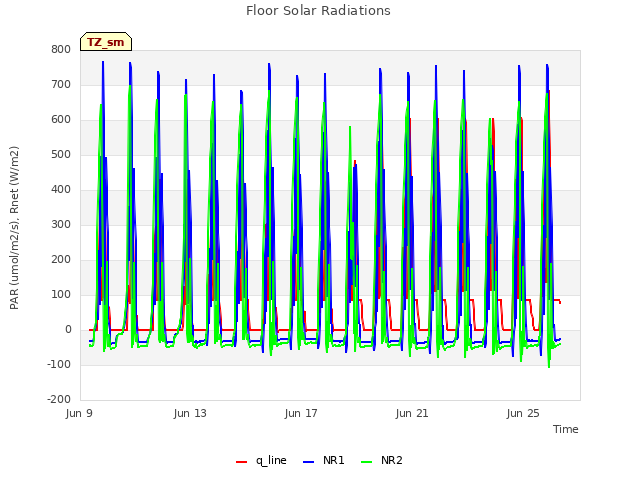

Explore the graph:Floor Solar Radiations in a new window

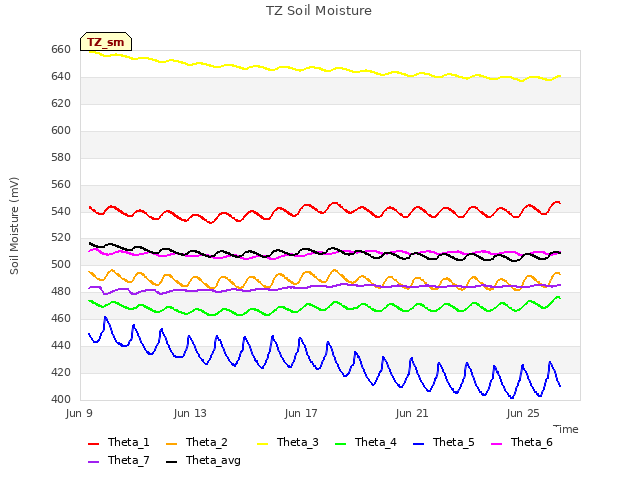

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
