Field Notes

<--2003-06-09 08:00:00 | 2003-06-13 11:25:00-->
Other sites visited today: Tonzi/Vaira
Phenocam link: Searching...

Tonzi: 2003-06-13 11:00:00 (DOY 164)
Author: Ted Hehn
Others: Liukang

Summary: Calibrated li-800 Tower co2 profile. Tried new program for the profile but no good - back to old program

When: Wed., 13Jun03, JD-164
Where: Tonzi/Vaira Ranches
Who: Ted Hehn
Weather Clear, warm and breezy. Grass mostly dead. Yellow and purple flowers still doing well.

Trip Purpose: Zero/span Li800

Tonzi Ranch:
11:00 arrive, install Measur12.dld in CO2 profile cr10X7. Removed Measure6.dld.

Port Flow Pressure
1 2.75 941
2 2.75 941
3 2.70 941
4 2.8 941

Run zero air and LI800 shows –6.8 ppm CO2
CR10x7 shows 0.723 volts

Run span gas 426ppm CO2 and LI800 shows 413.2
CR10X7 shows 413.1

Forgot to bring LI800 serial cable- get one from Jackson Radioshack with wrong gender. Buy gender adapter at PC connection.

Did not have LI800 software on auxiliary PC. Remove tower flux PC for LI800 zero/span sequence.

Set LI800 zero and span. OK all worked well.

Measur12.dld failed and locked up. Remove it and reinstall Measure6.dld on CR10X7.

Reinstall tower flux PC and initiate gillsonic.exe. OK all appears well.

Nitrogen cyl pressure = 900
CO2 cyl press = 1850

Misc Notes
Bring LI800 serial cable
Bring PCMCIA COM port card
Install Li800 software on all PCs

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

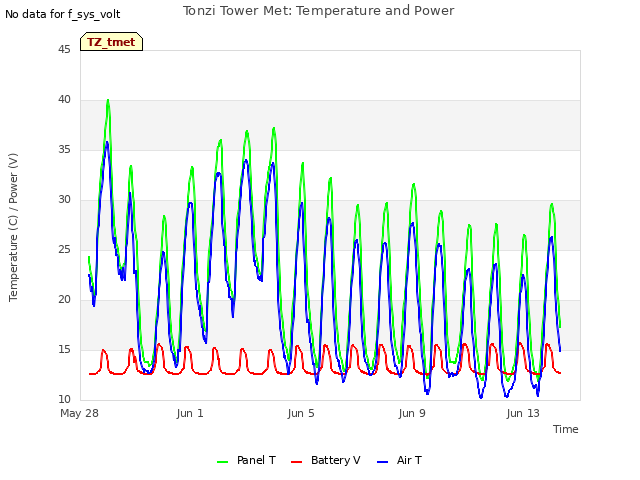

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

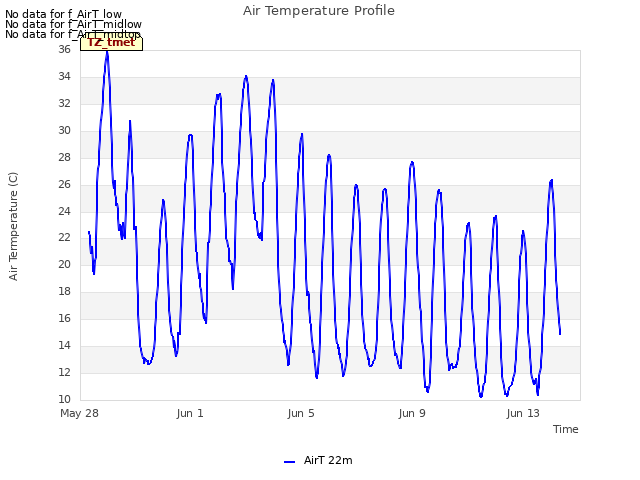

Explore the graph:Air Temperature Profile in a new window

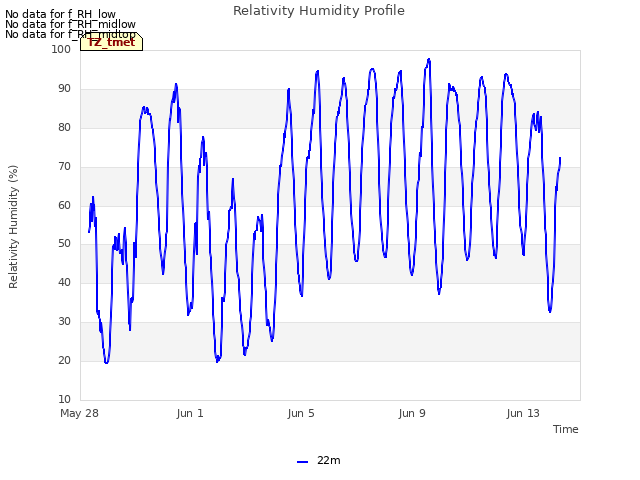

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

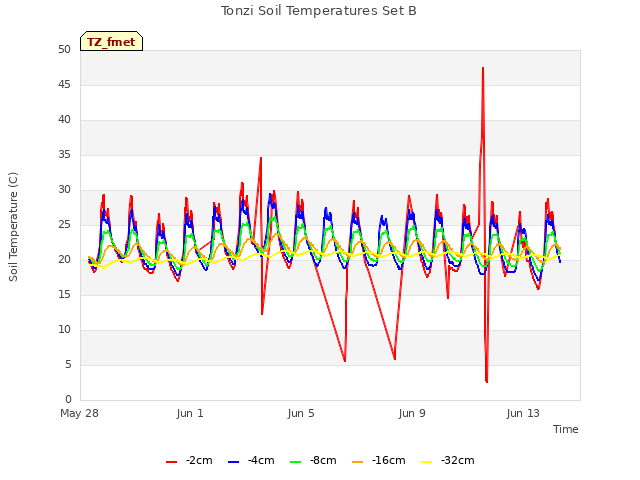

Explore the graph:Tonzi Soil Temperatures Set B in a new window

Explore the graph:Tonzi Soil Temperatures Set C in a new window

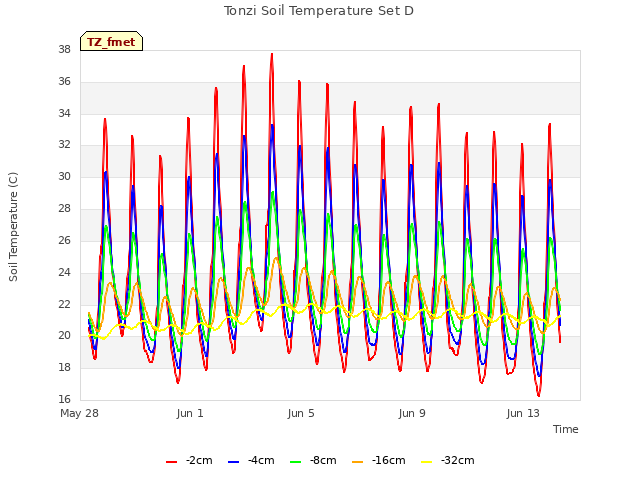

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

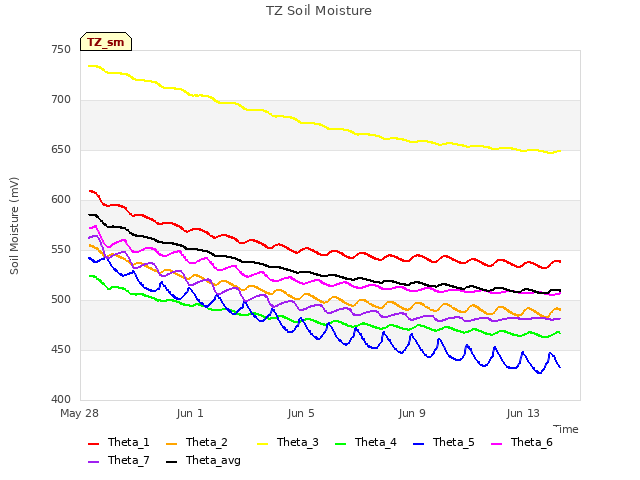

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

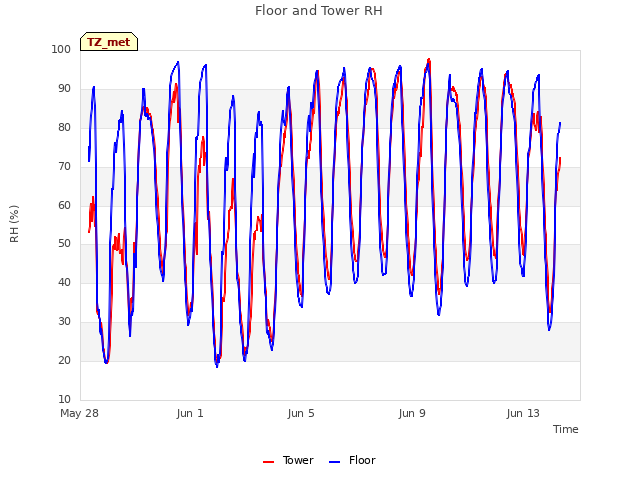

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
