Vaira: 2004-12-09 13:00:00 (DOY 344)
Author: Ted Hehn
Others:
Summary: All is well, some water in 23x box due to wire pinch in door.

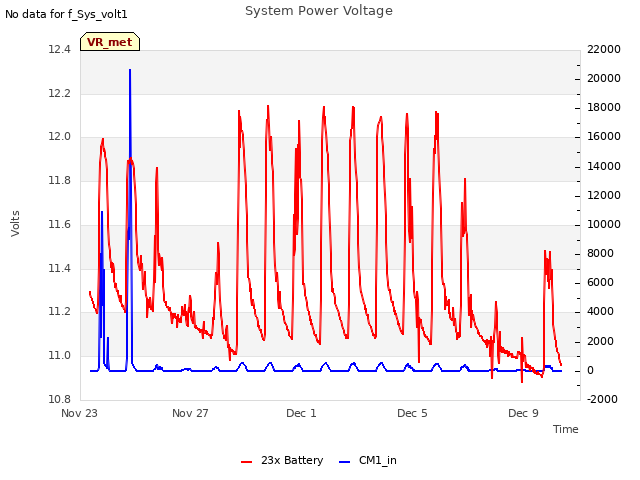

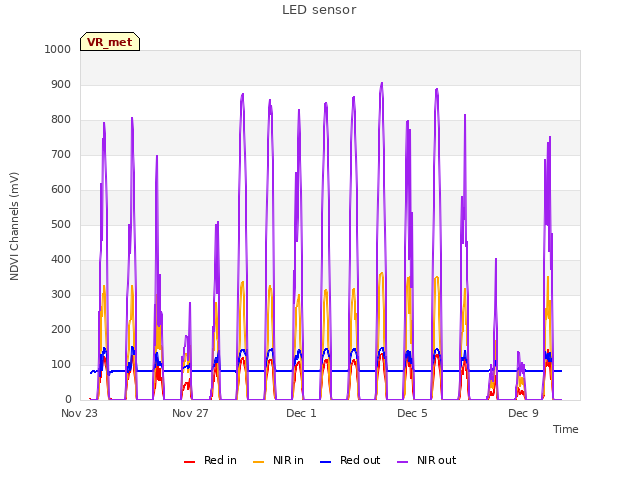

| When: Wed-Thurs 9Dec04 JD-322 Where: Vaira Ranch Who: Ted Hehn Weather – Recent rains, cool and clear Vaira Ranch: 9Dec04 All appears well except there was about 4 oz of water inside the CR23x3 enclosure – no damage. This is a result of having the NDVI leads pinched in the door instead of entering through the cable hole. System volts not reading correctly on data logger. Multi-meter shows 2.2 volts and data logger reading is 1.8. Problem here is that when I reconfigured the met station system I isolated the grounds between the system and the data logger. Therefore, a system ground wire will need to be added to the signal return contact on the data logger. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

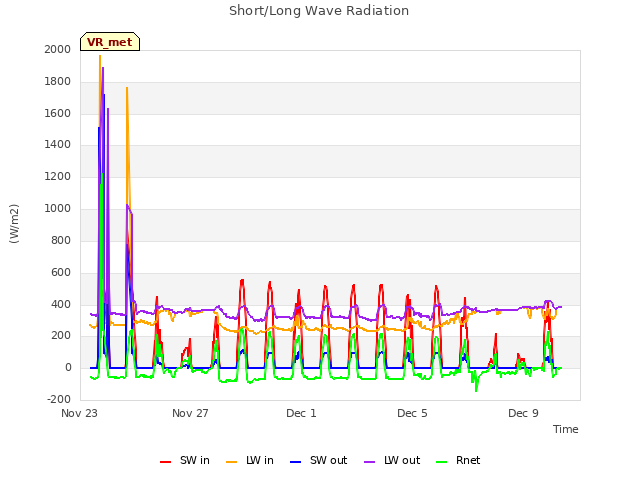

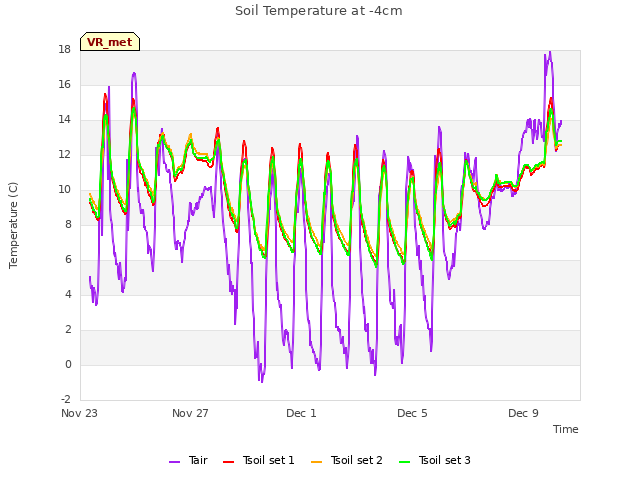

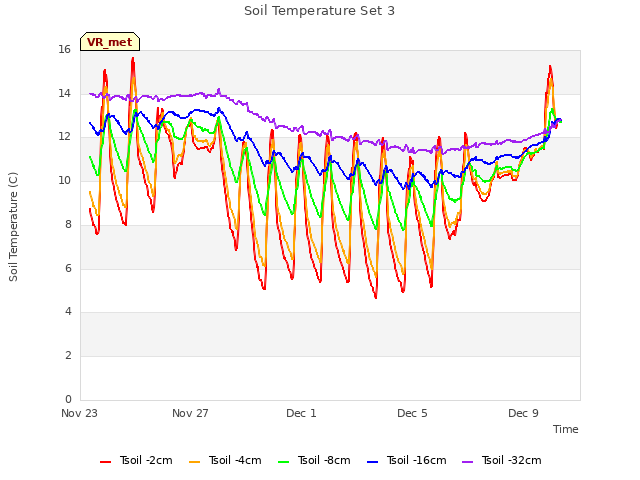

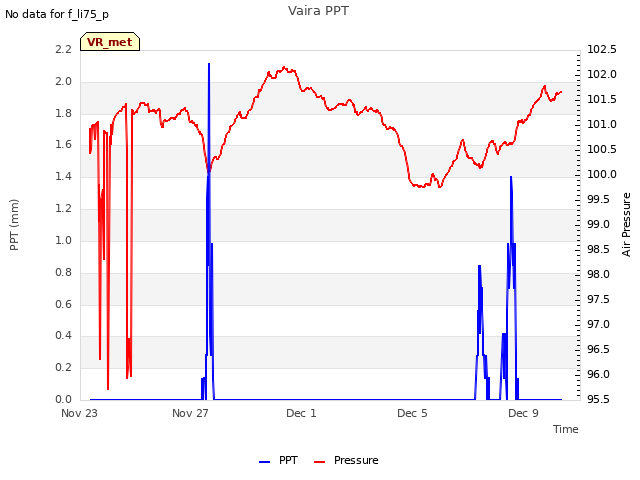

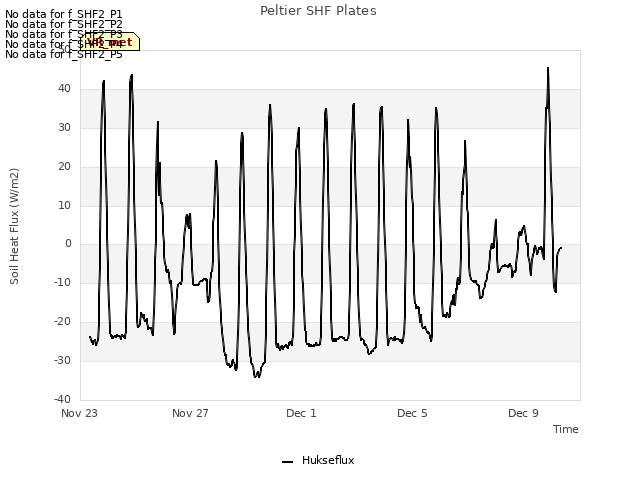

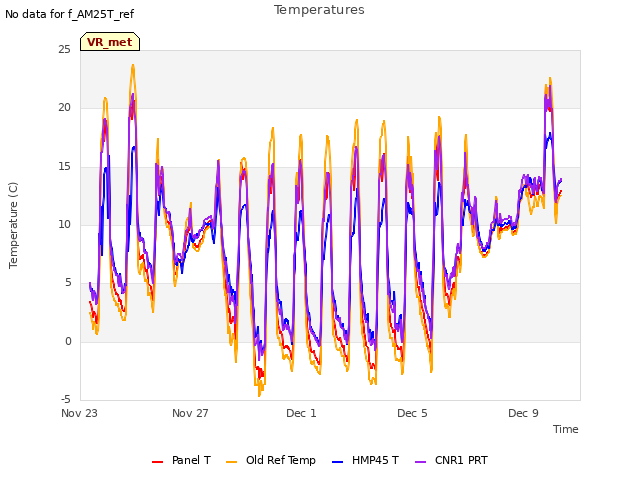

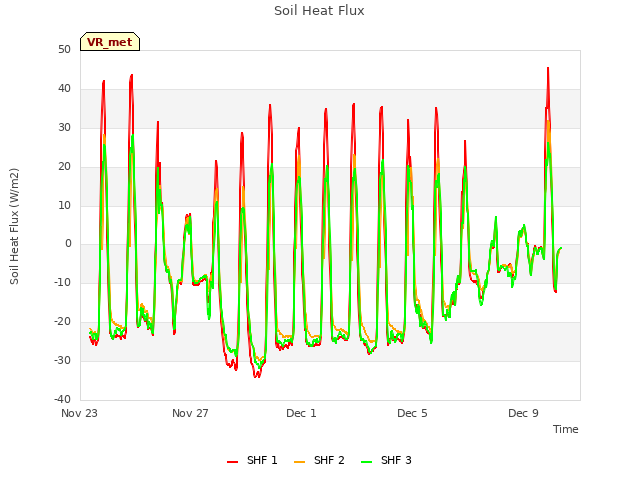

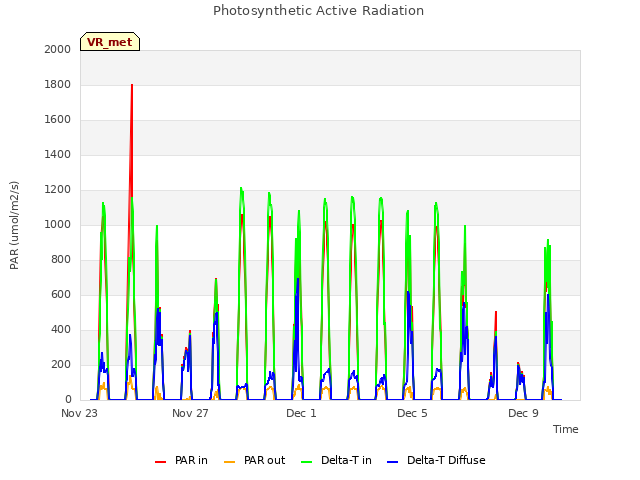

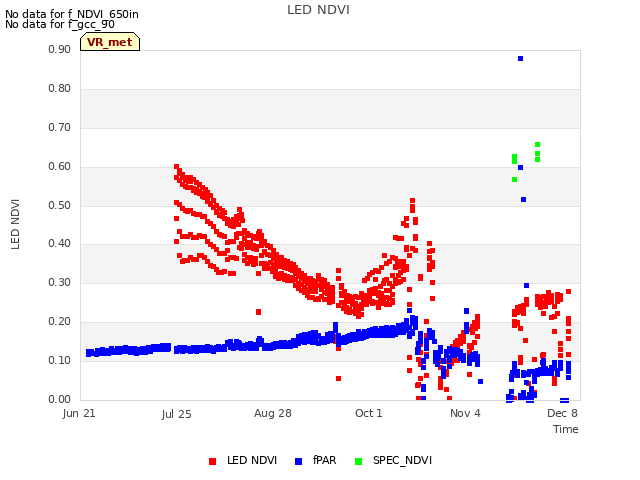

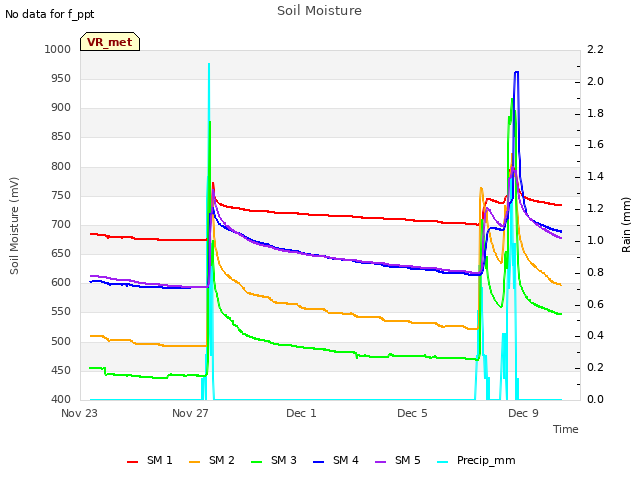

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
