Vaira: 2004-07-22 08:02:00 (DOY 204)
Author: Ted Hehn
Others:
Summary: Start re-configuring met systems
| When: Thur, 22Jul04 JD-204 Where: Vaira Ranch Who: Ted Hehn Weather Clear & Hot Trip Purpose: Reconfigure Vaira site from CR10x.CR23x to CR23x/Mux1/Mux2 Vaira Ranch: 22Jul04 Note: on 23x3 data logger the power wire to the T&RH sensor was loose. 8:02 begin reconfiguration of met-loggers by powering down the data loggers. Remove all wiring from CR23x3. Remove all wiring from CR10x2 Leave wiring for soil profile thermo couples intact on Mux1. Move the soil heat flux leads to channels 16-18 and move all soil moisture leads to channels 19-23. Channels 24-32 open. Remove logger enclosures from mounts and place on ground. Remove all devices and aluminum back panels and use RTV silicon to remount loggers, MD9s and Muxs. Move 4 way radiometer from tripod to new boom arm. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

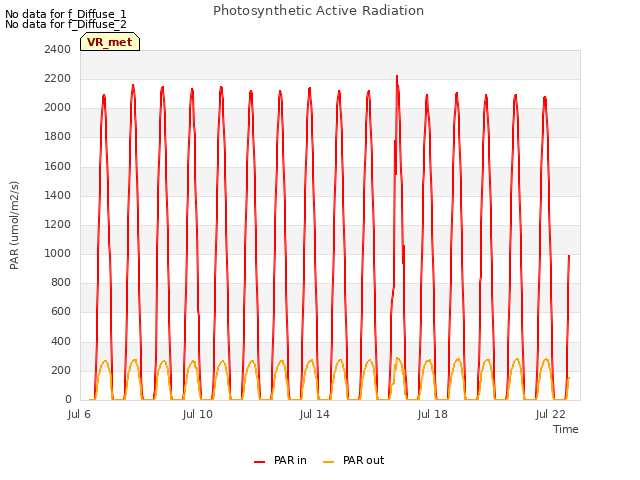

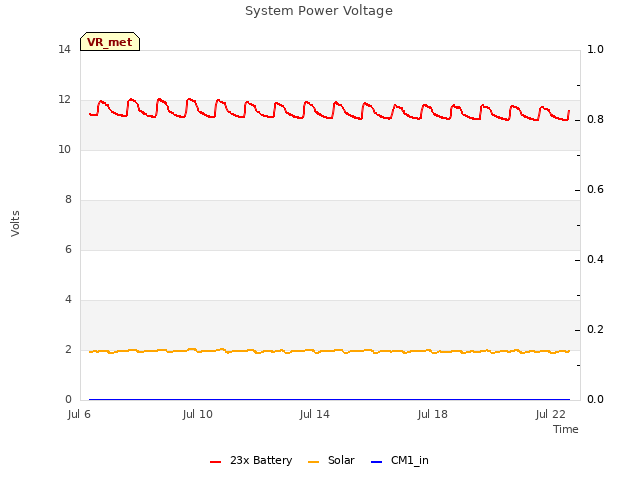

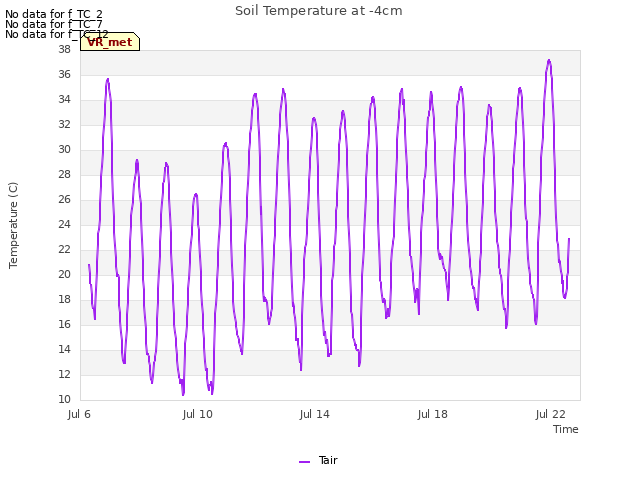

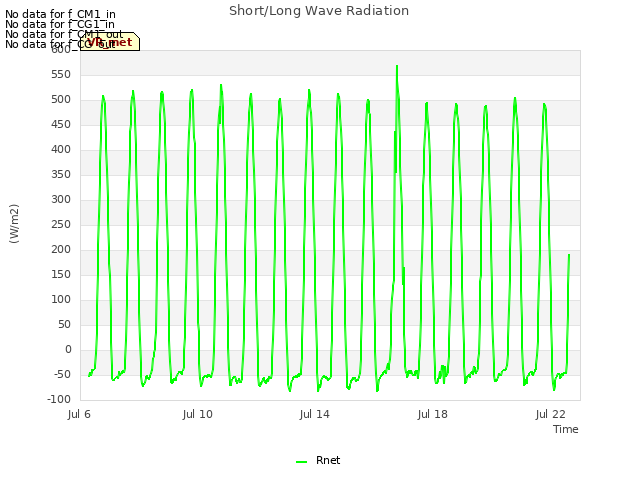

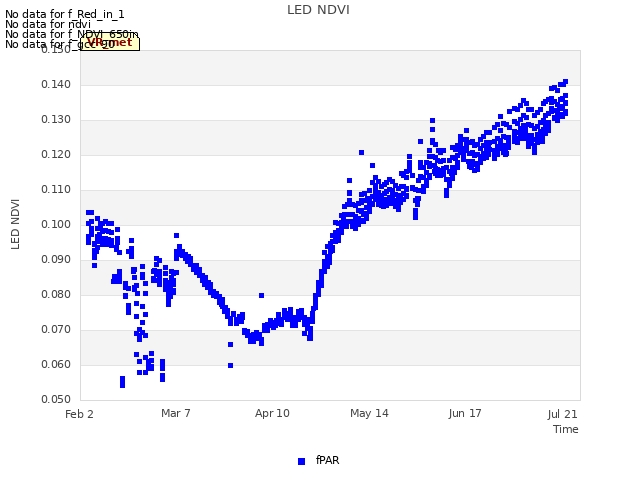

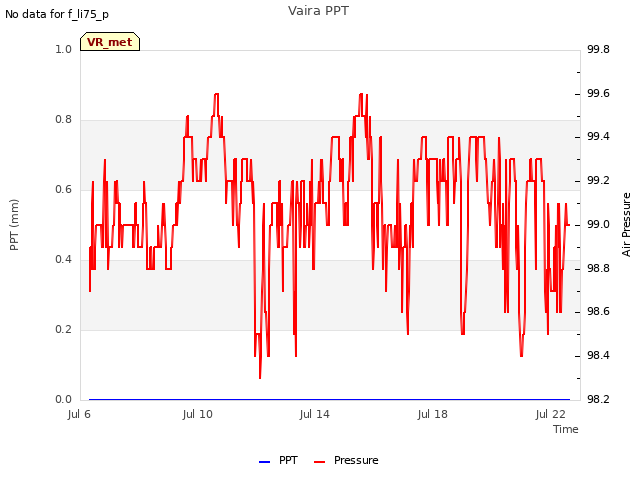

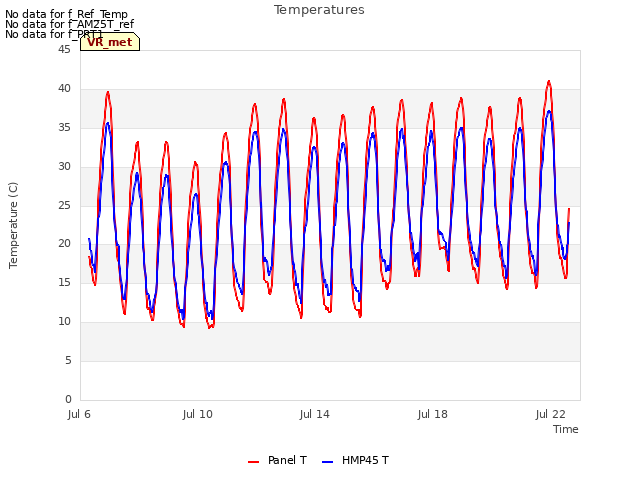

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
