Tonzi: 2003-05-14 00:00:00 (DOY 134)
Author: Ted Hehn
Others:

Summary: Install CO2 profile system, zero/span equipment.

When: Wed., 14May03, JD-134
Where: Tonzi/Vaira Ranches
Who: Ted Hehn
Weather Clear, calm & warm

Trip Purpose: Install CO2 profile system zero/span equipment

Tonzi Ranch:
Arrive 11:00â€“ all appears well
Begin installation of zero/span system.

17:00 Remove CO2 profile CR10x program (Measure4.CSI) and install Measure6.CSI.

Output changes from:

Final Storage Label File for: MEASURE4.CSI
Date: 3/16/2003
Time: 15:53:40

128 Output_Table 1.00 Sec
1 128 L
2 Day_RTM H
3 Hour_Minute_RTM H
4 Cal_Zero_AVG H
5 Pres_Zero_AVG H
6 S_Temp_Z_AVG H
7 C_Temp_Z_AVG H
8 Cal_Span_AVG H
9 Pres_Span_AVG H
10 S_Temp_S_AVG H
11 C_Temp_S_AVG H
12 Cal_Zero_STD H
13 Pres_Zero_STD H
14 S_Temp_Z_STD H
15 C_Temp_Z_STD H
16 Cal_Span_STD H
17 Pres_Span_STD H
18 S_Temp_S_STD H
19 C_Temp_S_STD H

182 Output_Table 1.00 Sec
1 182 L
2 Day_RTM H
3 Hour_Minute_RTM H
4 Panel_T_AVG H
5 Batt_Volt_AVG H
6 CO2_P1_AVG H
7 Pres_P1_AVG H
8 S_Temp_1_AVG H
9 C_Temp_1_AVG H
10 CO2_P2_AVG H
11 Pres_P2_AVG H
12 S_Temp_2_AVG H
13 C_Temp_2_AVG H
14 CO2_P3_AVG H
15 Pres_P3_AVG H
16 S_Temp_3_AVG H
17 C_Temp_3_AVG H
18 CO2_P4_AVG H
19 Pres_P4_AVG H
20 S_Temp_4_AVG H
21 C_Temp_4_AVG H
22 CO2_P1_STD H
23 Pres_P1_STD H
24 S_Temp_1_STD H
25 C_Temp_1_STD H
26 CO2_P2_STD H
27 Pres_P2_STD H
28 S_Temp_2_STD H
29 C_Temp_2_STD H
30 CO2_P3_STD H
31 Pres_P3_STD H
32 S_Temp_3_STD H
33 C_Temp_3_STD H
34 CO2_P4_STD H
35 Pres_P4_STD H
36 S_Temp_4_STD H
37 C_Temp_4_STD H

To:
Final Storage Label File for: MEASURE6.CSI
Date: 5/12/2003
Time: 15:21:11

137 Output_Table 1.00 Sec
1 137 L
2 Day_RTM H
3 Hour_Minute_RTM H
4 Cal_Zero_AVG H
5 Pres_Zero_AVG H
6 S_Temp_Z_AVG H
7 C_Temp_Z_AVG H
8 Cal_Span_AVG H
9 Pres_Span_AVG H
10 S_Temp_S_AVG H
11 C_Temp_S_AVG H
12 SD_CZ H
13 SD_CS H

230 Output_Table 1.00 Sec
1 230 L
2 Day_RTM H
3 Hour_Minute_RTM H
4 Panel_T_AVG H
5 Batt_Volt_AVG H
6 CO2_P1_AVG H
7 Pres_P1_AVG H
8 S_Temp_1_AVG H
9 C_Temp_1_AVG H
10 CO2_P2_AVG H
11 Pres_P2_AVG H
12 S_Temp_2_AVG H
13 C_Temp_2_AVG H
14 CO2_P3_AVG H
15 Pres_P3_AVG H
16 S_Temp_3_AVG H
17 C_Temp_3_AVG H
18 CO2_P4_AVG H
19 Pres_P4_AVG H
20 S_Temp_4_AVG H
21 C_Temp_4_AVG H
22 SD_C1 H
23 SD_C2 H
24 SD_C3 H
25 SD_C4 H

Download all data

Misc Notes
Need to buy Â¼ npt coupler (female to female) to complete zero/span system

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

16 sets found

No data found for TZ_Fenergy.

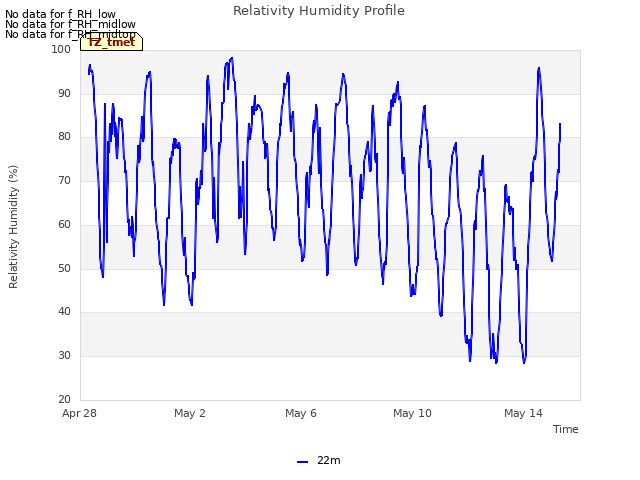

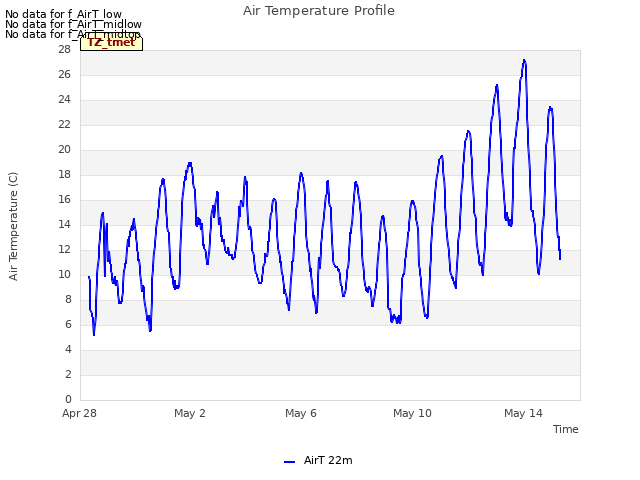

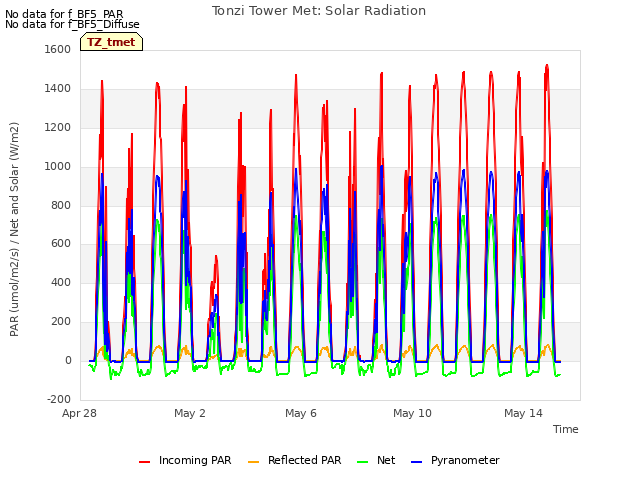

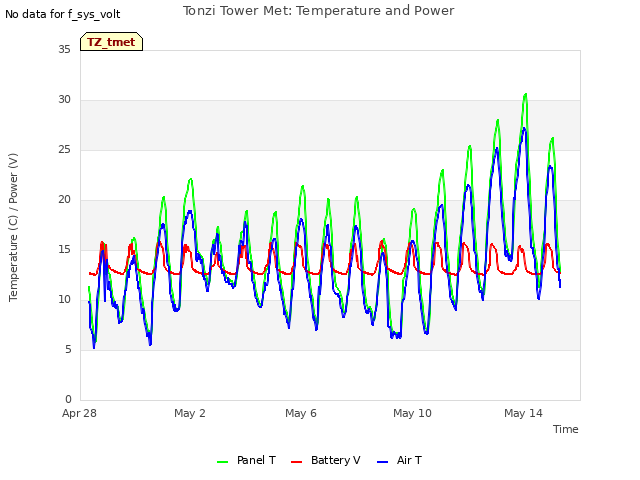

11 TZ_tmet graphs found

No data found for TZ_soilco2.
Can't check TZ_mixed

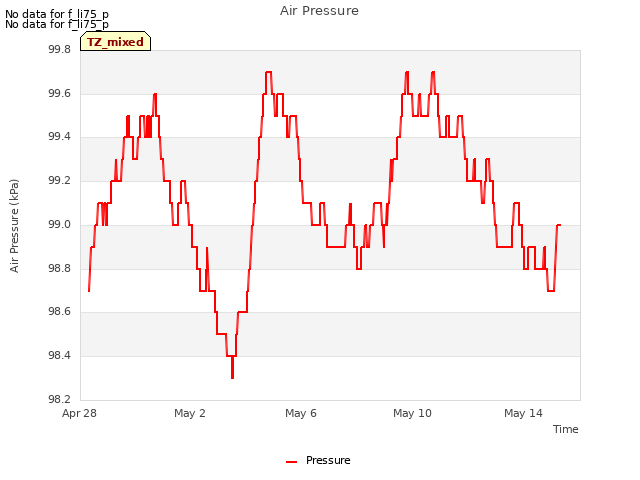

3 TZ_mixed graphs found

No data found for TZ_fflux.

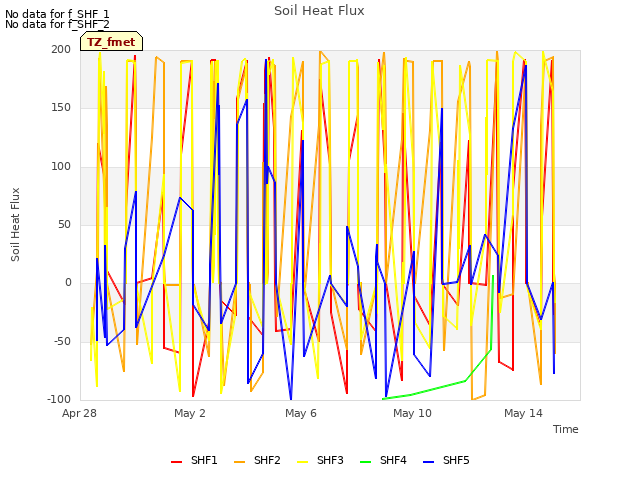

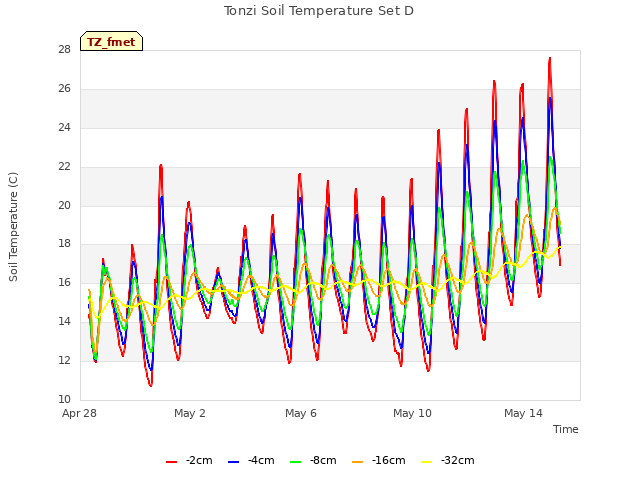

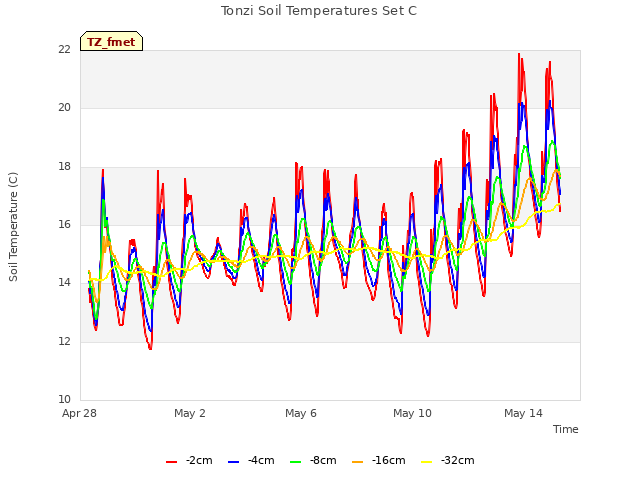

8 TZ_fmet graphs found

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

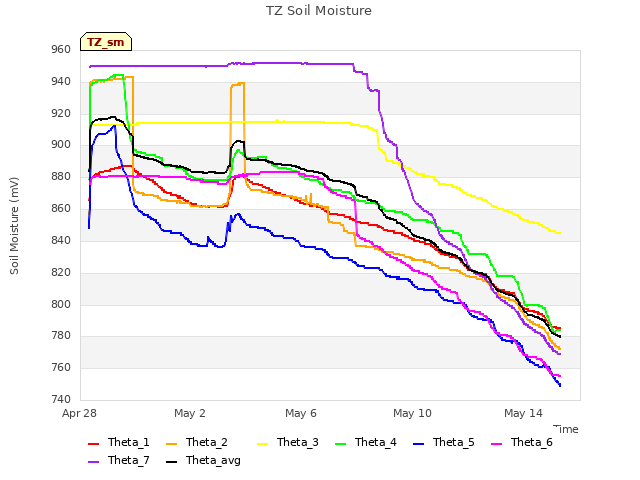

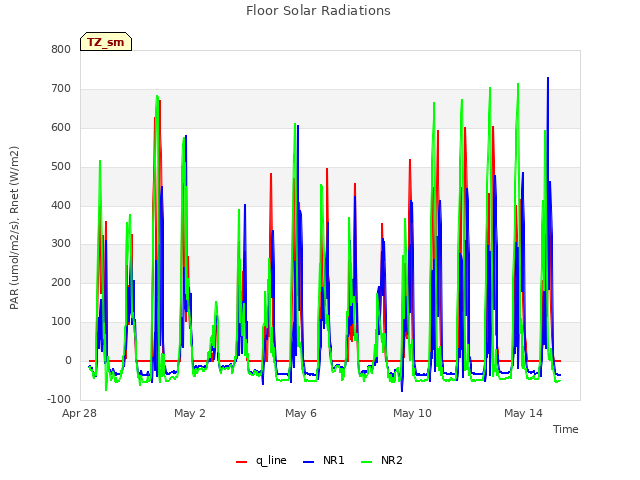

2 TZ_sm graphs found
