Tonzi: 2001-06-21 14:58:00 (DOY 172)
Author: Ted Hehn
Others:
Summary: Backed up floor system files, download data, removed precip gauge, install new software on PCs
| 21Jun01 07:00 arrive Vaira - pc is shut off -- appears Targus power converter for the pc has some form of failure during my absence -- possibly due to thermal shut down protection so replace pc battery to solve problem. -08:00 arrive Tonzi site - begin backing up floor system files and settings -- this pc had Windows 98 installed on PRIMARY DOS PARTITION which is different from all other pc's - perform manual download of all memory from all data loggers - delete primary DOS partition and install Windows 2k - remove precip gauge from orange exclosure and install on tower -- 23x within orange exclosure still contains precip output and is bogus from this point forward -- 23x on tower does not have precip output at this time - had problems installing Socket I/O software for com 3 that communicates with Campbell data loggers -- cannot install directly from CD. Must use control panel then add hardware and allow windows 2k to select proper *.INI file from CD rom -- ok now working correctly - achieve proper communications with first 4 data loggers and then achieve momentary communication with tower 23x then lose it -- now unable to communicate with any of the 5 data loggers - leave Tonzi site |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
Water Potential - mode: raw
| Time | Species | Tree | readings (bar) | ||
|---|---|---|---|---|---|
| 2001-06-21 03:15:00 | OAK | 245 | -25.0 | -26.0 | -21.6 |
| 2001-06-21 03:15:00 | OAK | 248 | -18.8 | -17.5 | |
| 2001-06-21 03:15:00 | OAK | 252 | -18.3 | -19.4 | |
| 2001-06-21 03:15:00 | OAK | 255 | -16.9 | -15.8 | |
| 2001-06-21 03:50:00 | OAK | 72 | -12.8 | -11.0 | |
| 2001-06-21 03:50:00 | OAK | 77 | -18.6 | -17.8 | |
| 2001-06-21 03:50:00 | OAK | 79 | -15.2 | -15.3 | |
| 2001-06-21 03:50:00 | PINE | 78 | -16.3 | -9.7 | |
| 2001-06-21 14:05:00 | OAK | 245 | -20.8 | -33.6 | |
| 2001-06-21 14:05:00 | OAK | 248 | -36.7 | -35.8 | |
| 2001-06-21 14:05:00 | OAK | 252 | -36.2 | -37.2 | |
| 2001-06-21 14:05:00 | OAK | 255 | -35.1 | -29.2 | |
| 2001-06-21 14:05:00 | OAK | 72 | -34.6 | -35.3 | |
| 2001-06-21 14:05:00 | OAK | 77 | -33.7 | -37.2 | |
| 2001-06-21 14:05:00 | OAK | 79 | -36.5 | -35.3 | |
| 2001-06-21 14:05:00 | PINE | 78 | -27.5 | -21.7 | |
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

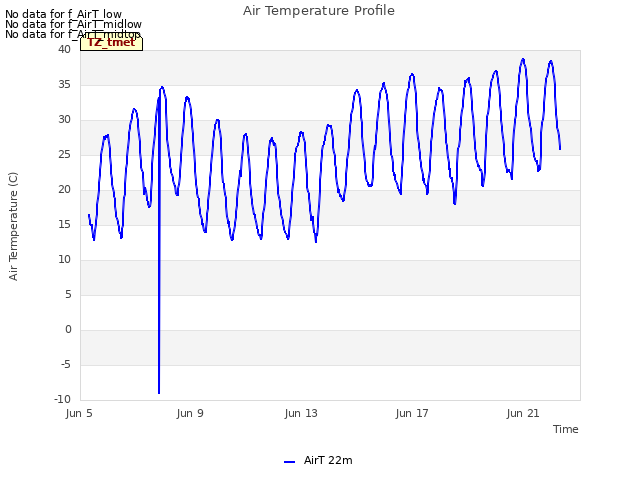

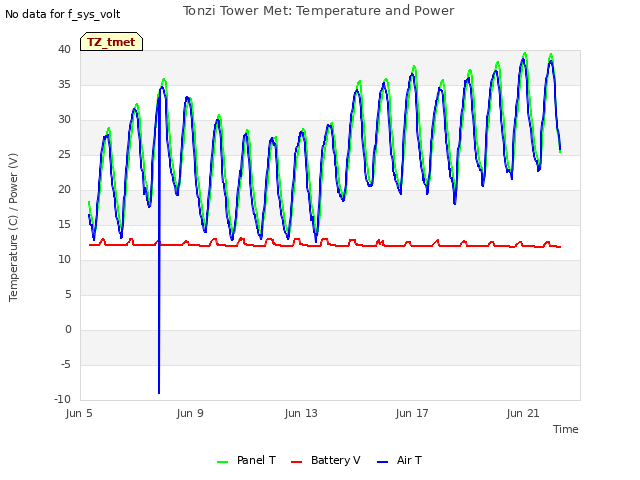

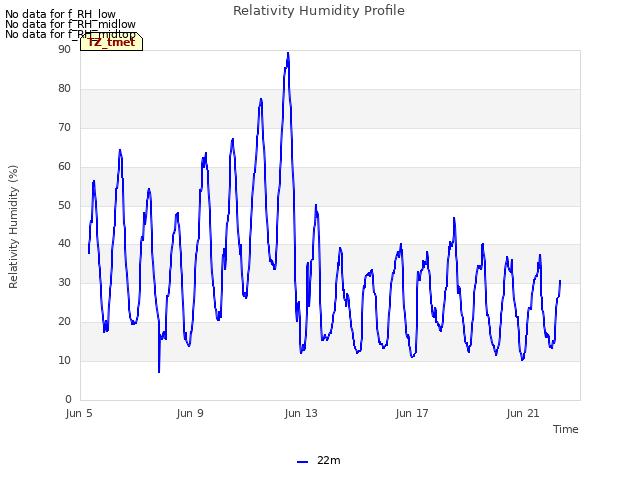

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

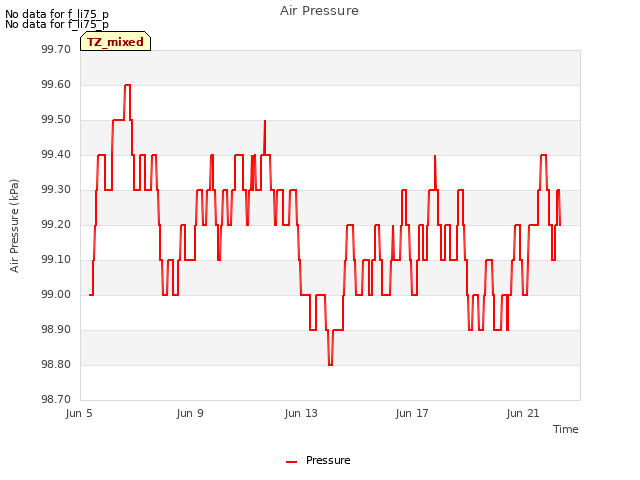

3 TZ_mixed graphs found
No data found for TZ_fflux.

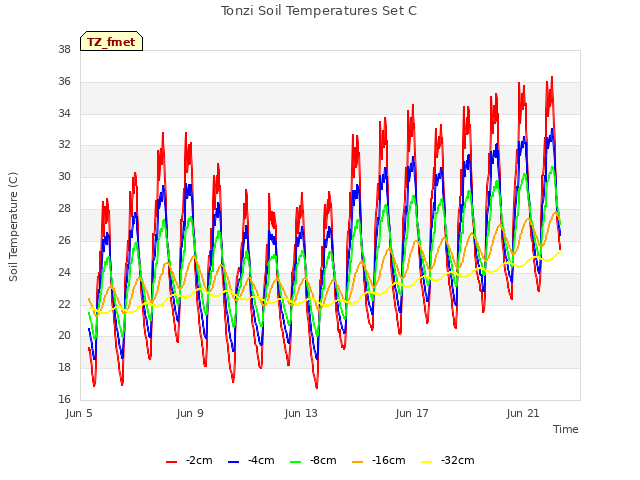

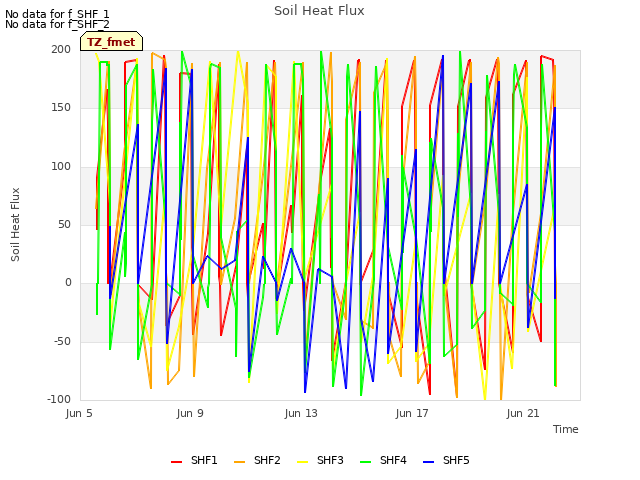

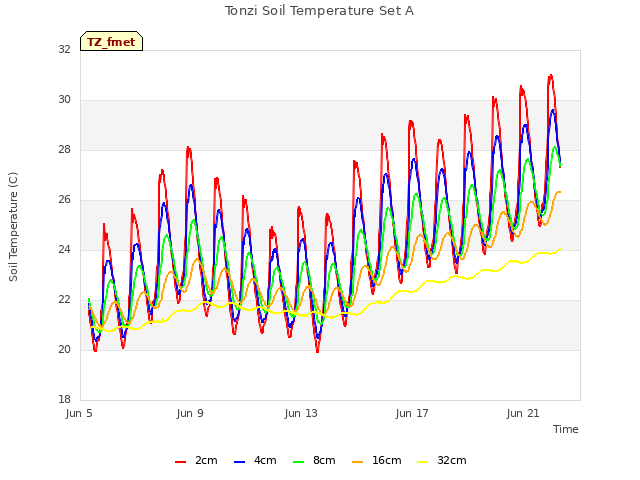

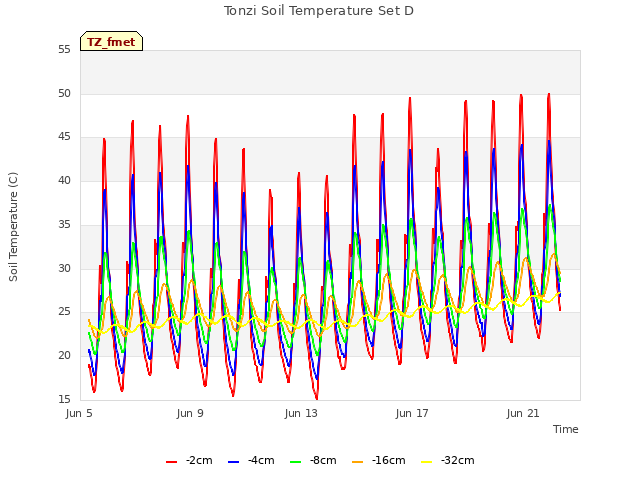

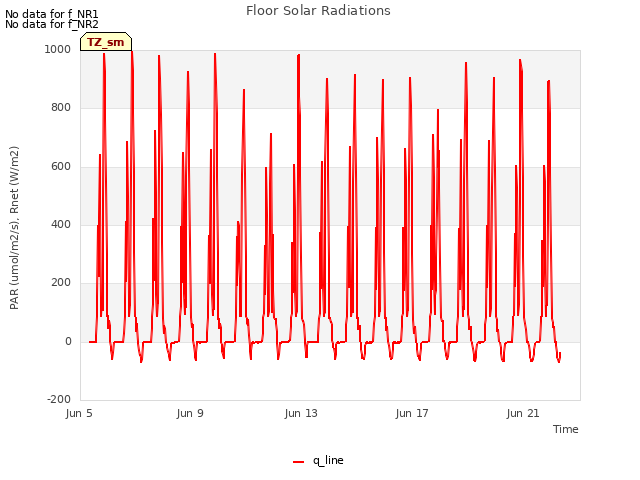

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

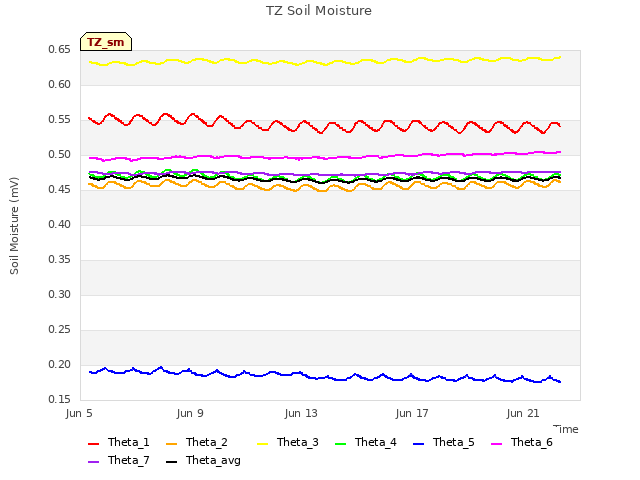

2 TZ_sm graphs found
Can't check TZ_met

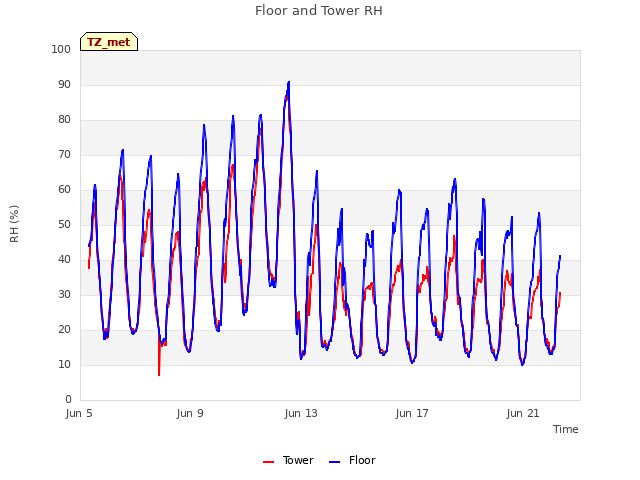

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
