Tonzi: 2016-12-20 09:20:00 (DOY 355)
Author: Siyan Ma
Others: Joe

Summary: Vaira Pond is full, standard field work, repaired fences at Tonzi, restarted CO2 profile.

When: Date: 12/20/2016 , Watch Time: 9:20 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe

Weather: clear, sunny

Phenology:

Summary

I downloaded Pheno images and swapped the memory card of CR1000 at Vaira while Joe went to visit the pond. The pond is full.
Joe swapped memory cards of CR1000s and checked met data from PC at Tower, Floor. See his notes on details.
Joe reinstalled a new pump for the CO2 profile system
Read dendrometers
Measured soil moisture
Measure groundwater well

Vaira_Grass Site

Downloaded Phenocam images.
Swapped the memory cards of CR1000.

Screen shot of Vaira flux data logger table

Checked the fans of air temp and relative humidity sensors at Vaira. YES!
Downloaded met and soil CO2 profile data:

Screen shot of Vaira met data logger table

Screen shot of Vaira soil co2 data logger table

Checked levels of Radiation sensors, clear up surfaces. YES!
Checked rain gage, make sure not clogged. YES!
Closed gate and set up fence. YES!

Tonzi_Tower Site

Fence was broken. Joe fixed it.
Joe swapped the memory cards of CR1000.

Screen shot of tower flux data logger table

Joe download Phenocam images. Yes!
Joe checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
Checked rain gage, make sure not clogged. YES!
Screens of met dataloggers: CR23X3 â€“ floor-Met; CR23X6 â€“ tower-Met; CR10X2 â€“ floor-Met; Soil CO₂ profile: CR23X5 â€“ soil CO₂ profile

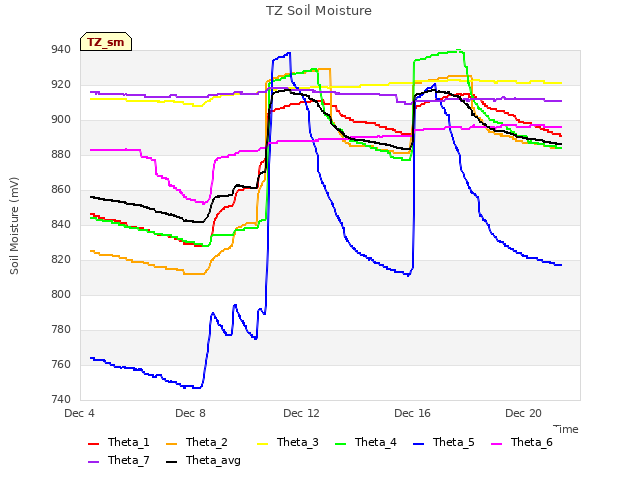

Screen shot of soil moisture data logger table

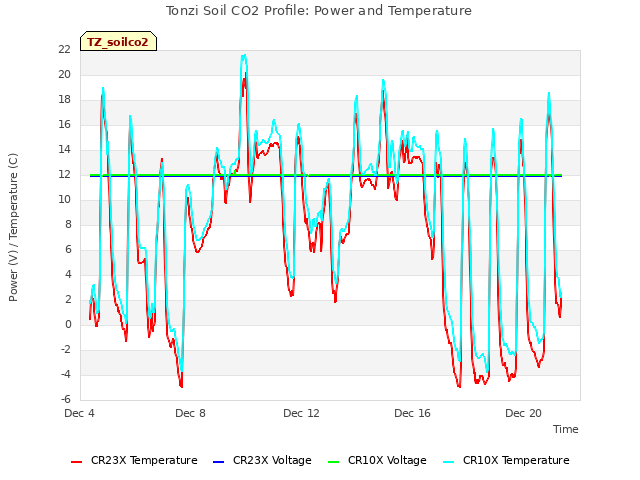

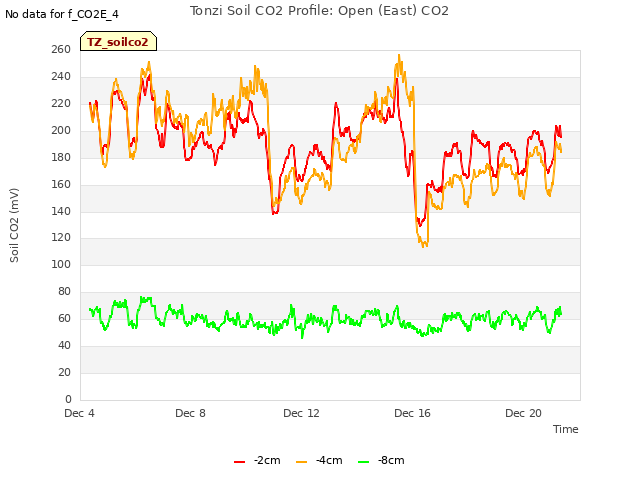

Screen shot of soil co2 data logger table

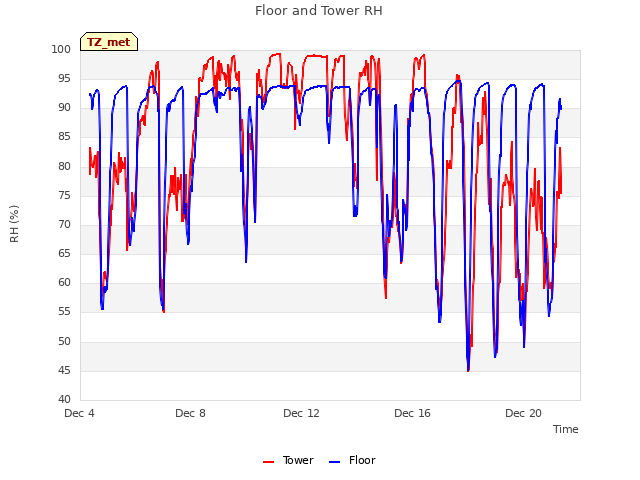

Screen shot of tower met data logger table

Joe reinstalled a new pump for the CO2 profile system

8. closed gate and set up fence. YES!

Toniz_Floor Site

Fence and gate power: 12 v.
Joe swapped the memory cards of CR1000.
Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2016-12-20	TZ_floor	28.6
2016-12-20	TZ_road	37.7
2016-12-20	TZ_tower	32.8
2016-12-20	VR_pond	22.14

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => SoilCO2_4 [40] => Soil_Transect_4_4 [41] => Soil_Transect_3_4 [42] => Soil_Transect_2_4 [43] => Soil_Transect_1_4 [44] => SoilCO2_West_A_4 [45] => SoilCO2_West_B_4 [46] => SoilCO2_West_C_4 [47] => Floor_West_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_4	Spacial Count
2016-12-20	355	0	nan	34.3	23.2	40.8	35.8	36.7	29.7	29.1	28.5	30.2	25.3	28.2	32.9	44.2	43.3	43.6	37.4	34.7	39.6	32.6	32.9	26.1	32.6	30.1	33.8	39.4	42.7	51.1	40.2	42.7	38	33.5	35.7	35.7	36	38.8	37.4	41.7	54.9	64.9	44	35.4	44.8	47.4	38.8	44	50.3	50.3
2016-12-20	355	1	nan	33.2	23.1	41.7	39.6	39.9	30.2	29.4	27.3	29.9	32.9	28.8	32	44.2	29.9	42.3	31	32.9	40.5	33.2	323	26.1	30.7	29.5	33.8	39.1	42.4	46.9	39.1	42.4	37.1	34.1	34.9	35.4	35.4	38	37.4	40.5	53.7	61.2	42	35.7	46	47.4	38.5	45.7	50.6	49.7	45.1
2016-12-20	355	Avg	0-15cm																																																	0
2016-12-20	355	Avg	15-30cm																																																	0
2016-12-20	355	Avg	30-45cm																																																	0
2016-12-20	355	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2016-12-20	355	0	nan	32	25.6	27.9	12.1	31.3	29.5	21.3	23.7	34.3	16.8	26.5	33.2	44.5	29.4	23.6	32.5
2016-12-20	355	1	nan	31.7	25	27.9	12.4	30.7	29.5	20.6	23.4	31.8	17.3	25.7	32.4	42.8	29.9	24.2	33.1
2016-12-20	355	Avg	0-15cm																	0
2016-12-20	355	Avg	15-30cm																	0
2016-12-20	355	Avg	30-45cm																	0
2016-12-20	355	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2016-12-20	1	25.6
2016-12-20	102	23.1
2016-12-20	2	19.6
2016-12-20	245	23.1
2016-12-20	3	23.7
2016-12-20	4	19.1
2016-12-20	5	20.6
2016-12-20	7	17.2
2016-12-20	72	23.5
2016-12-20	79	23.2
2016-12-20	8	20.5
